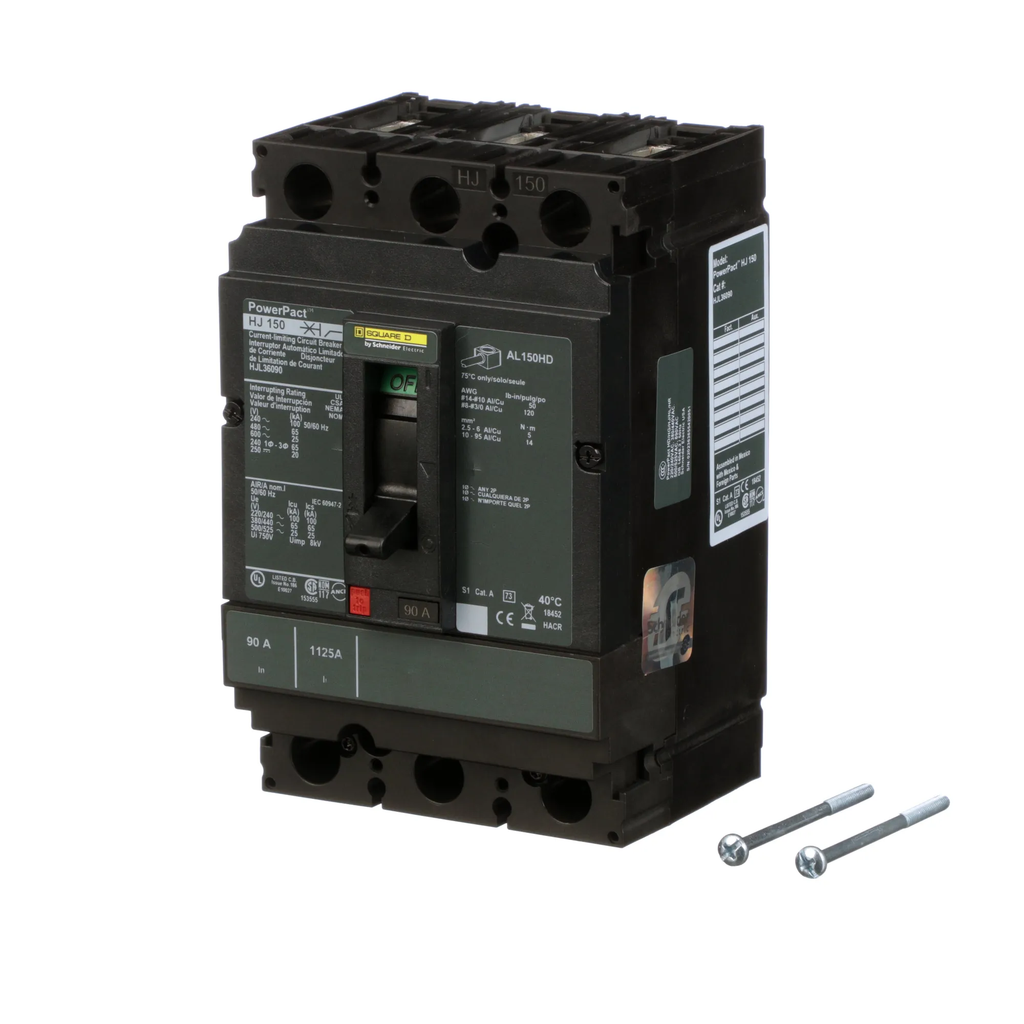

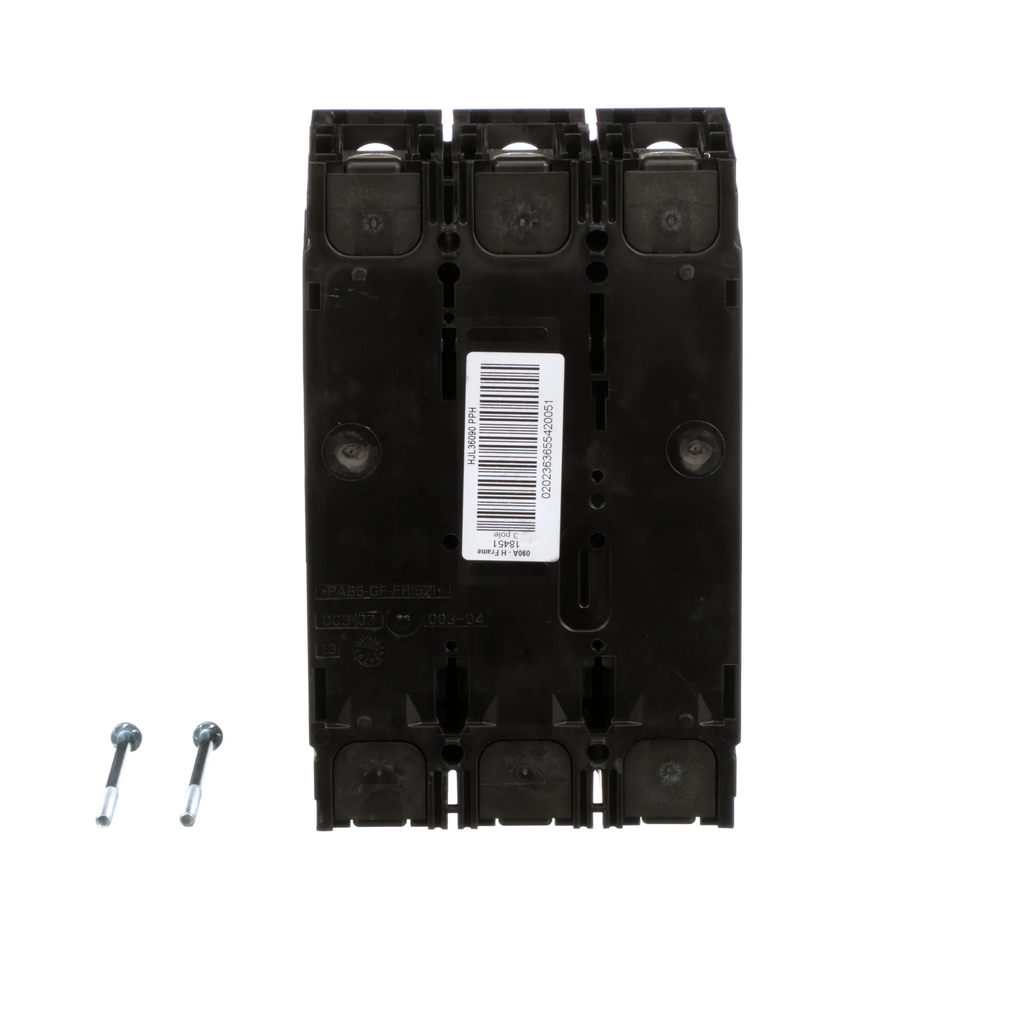

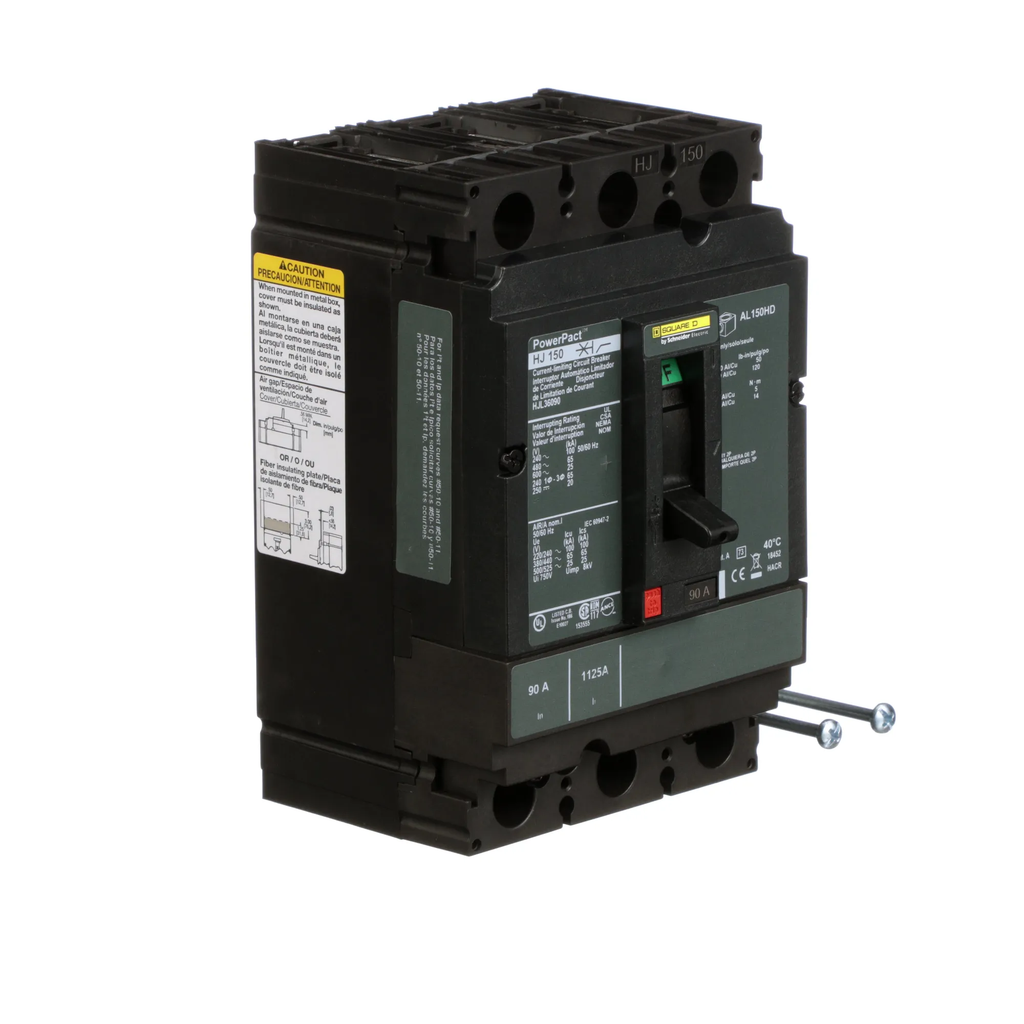

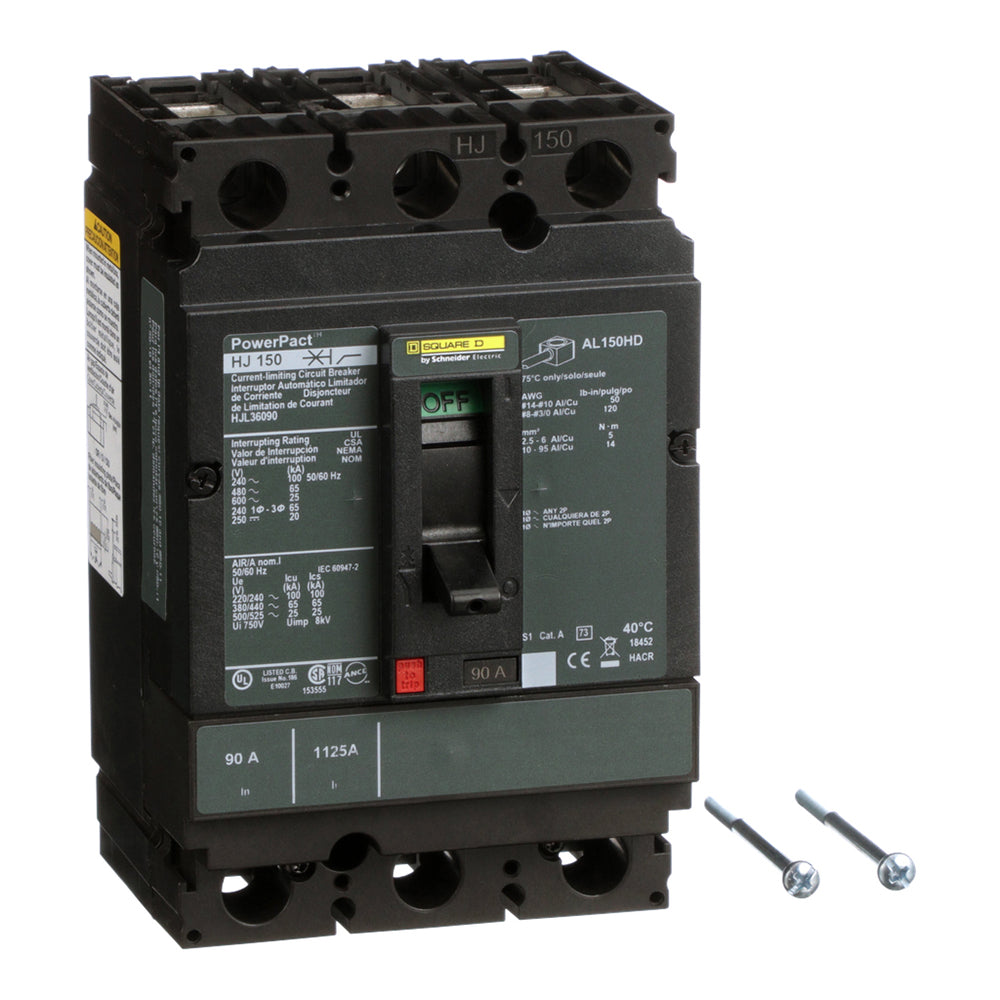

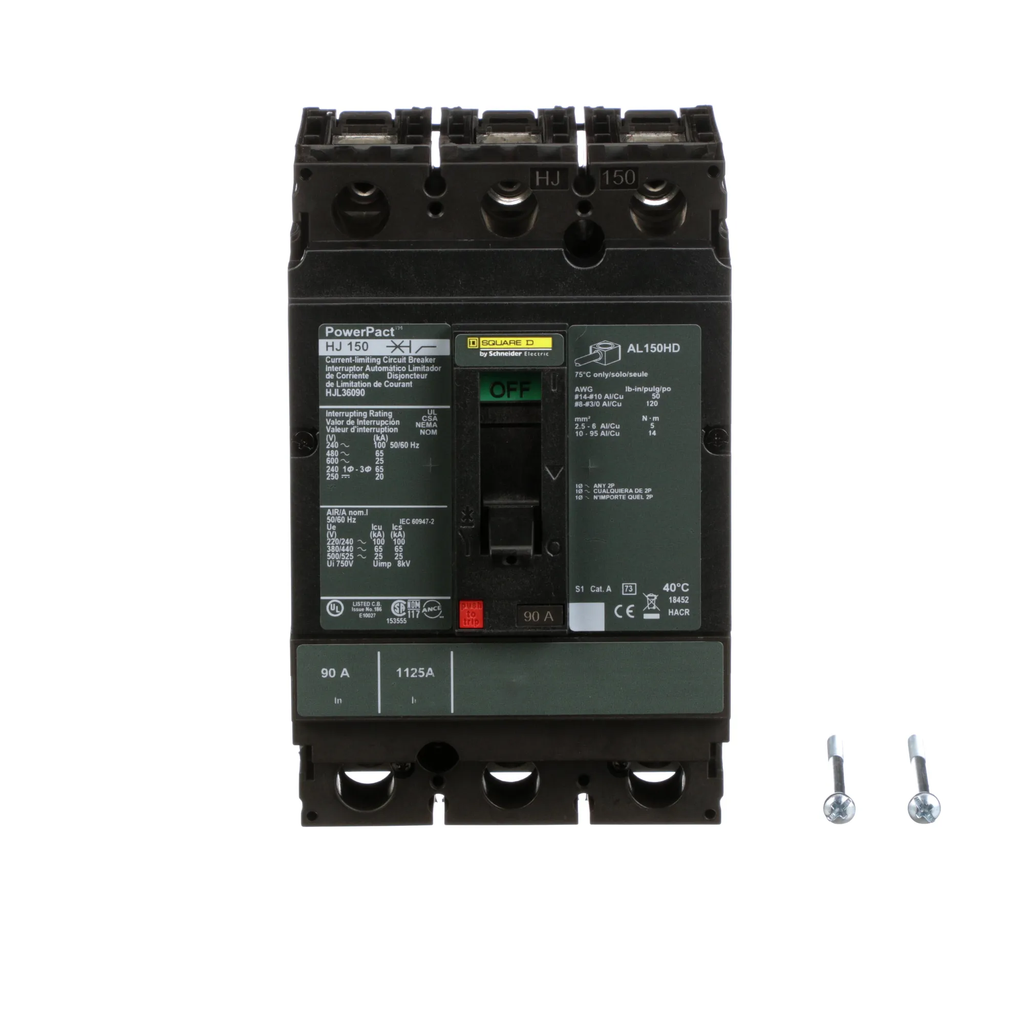

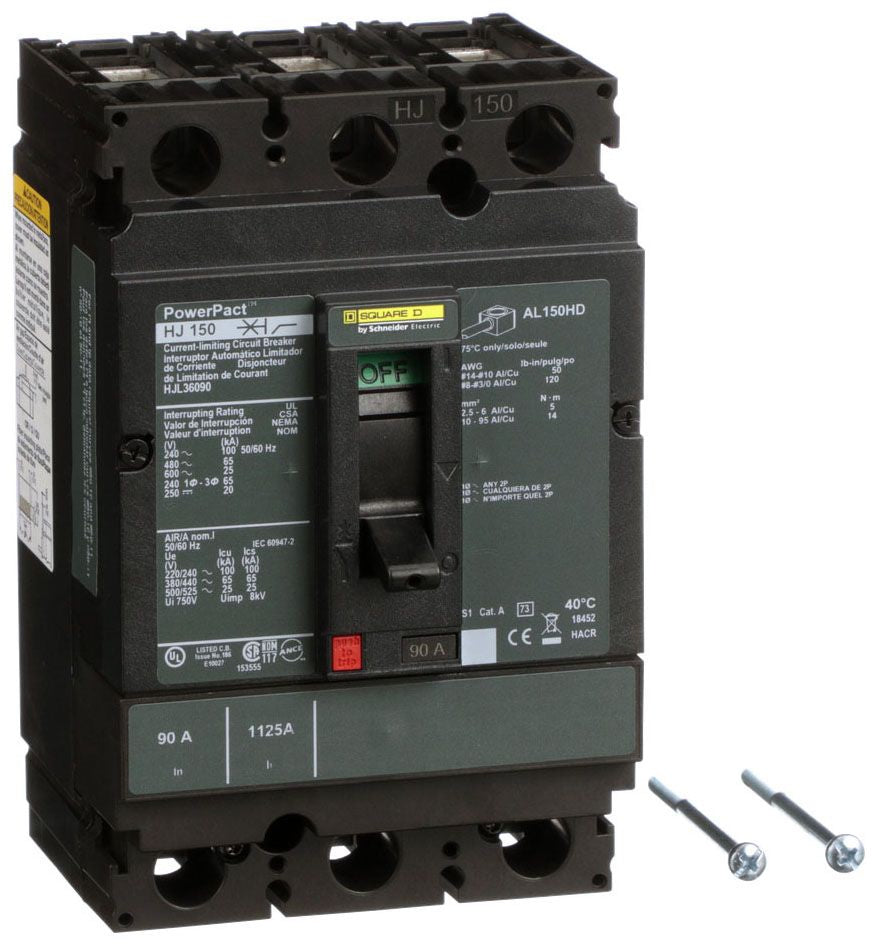

HJL36090 - Square D 90 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker

HJL36090

HJL36090 is a 90 Amp, 600 Volt, 3 Pole thermal magnetic molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D HJL36090 circuit breaker features a thermal magnetic trip unit with a 65kA interrupt rating at 480V and 25kA at 600V. It is a member of the Powerpact H frame family, UL 489 listed, and suitable for unit mount installation. The breaker supports 600VAC and 250VDC applications, providing current limiting protection with a compact size.

Key Specifications
• Amperage: 90 Amps
• Voltage Rating: 600VAC / 250VDC
• Poles: 3 Pole
• Interrupt Rating: 65kA @ 480V, 25kA @ 600V
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Series/Frame: Powerpact H Frame
• Certifications: UL 489 Listed, CSA, NEMA, IEC, CE Marked
• Type: Molded Case Circuit Breaker
• Current Limiting: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901839897
• GTIN : 00785901839897
• Country of Origin : Mexico

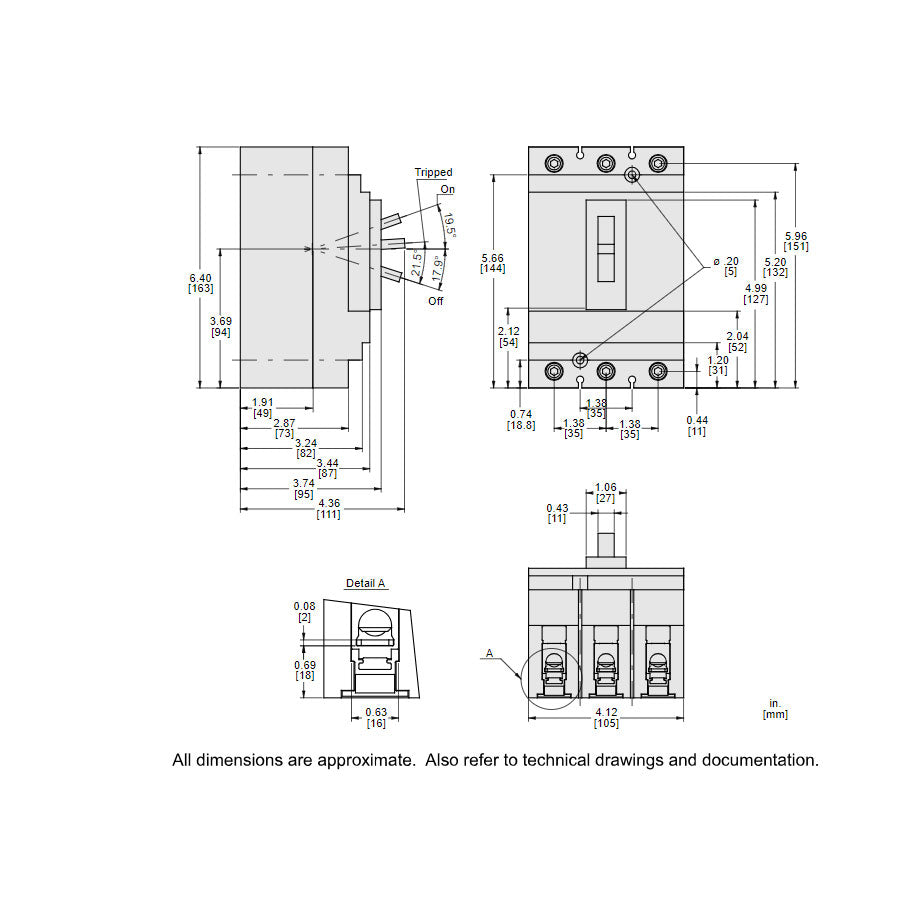

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.169
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
