HJL36060U44X - Schneider Electric Powerpact H 60A 600V 3-Pole Molded Case Circuit Breaker LSIG Trip

HJL36060U44X

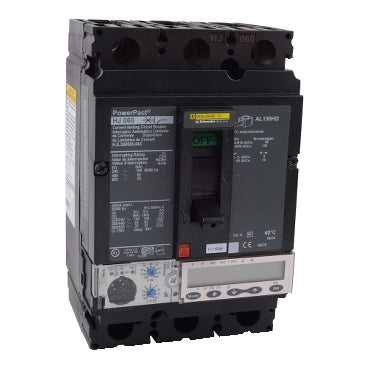

HJL36060U44X is a Schneider Electric Powerpact H series 3-pole molded case circuit breaker rated for 60 amps and 600 volts with LSIG trip unit.

This circuit breaker features an electronic trip unit with ammeter and Micrologic 6.2 A technology providing long-time, short-time, instantaneous, and ground fault protection. It has a 65 kA interrupt rating at 480 V AC and is designed for unit mounting with line and load side lug connections compatible with AWG 14 to 3/0 aluminum or copper wiring. The breaker is certified to IEC, CSA, CE, CCC, and UL standards.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 V AC
• Poles: 3
• Frame/Series: Powerpact H
• Trip Unit: Electronic LSIG with Micrologic 6.2 A
• Interrupt Rating: 65 kA at 480 V AC
• Mounting Type: Unit Mount
• Connection Type: Line and Load Side Lugs
• Wire Gauge: AWG 14 to 3/0 Aluminum/Copper
• Certifications: IEC, CSA, CE, CCC, UL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36060U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 3606486119143
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
