Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HJL36020

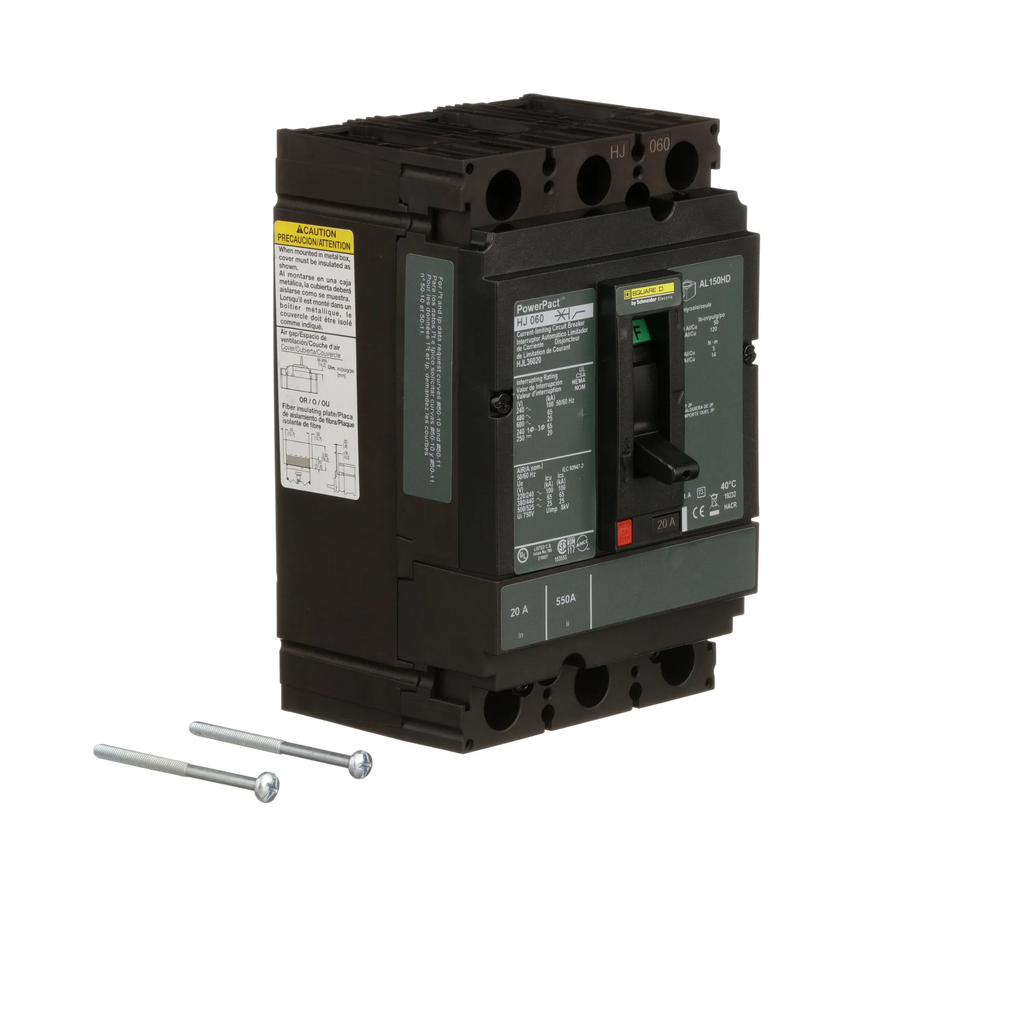

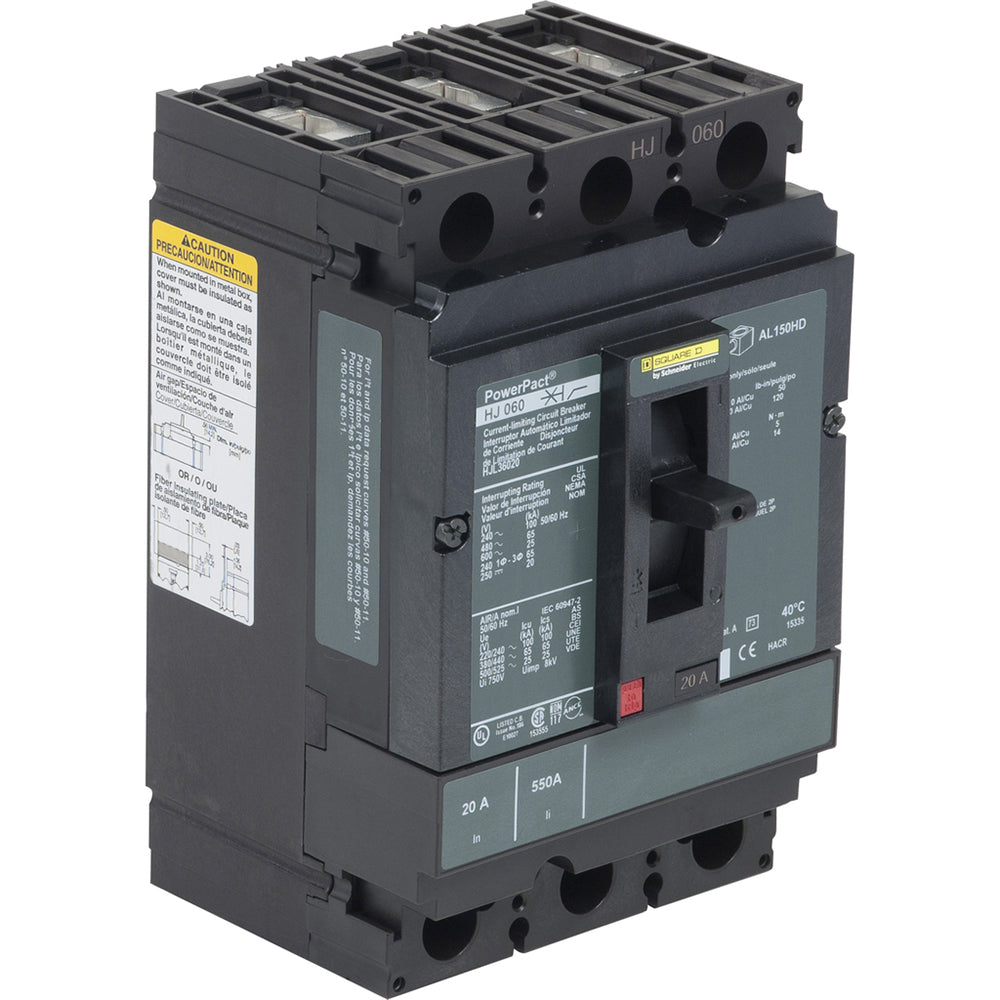

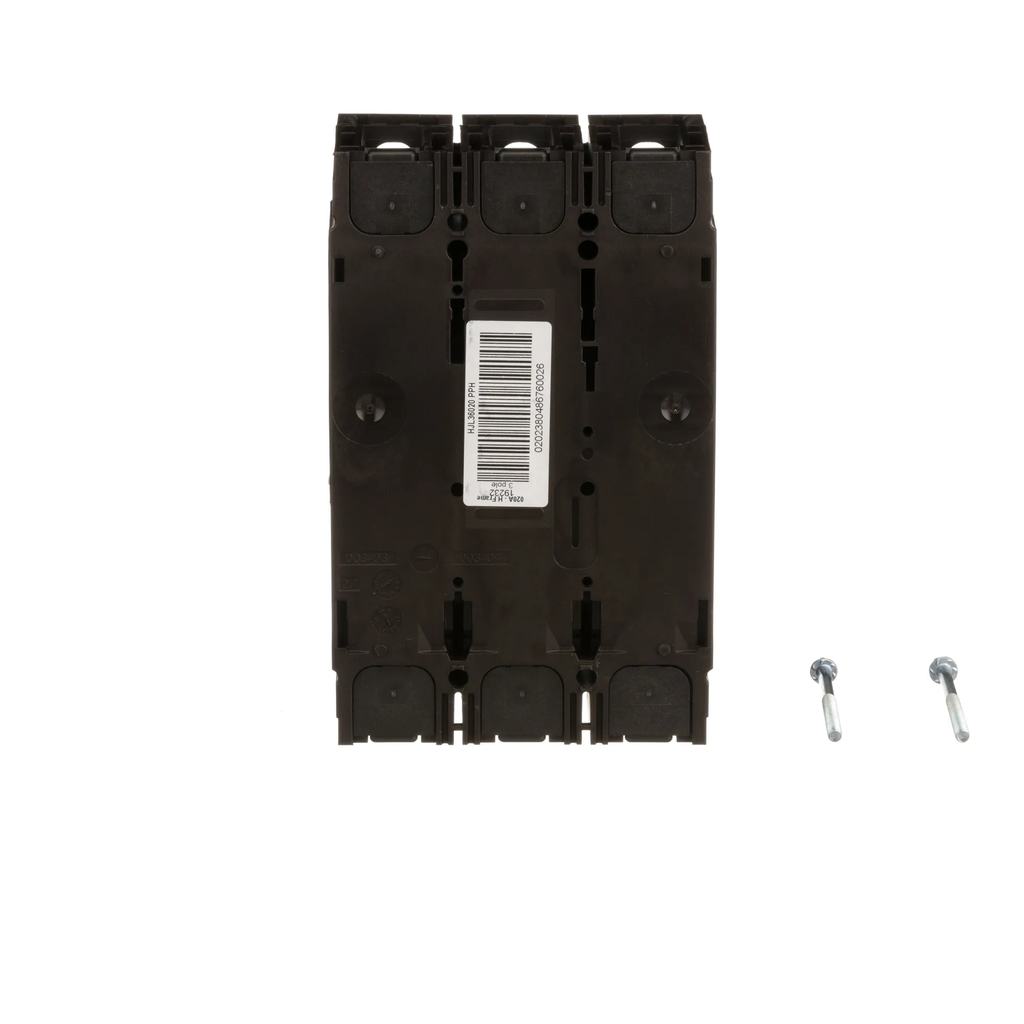

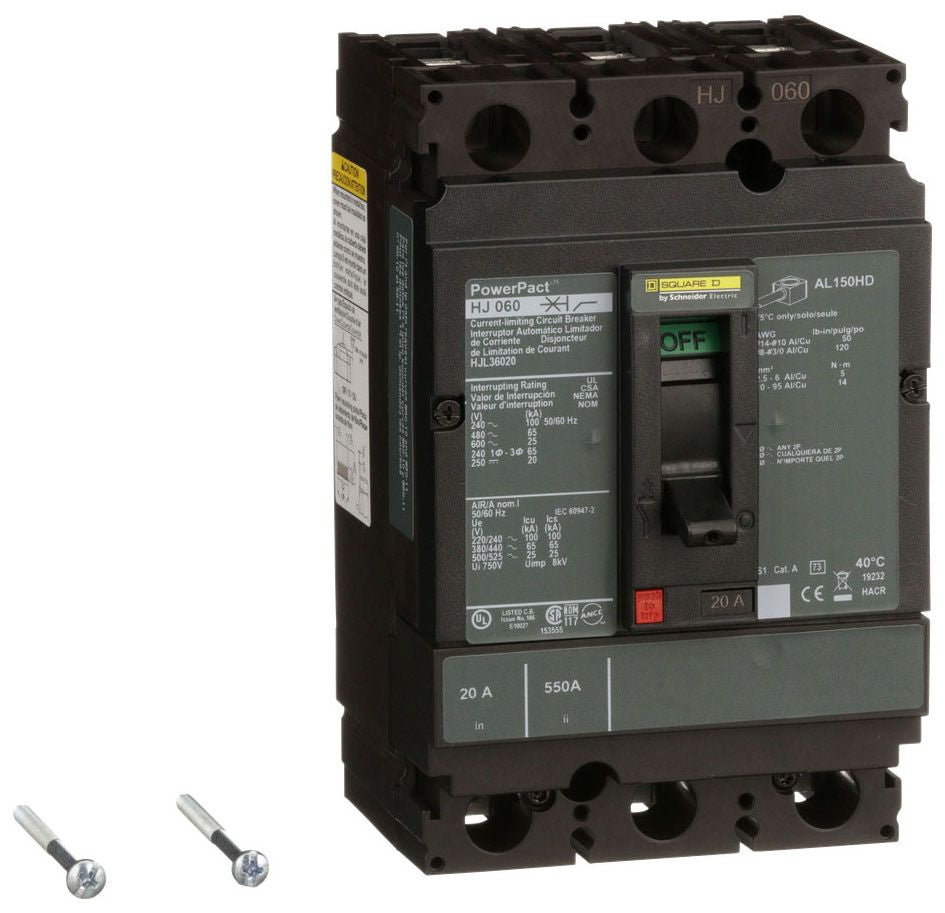

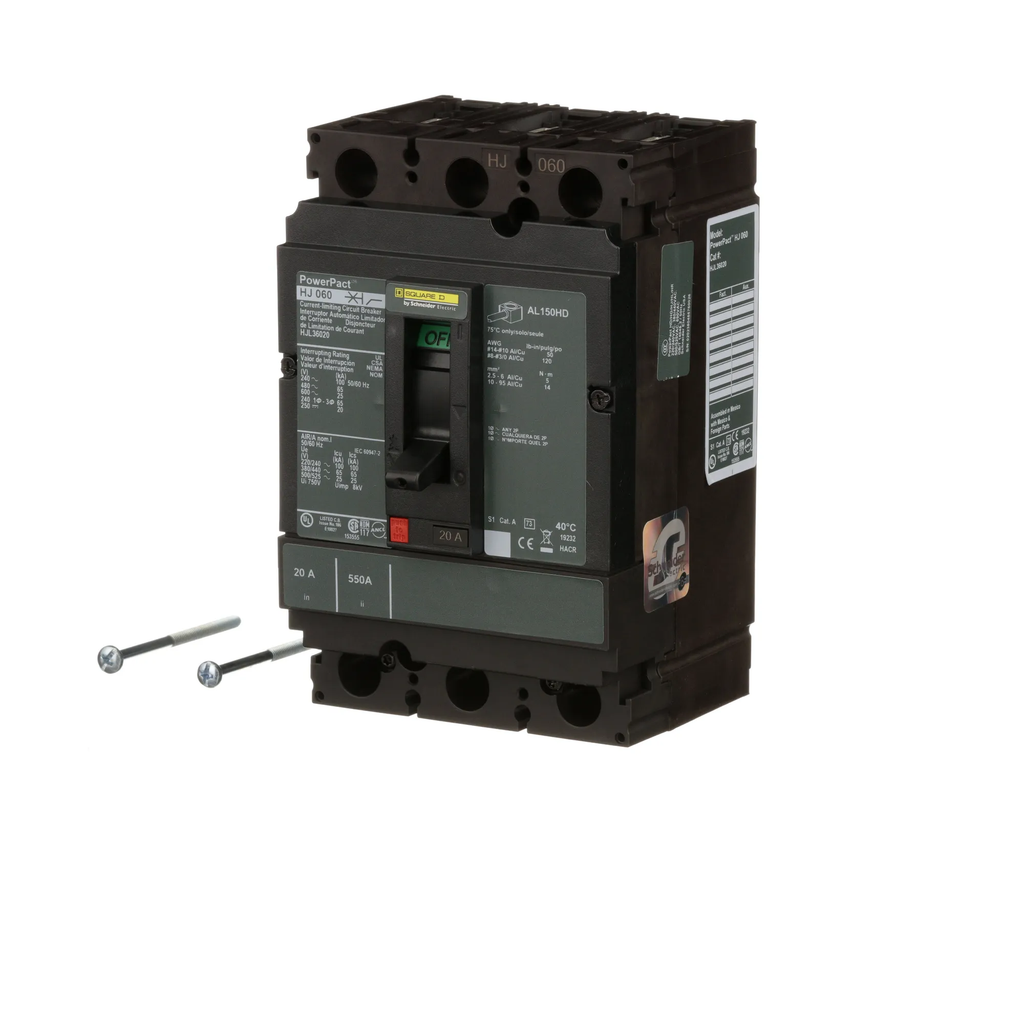

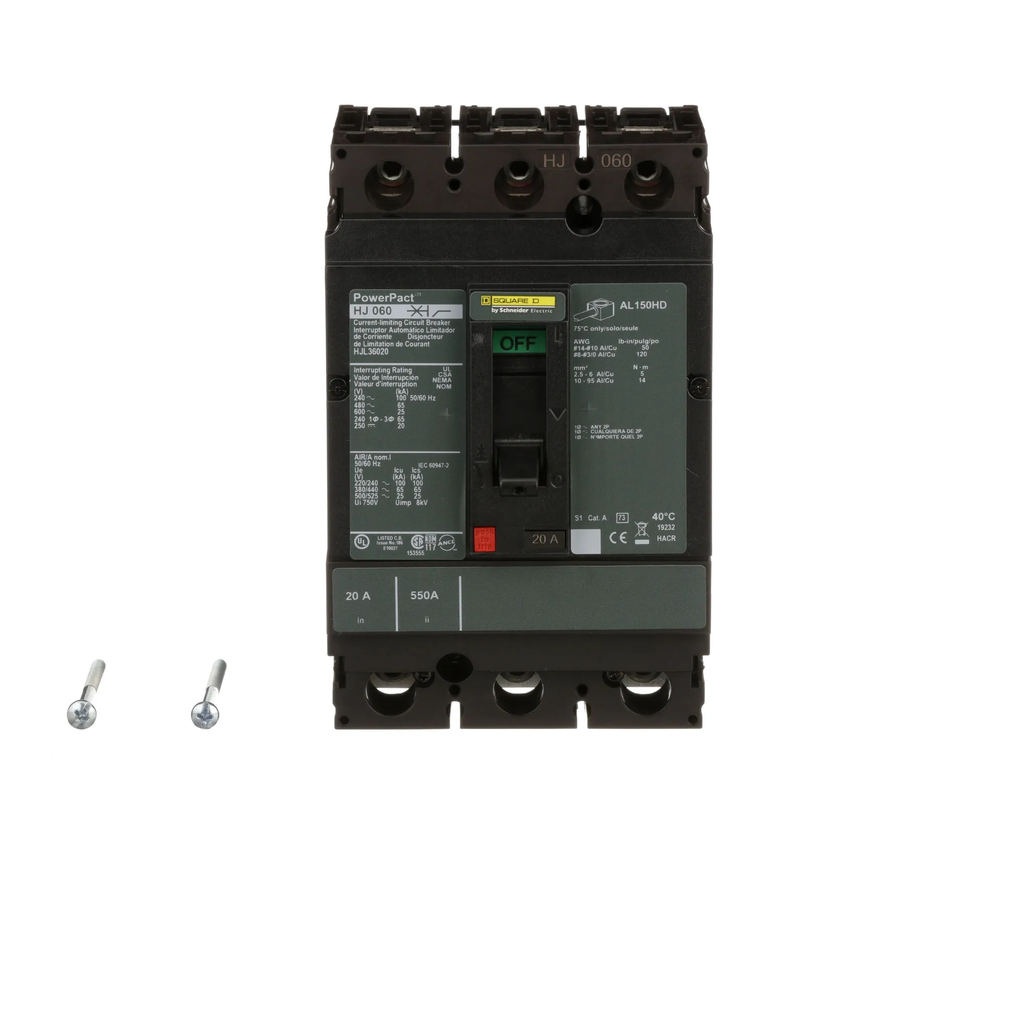

HJL36020 is a 3 pole, 20 amp thermal magnetic molded case circuit breaker from Square D's PowerPact H series designed for unit mounting.
This circuit breaker supports voltages up to 600/690VAC and 250VDC with an interrupting rating of 100kA at 240VAC and 65kA at 480VAC. It features a feed-thru connection type, long-time and instantaneous trip functions, and is UL, CSA, CE, NEMA, NOM, and IEC certified. The breaker accepts wire gauges from AWG 14 to AWG 3/0 for aluminum and copper wiring and is mercury and PVC free.
- Amperage: 20 A
- Voltage Rating: 600/690 VAC, 250 VDC
- Poles: 3
- Mounting Type: Unit mount
- Interrupting Rating: 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC, 20 kA at 250 VDC
- Series/Frame: PowerPact H, HJL frame
- Trip Unit: Thermal magnetic with LI (long-time and instantaneous) trip functions
- Certifications: UL, CSA, CE, NEMA, NOM, IEC
- Connection Type: Feed-thru with line and load side lugs
- Wire Gauge Range: AWG 14 to AWG 3/0 (Cu/Al)

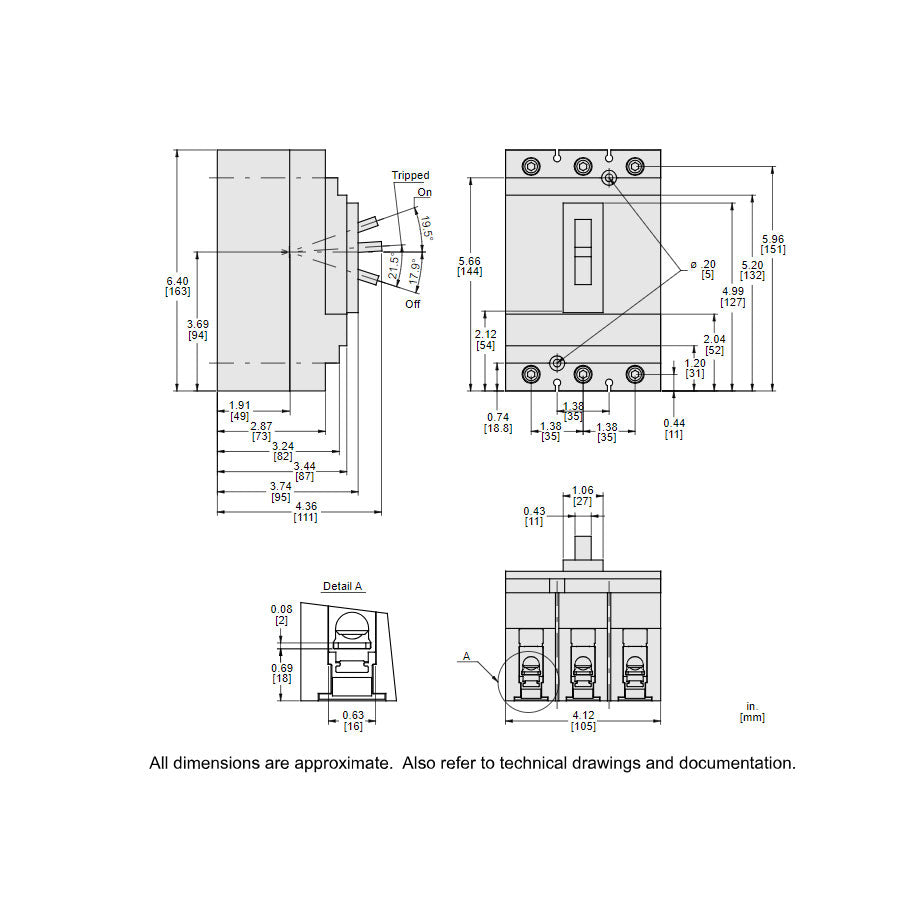

- Dimensions: 6.4 in height, 4.09 in width, 3.4 in depth
- Environmental: RoHS, REACh compliant, temperature rating -25 to 70 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HJL36020
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HJL
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : H
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901955955
- GTIN : 00785901955955
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.101
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
