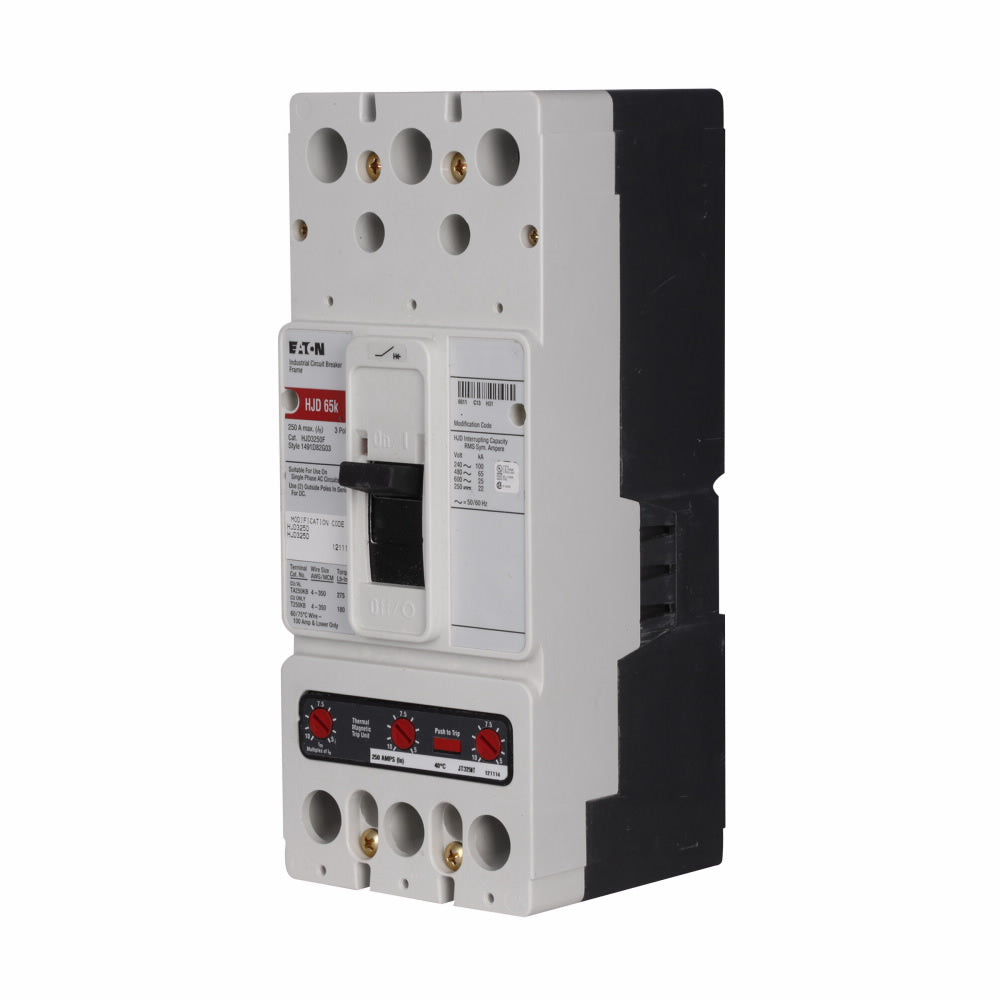

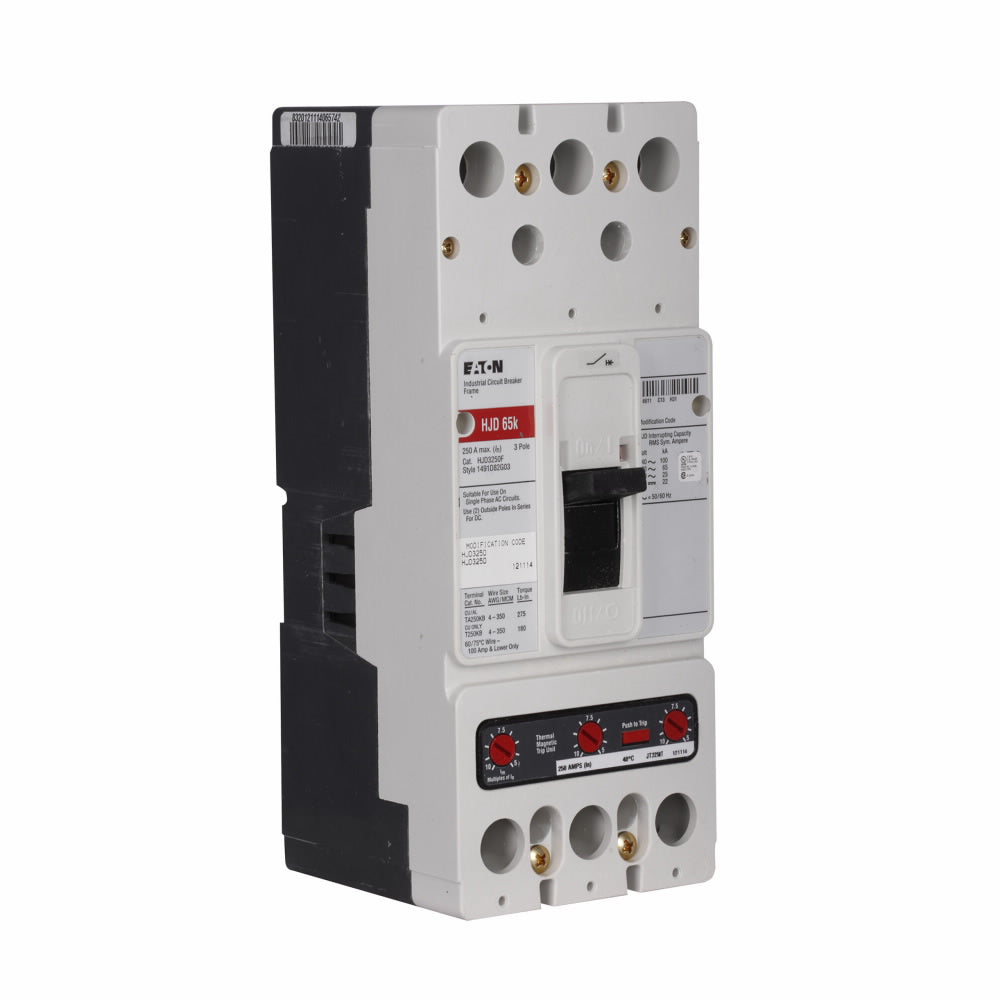

HJD3175 - Cutler Hammer 175A 600V 3-Pole Molded Case Circuit Breaker Feed-Thru Frame JD

HJD3175

HJD3175 is a Cutler Hammer molded case circuit breaker designed for 175 amps, 600 volts, and 3-pole applications with feed-thru mounting.This Eaton Series C, type HJD breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 65kA interrupting rating at 480V AC, interchangeable trip, and line & load side lug terminals. The breaker is a complete J-frame molded case type suitable for high interrupting capacity applications.

• Amperage: 175 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V
• Frame Type: JD (J-frame)
• Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
• Series: Eaton Series C
• Connection: Line & Load Side Lug Terminals
• Phase: 3
• High Interrupting Capacity
• Interchangeable Trip Unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJD3175
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679319109
• GTIN : 00786679319109
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL Listed
