HJA260202 - Square D 20 Amp 600 Volt 2 Pole I-Line Molded Case Circuit Breaker

Save $563.21
SKU: HJA260202-New
Condition: New
Price:
$1,025.79 $1,589.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

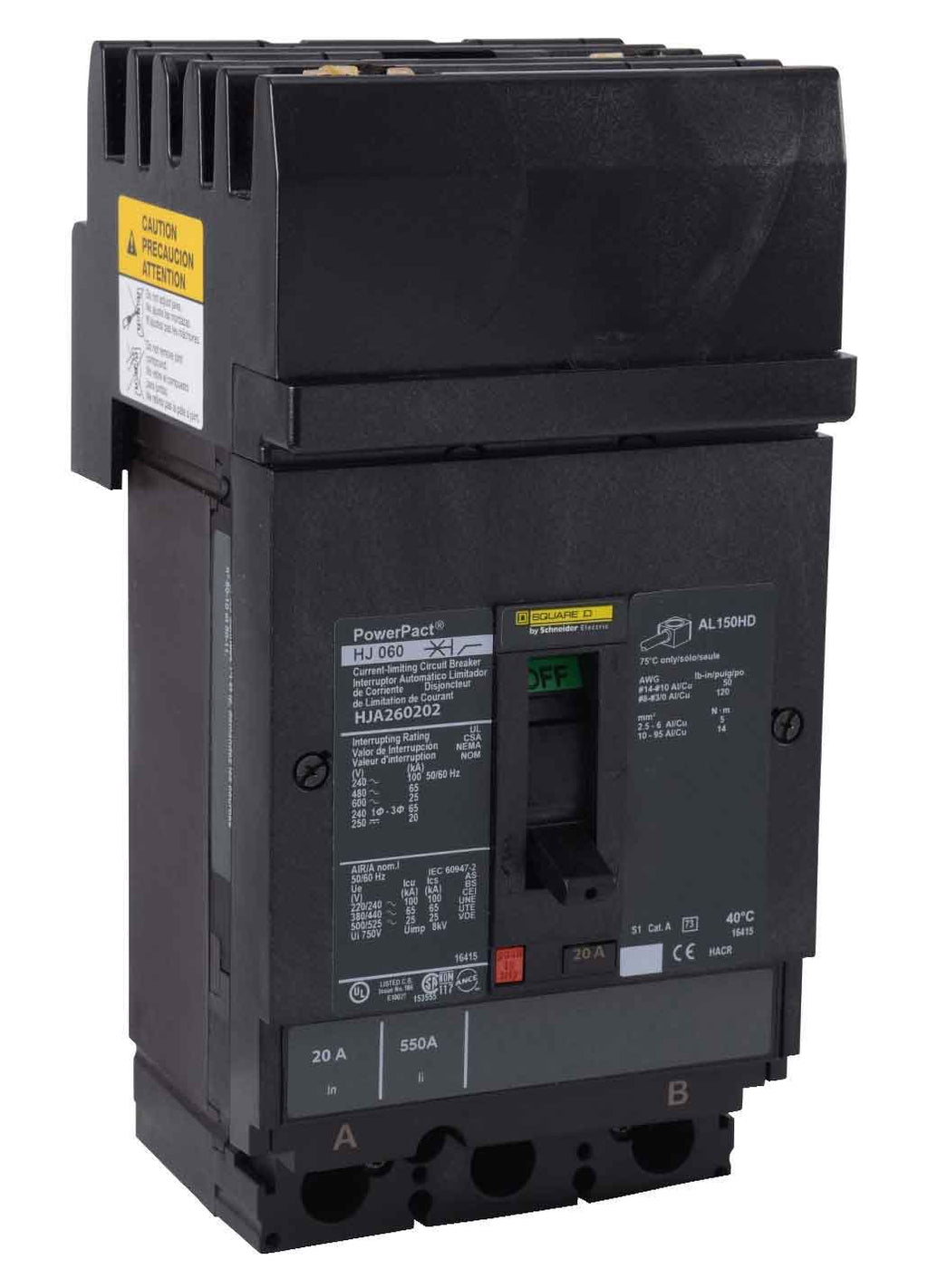

HJA260202 - Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HJA260202 - Square D I-Line Style Plug-In 600V 20A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
HJA260202 - Square D 20 Amp 600 Volt 2 Pole I-Line Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HJA260202 - Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HJA260202 - Square D I-Line Style Plug-In 600V 20A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
HJA260202 - Square D 20 Amp 600 Volt 2 Pole I-Line Molded Case Circuit Breaker - Essential Electric Supply

Description

HJA260202


HJA260202 is a Square D 2 pole molded case circuit breaker with a 20 Amp current rating and 600 Volt voltage rating designed for I-Line mounting.This thermal magnetic circuit breaker features a PowerPact H frame with a 25 kA interrupt rating at 600 VAC and includes long-time and instantaneous trip functions. It supports plug-in I-Line style connection and is UL, CSA, IEC, and CE certified for industrial applications. The breaker is suitable for reverse fed applications and rated for 104°F (40°C) operating temperature.
  • Amperage: 20 Amp
  • Voltage: 600 Volt AC, 250 Volt DC
  • Poles: 2 Pole
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 25 kA at 600 VAC, 65 kA at 480 VAC, 100 kA at 240 VAC, 20 kA at 250 VDC
  • Frame Type: PowerPact H (HJA Series)
  • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) functions
  • Certifications: UL 489, CSA, IEC, CE
  • Dimensions: 9.73" H x 2.94" W x 4.8" D
  • Connection: I-Line style plug-in
  • Suitable for reverse fed applications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HJA260202
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HJA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 785901601036
  • GTIN : 00785901601036
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.999
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
