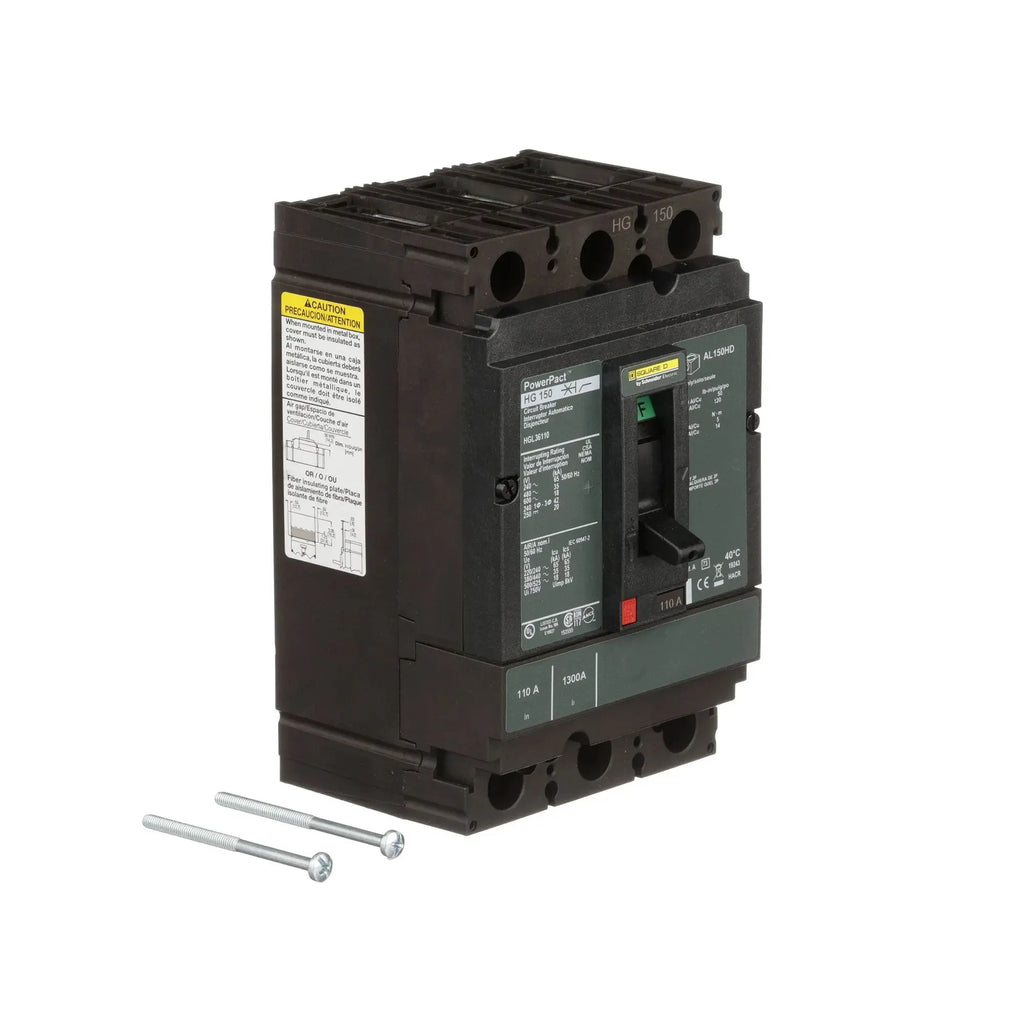

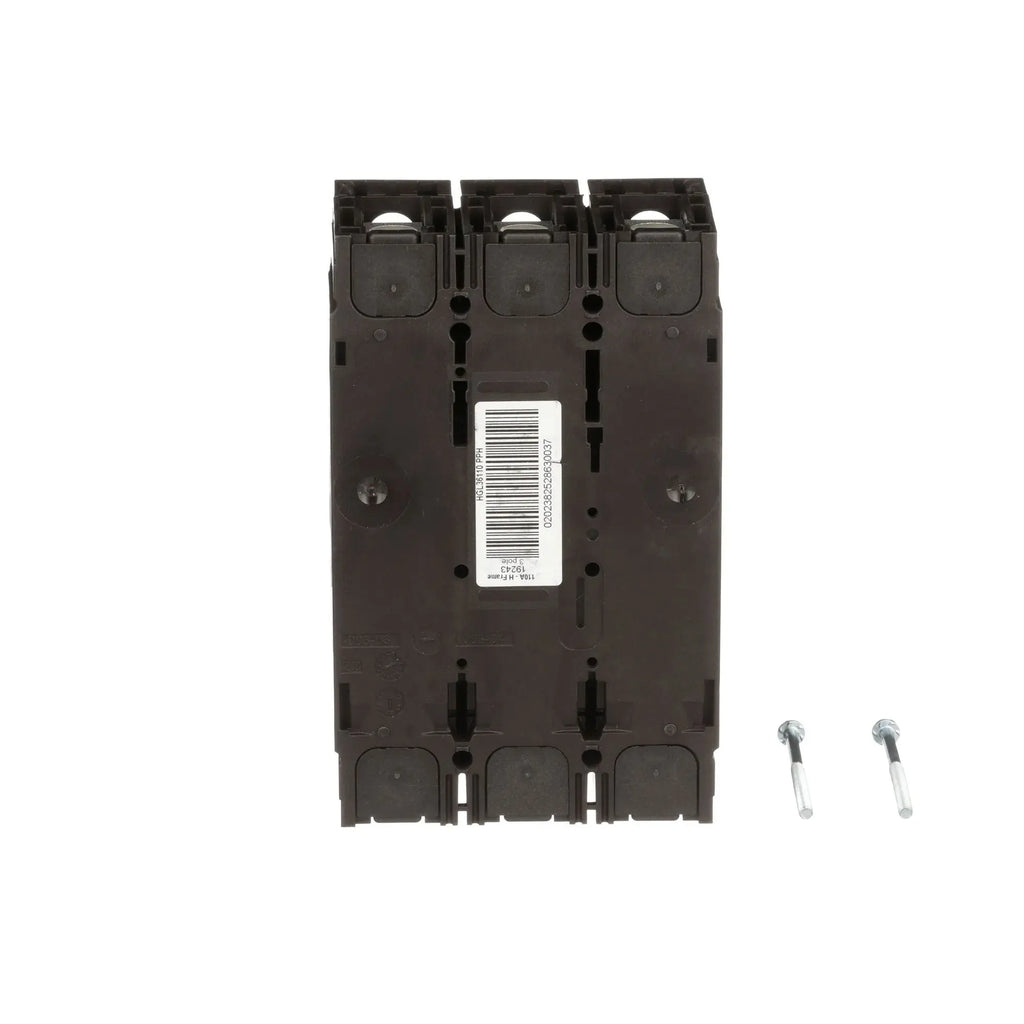

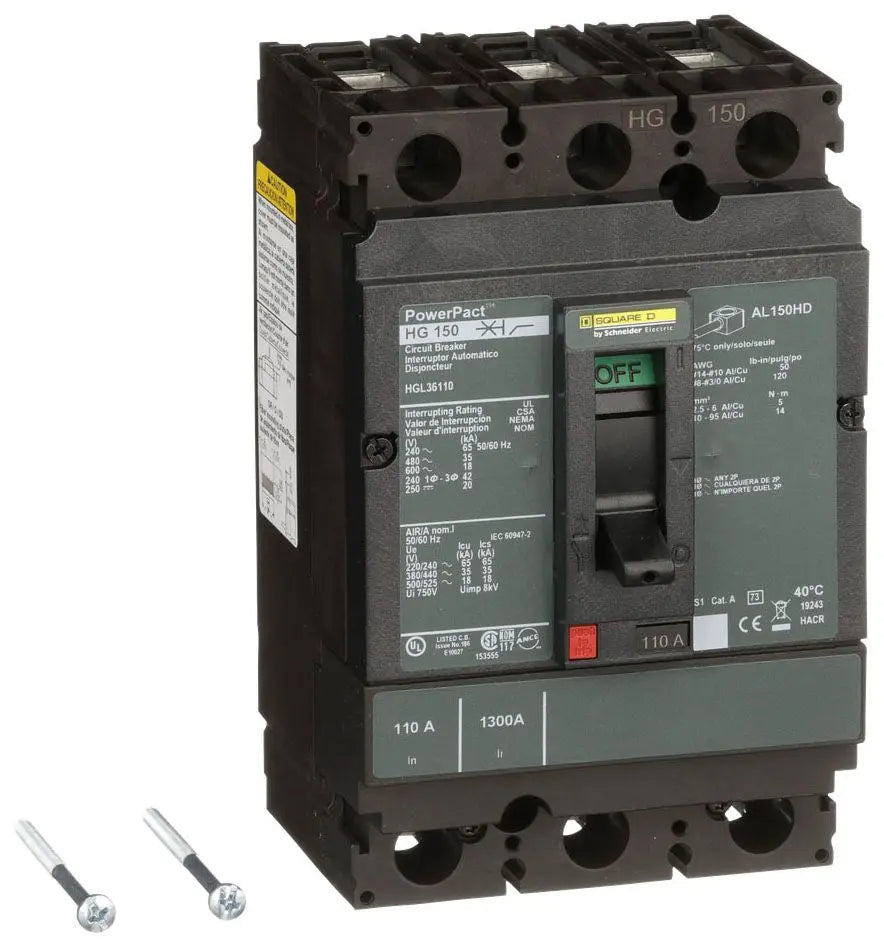

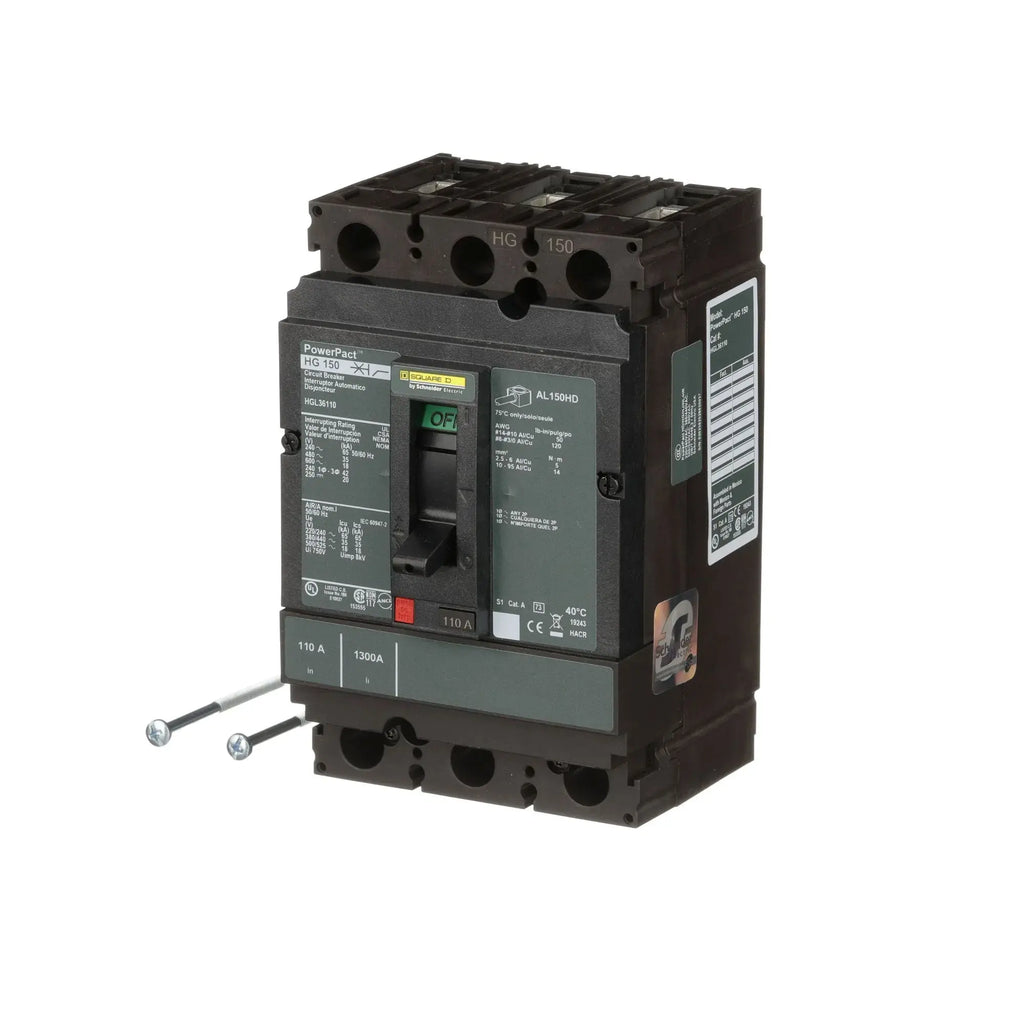

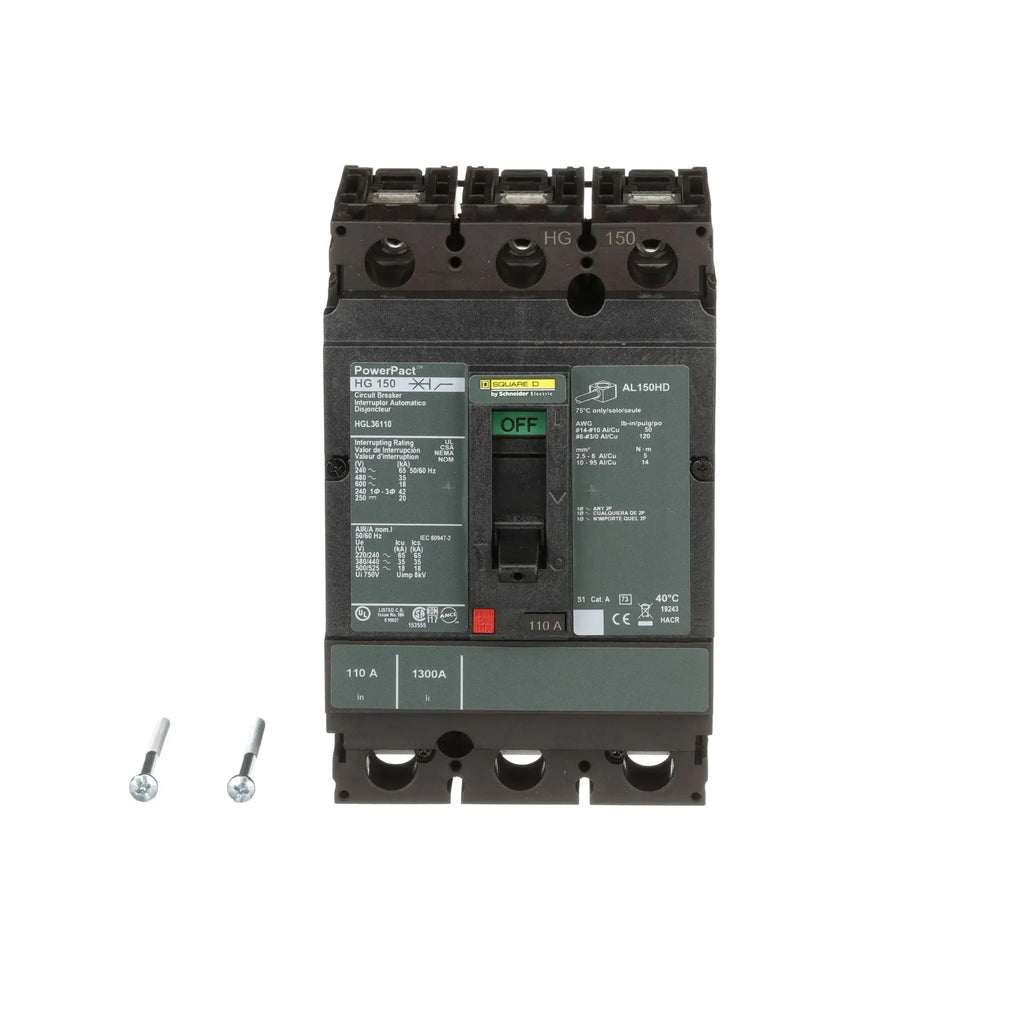

HGL36110 - Square D 110 Amp 600 Volt 3 Pole Molded Case Circuit Breaker H Frame

HGL36110

HGL36110 is a Square D 3 pole, 110 amp molded case circuit breaker designed for reliable power distribution protection.This thermal magnetic circuit breaker features a 600 volt AC and 500 volt DC rating, H frame type, and a high interrupting capacity with a G interrupt rating. It is UL 489 listed and CSA and CE approved, suitable for unit mount applications with a compact size of approximately 4.09 inches width by 6.42 inches height. The breaker provides current limiting protection and is designed for industrial and commercial electrical systems.

• Manufacturer: Square D
• Part Number: HGL36110
• Amperage: 110 Amps
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: H Frame (HGL Series)
• Trip Unit: Thermal Magnetic
• Interrupt Rating: G Interrupt
• Mounting Type: Unit Mount
• Certifications: UL 489, CSA, CE

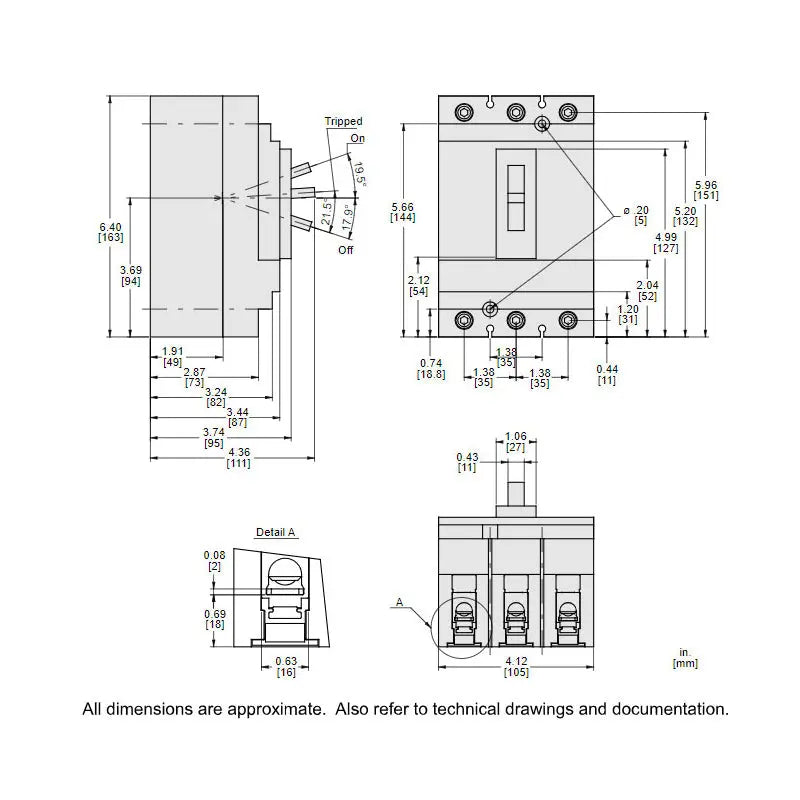

• Dimensions: 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901598824
• GTIN : 00785901598824
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
