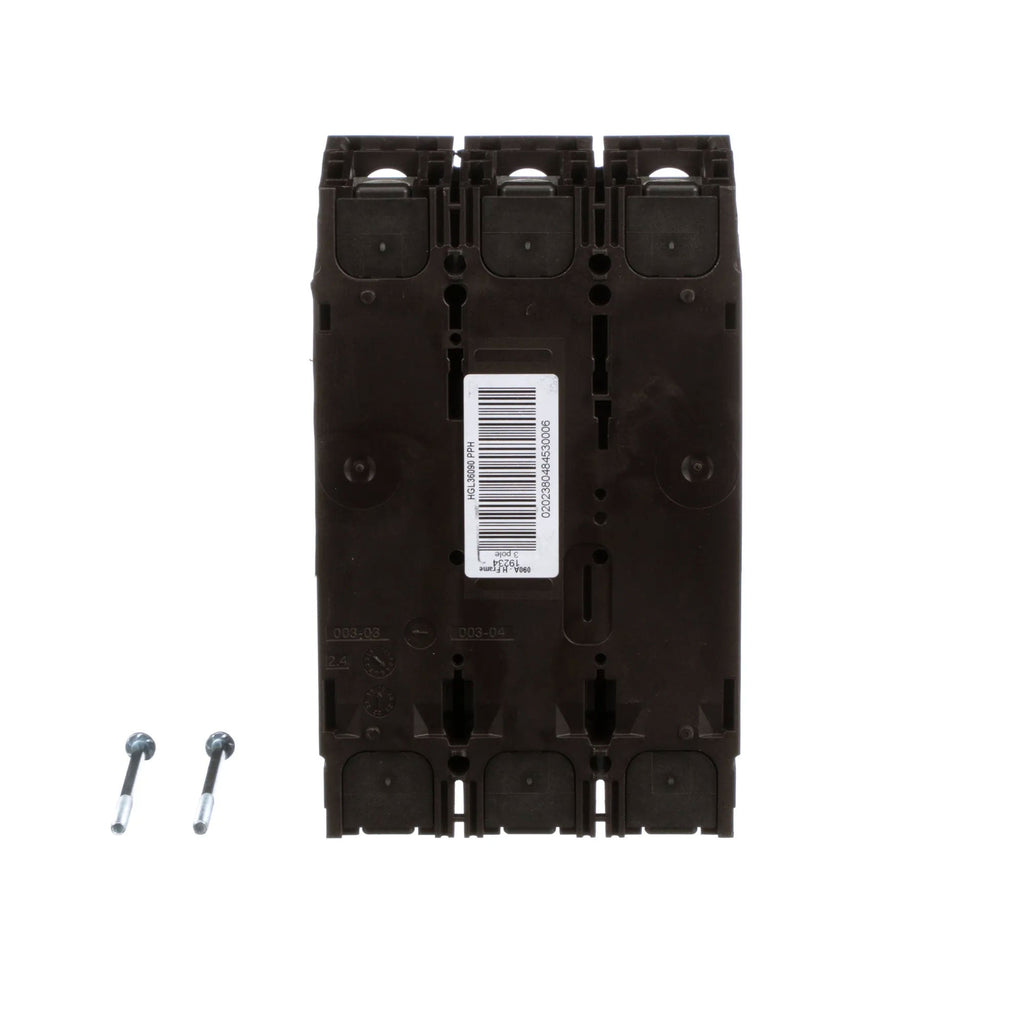

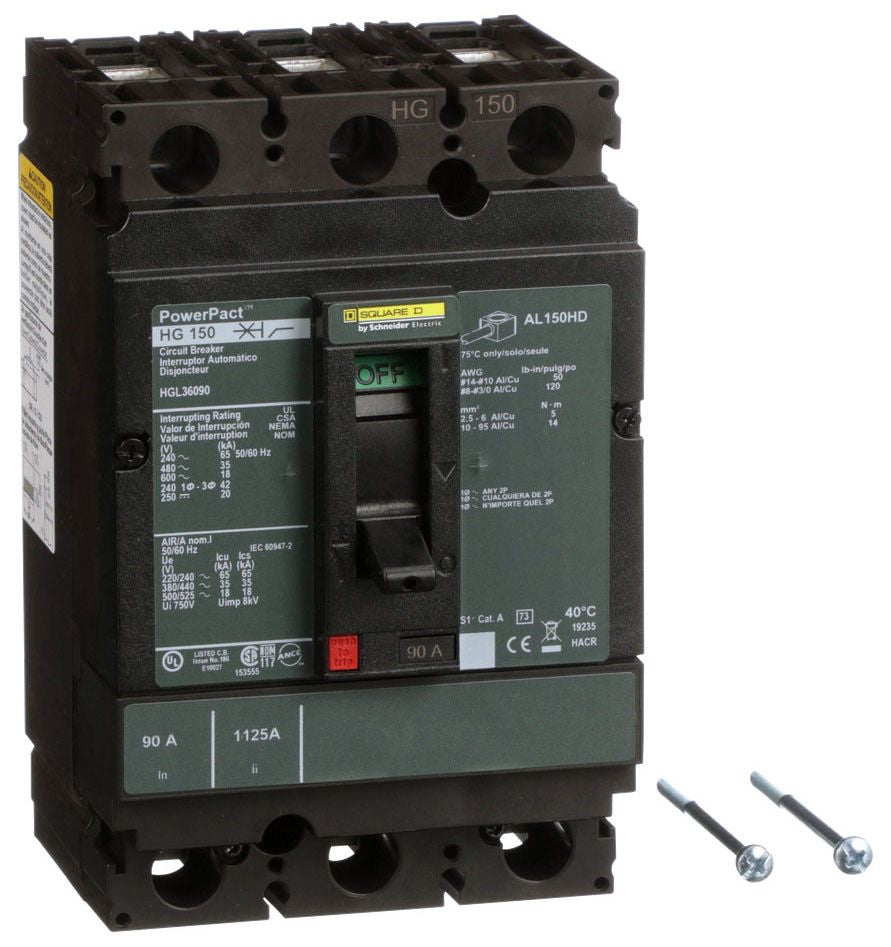

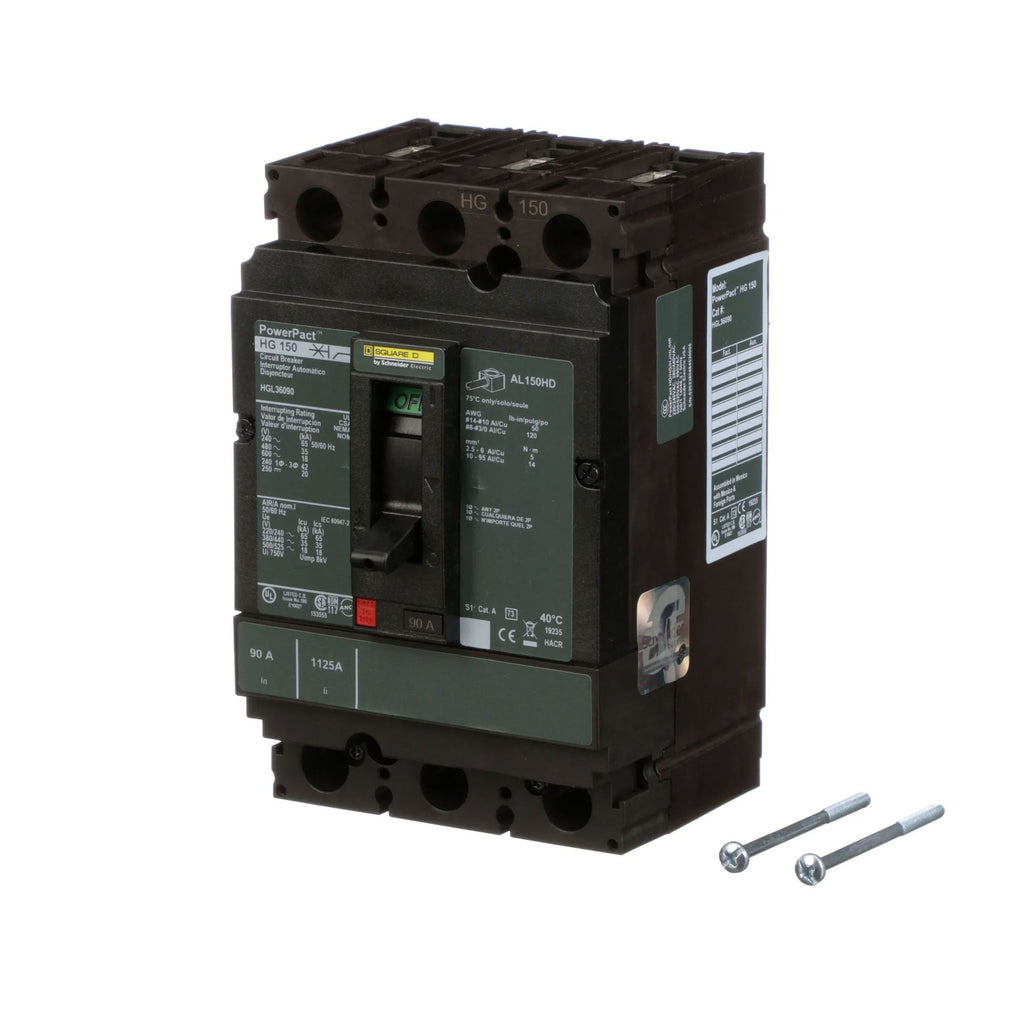

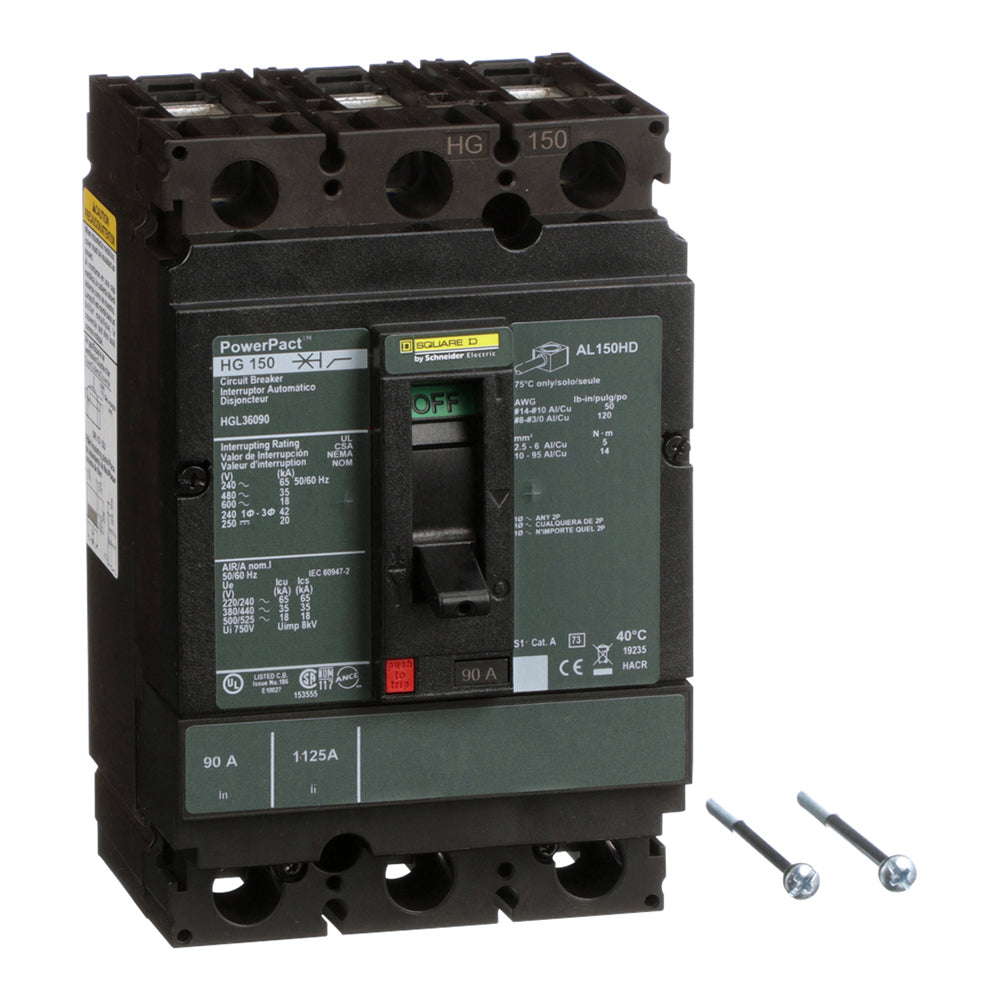

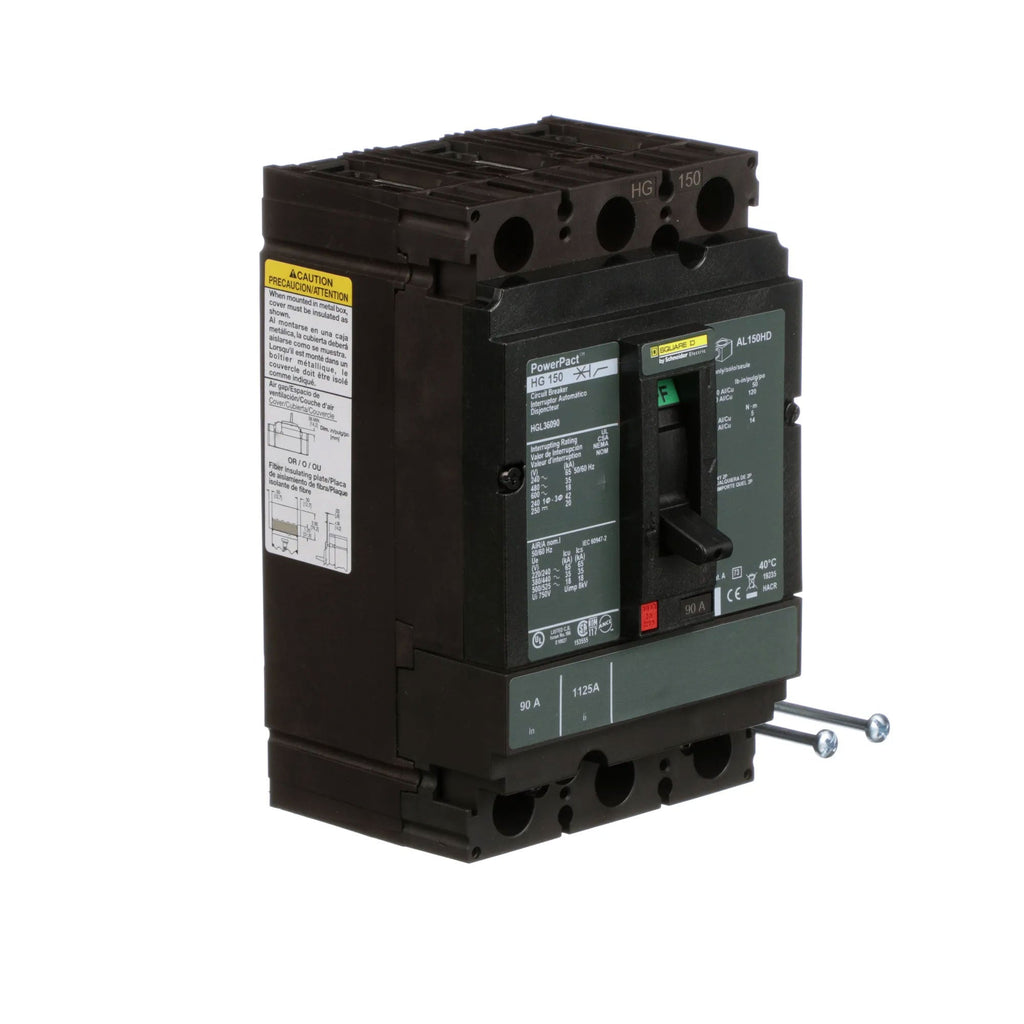

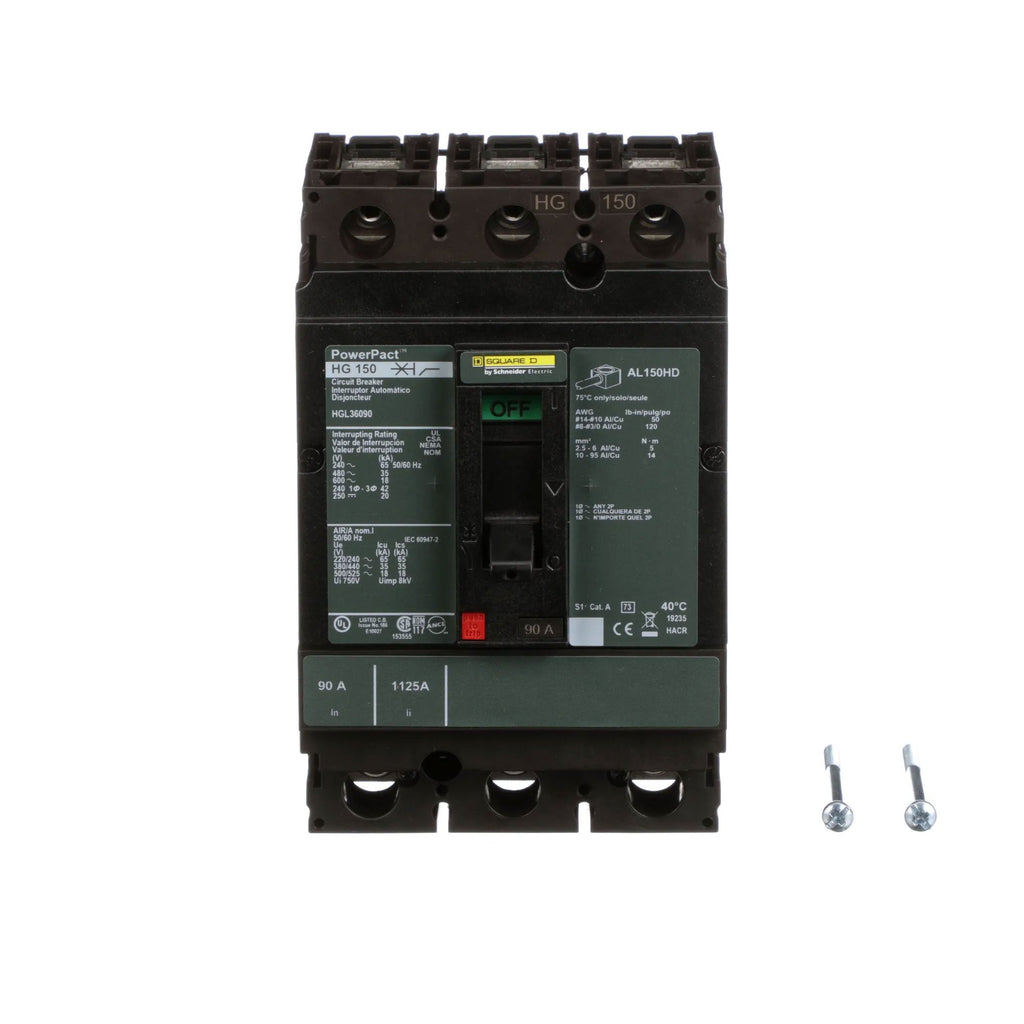

HGL36090 - Square D PowerPacT H 90A 3P 600VAC 18kA Thermal Magnetic Molded Case Circuit Breaker, H Frame, Line/Load Lug

HGL36090

HGL36090 is a Square D PowerPacT H series molded case circuit breaker designed for reliable overload and short circuit protection in industrial and commercial applications.

This thermal magnetic, current-limiting circuit breaker features a 90A continuous current rating (80% rated), 3 poles, and a maximum voltage rating of 600VAC. It is suitable for use with 14 to 3/0 AWG wire and offers robust protection with an interrupting rating of 18kA at 600VAC. The H frame design ensures durability, and the line/load lug connection type simplifies installation. The breaker operates across a wide temperature range and is designed for unit mount applications.

Key Specifications
• Part Number: HGL36090
• Manufacturer: Square D (Schneider Electric)
• Amperage: 90A (80% rated)
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 18kA at 600VAC, 35kA at 480VAC, 65kA at 240VAC, 20kA at 250VDC
• Series/Frame: PowerPacT H, H Frame
• Trip Unit: Thermal magnetic
• Connection: Line/Load lug
• Wire Size: 14 to 3/0 AWG
• Frequency: 50/60 Hz
• Temperature Range: -13 to 158 deg F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901883722
• GTIN : 00785901883722
• Country of Origin : Mexico

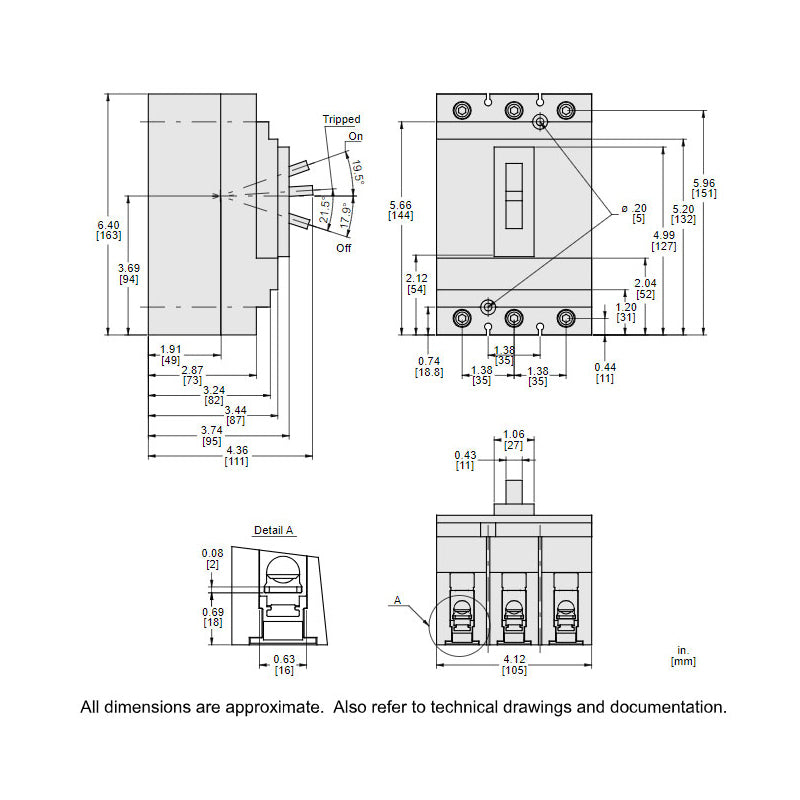

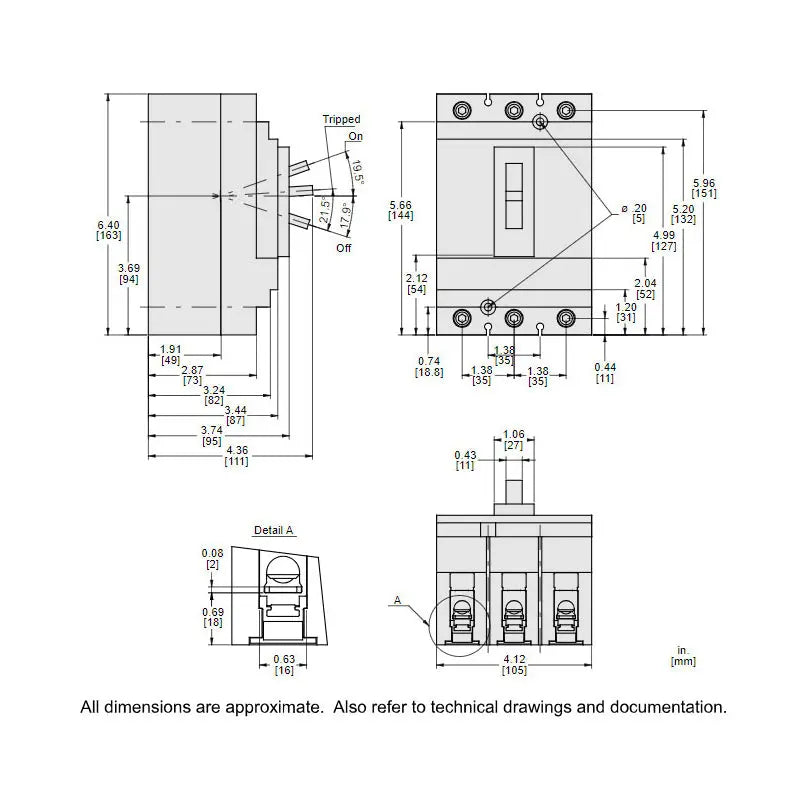

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.18
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
