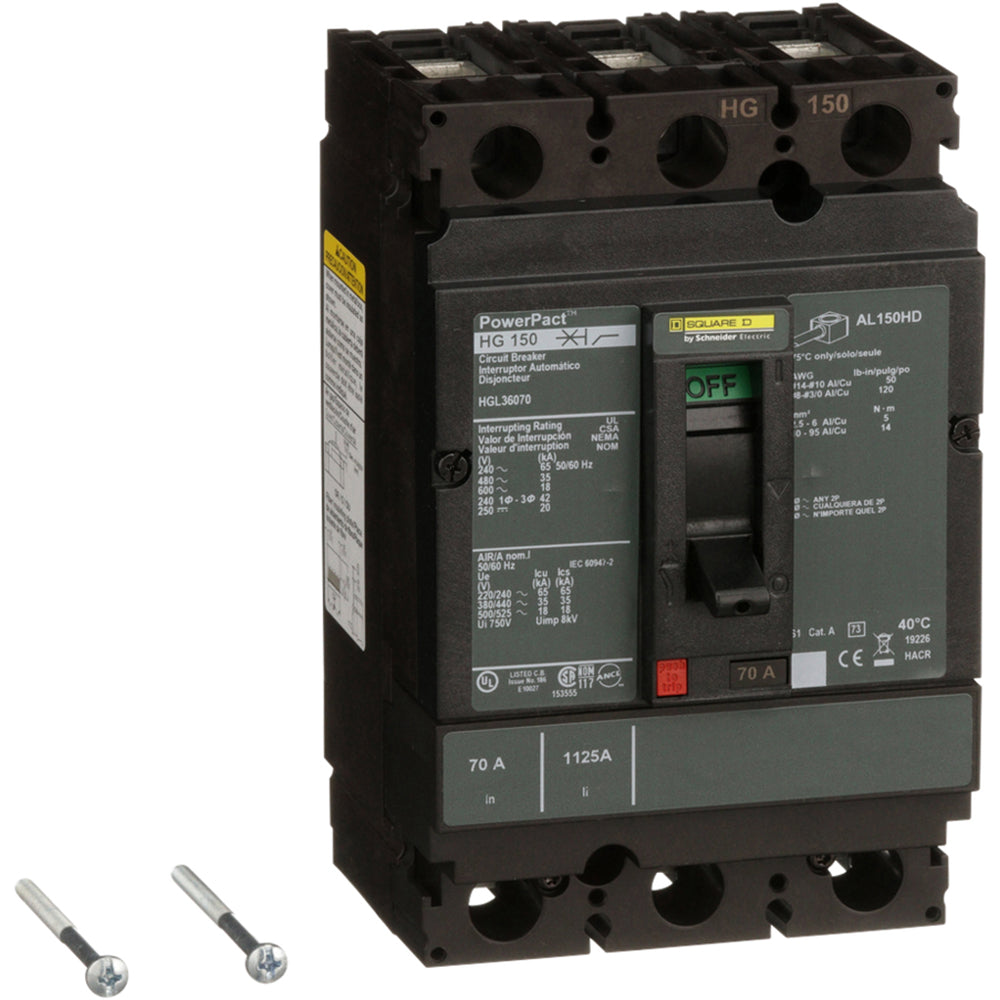

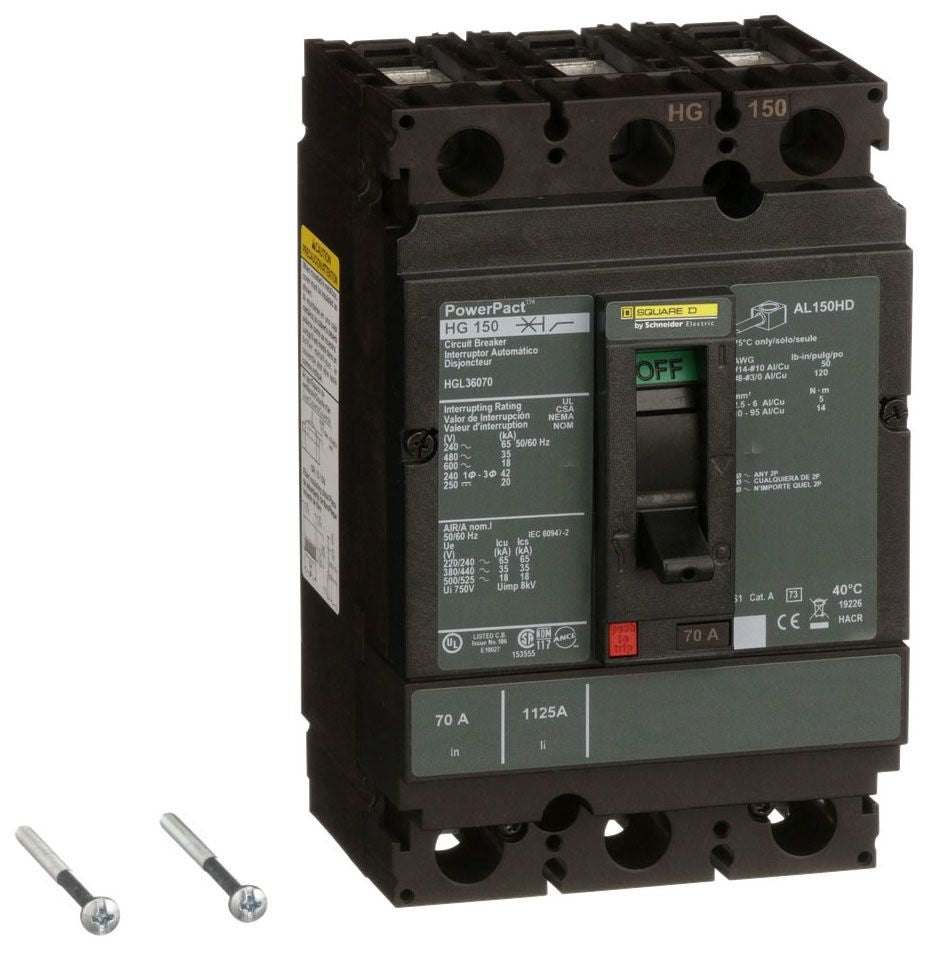

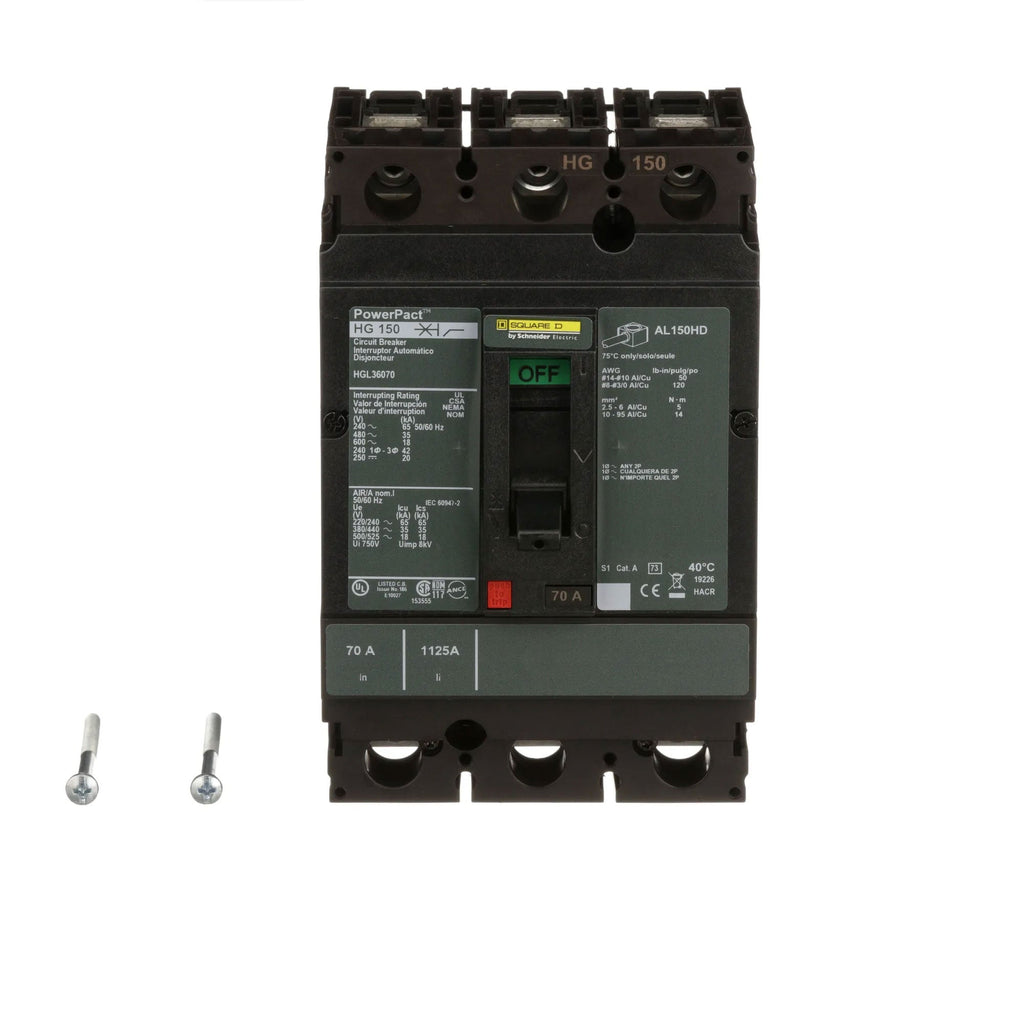

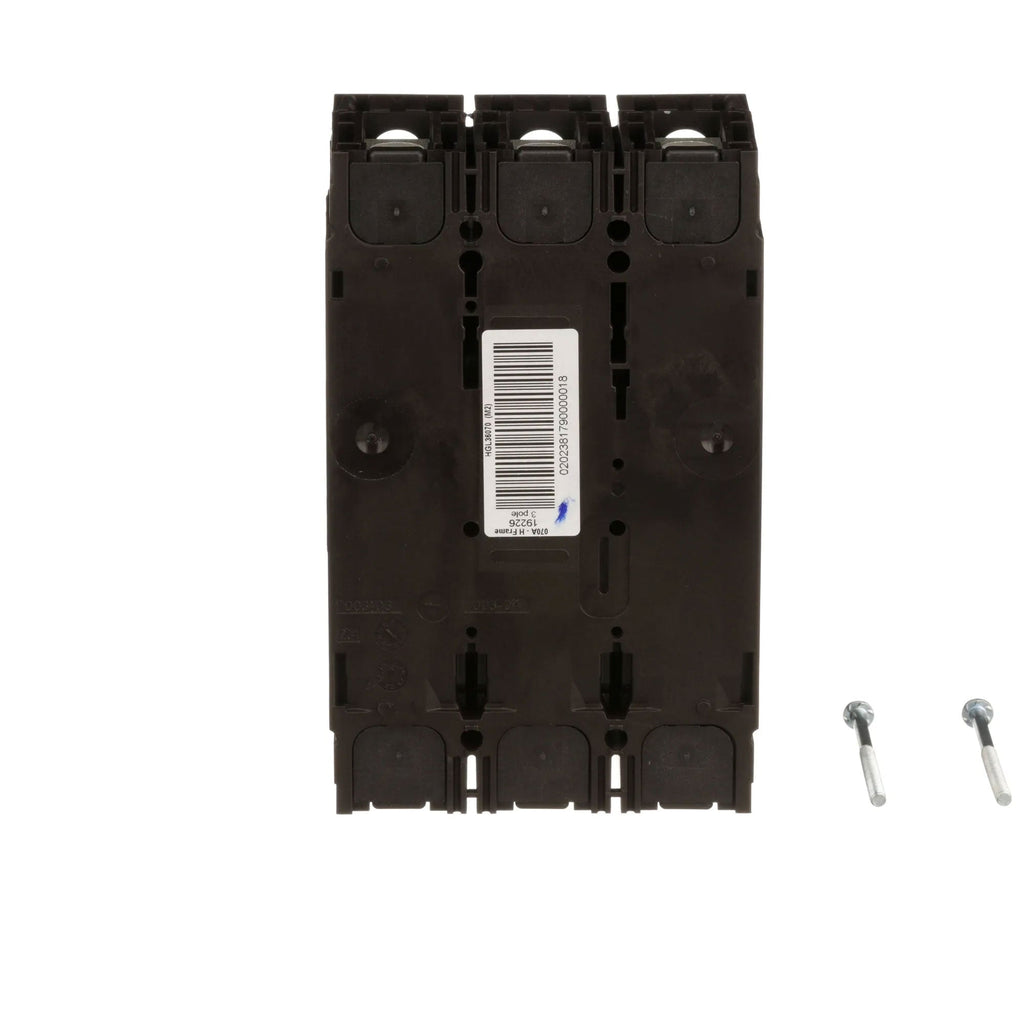

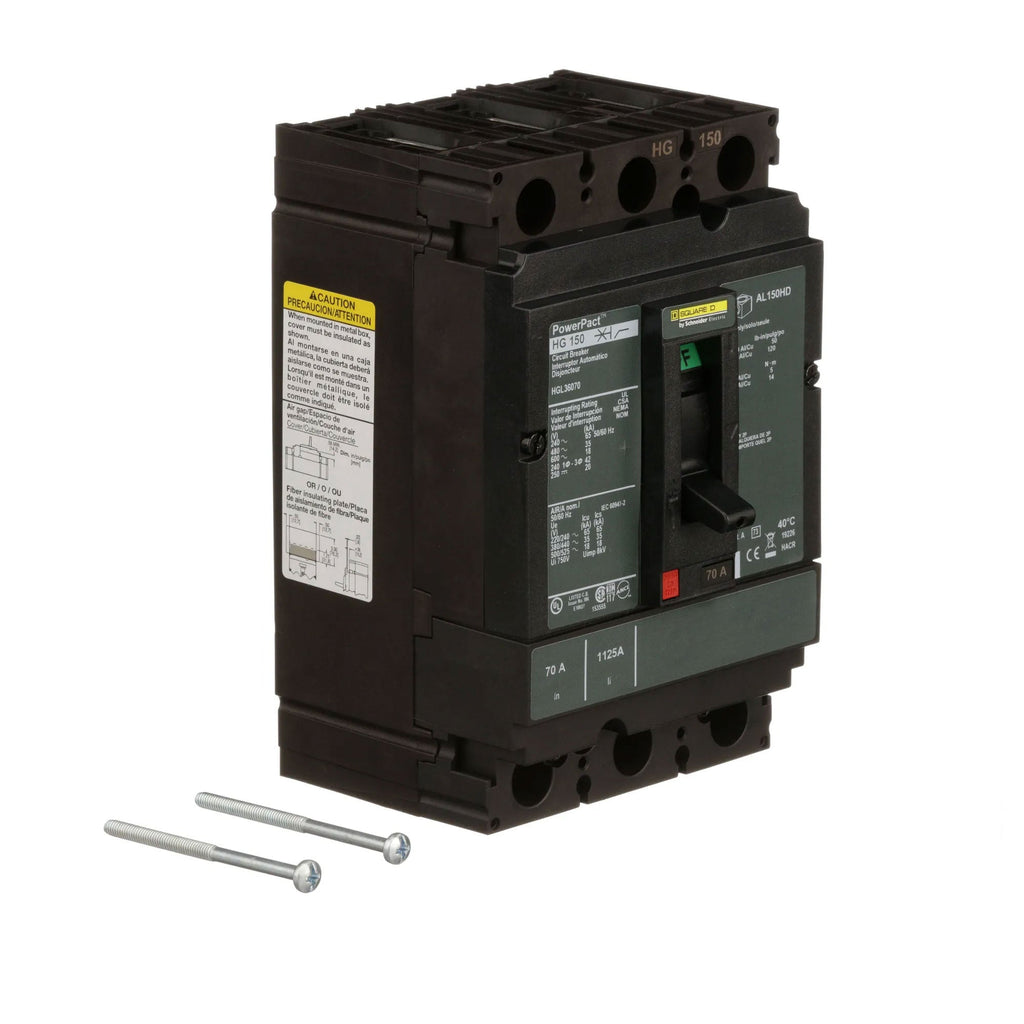

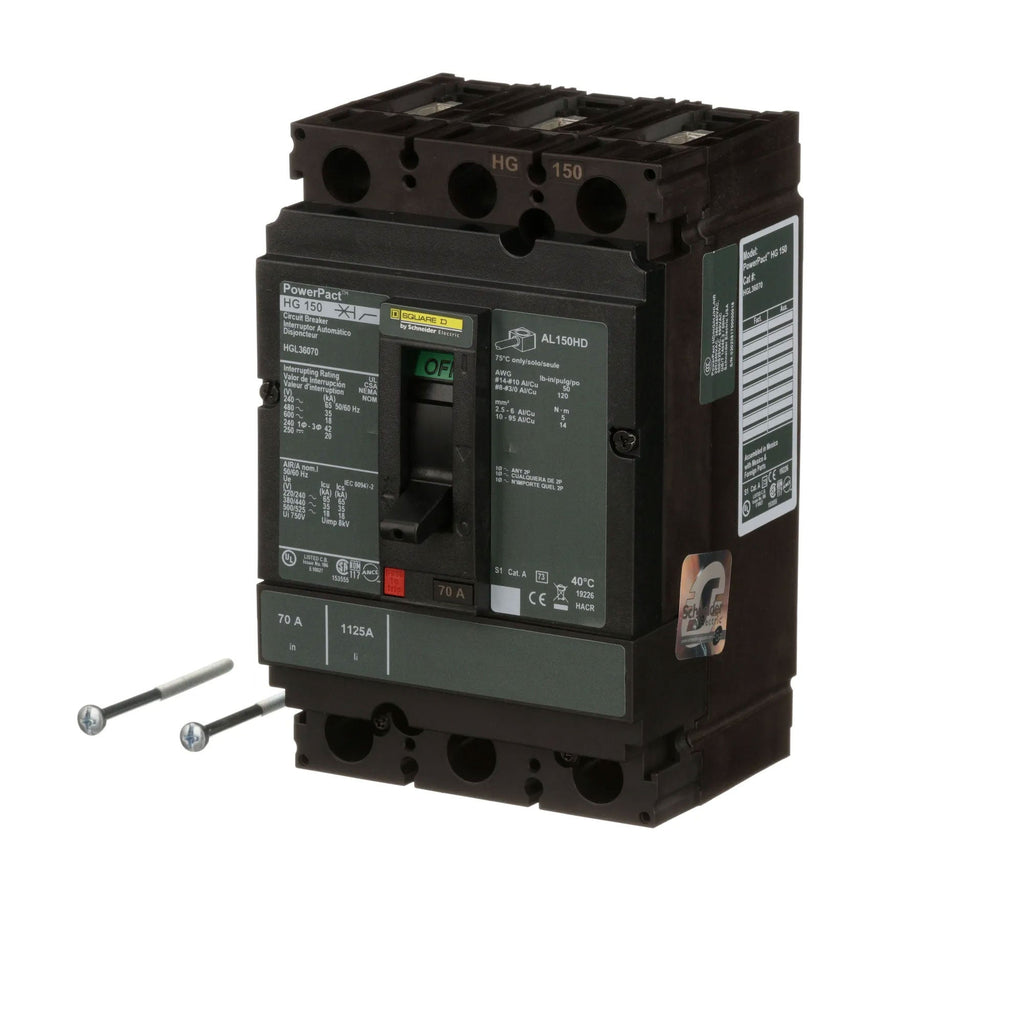

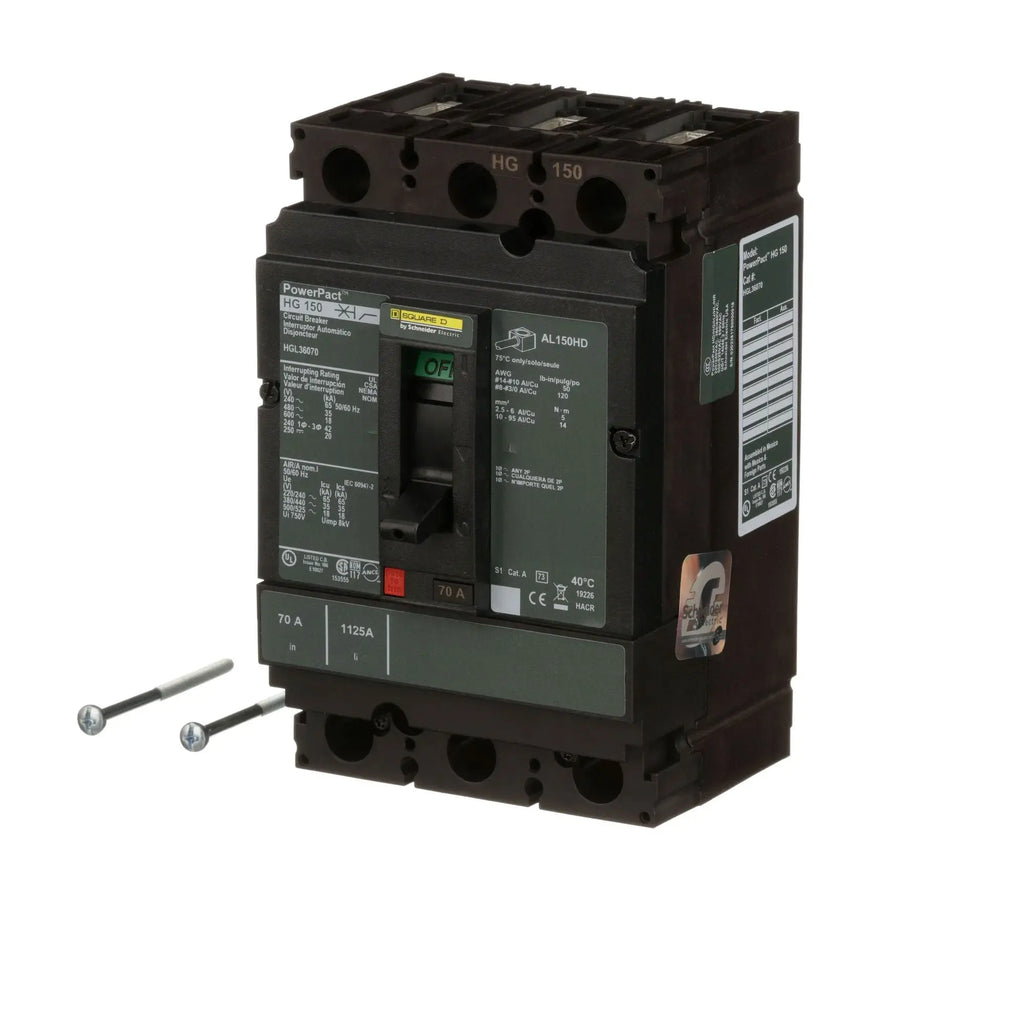

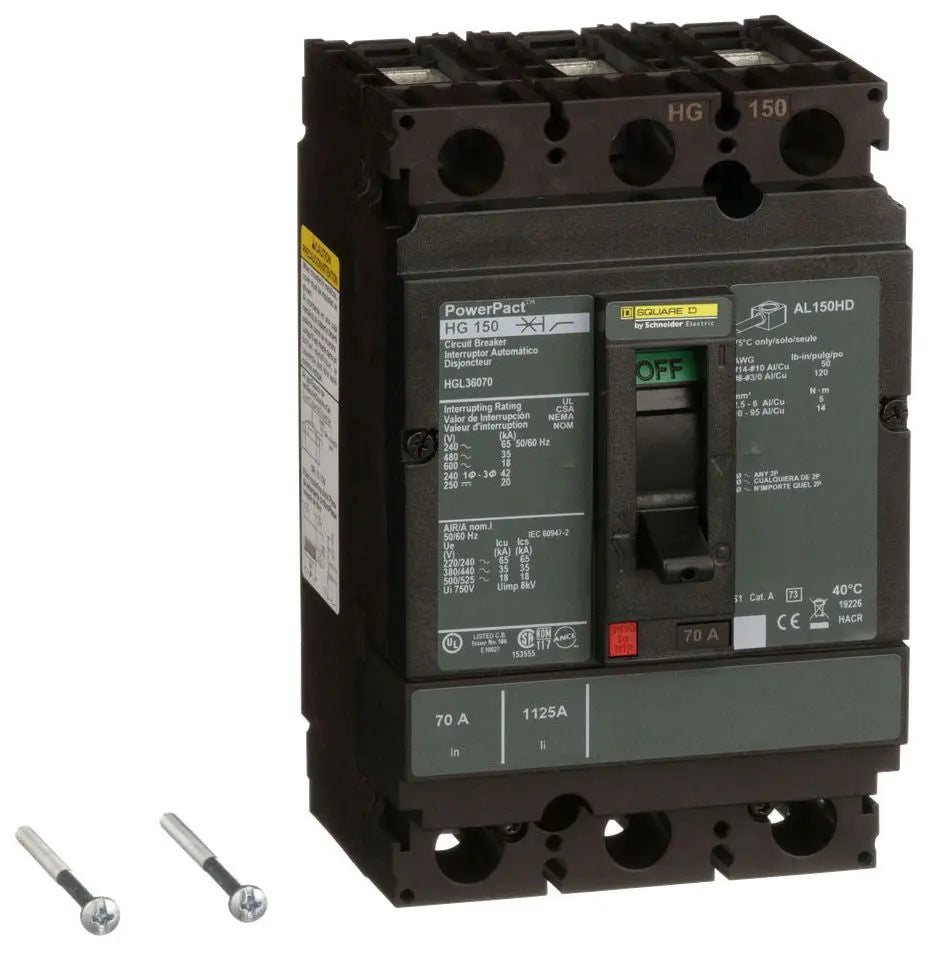

HGL36070 - Square D 70A 600V 3 Pole PowerPact H Molded Case Circuit Breaker Thermal Magnetic

HGL36070

HGL36070 is a Square D PowerPact H molded case circuit breaker rated for 70 amps, 600 volts, and 3 poles with thermal magnetic trip unit.This circuit breaker features a 65kA interrupt rating at 240 VAC, 35kA at 480 VAC, and 18kA at 600 VAC, suitable for heavy-duty industrial applications. It has a feed-thru mounting type and is UL listed, CSA certified, and CE marked. The breaker supports line and load lug connections and complies with UL 489 and IEC standards.

Key Specifications
• Amperage: 70A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 65kA @ 240 VAC, 35kA @ 480 VAC, 18kA @ 600 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Feed-Thru
• Frame/Series: PowerPact H (HGL)
• Approvals: UL Listed, CSA Certified, CE Marked
• Connection Type: Line and Load Lugs

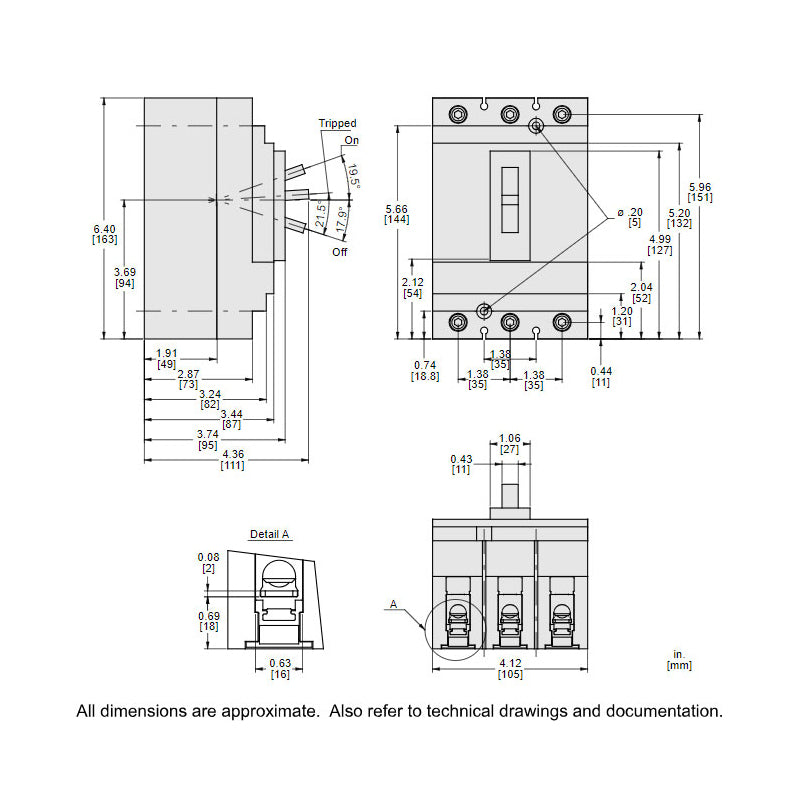

• Dimensions: 6.4" H x 4.12" W x 4.36" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901598787
• GTIN : 00785901598787
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
