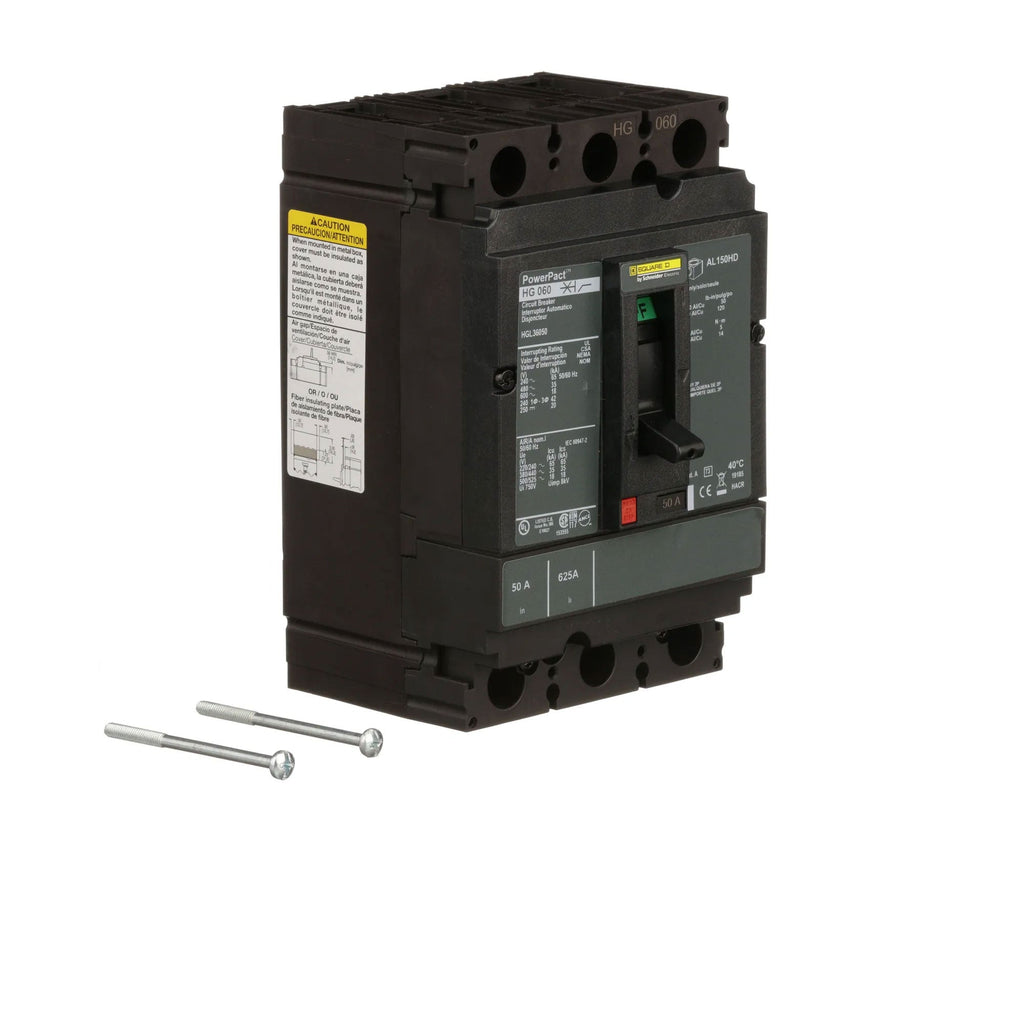

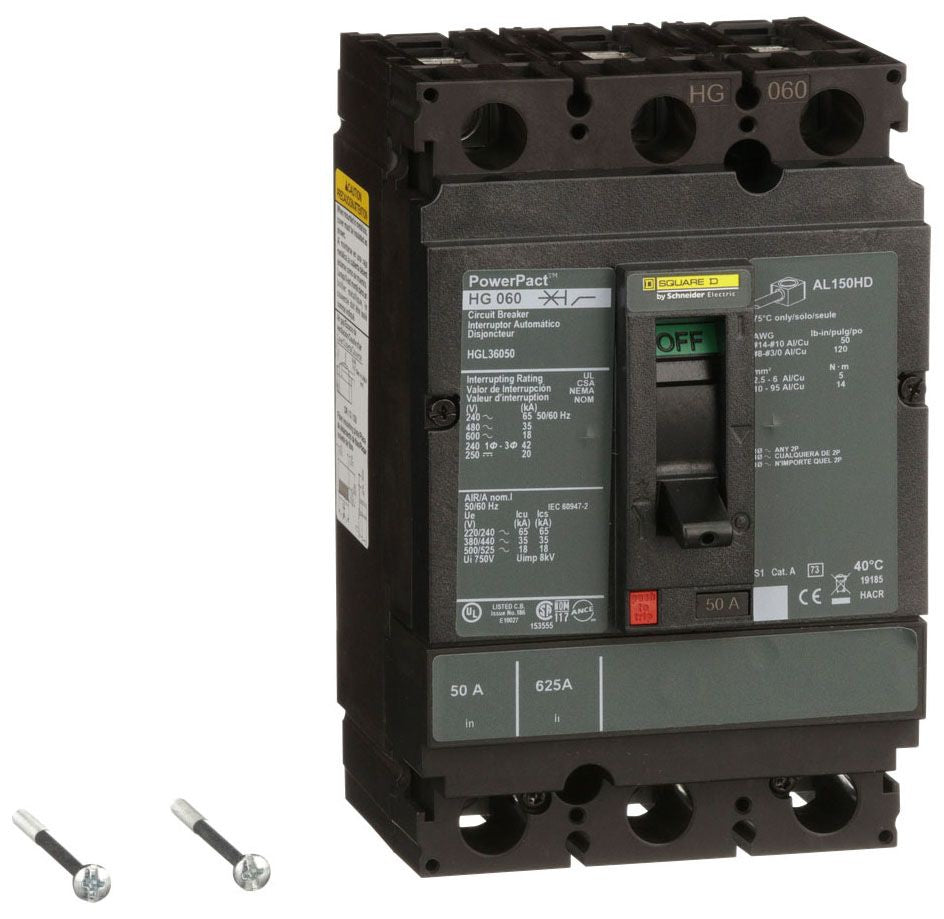

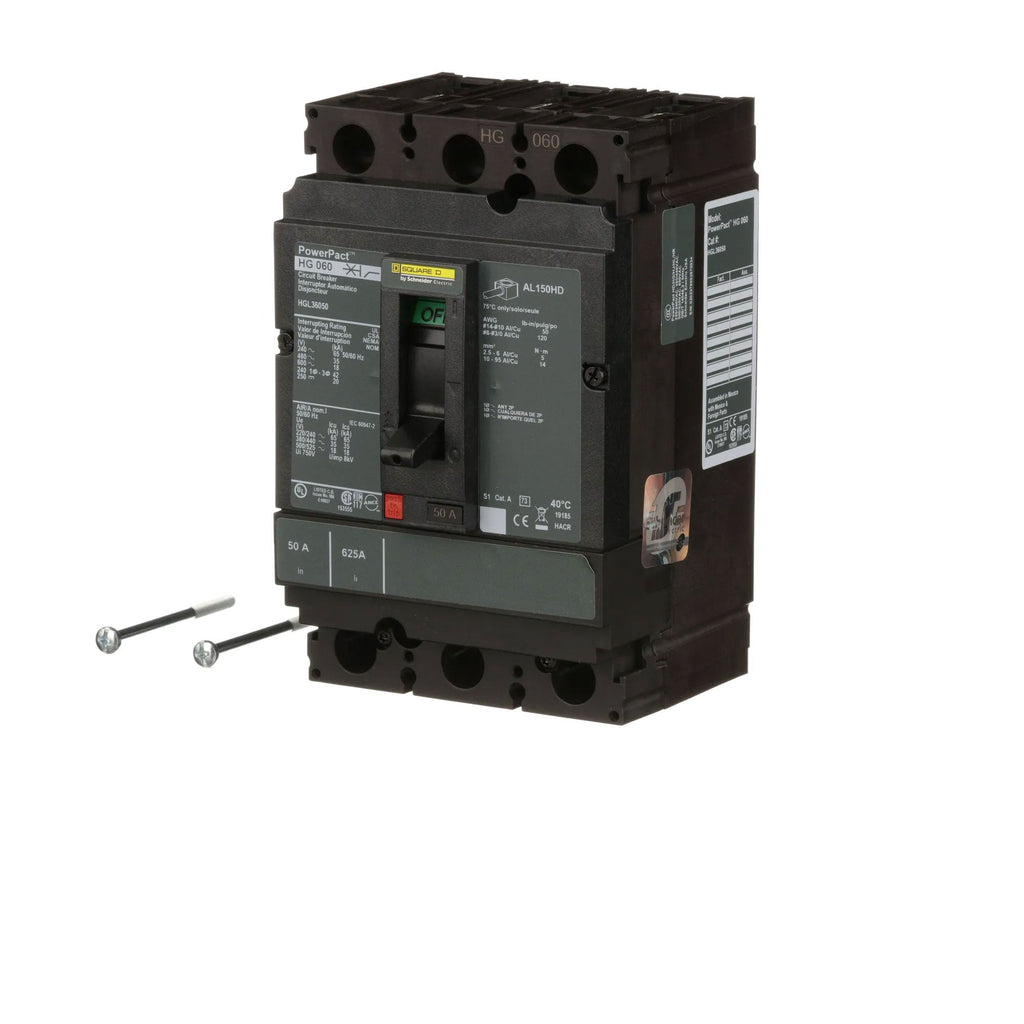

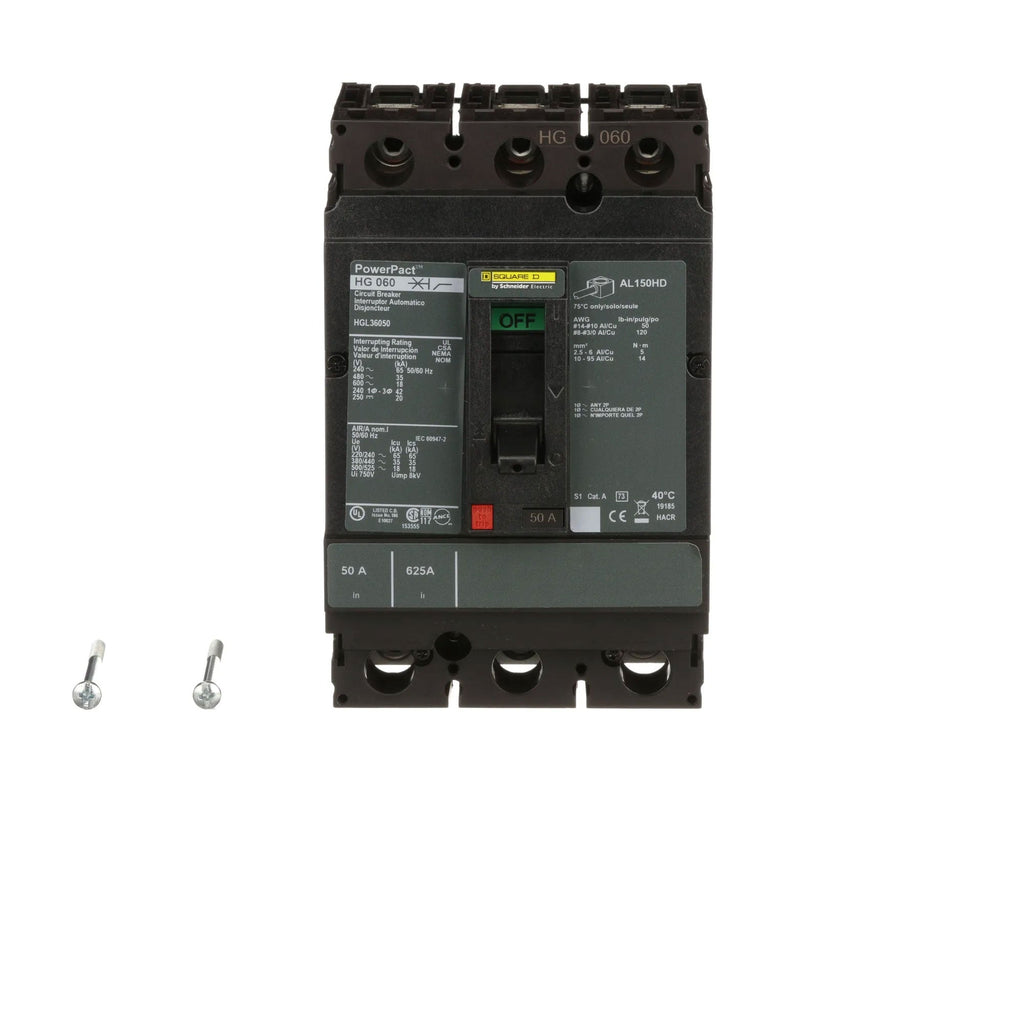

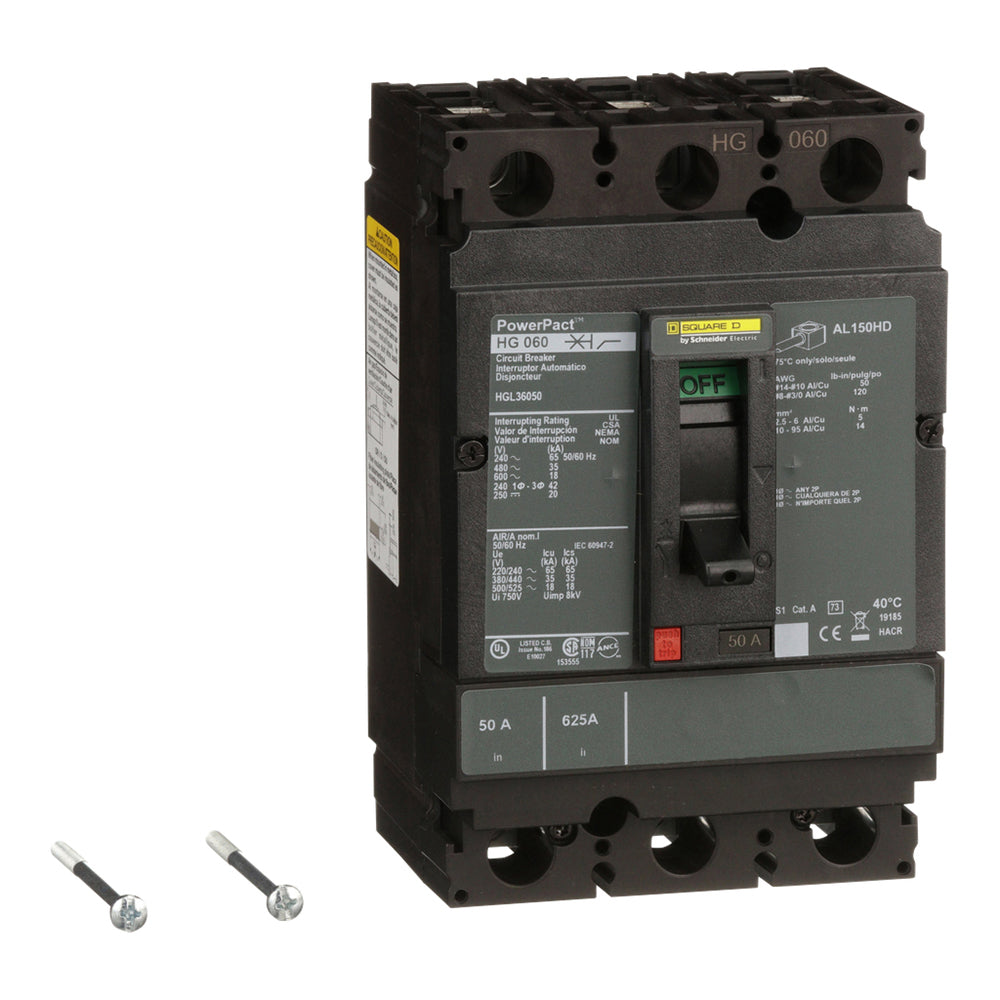

HGL36050 - Square D PowerPact H 50A 600V 3 Pole Thermal Magnetic Circuit Breaker

HGL36050

HGL36050 is a Square D PowerPact H frame circuit breaker rated for 50 amps, 600 volts, and 3 poles with thermal magnetic trip unit.This molded case circuit breaker features a unit mount design with line and load lugs, an interrupt rating of up to 65kA at 240V AC, and is suitable for use up to 600V AC or 500V DC. It supports wire gauges from AWG 14 to AWG 3/0 aluminum or copper and complies with UL 489 standards. The breaker has a compact size with dimensions approximately 6.4" height, 4.12" width, and 4.36" depth.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 V AC, 500 V DC
• Number of Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 65 kA @ 240 V AC, 35 kA @ 480 V AC, 18 kA @ 600 V AC, 20 kA @ 500 V DC
• Frame/Series: PowerPact H
• Trip Unit: Thermal Magnetic
• Electrical Connection: Line and Load Lugs
• Wire Gauge Range: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901598763
• GTIN : 00785901598763
• Country of Origin : Mexico

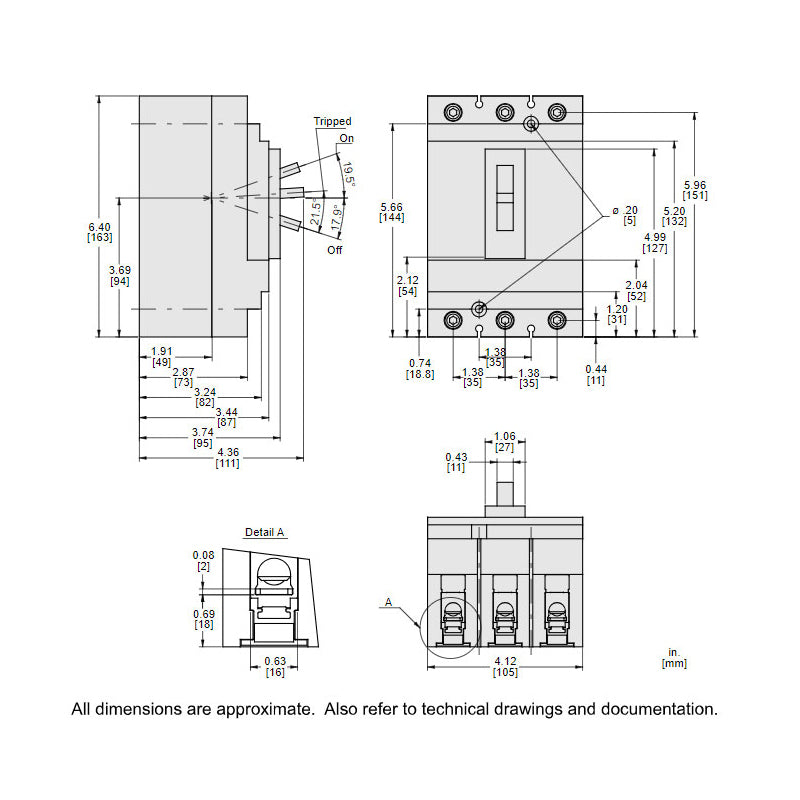

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.08
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
