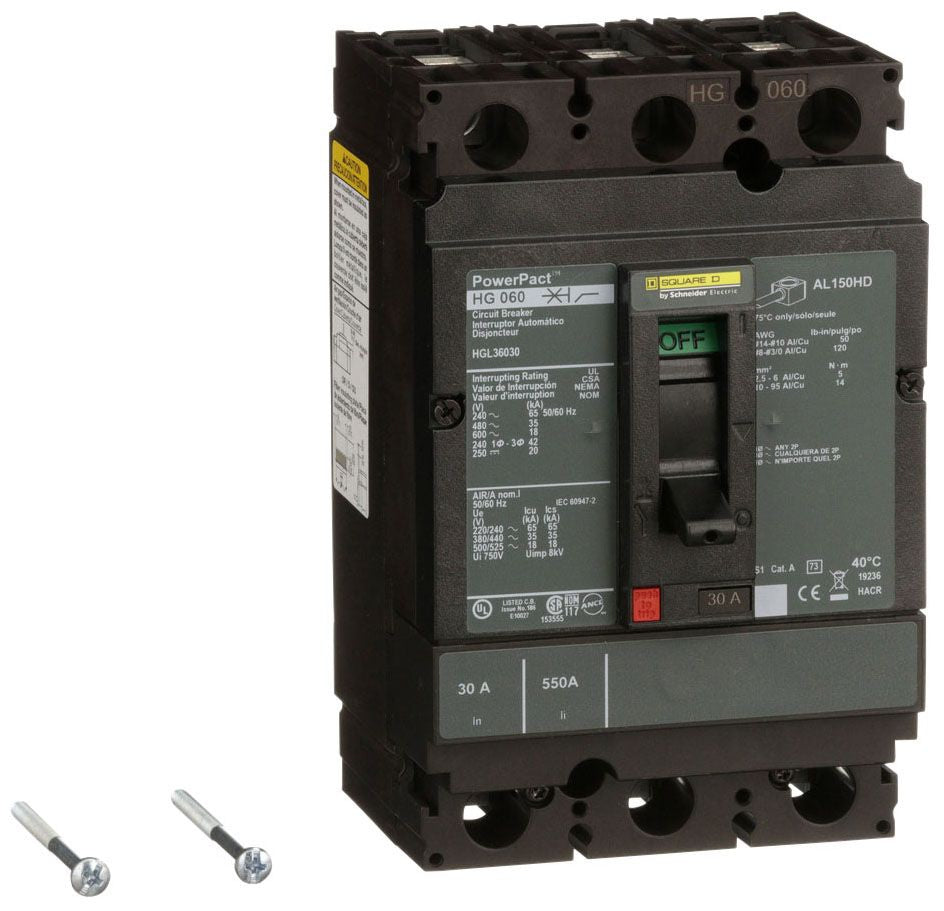

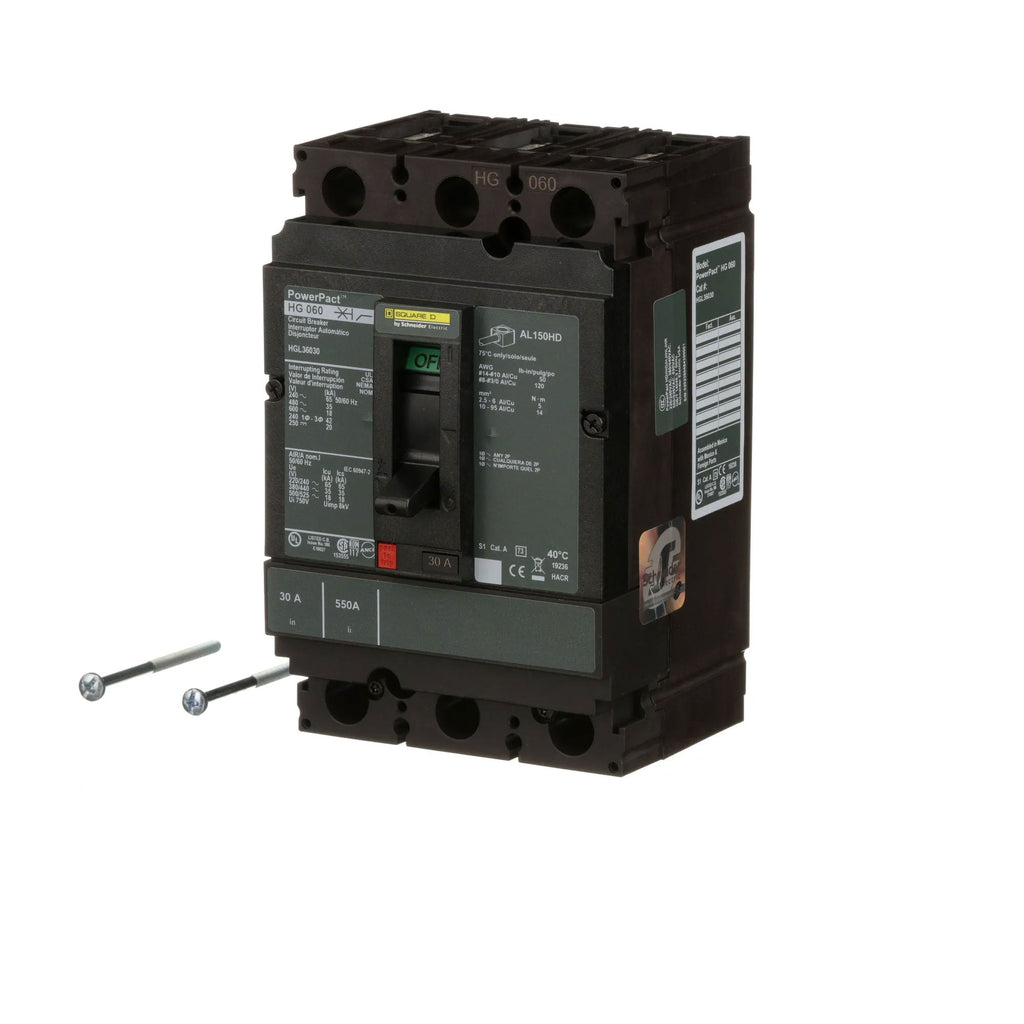

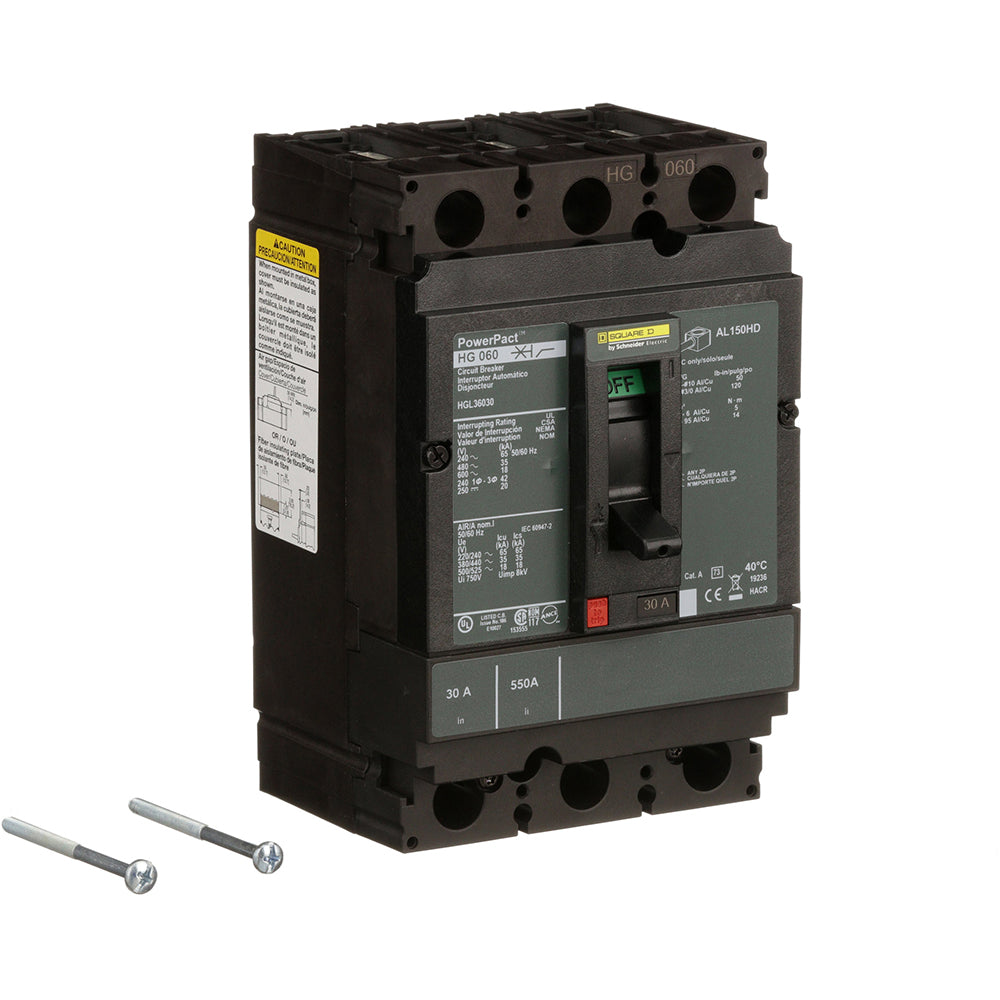

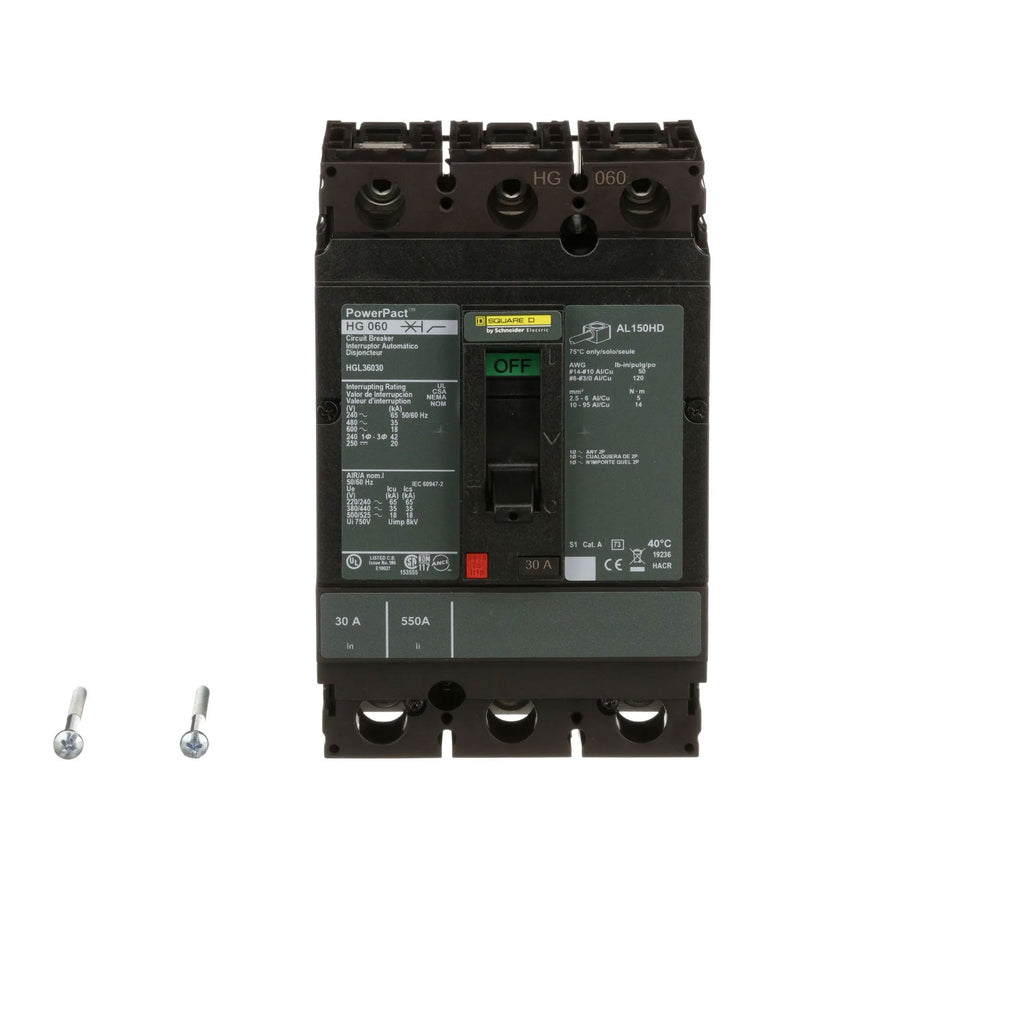

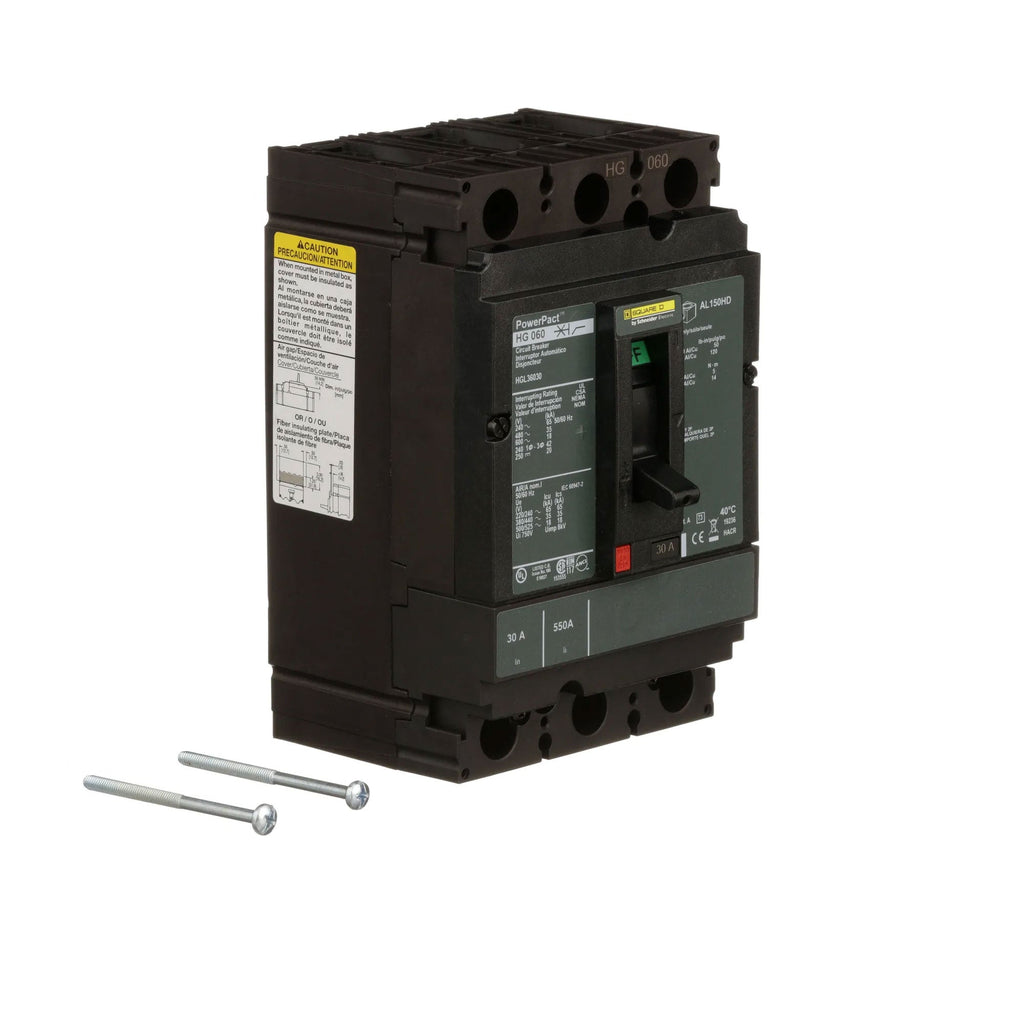

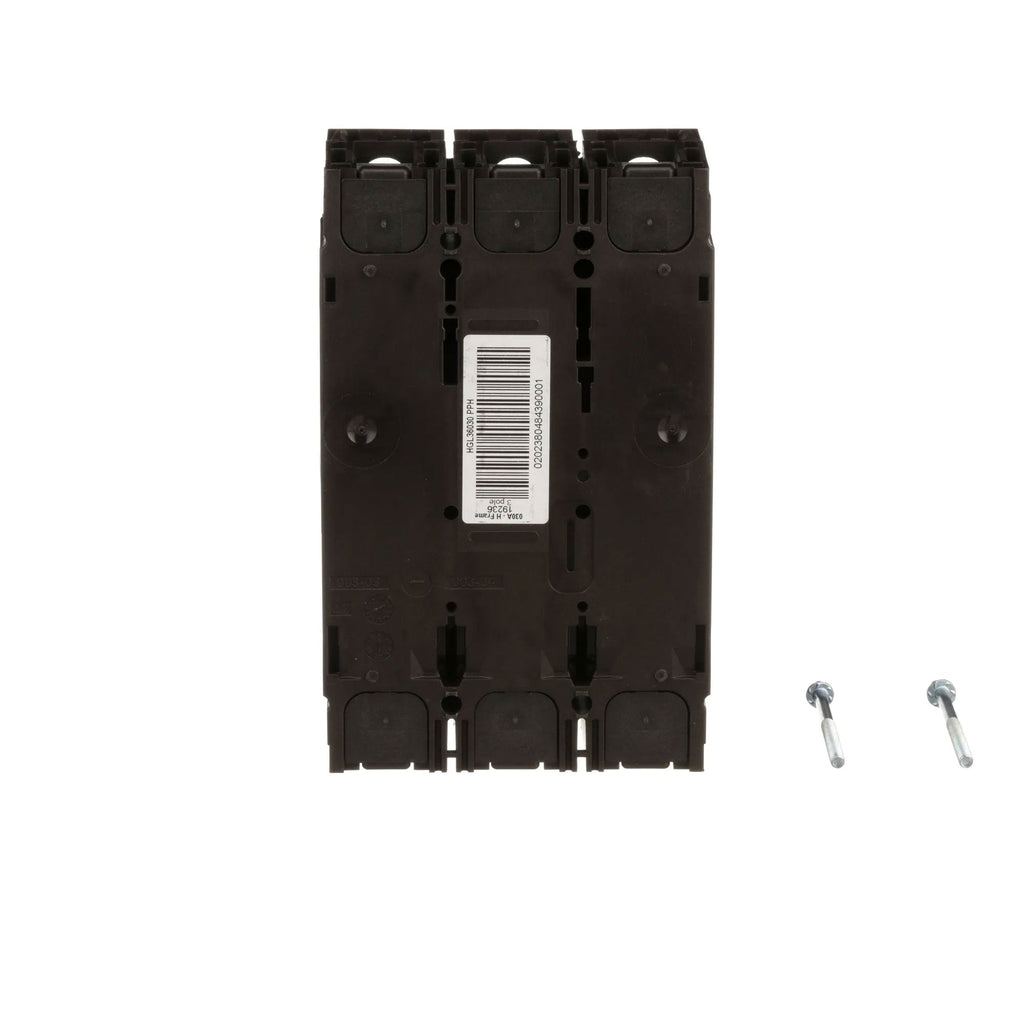

HGL36030 - Square D 30 Amp 600VAC 3 Pole Molded Case Circuit Breaker H Frame Feed-Thru

HGL36030

HGL36030 is a 3 pole, 30 amp, 600VAC molded case circuit breaker from Square D's PowerPacT H Frame series with feed-thru mounting.This thermal magnetic breaker offers reliable circuit protection with an 18kA interrupt rating at 600VAC and is UL 489 listed. It features a unit mount design and complies with UL, CSA, NOM, IEC standards, and is CE marked.

• Amperage: 30 Amps
• Voltage Rating: 600VAC / 690VAC
• Poles: 3
• Mounting Type: Feed-Thru (Unit Mount)
• Interrupt Rating: 18kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
• Frame/Series: PowerPacT H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, NOM, IEC, CE Marked
• Breaking Capacity: High interrupting capacity for industrial applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901598725
• GTIN : 00785901598725
• Country of Origin : Mexico

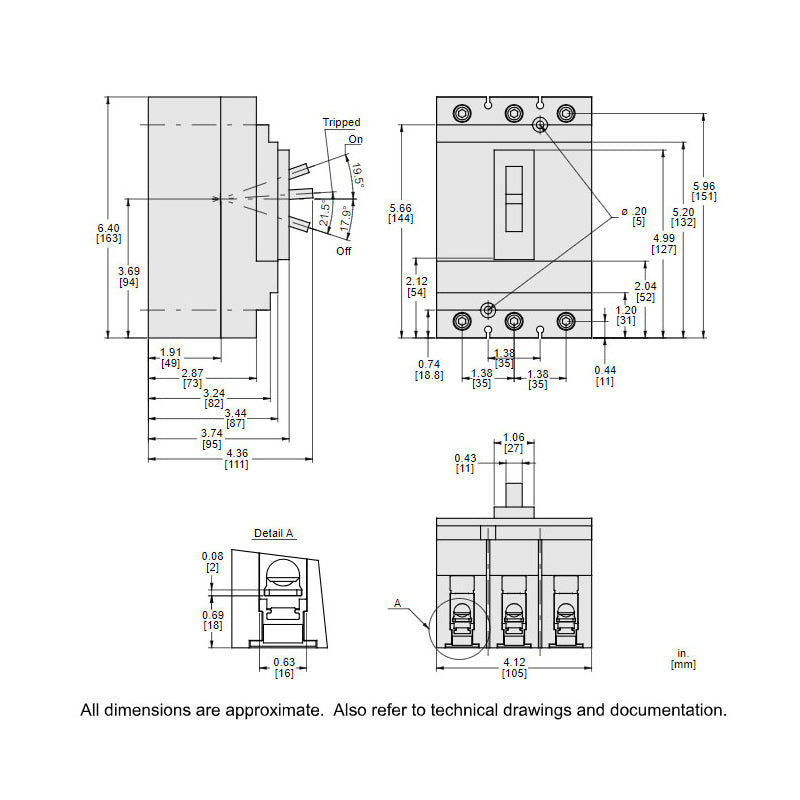

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
