HGL26125 - Square D 125 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker H Frame

Save $2,160.66
SKU: HGL26125-New
Condition: New
Price:
$898.34 $3,059.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

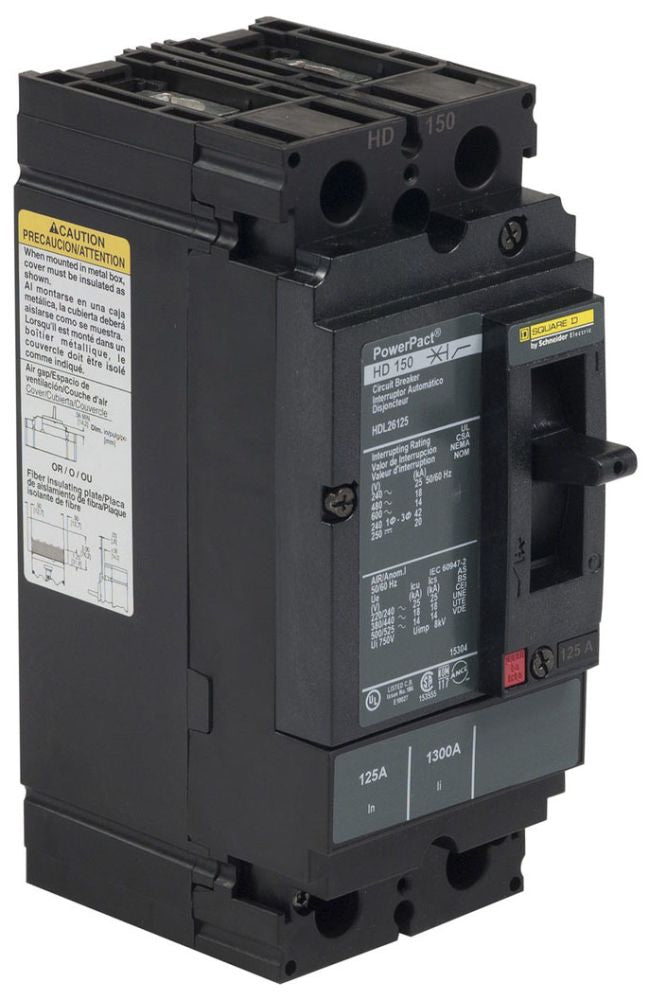

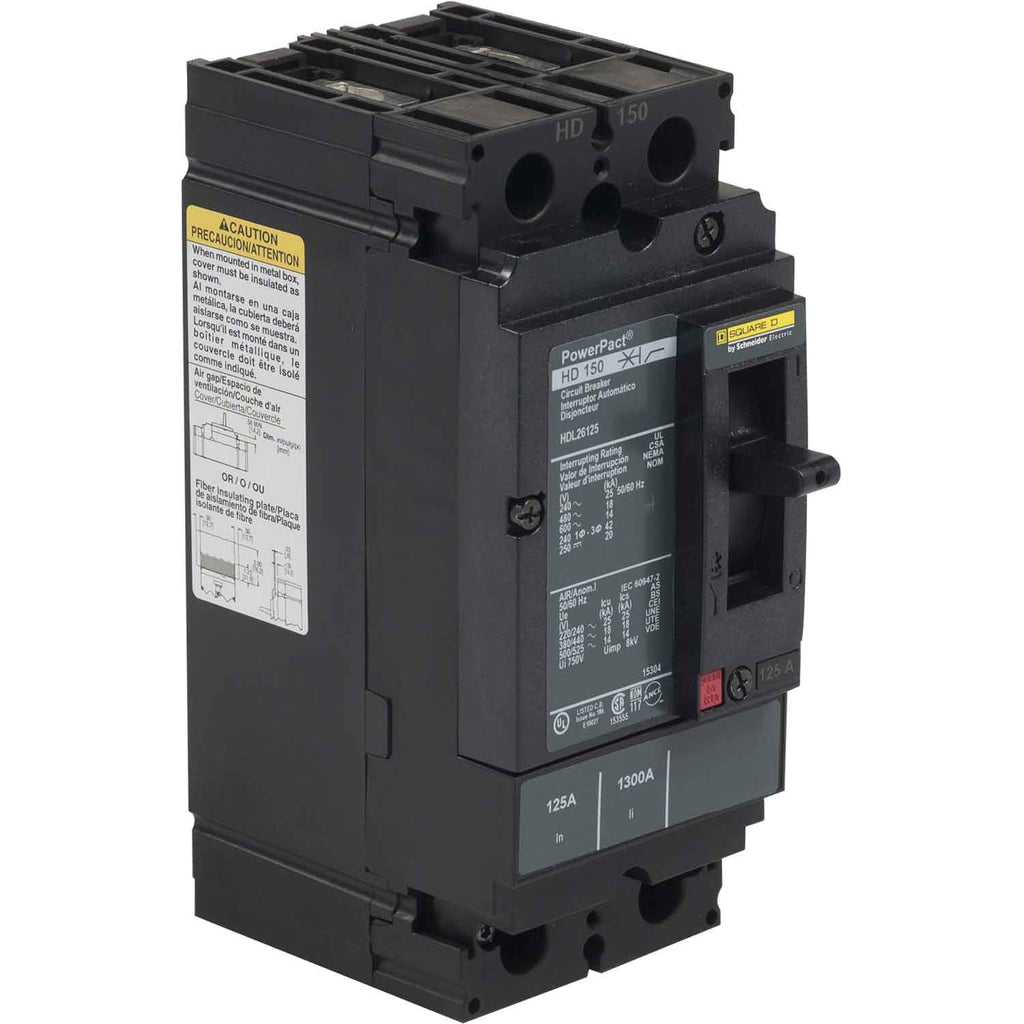

HGL26125 - Schneider Electric/ Square D Feed-Thru 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGL26125 - Square D Bolt-On 600V 125A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGL26125 - Square D 125 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker H Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGL26125 - Schneider Electric/ Square D Feed-Thru 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGL26125 - Square D Bolt-On 600V 125A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGL26125 - Square D 125 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker H Frame - Essential Electric Supply

Description

HGL26125


HGL26125 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 125 Amps and 600 Volts. It features a high interrupting capacity and unit mount design.This circuit breaker belongs to the PowerPact H series with H frame type, providing reliable overload and short circuit protection. It includes long-time and instantaneous trip functions, thermal magnetic protection, and feed-thru connection type. The breaker is UL 489, CSA, CE, and IEC certified, suitable for 1 phase applications with line and load lug terminals.
    Key Specifications
    • Amperage: 125 A
    • Voltage Rating: 600 V AC / 500 V DC
    • Poles: 2
    • Mounting Type: Unit Mount
    • Interrupting Rating: 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC, 20 kA at 250/500 V DC
    • Frame Type: HGL (PowerPact H Series)
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
    • Connection Type: Feed-Thru
    • Certifications: UL 489, CSA, CE, IEC
    • Terminal Connection: Line and Load Lug
    • Dimensions (HxWxD): approx. 6.4 x 2.74 x 4.36 inches
    • Wire Gauge: AWG 14 to 3/0 Aluminum/Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGL26125
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGL
  • Voltage : 600
  • Amperage : 125
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HG
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901598848
  • GTIN : 00785901598848
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
