HGL26015 - Square D 15A 2-Pole 600VAC Powerpact H Molded Case Circuit Breaker

HGL26015

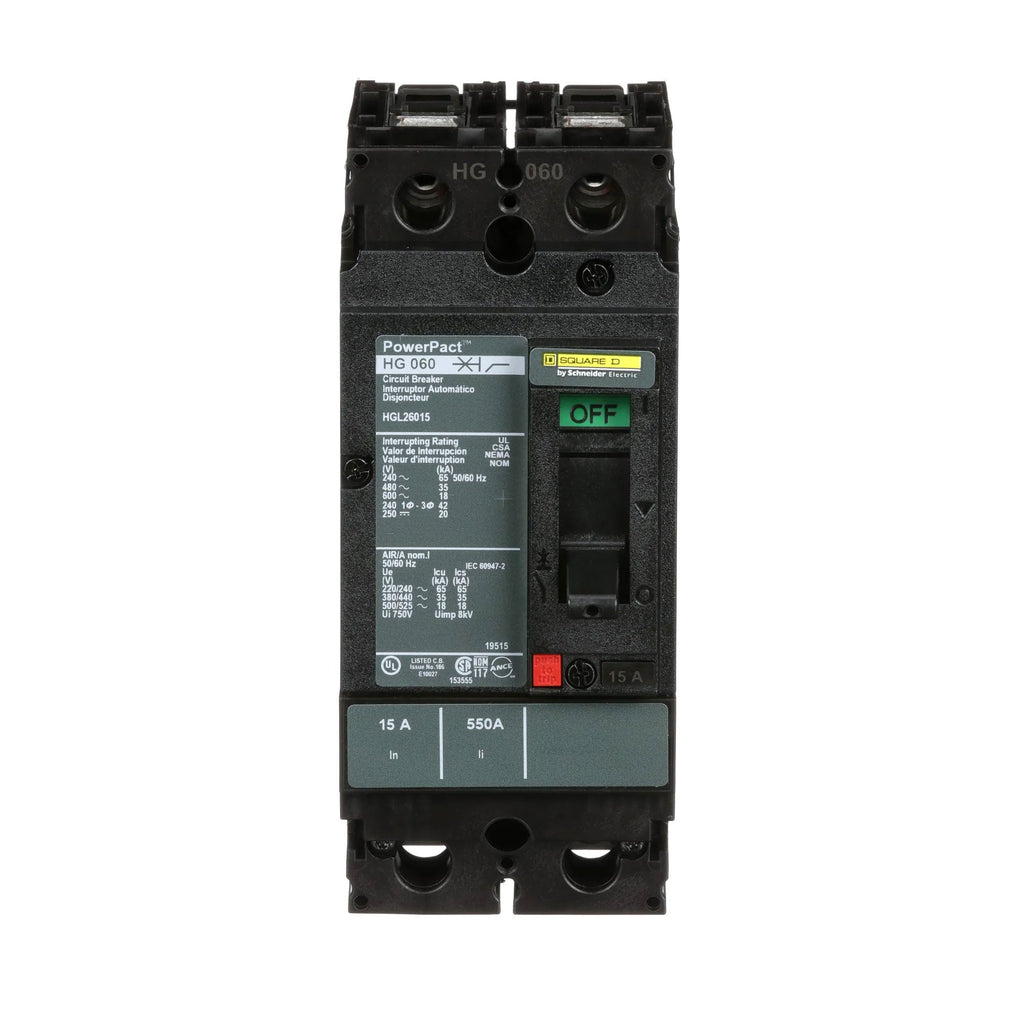

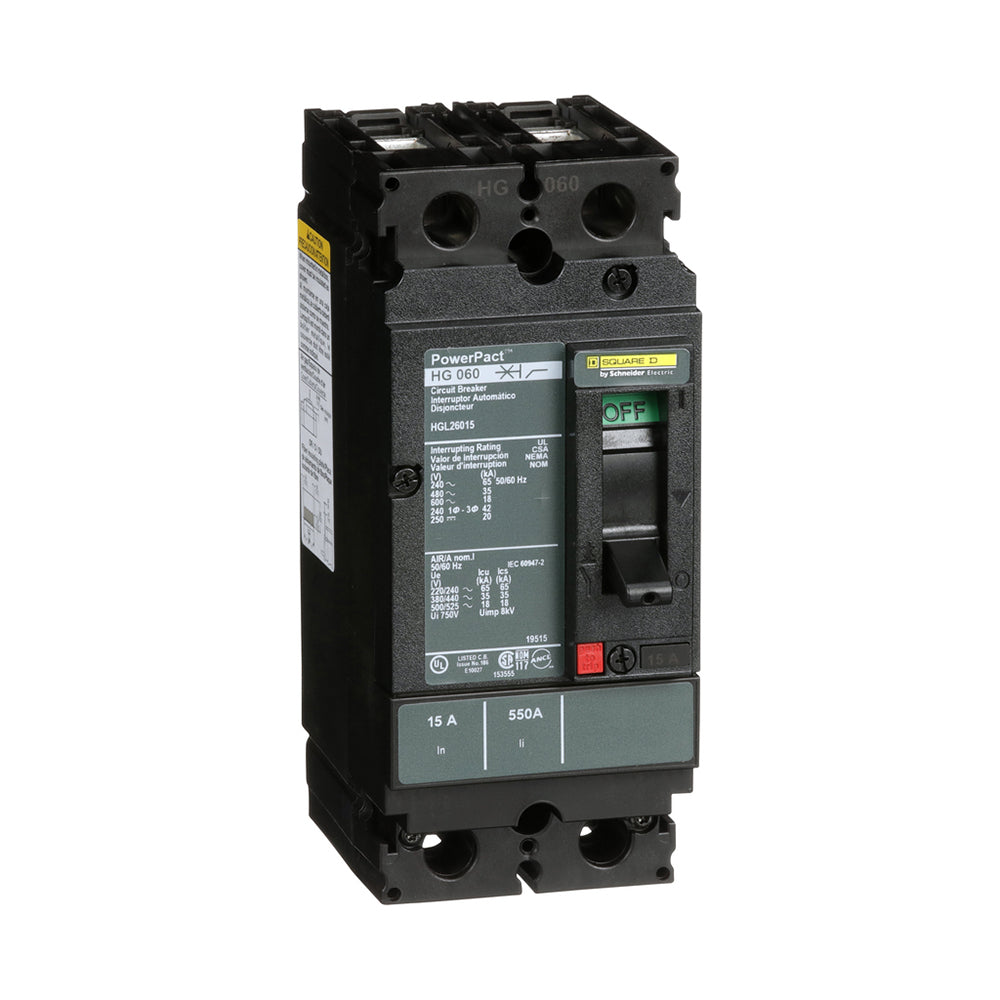

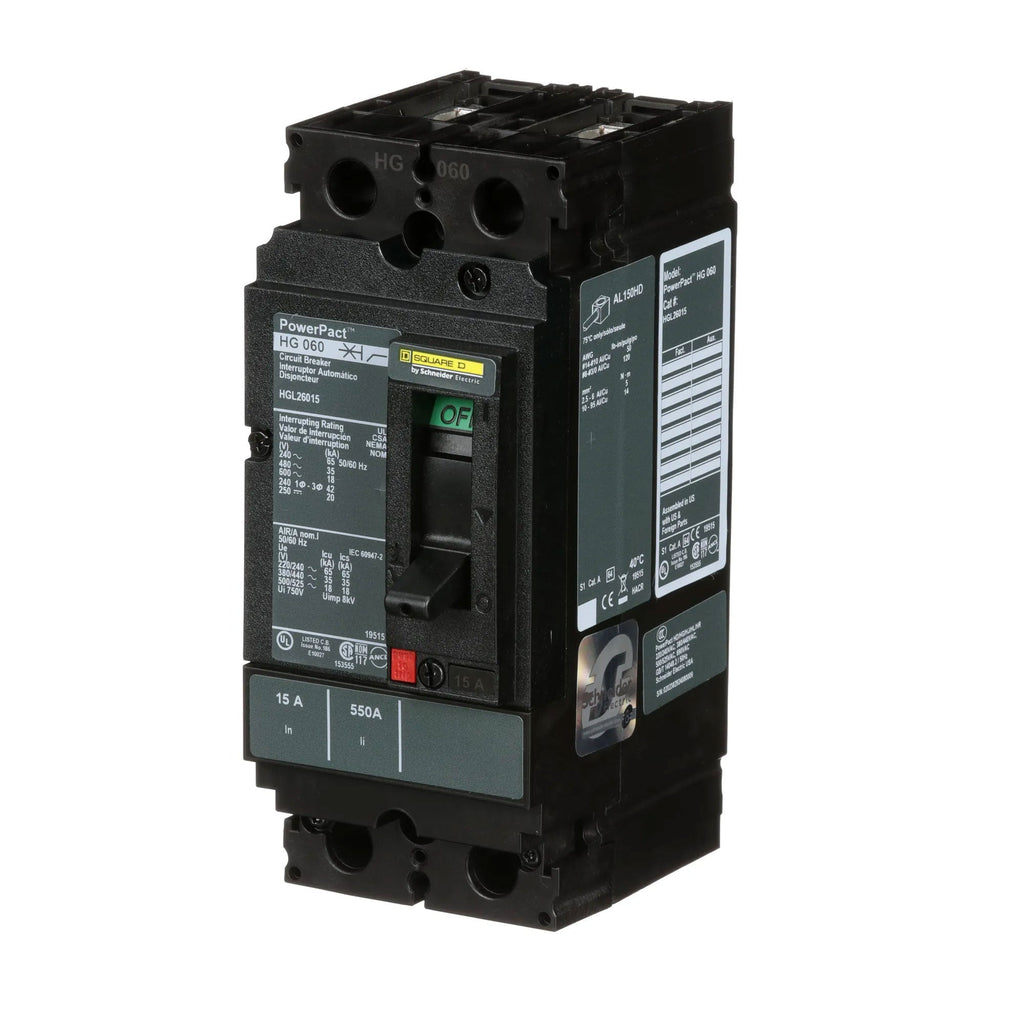

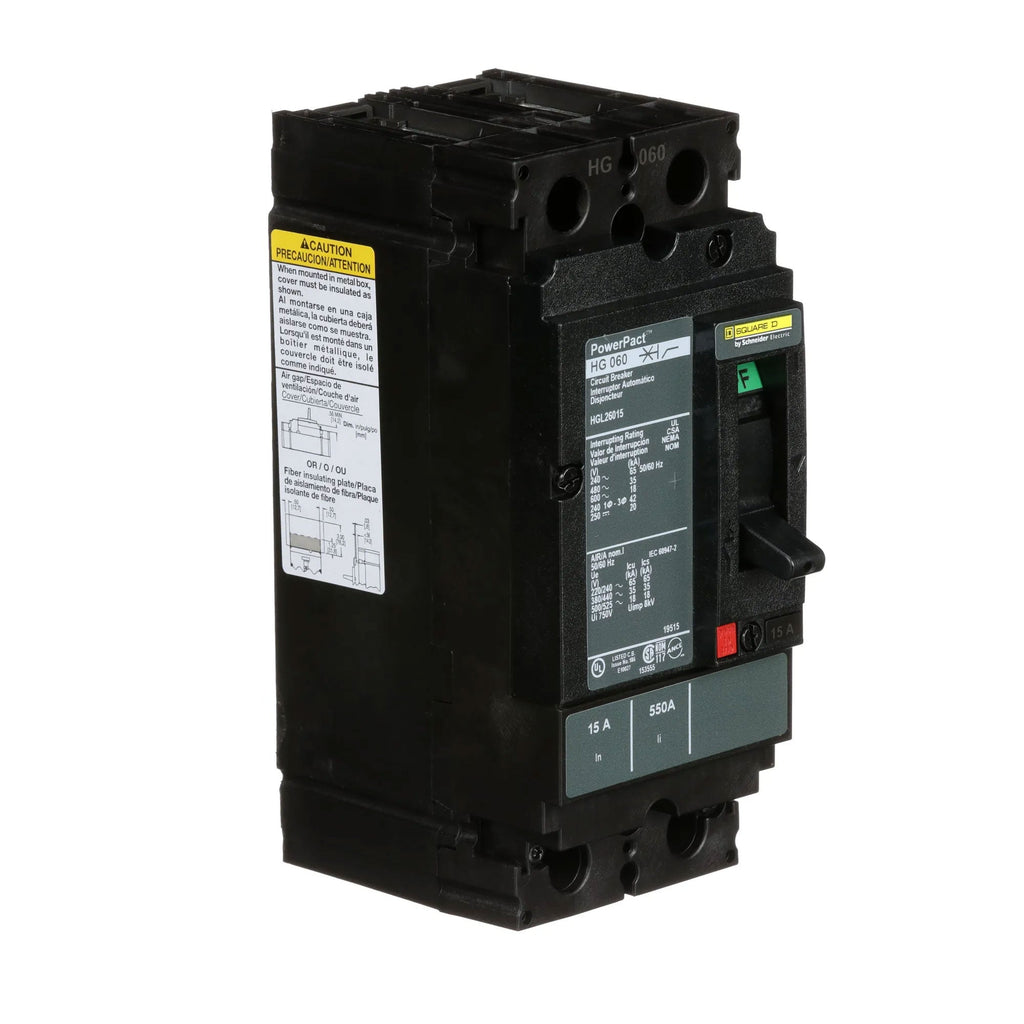

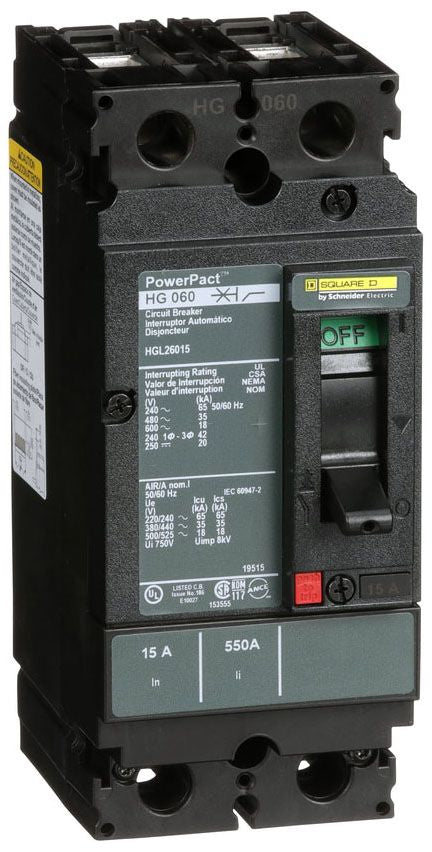

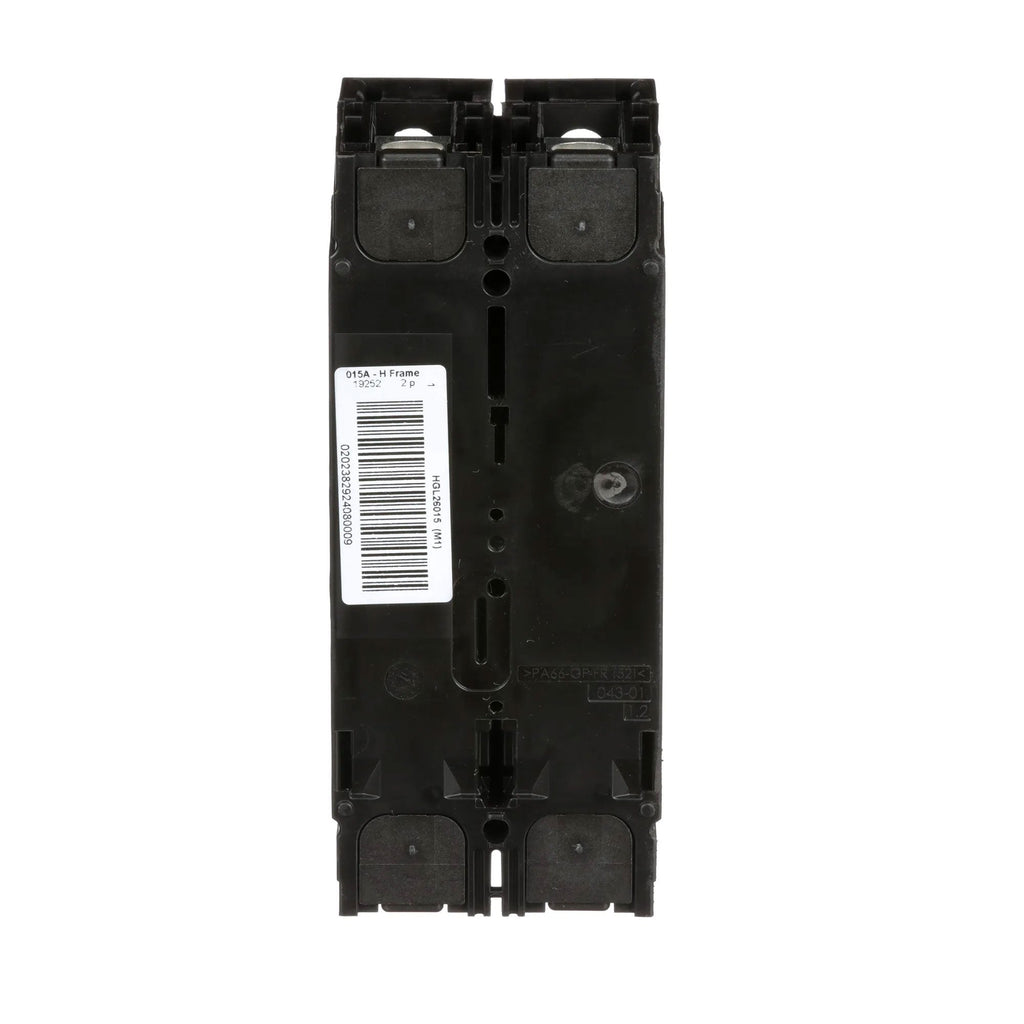

HGL26015 is a Square D Powerpact H molded case circuit breaker rated for 15 amps and 600 volts AC with 2 poles.This thermal magnetic circuit breaker features a current limiting trip unit, an interrupt rating of up to 65 kA at 240 VAC, and is designed for free-standing mounting with line and load lug connections. It complies with UL 489 standards and is suitable for protecting electrical circuits against overloads and short circuits.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 2
• Frame/Series: Powerpact H
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 20 kA at 250 VDC
• Trip Unit: Thermal Magnetic
• Mounting Type: Free Standing
• Terminal Connection: Line and Load Lugs
• Dimensions: Approx. 6.4" H x 2.74" W x 4.36" D
• Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGL26015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901433750
• GTIN : 00785901433750
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.12
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
