2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGG3B030L

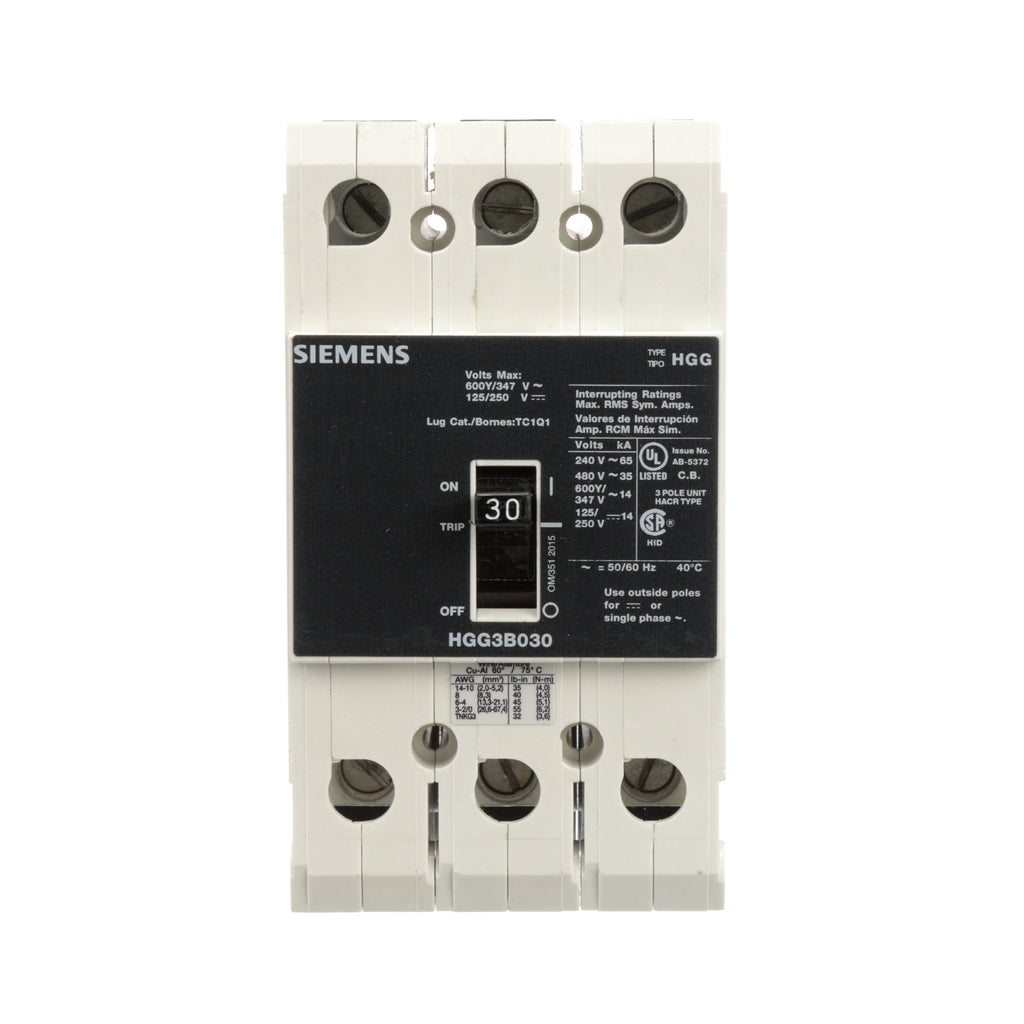

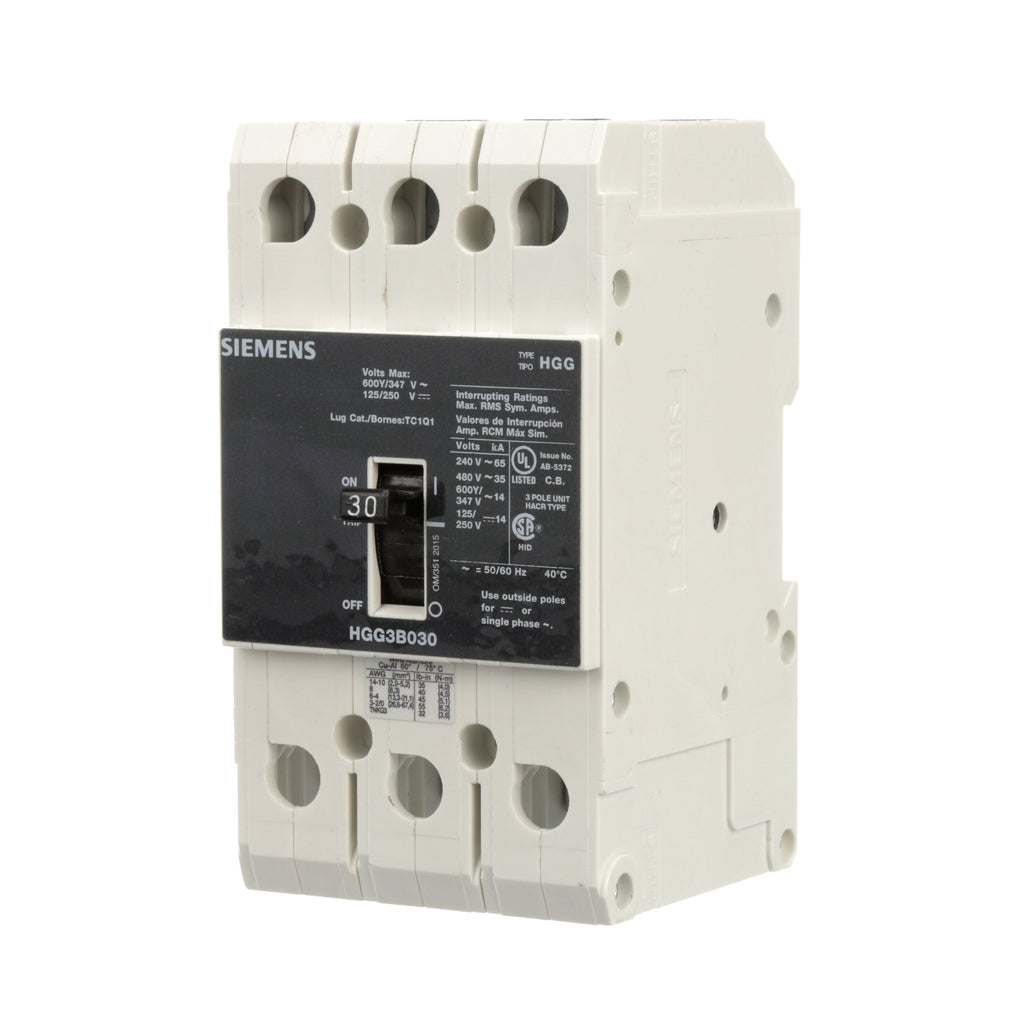

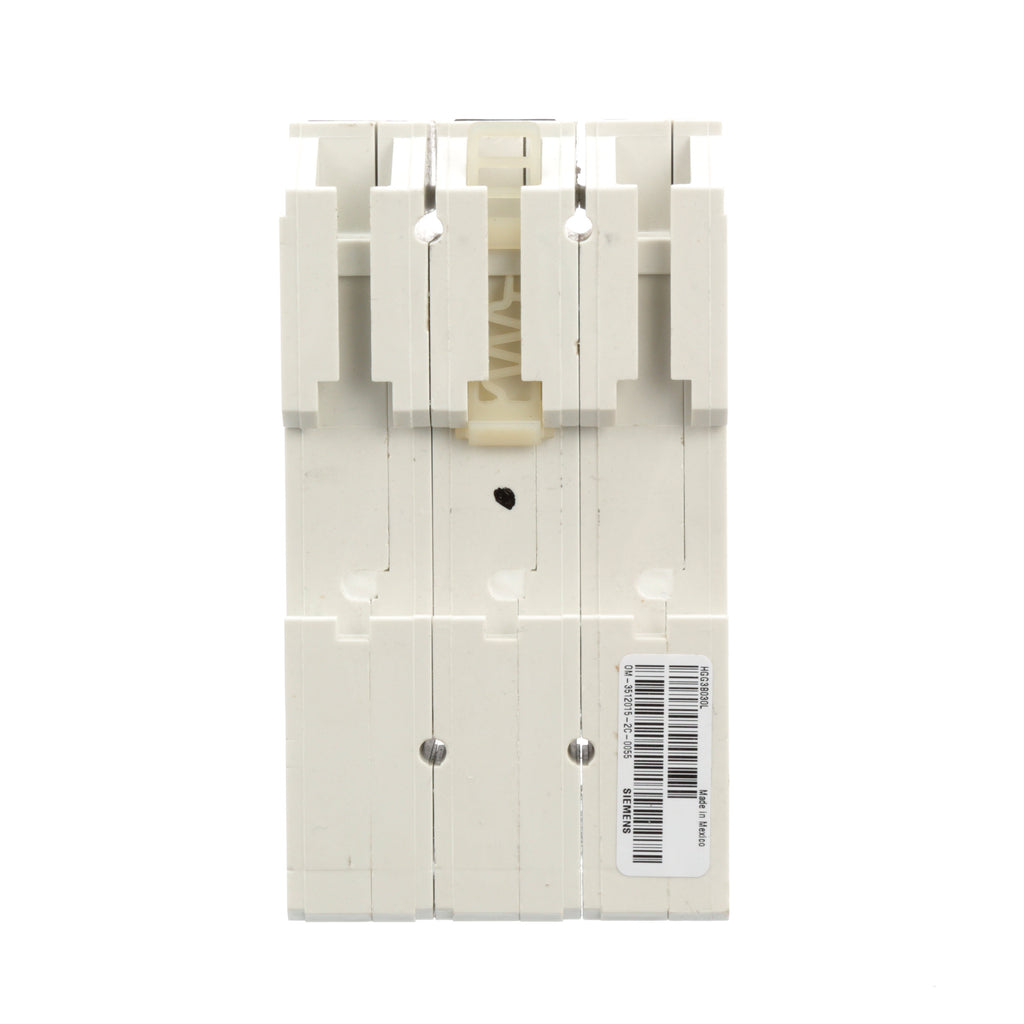

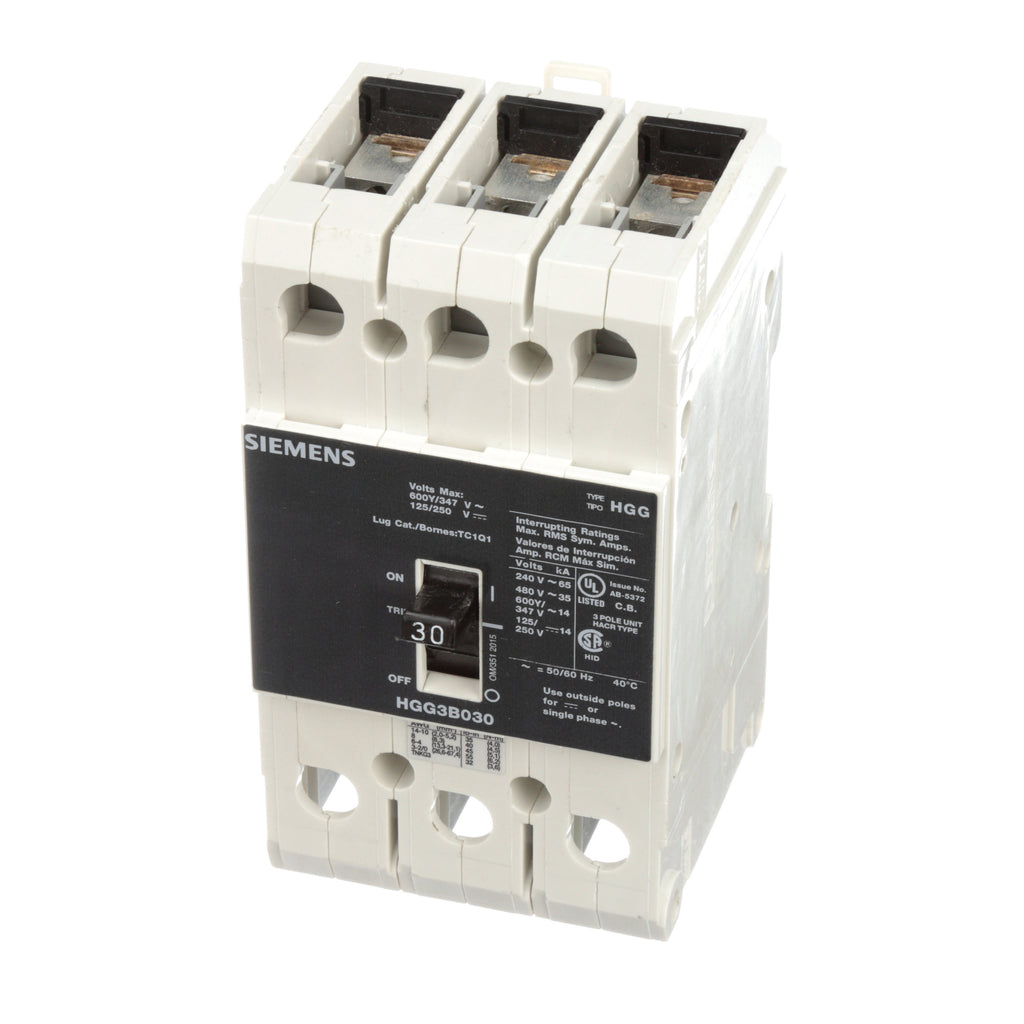

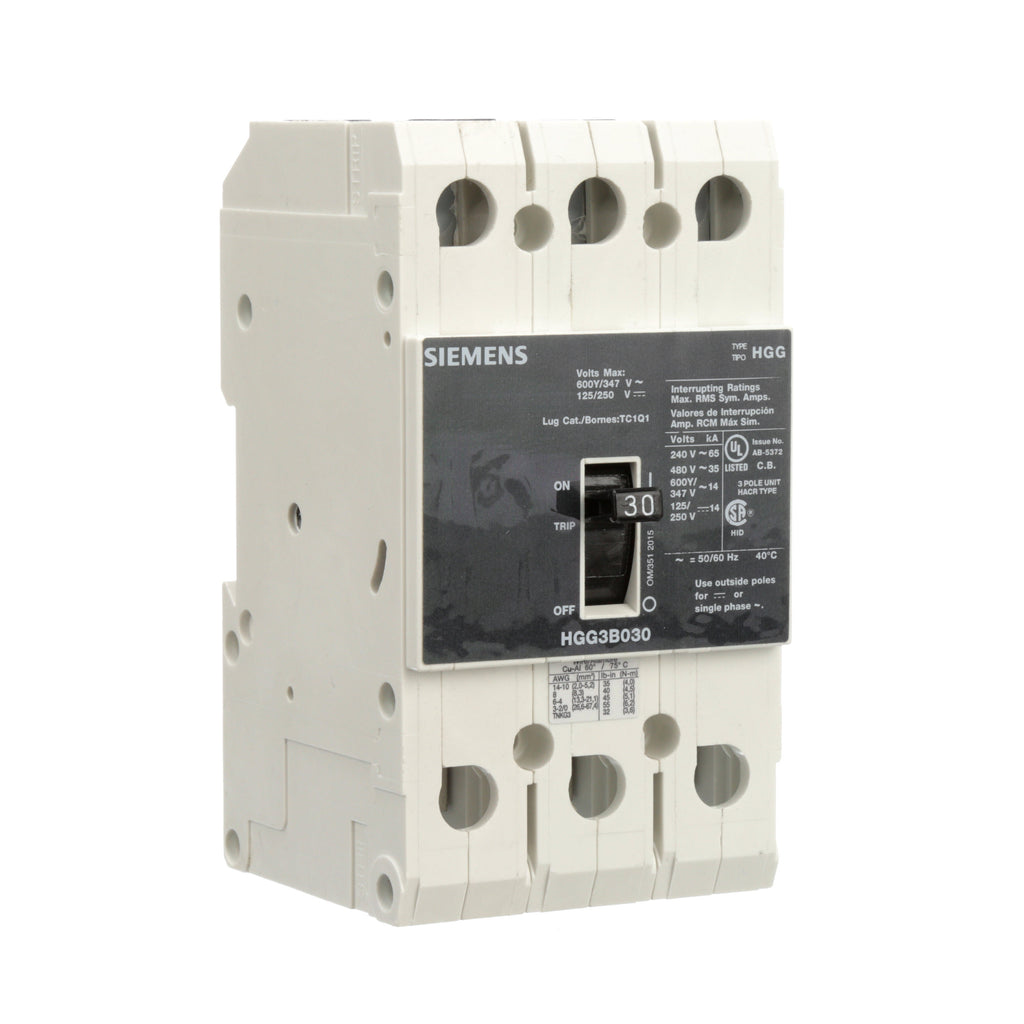

HGG3B030L is a Siemens 30A, 600V, 3 pole molded case circuit breaker with feed-thru mounting and a 35kA interrupting rating at 480V. This breaker is designed for reliable protection in commercial and industrial power distribution systems. The HGG3B030L features a thermal magnetic trip unit for precise overload and short-circuit protection. It is UL489 certified and built to meet NEMA standards for durability and safety. The feed-thru design allows for easy installation in panelboards and switchgear, making it ideal for a wide range of applications.
- Part Number: HGG3B030L
- Manufacturer: Siemens
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupt Rating: 35kA @ 480V
- Series/Frame: HGG
- Frame Size: HGG
- Trip Unit: Thermal Magnetic
- Certifications: UL489
- NEMA Rating: 35kA @ 480V
Specifications
- Part Number: HGG3B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : HGG
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 887621278731
- GTIN : 00887621278731
- Country of Origin : Mexico
- Weight : 2.756
- Certification : UL
- Wire Size : AWS 14 to AWS 10, Cu/Al
