Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB3B080B

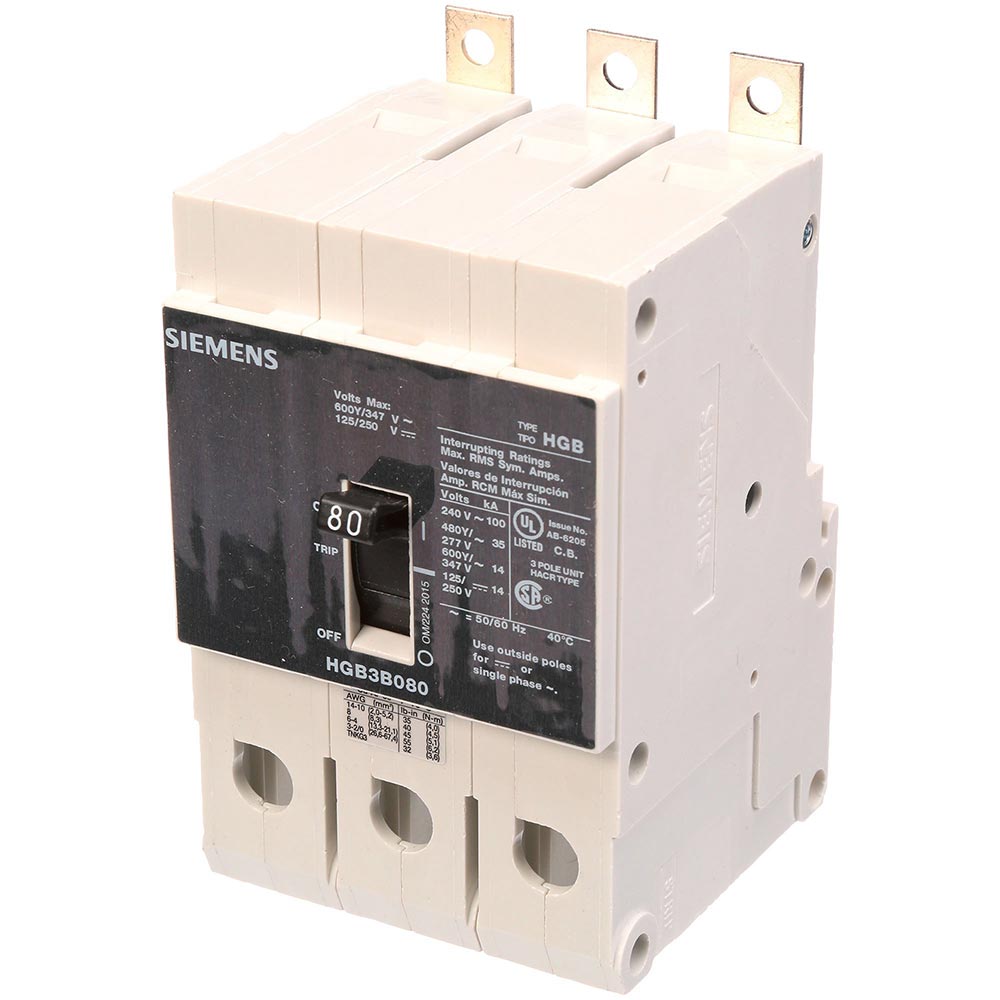

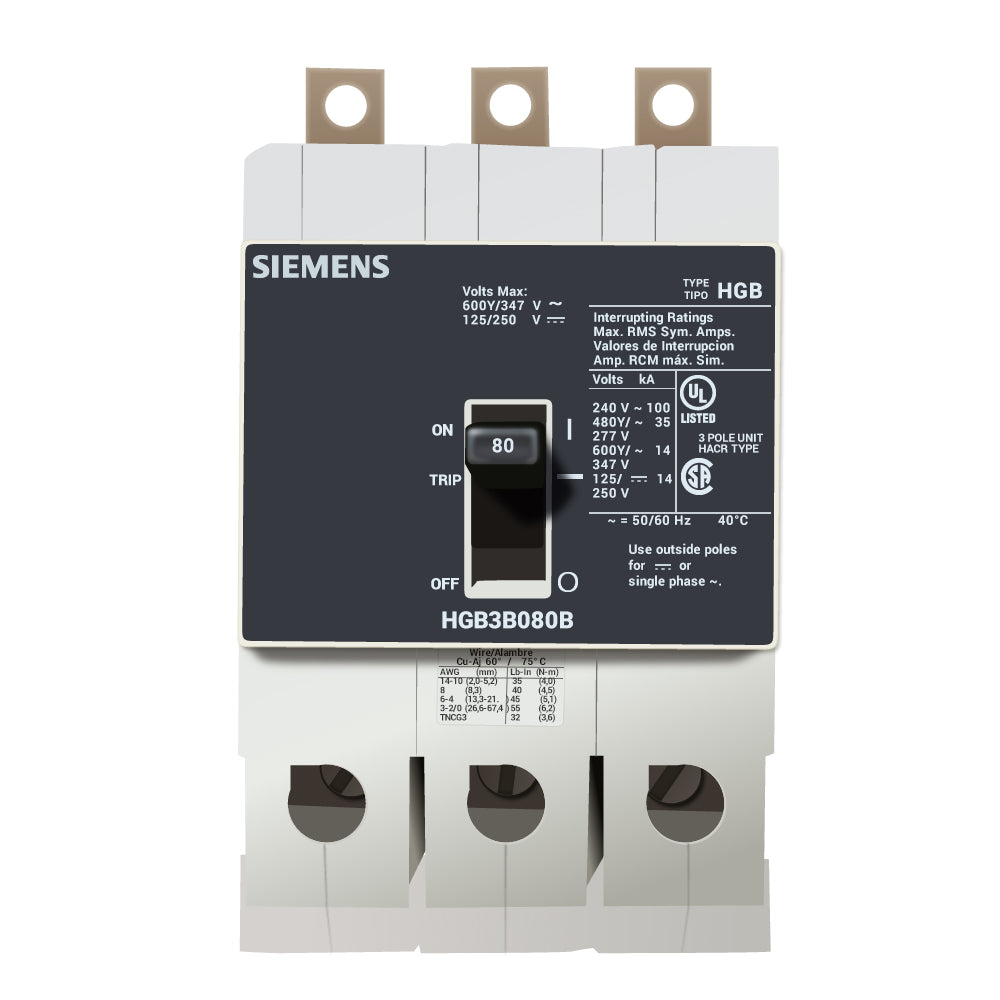

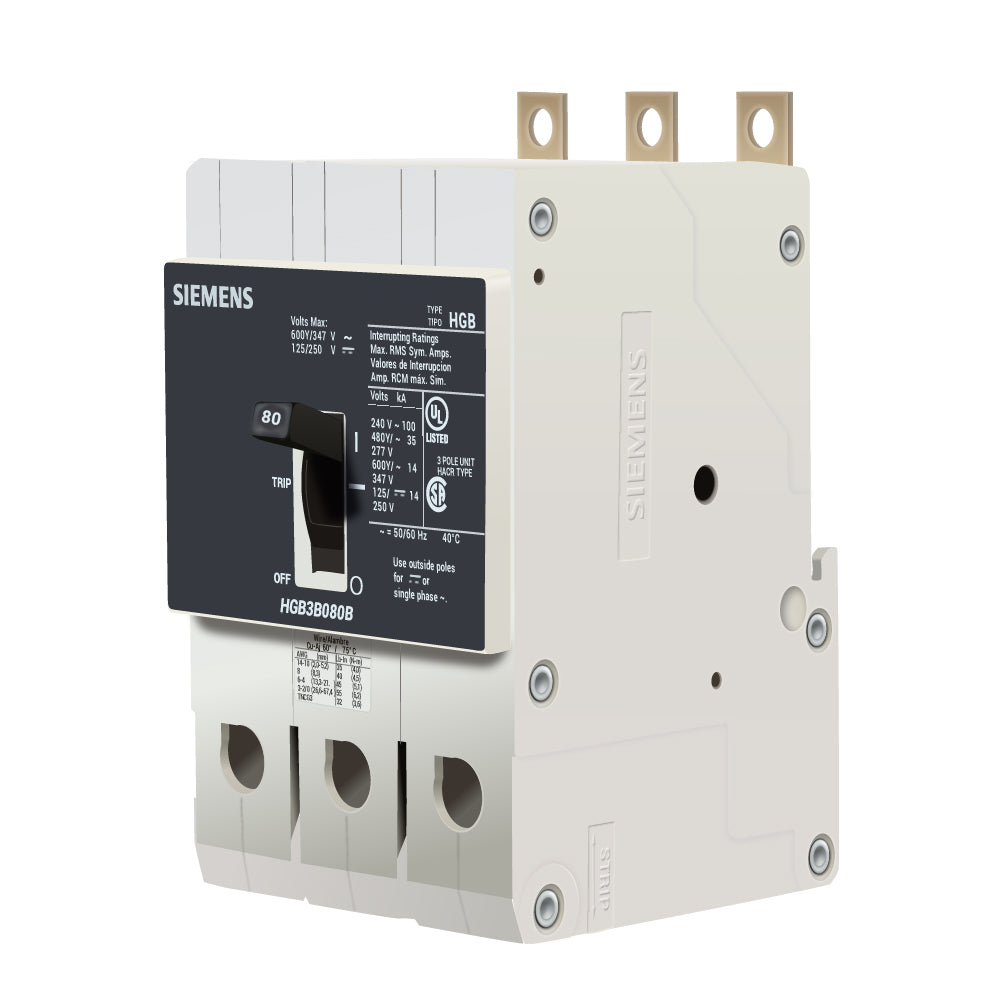

HGB3B080B - Siemens 3-pole molded case circuit breaker with thermal magnetic trip, rated at 80A and 480V.The Siemens HGB3B080B is a bolt-on thermal magnetic circuit breaker from the HGB series/frame, designed for panelboard mounting. It provides reliable overcurrent protection with high interrupting capacity, suitable for 3-phase applications and load side lugs.
- Part Number: HGB3B080B
- Manufacturer: Siemens
- Series/Frame: HGB
- Amperage Rating: 80A
- Voltage Rating: 480V
- Number of Poles: 3
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On, Panelboard
- Interrupt Rating: 100kA @ 240VAC, 35kA @ 480VAC
- Connection Type: Load Side Lugs
- Certifications: UL
Specifications
- Part Number: HGB3B080B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : HGB
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621219864
- GTIN : 00887621219864
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.1009
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : AWS 8 to AWS 1/0, CU/AL
