Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB3B030B

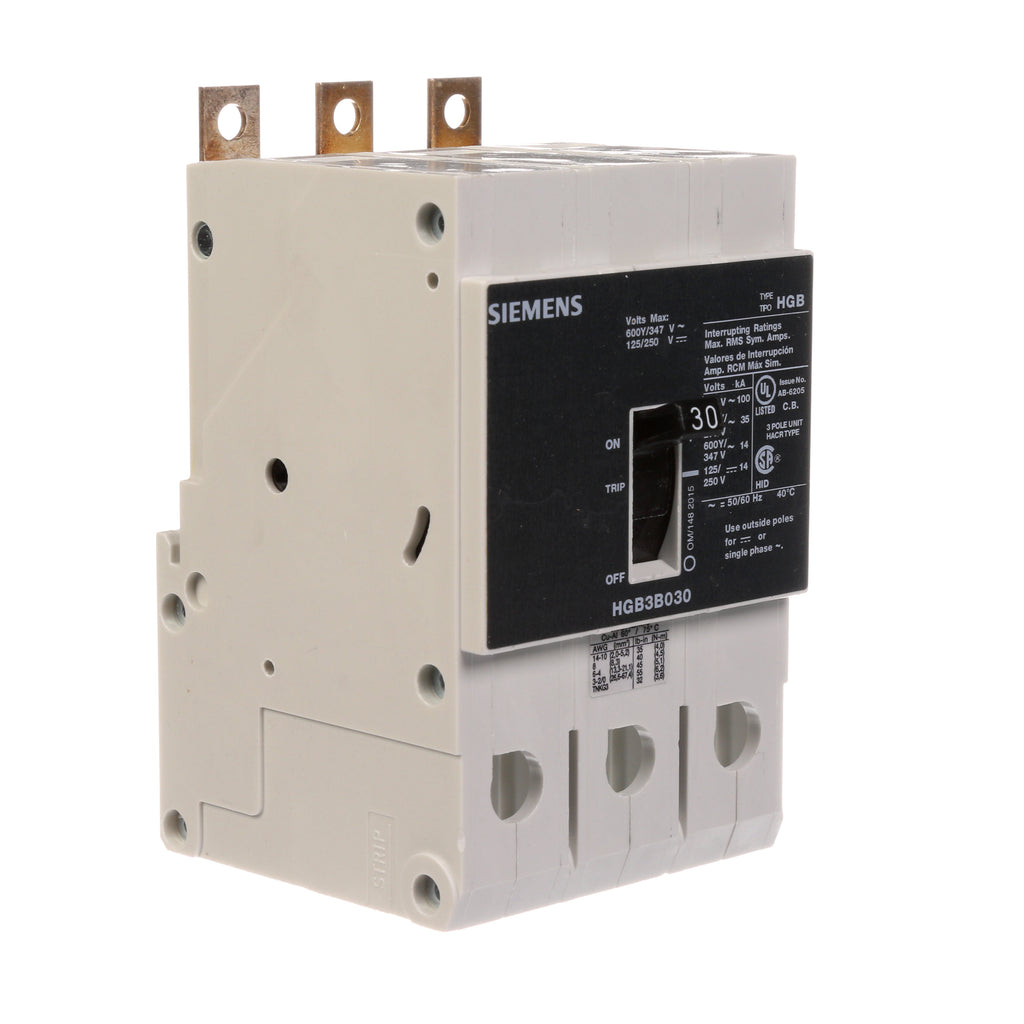

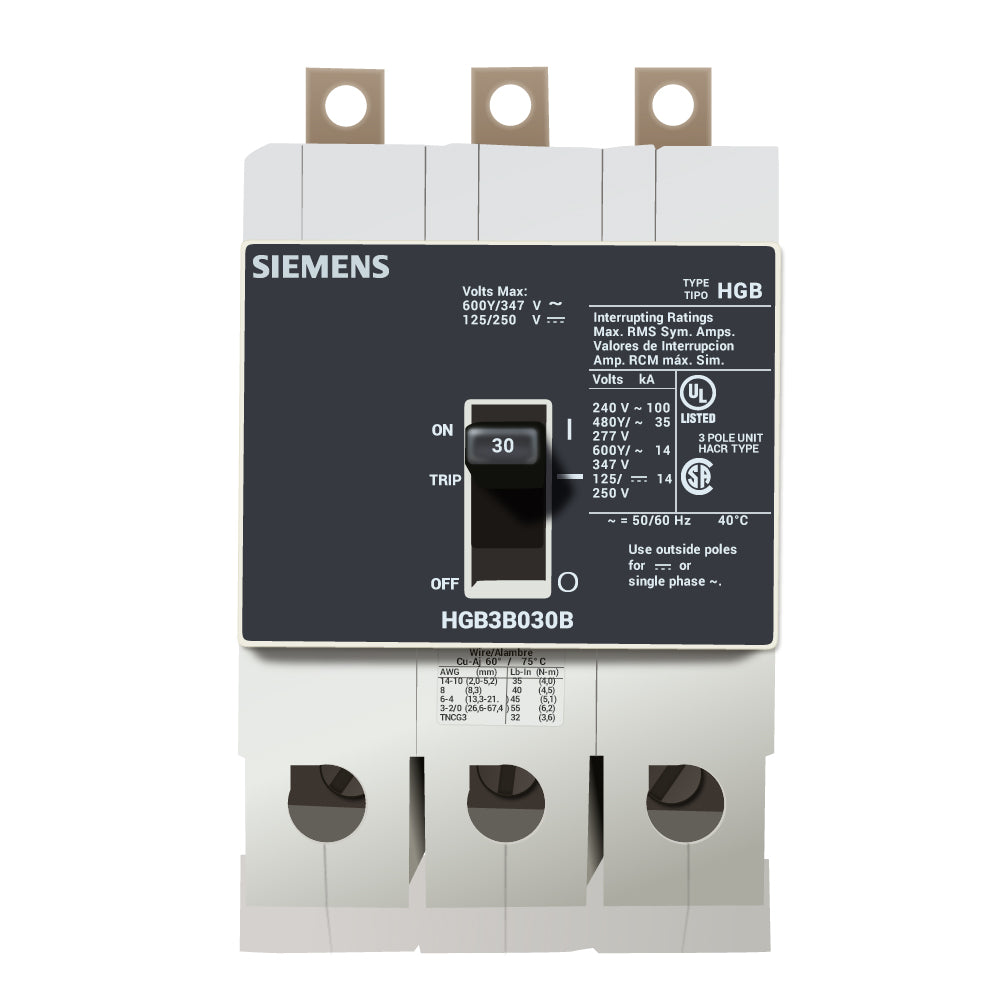

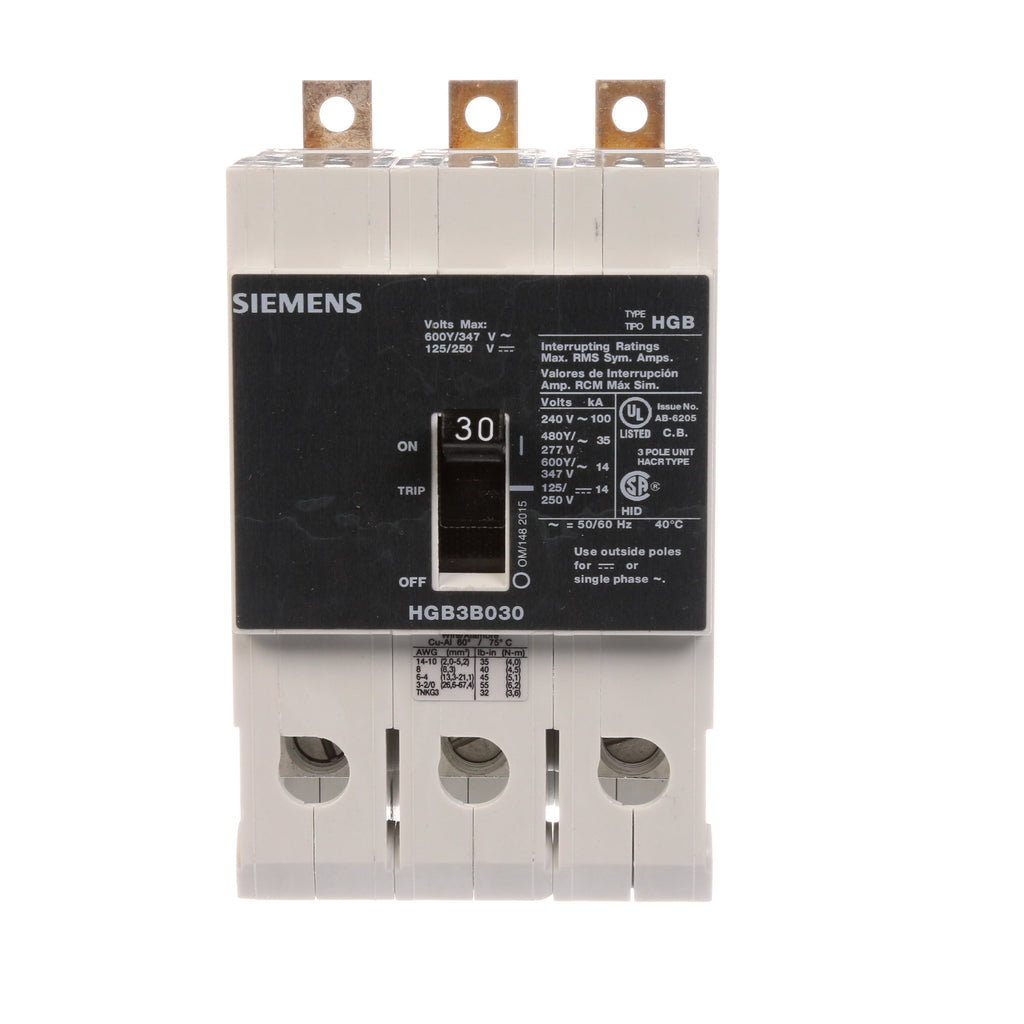

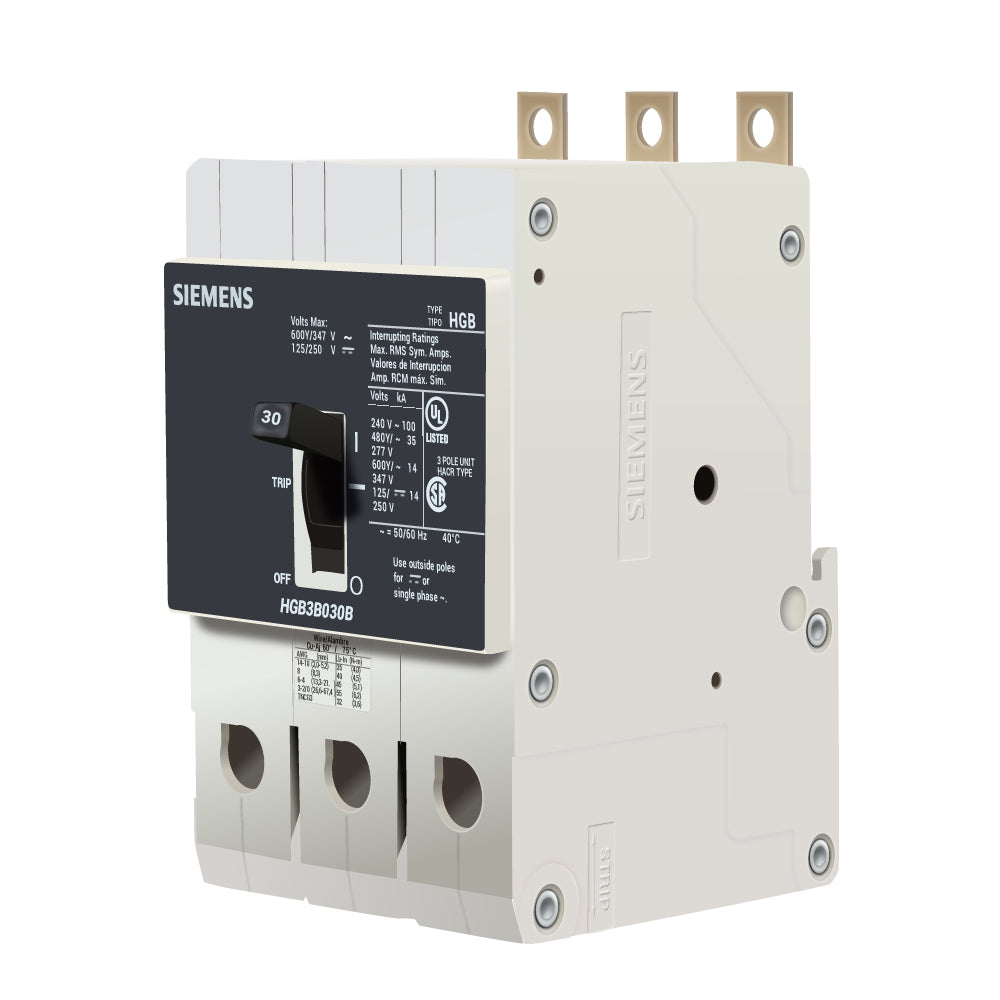

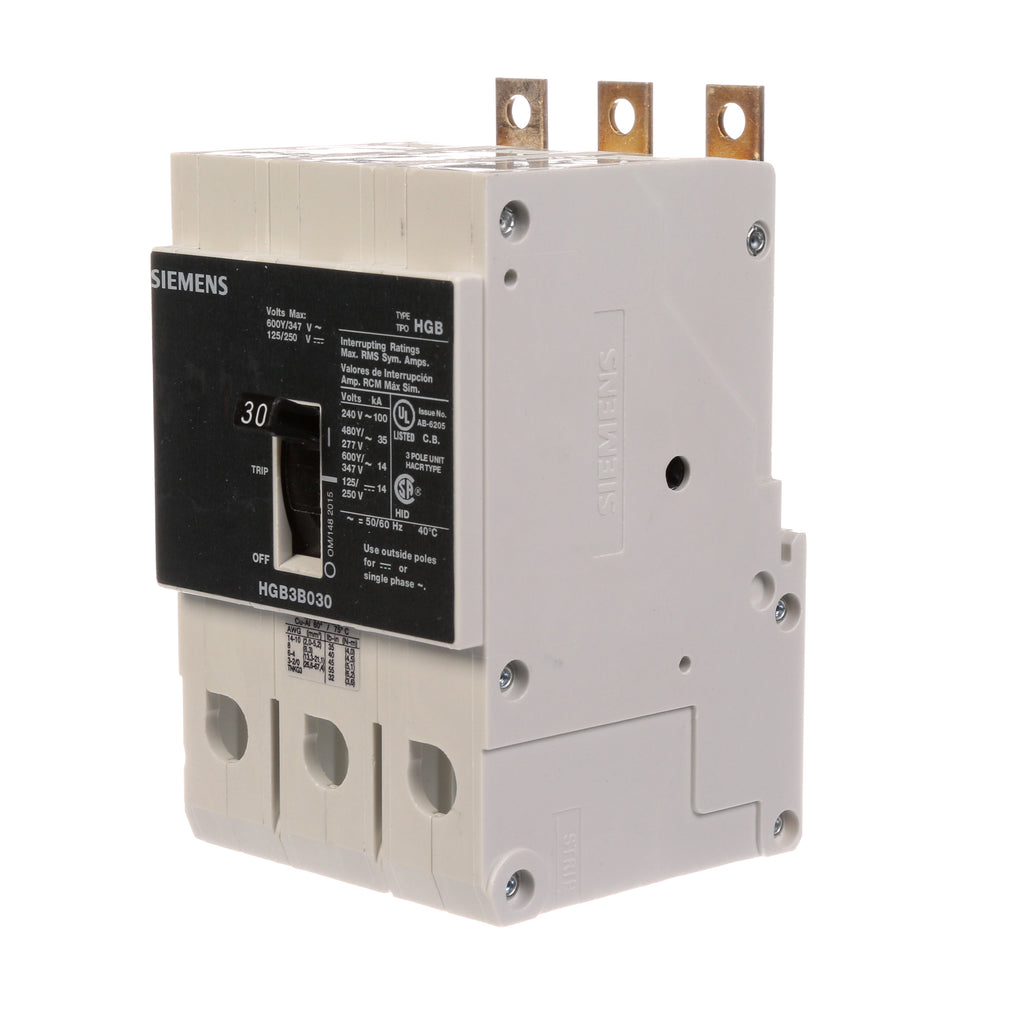

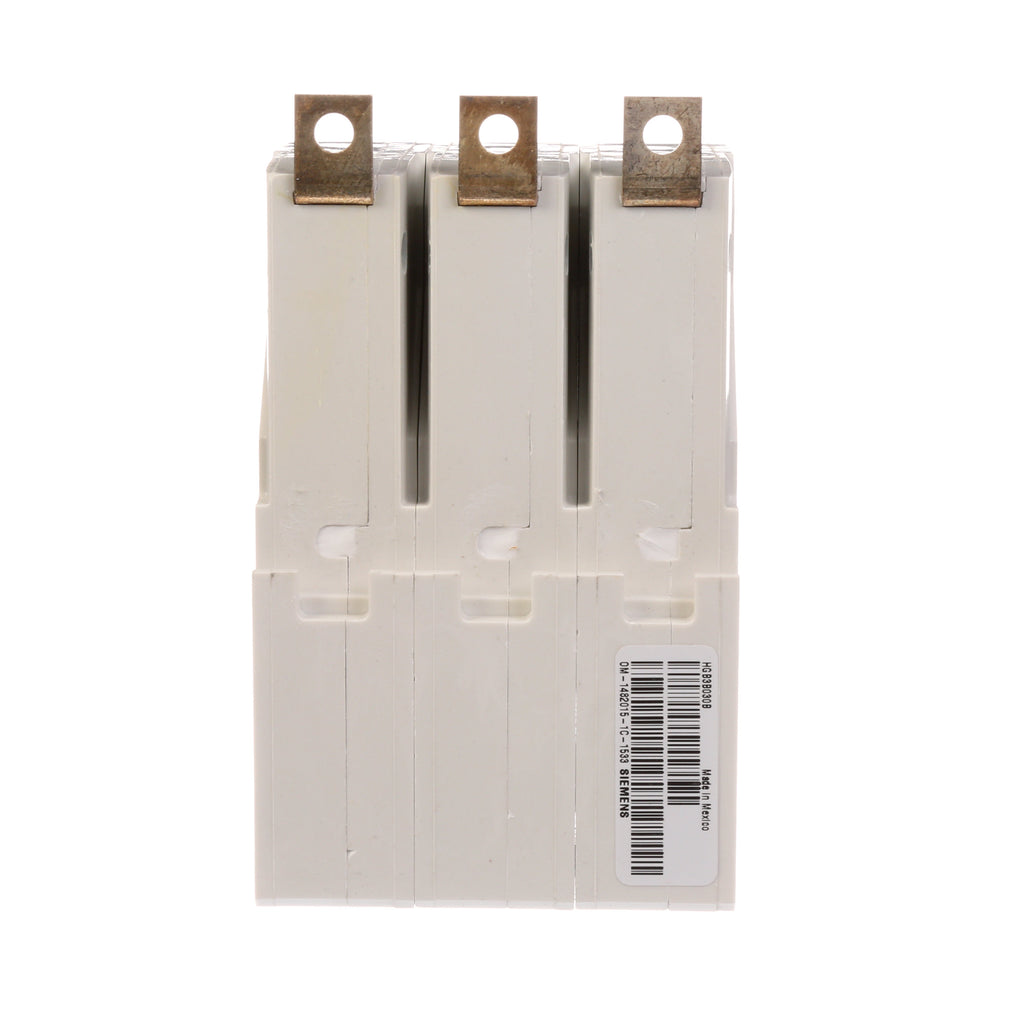

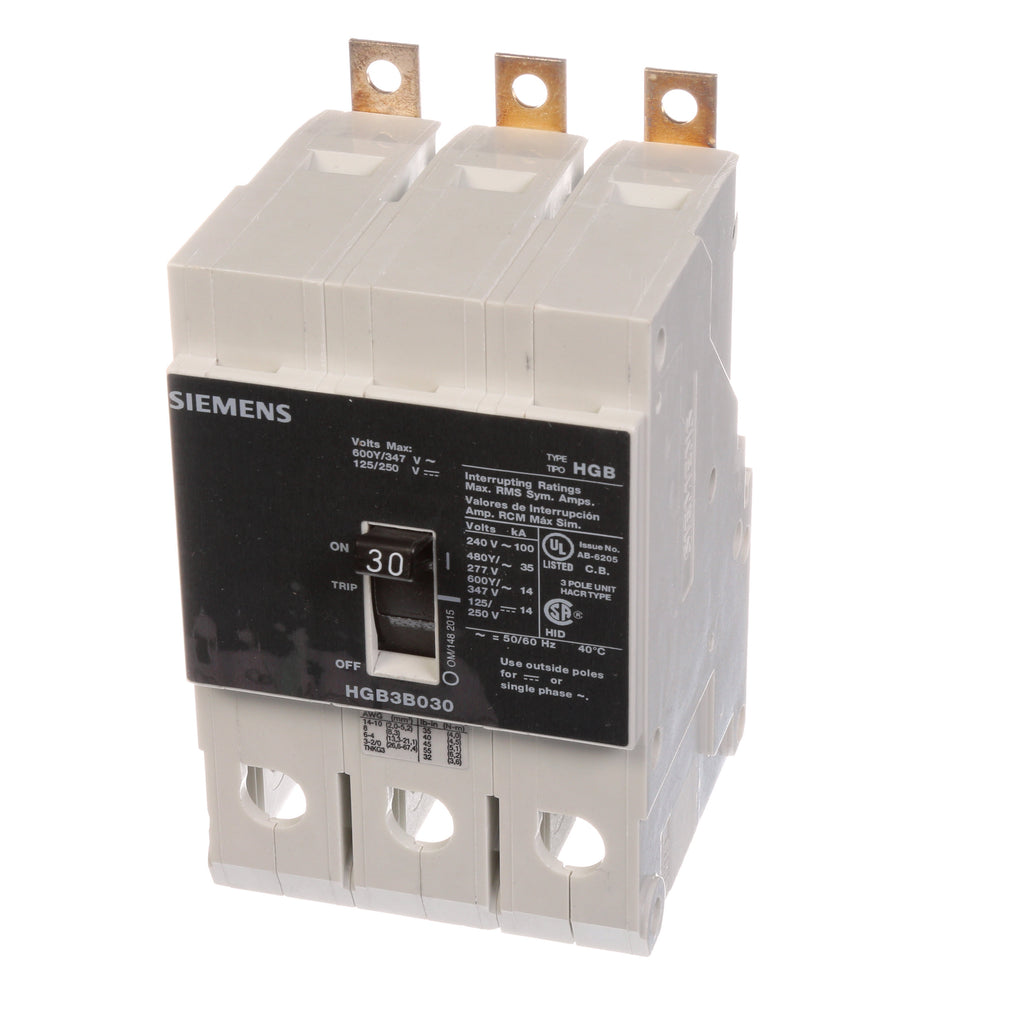

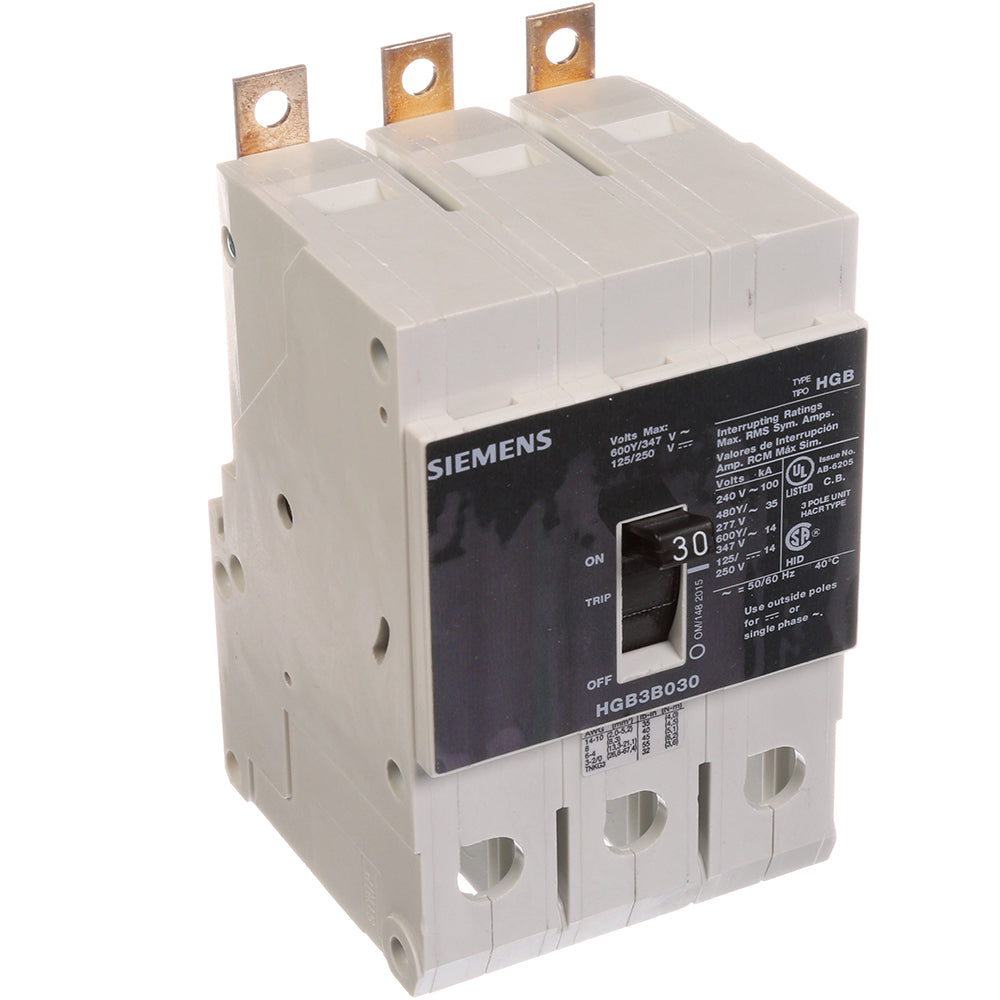

HGB3B030B is a Siemens 3-pole molded case circuit breaker with a 30 amp rating and 600 volts AC voltage capacity.This Siemens HGB3B030B circuit breaker features a VL series 125 frame, panelboard mounting type, and a thermal magnetic trip unit. It offers a high interrupt rating of 35kA at 480Y/277V and 100kA at 240V, suitable for demanding electrical protection applications. Certified to UL489 standards, it supports 3-phase power distribution and is designed for reliable circuit protection.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Panelboard (bolt-on)
- Interrupt Rating: 35kA @ 480Y/277V, 100kA @ 240V
- Frame: VL Series, 125A
- Trip Unit: Thermal Magnetic
- Certification: UL489
- Frequency: 50/60 Hz
- Connection Type: Low Tab Panelboard Mount
Specifications
- Part Number: HGB3B030B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : HGB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621219796
- GTIN : 00887621219796
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.1002
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : AWS 14 to AWS 10, CU/AL
