Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB2K045B

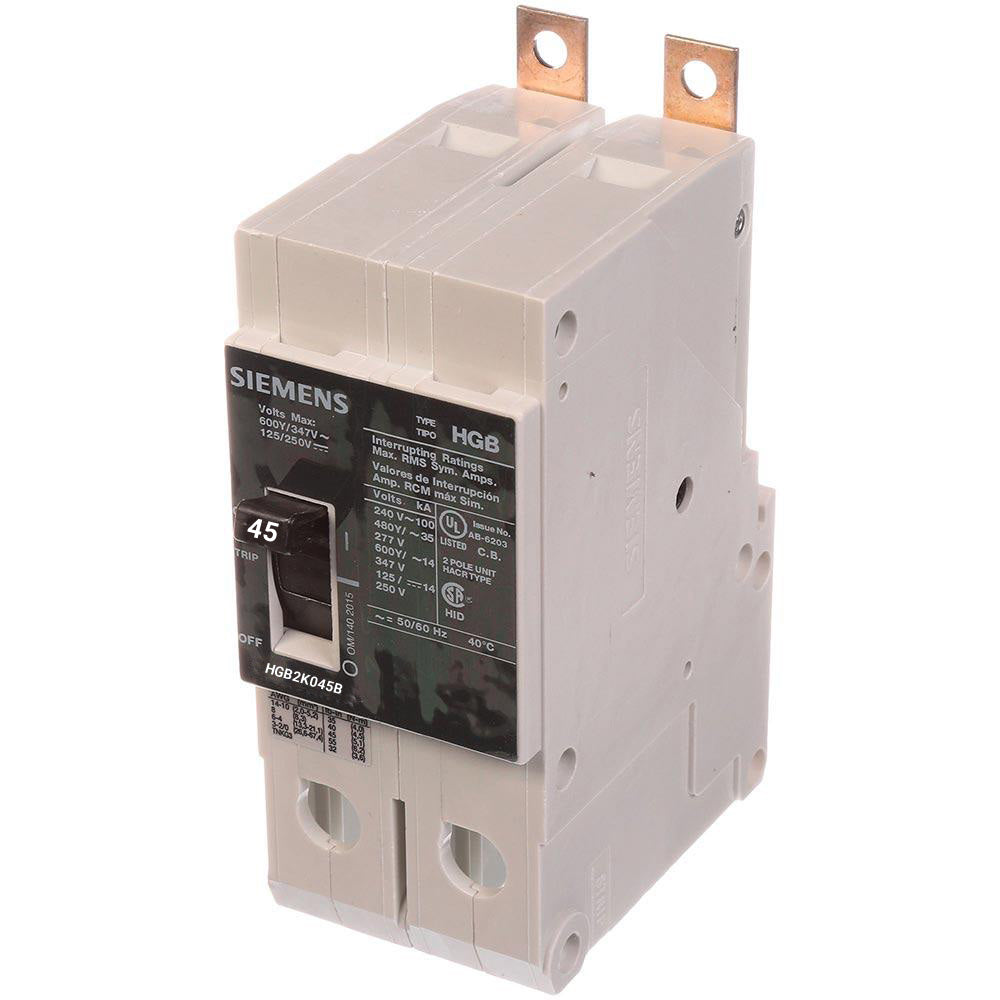

HGB2K045B - Siemens 2-pole molded case circuit breaker from the HGB series, rated at 45A and 600V AC for panelboard mounting. This bolt-on circuit breaker features a high interrupting rating, load side lugs standard, and is suitable for reverse feed applications. It supports wire sizes #8 to 1/0 AWG copper or #8 to 2/0 AWG aluminum, with UL489 certification for reliable overcurrent protection in commercial and industrial applications.
- Part Number: HGB2K045B
- Manufacturer: Siemens
- Series/Frame: HGB / GB2
- Poles: 2
- Amperage: 45A
- Voltage: 600Y/347V AC
- Mounting Type: Bolt-On Panelboard Mount
- Interrupt Rating: 35kA @ 480V
- Certifications: UL489
- Wire Range: #8-1/0 AWG Cu / #8-2/0 AWG Al
Specifications
- Part Number: HGB2K045B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766339783
- GTIN : 00804766339783
- Country of Origin : Mexico
- Dimensions : 2.87 x 1.969 x 4.988 inch
- Weight : 1.852 lb
- Certification : UL, CSA, IEC, NOM
