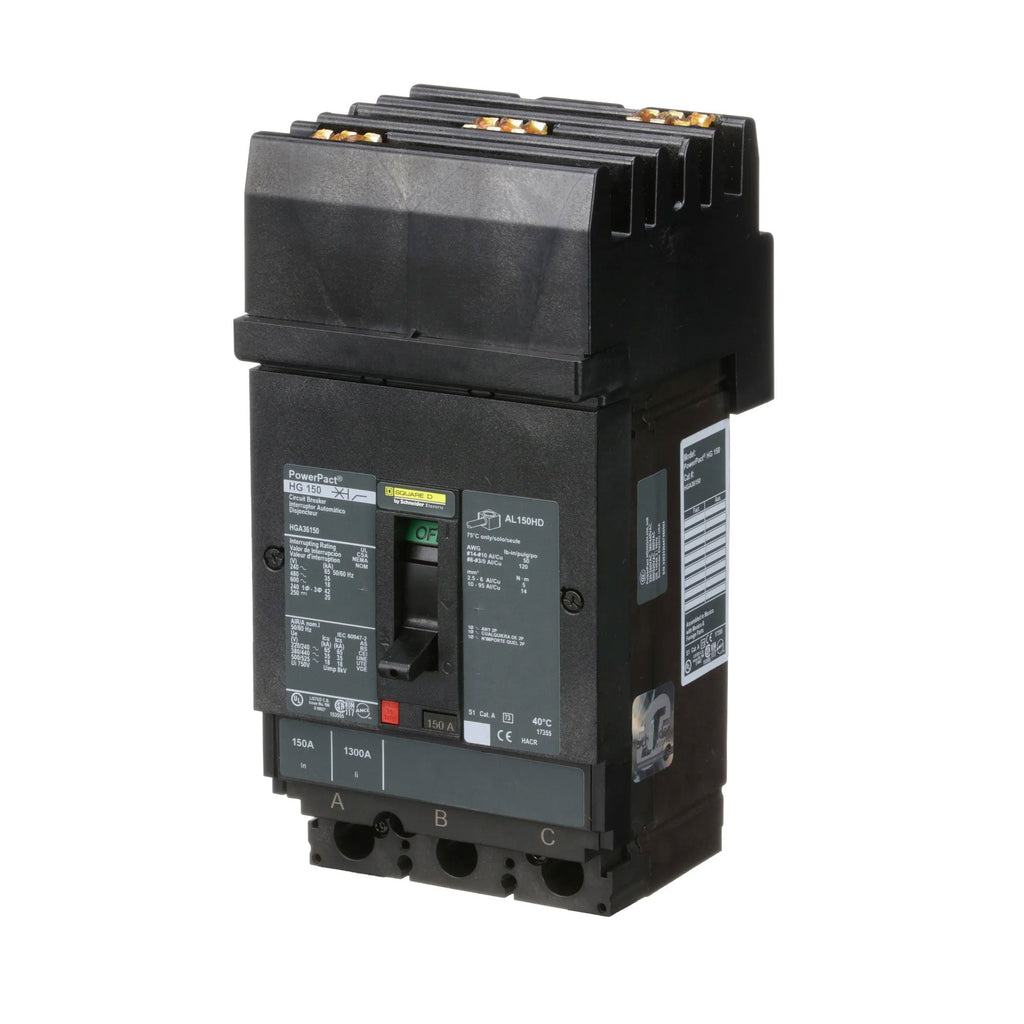

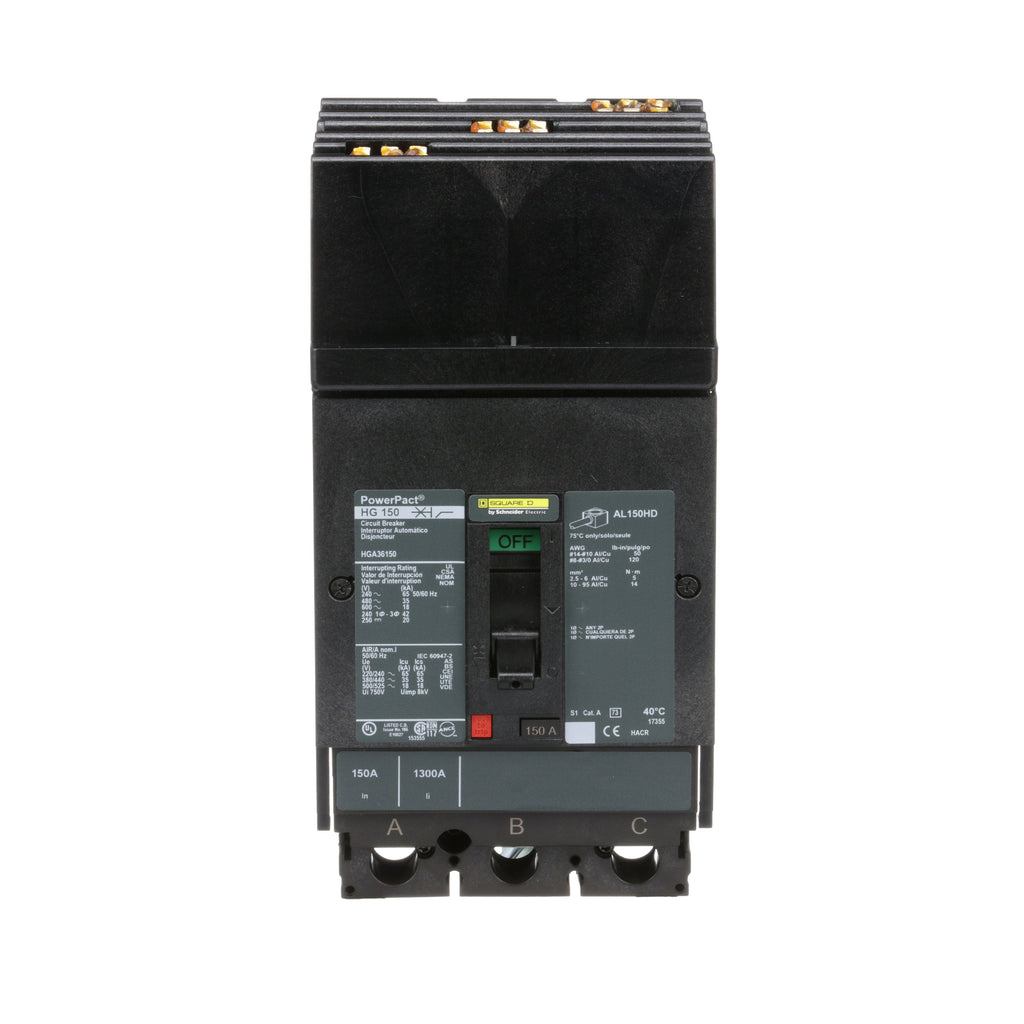

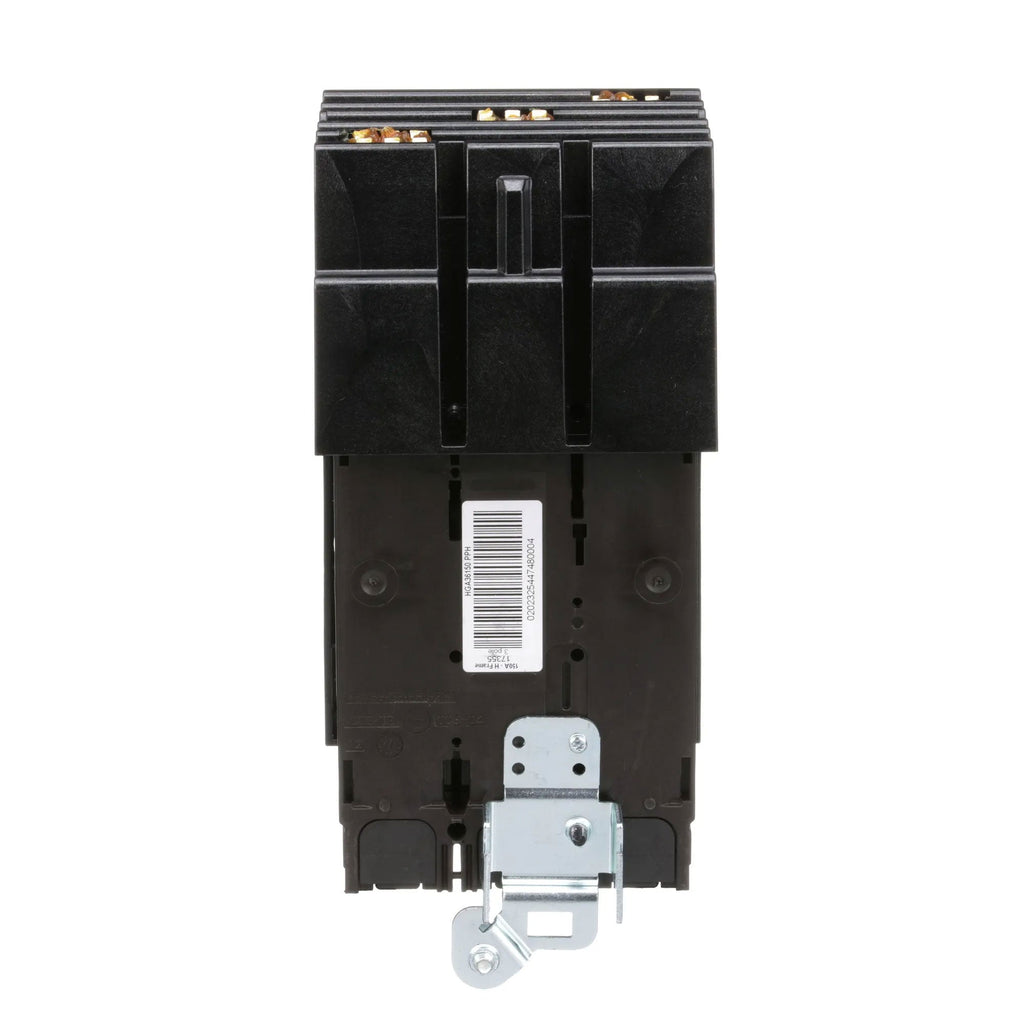

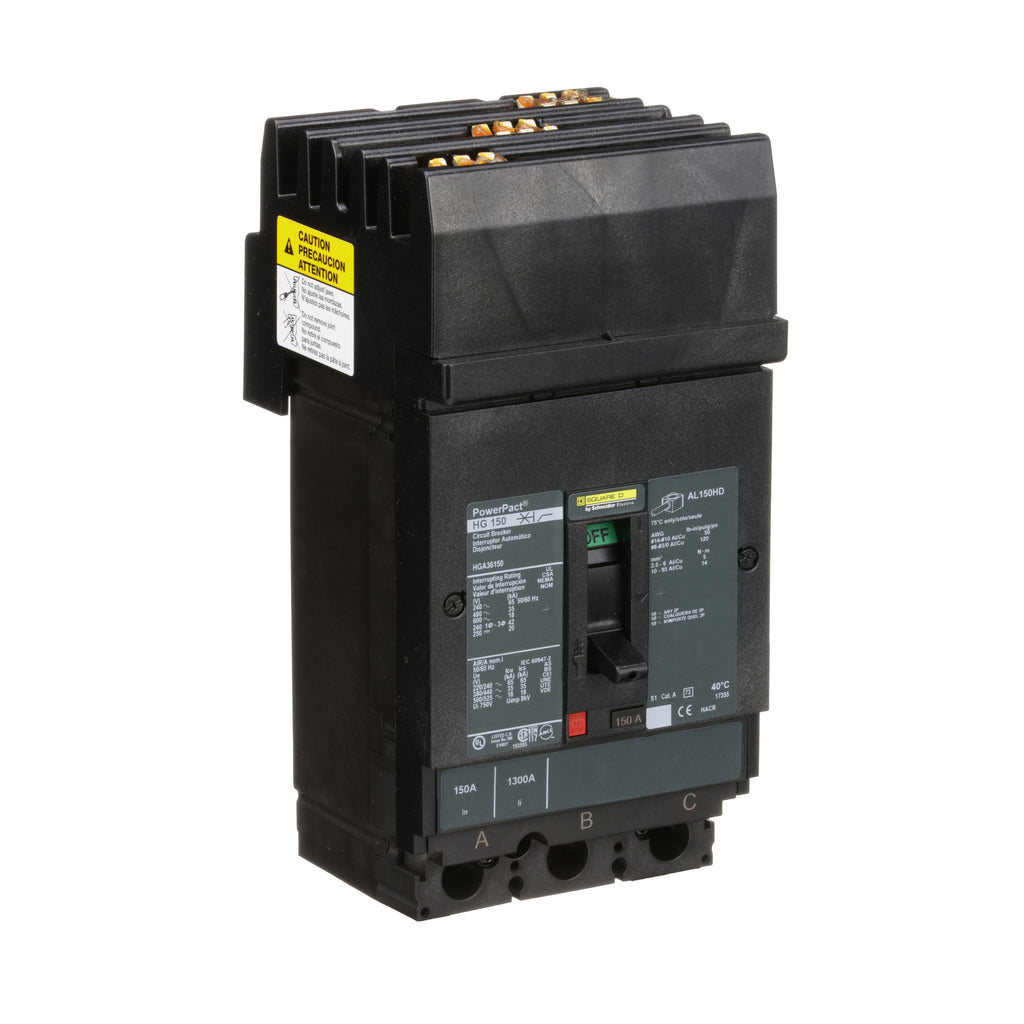

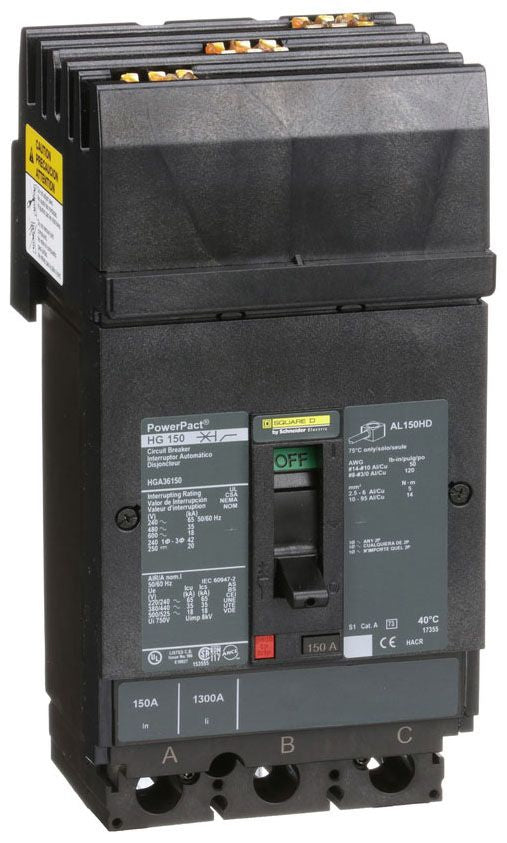

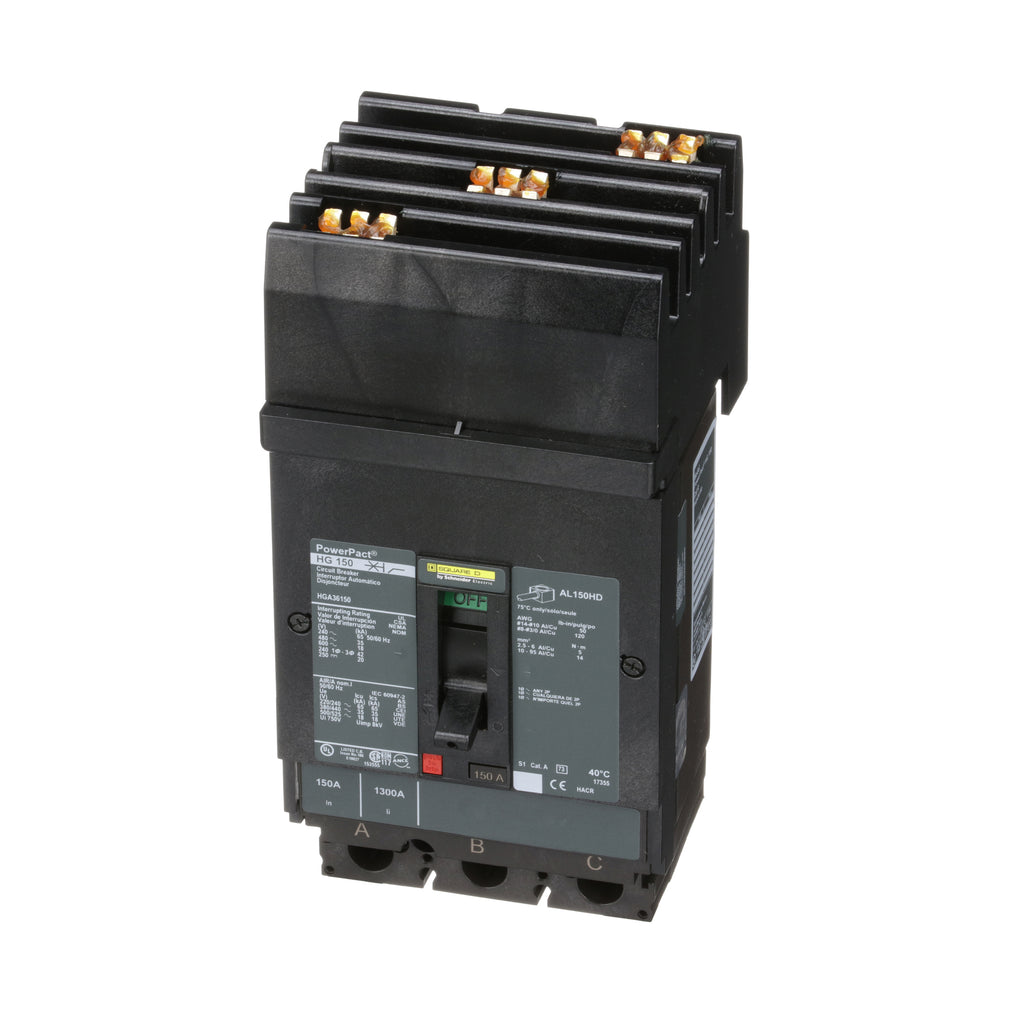

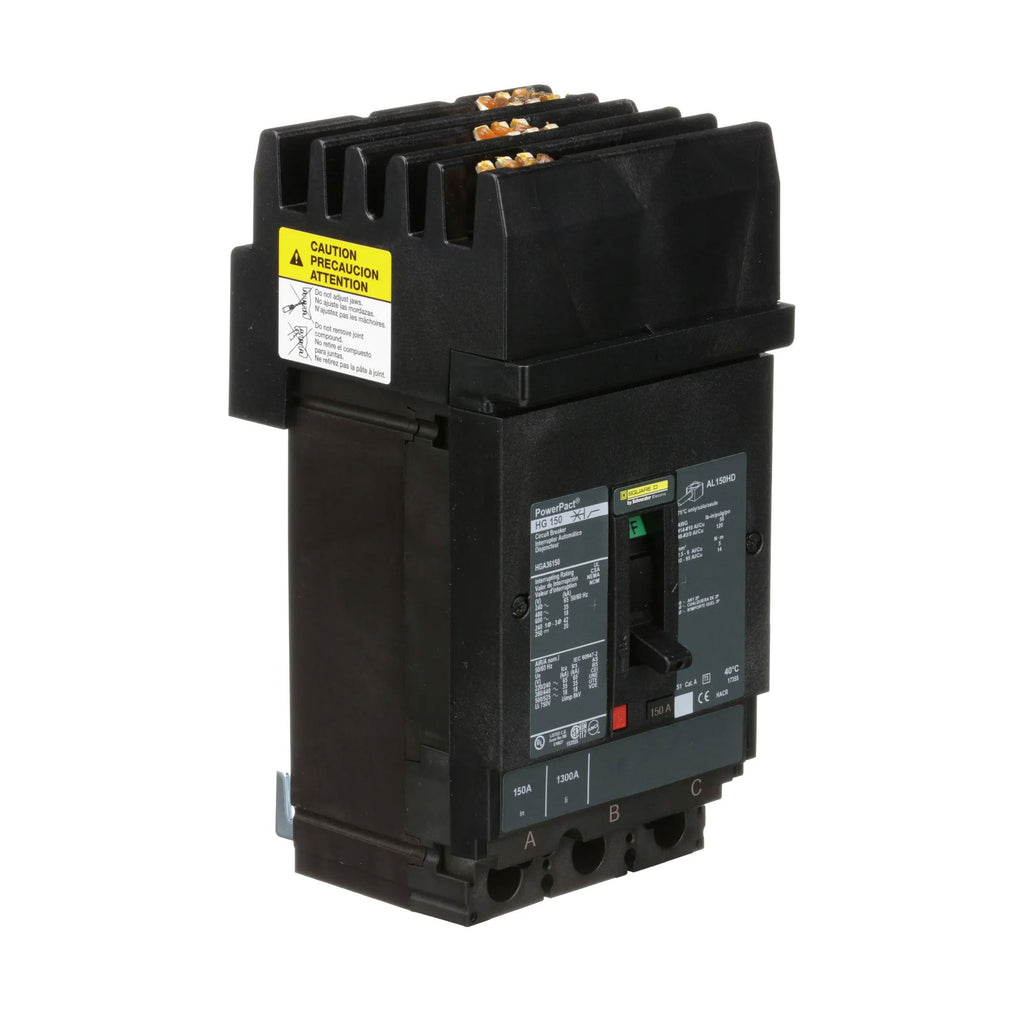

HGA36150 - Square D 150A 600VAC 3 Pole I-Line PowerPacT H Circuit Breaker

HGA36150

HGA36150 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 150 amps and 600/690VAC voltage.HGA36150 features an I-Line style plug-in connection, PowerPacT H frame, and a 35kA interrupting rating at 480VAC. It includes long-time and instantaneous trip functions (LI) and is UL, CSA, CE, NOM, IEC, and NEMA certified. The breaker supports load side lug terminal connections and is suitable for use in power distribution with a temperature rating from -25 to 70 °C.

Key Specifications
• Amperage: 150A
• Voltage: 600/690VAC
• Poles: 3
• Interrupting Rating: 35kA at 480VAC
• Mounting Type: I-Line Bracket
• Frame Type: PowerPacT H (HGA)
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: I-Line Style Plug-In
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA, CE, NOM, IEC, NEMA
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Temperature Rating: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901795070
• GTIN : 00785901795070
• Country of Origin : Mexico

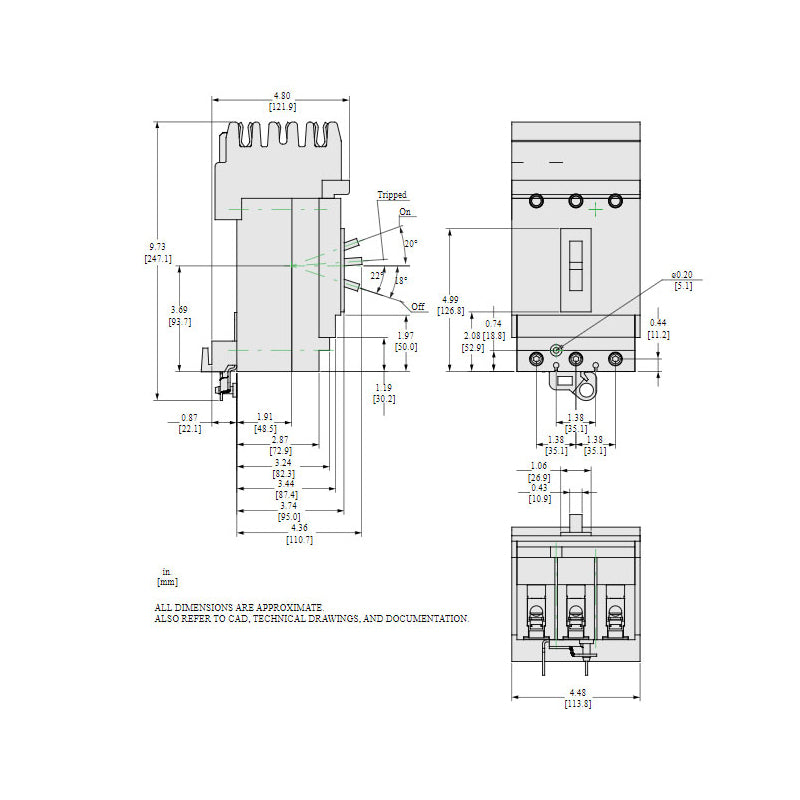

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.9 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
