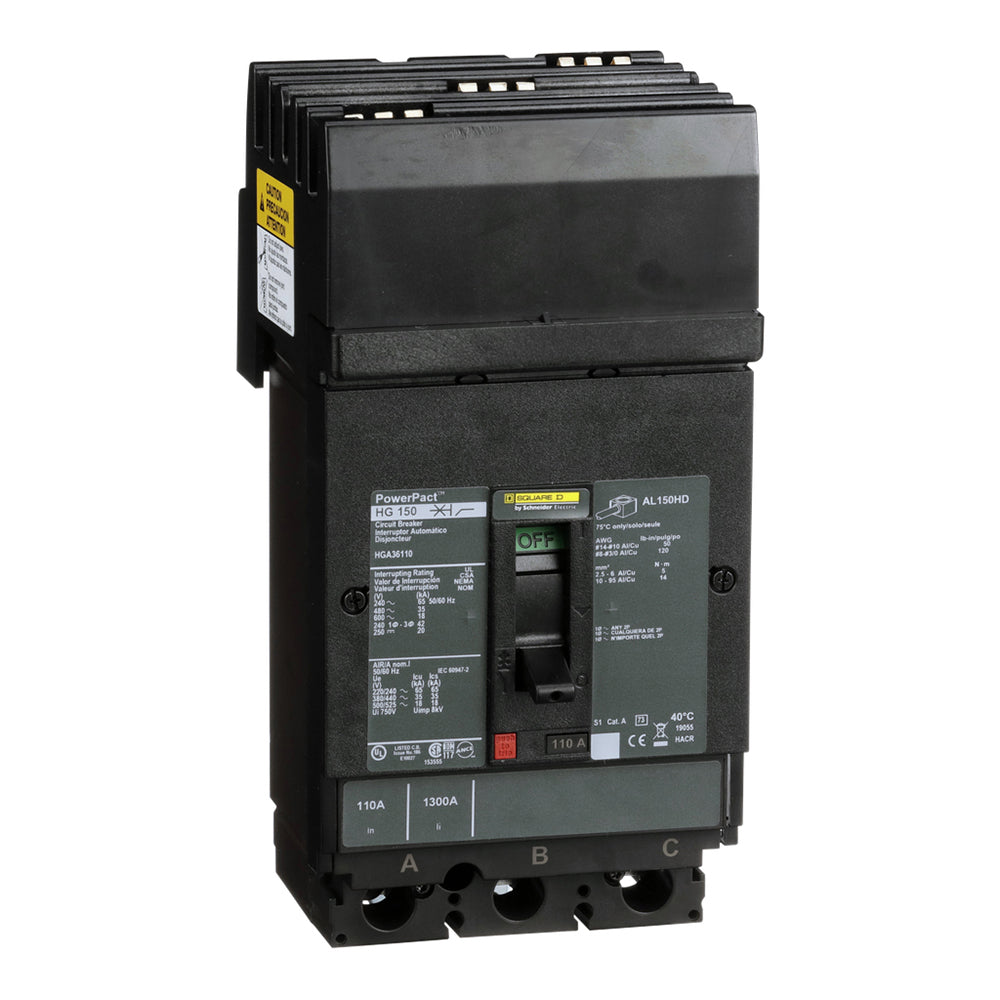

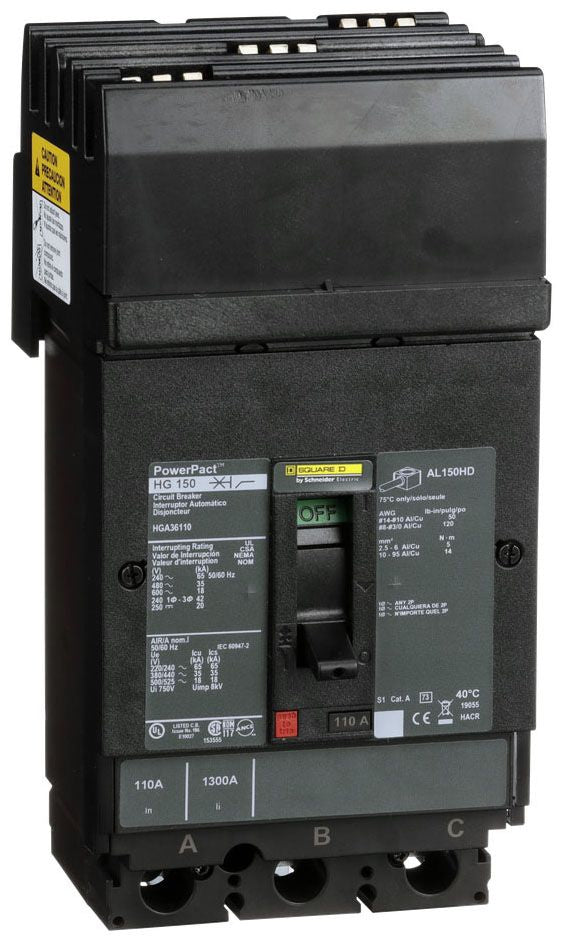

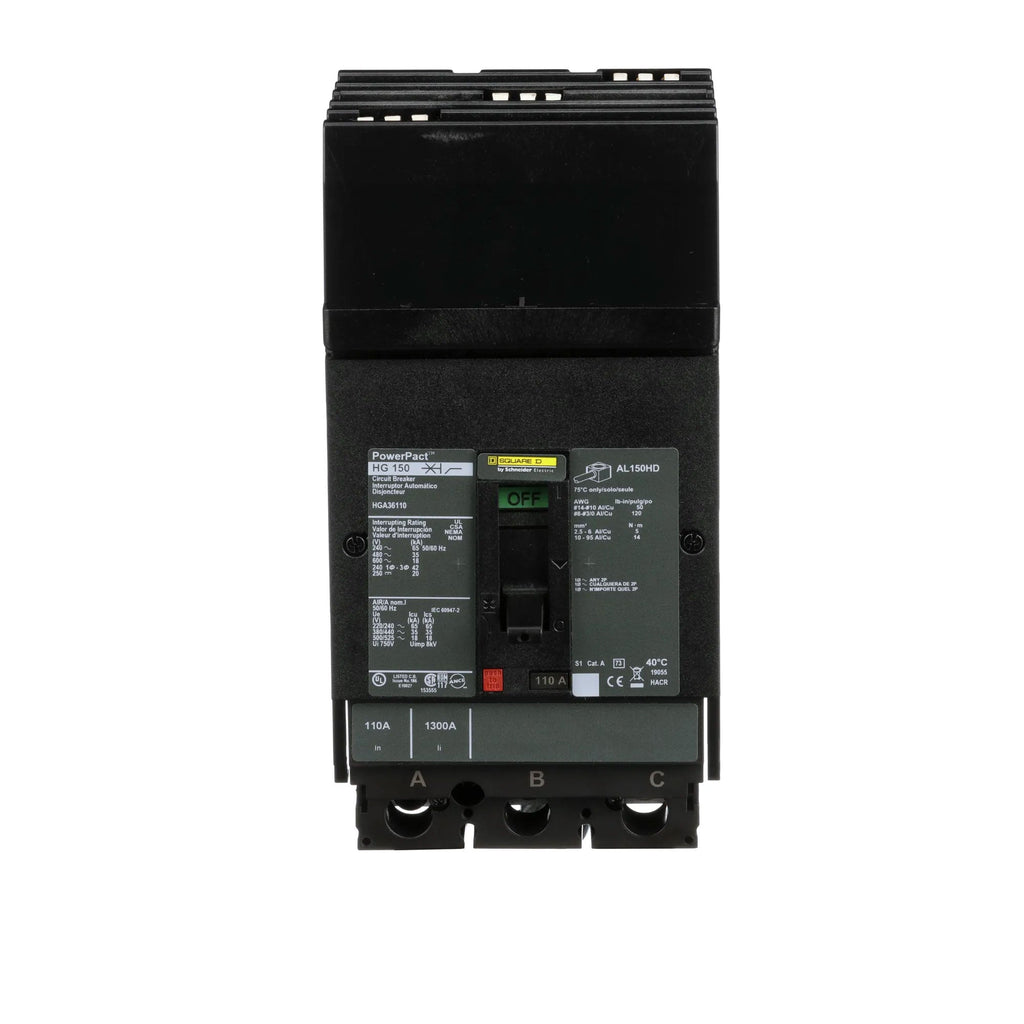

HGA36110 - Square D 110A 600V 3-Pole Thermal Magnetic Circuit Breaker I-Line Mount HG Frame

Save $2,124.15
SKU: HGA36110-New
Condition: New
Price:
$1,654.85 $3,779.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HGA36110 - Square D I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HGA36110 - Square D I-Line Style Plug-In 600V 110A 3 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA36110 - Square D 110A 600V 3-Pole Thermal Magnetic Circuit Breaker I-Line Mount HG Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA36110 - Square D I-Line Style Plug-In 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HGA36110 - Square D I-Line Style Plug-In 600V 110A 3 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA36110 - Square D 110A 600V 3-Pole Thermal Magnetic Circuit Breaker I-Line Mount HG Frame - Essential Electric Supply

Description

HGA36110


HGA36110 is a Square D 3-pole thermal magnetic molded case circuit breaker rated for 110 amps and 600 volts AC with I-Line unit mounting.This circuit breaker features a HG frame type with a 65kA interrupt rating at 240VAC and supports 250VDC operation. It includes long time and instantaneous trip functions, line and load lug connections, and is UL 489, CSA, CE, and IEC certified. Designed for use in I-Line panelboards, it accommodates wire sizes from 14 to 3/0 AWG aluminum or copper.
    Key Specifications
    • Amperage: 110 Amps
    • Voltage Rating: 600 VAC, 250 VDC
    • Poles: 3
    • Mounting Type: I-Line Unit Mount
    • Interrupt Rating: 65kA at 240 VAC, 18kA at 600 VAC
    • Frame Type: HG
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Certifications: UL 489, CSA, CE, IEC
    • Connection Type: Line and Load Lugs
    • Wire Gauge Range: 14 to 3/0 AWG Aluminum/Copper
    • Operating Temperature: 104°F (40°C)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA36110
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 110
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901422365
  • GTIN : 00785901422365
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5.91
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
