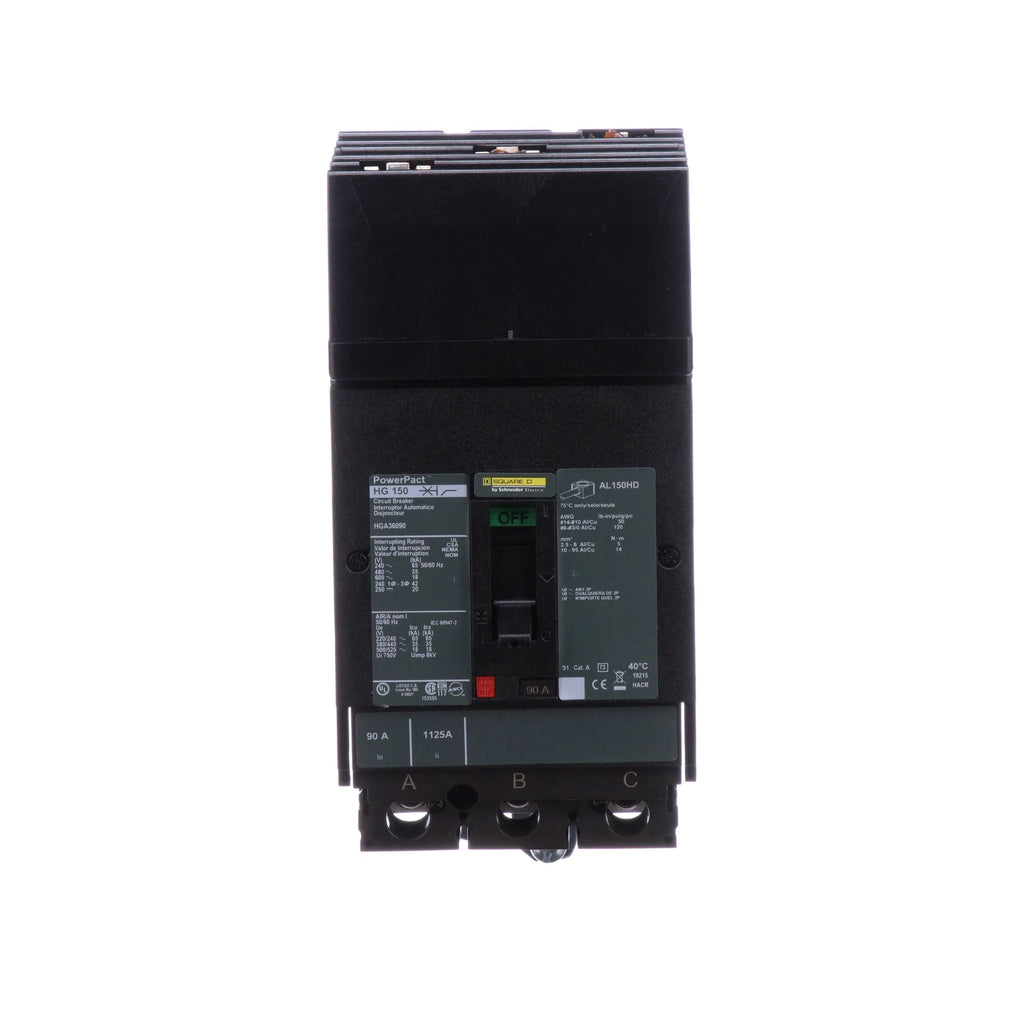

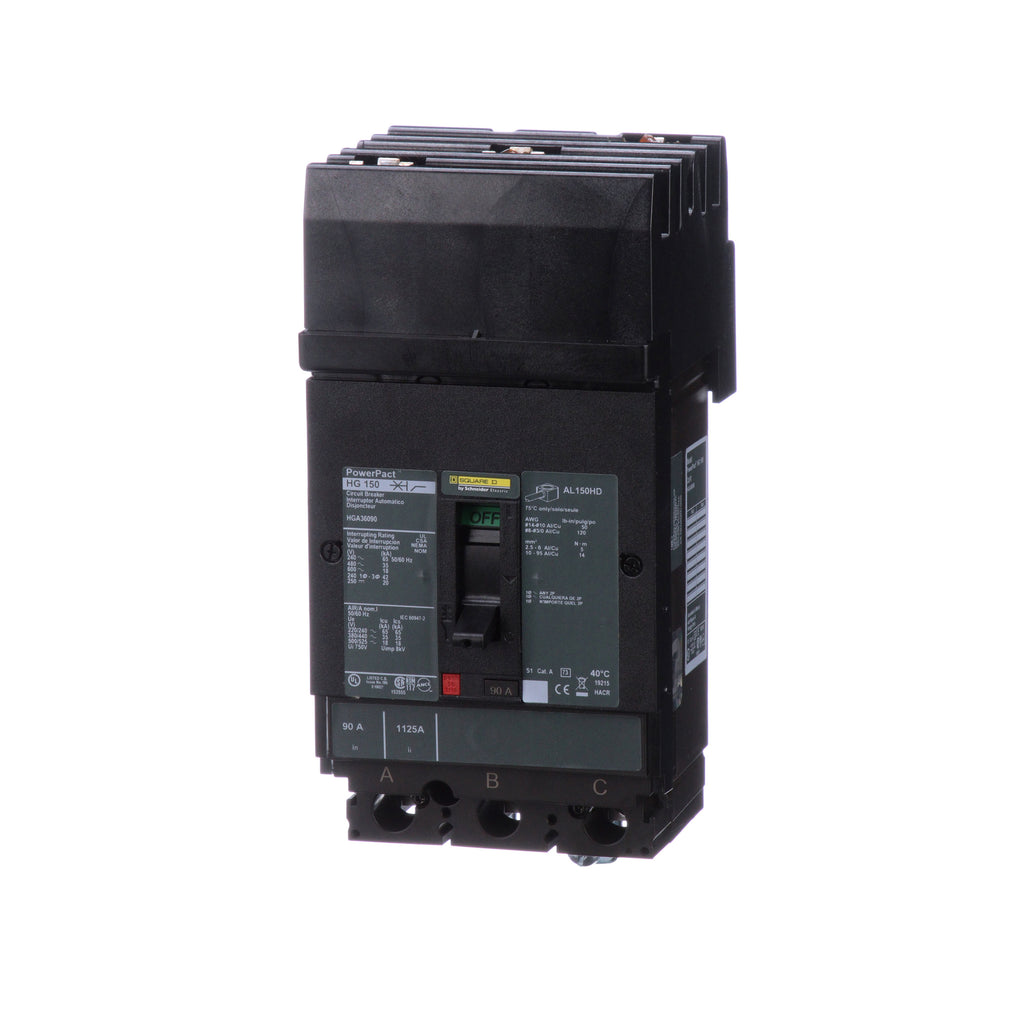

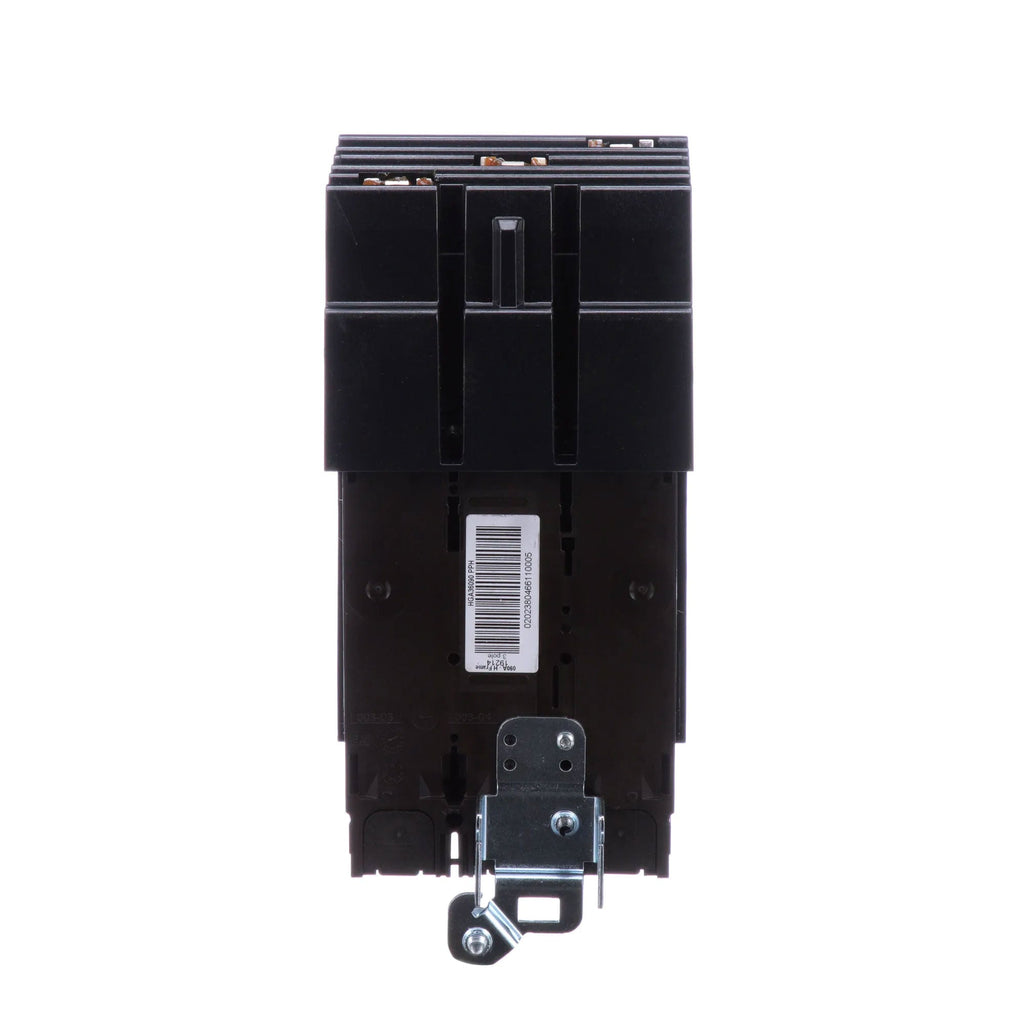

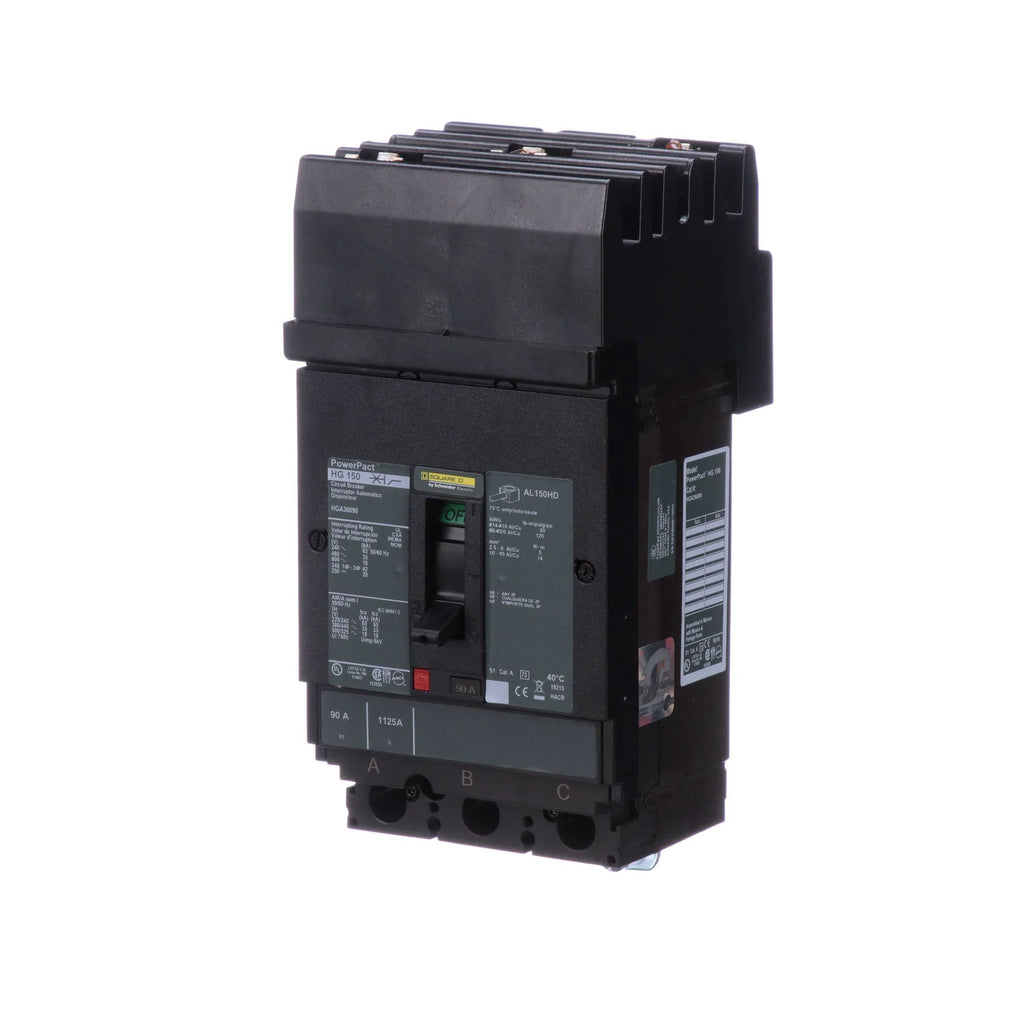

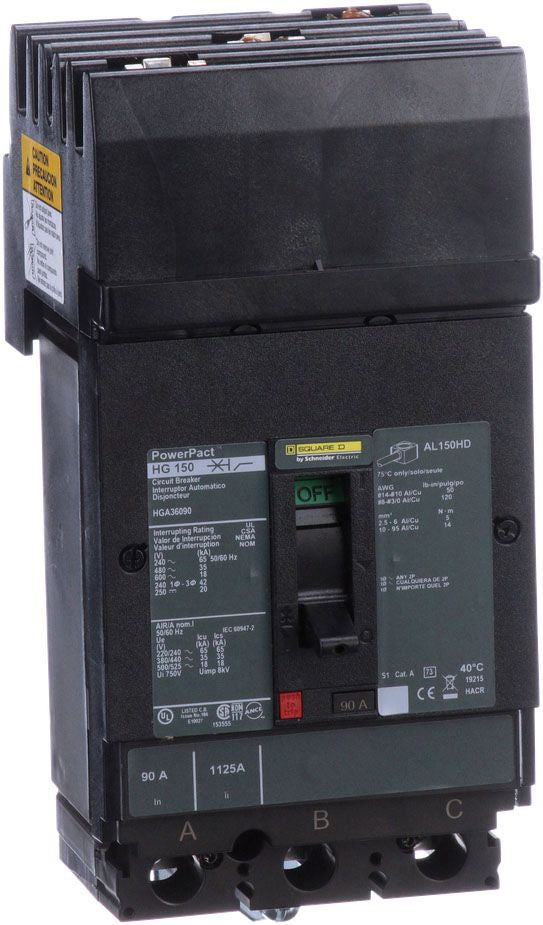

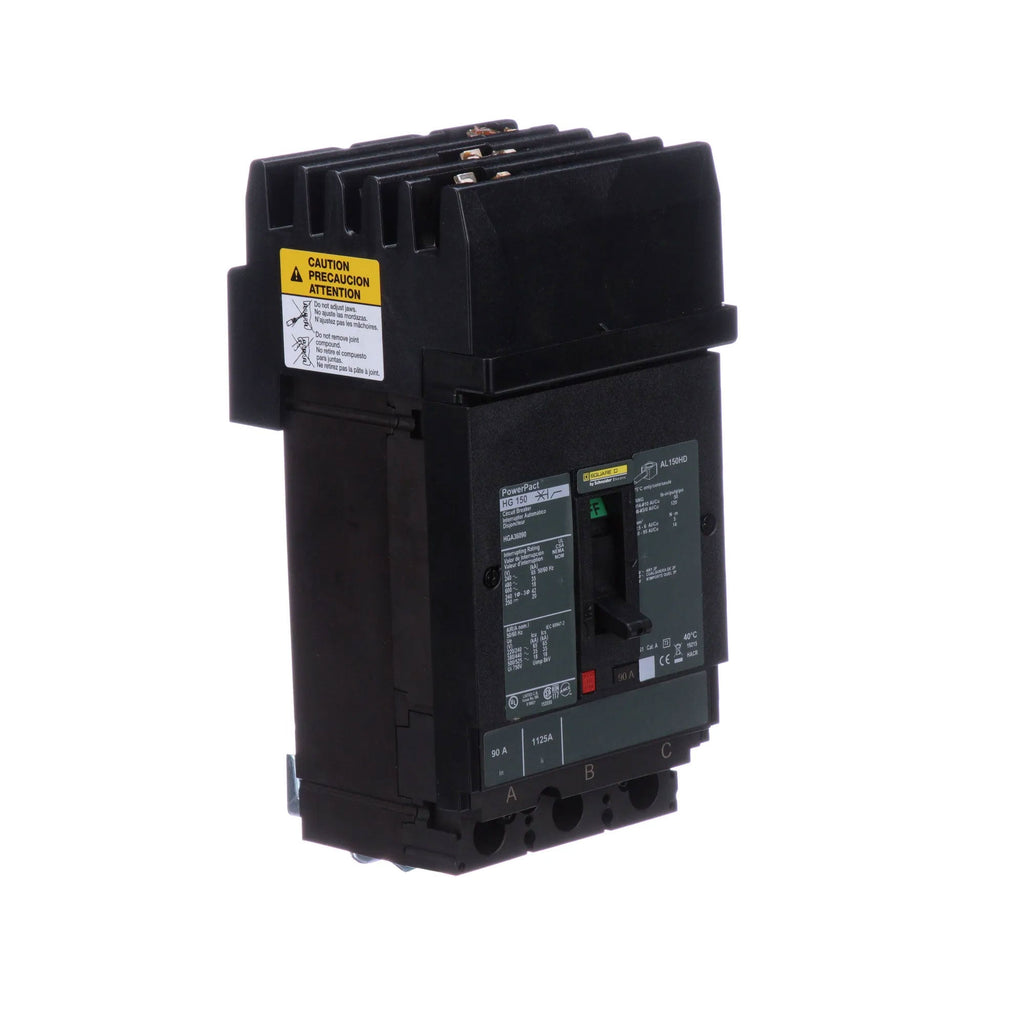

HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE

Save $1,094.15
SKU: HGA36090-New
Condition: New
Price:
$677.85 $1,772.00
Stock:
54 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HGA36090 - Square D I-Line Style Plug-In 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
Square D HGA36090 Circuit Breaker | Powerpact HGA 600V 90A - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA36090 - Square D I-Line Style Plug-In 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
Square D HGA36090 Circuit Breaker | Powerpact HGA 600V 90A - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply
HGA36090 - Square D PowerPact H 90A 600V 3 Pole I-Line Molded Case Circuit Breaker, 35kAIC, Thermal Magnetic Trip, UL/CSA/CE - Essential Electric Supply

Description

HGA36090


HGA36090 is a Square D PowerPact H series, 3 pole, 90 amp, 600V molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This thermal magnetic circuit breaker features an I-Line plug-in mounting style, high interrupting capacity, and robust construction for demanding environments. It is part of the PowerPact H family, offering advanced protection with long-time and instantaneous trip functions, and is suitable for use with copper or aluminum conductors.

    Key Specifications
  • Amperage: 90A
  • Voltage: 600VAC
  • Poles: 3
  • Mounting Type: I-Line plug-in
  • Interrupt Rating: 35kAIC at 480VAC
  • Series/Frame: PowerPact H, HGA frame
  • Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
  • Certifications: UL Listed, CSA, CE, NEMA, NOM, IEC
  • Terminal Connection: Load side lug
  • Wire Range: AWG 14 to 3/0, Aluminum/Copper
  • Temperature Rating: -25 to 70 °C
  • Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: HGA36090
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 90
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 100A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901700623
  • GTIN : 00785901700623
  • Country of Origin : Mexico

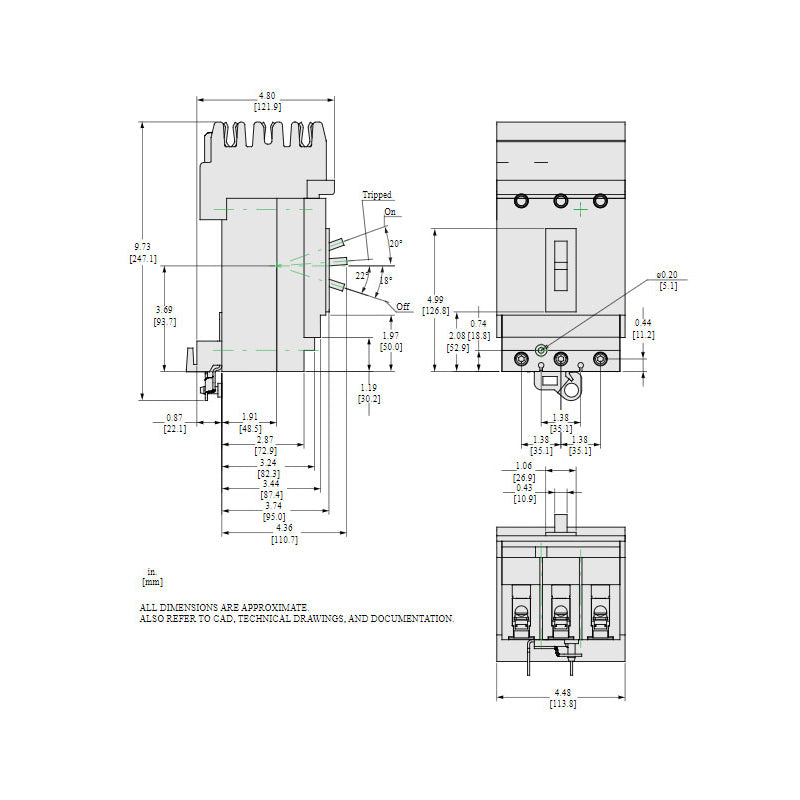

  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5.47 lb
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
