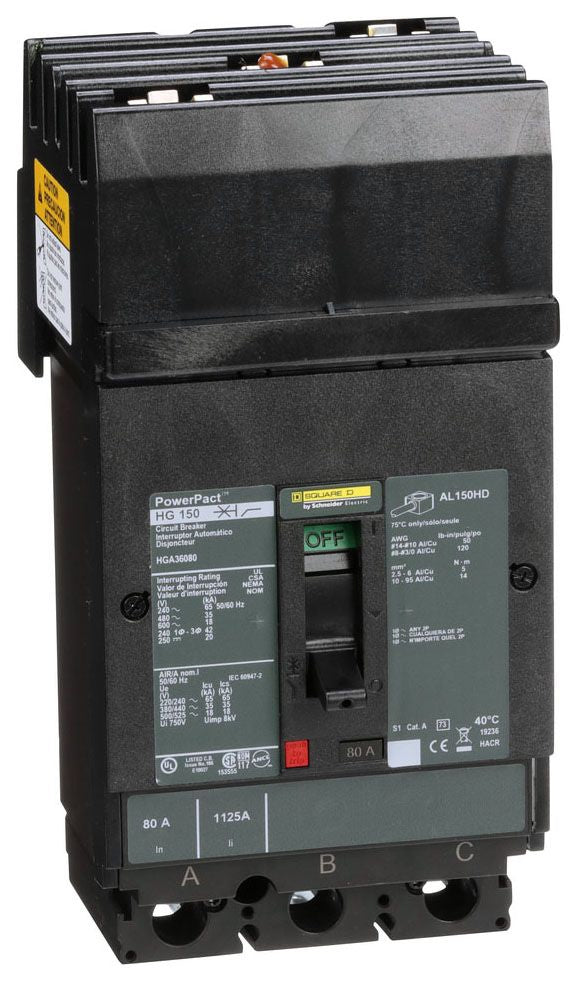

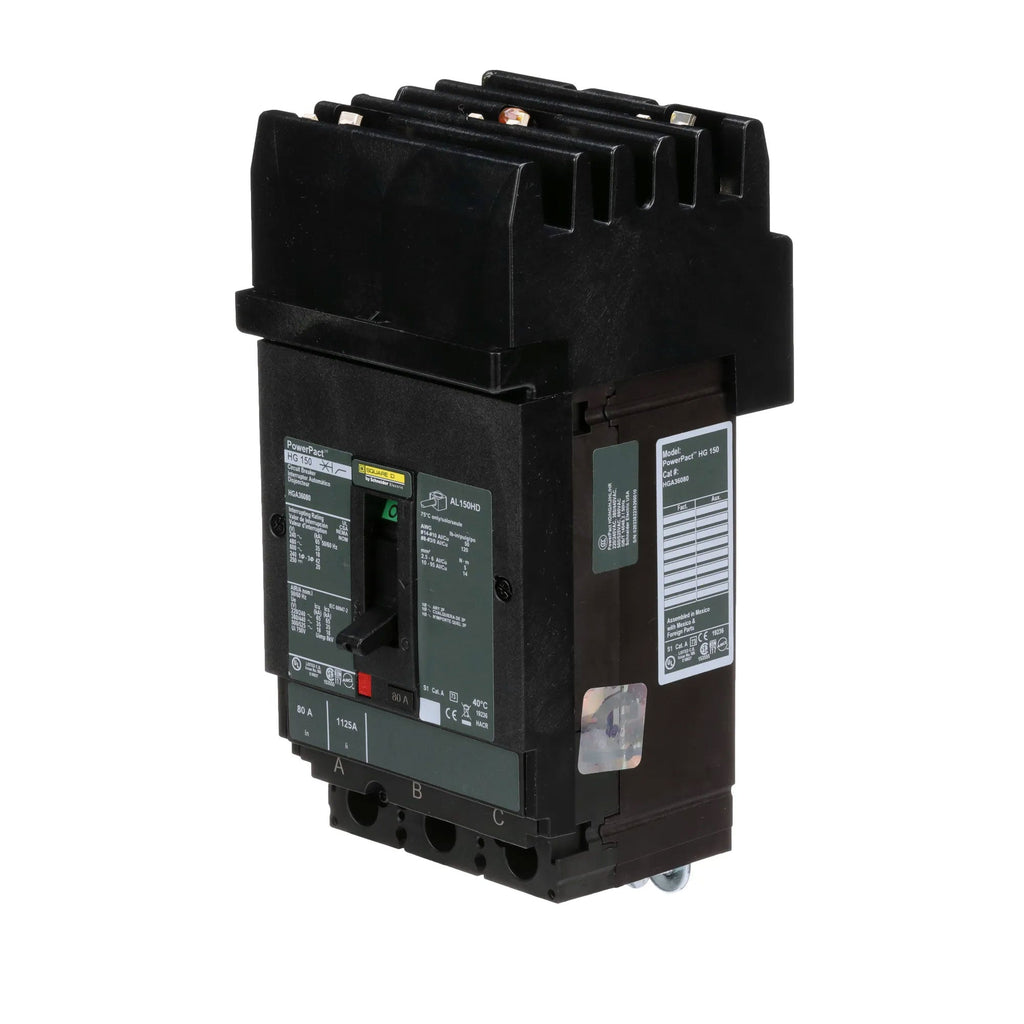

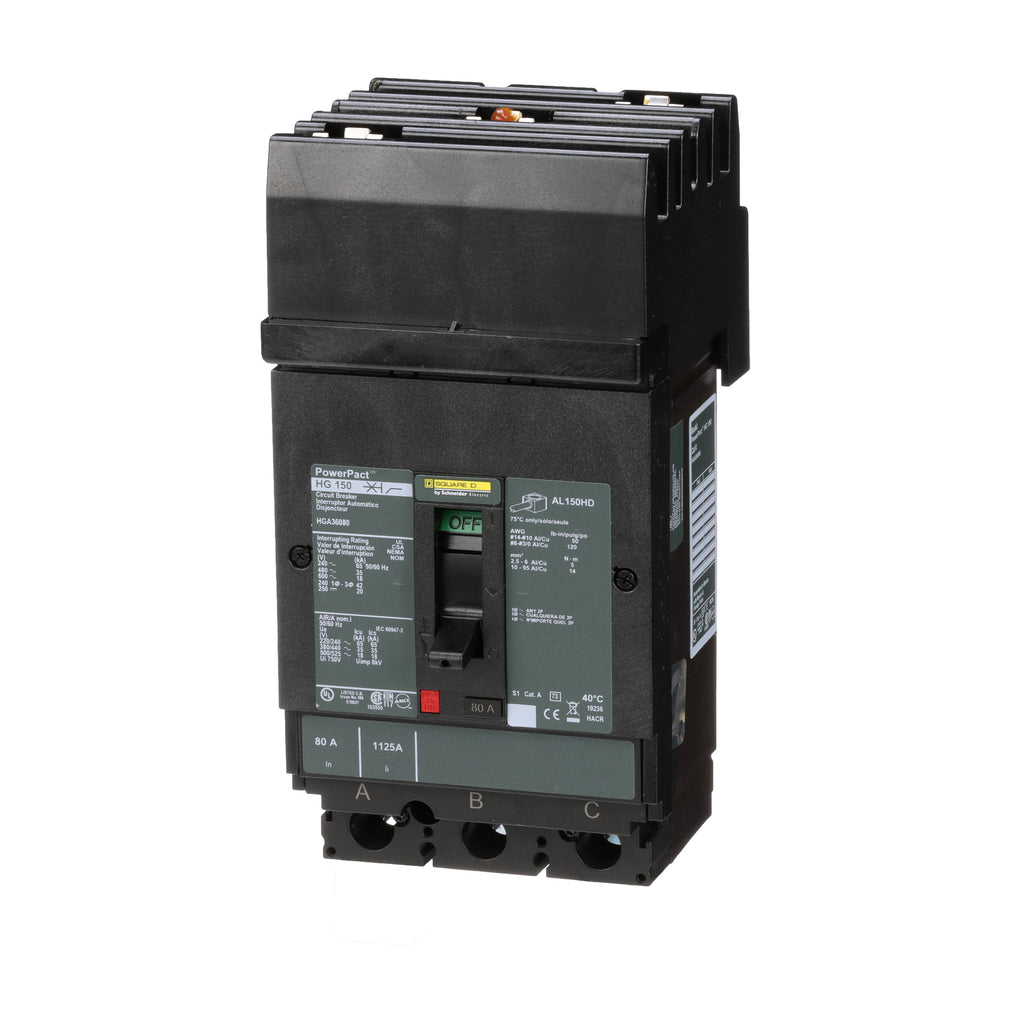

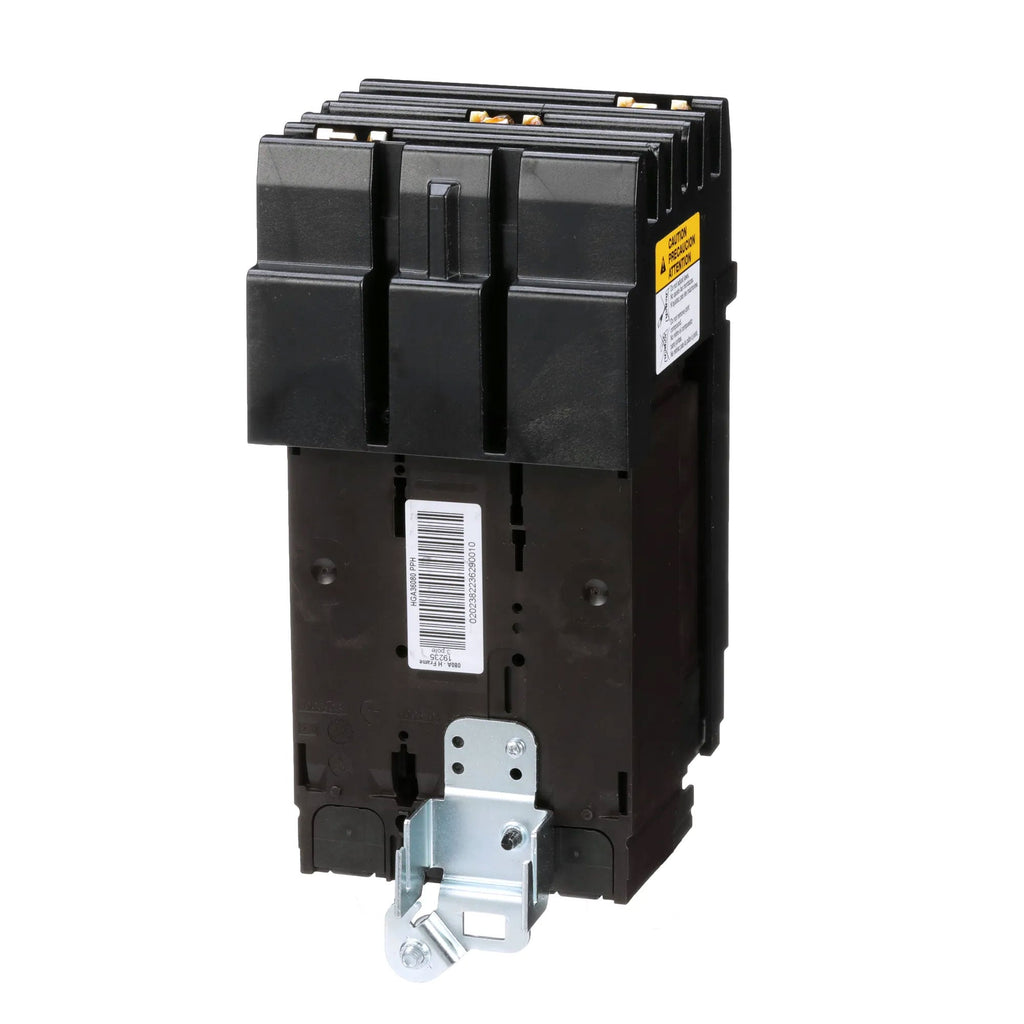

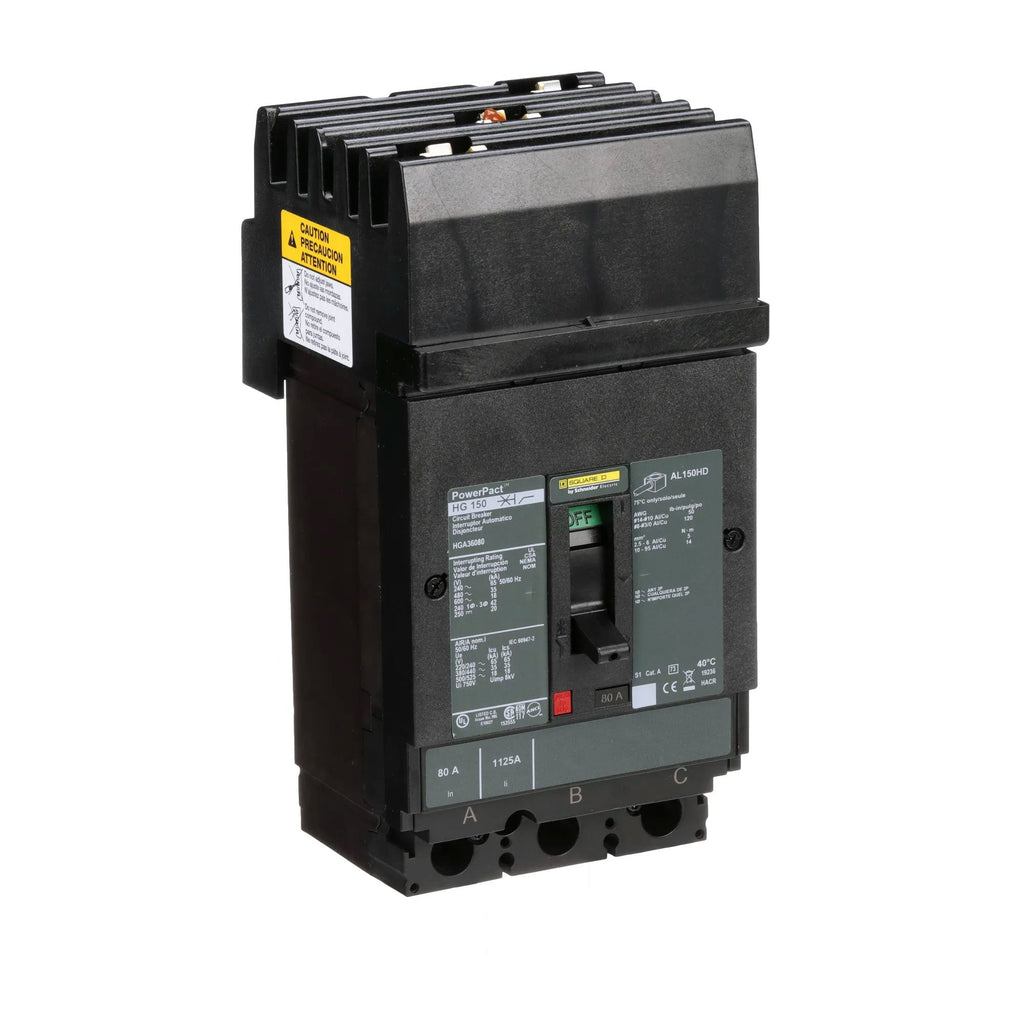

HGA36080 - Square D 80A 600V 3-Pole I-Line Molded Case Circuit Breaker Thermal Magnetic

HGA36080

HGA36080 is a Square D molded case circuit breaker providing 80 amps, 3 poles, and 600 volts with I-Line mounting and thermal magnetic trip unit.This PowerPact H frame breaker features an 18kA interrupt rating at 600VAC, 80% continuous current rating, and is UL 489 listed. It supports 3-phase ABC connections and is designed for power distribution with a trip setting range of 800 to 1450 amps. The breaker is suitable for Class 612 I-Line panelboard and switchboard applications, offering reliable overload and short circuit protection.

• Amperage: 80 Amp
• Voltage: 600 VAC / 250 VDC / 500 VDC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 18 kA at 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC
• Frame/Series: PowerPact H (HGA)
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, IEC, CE marked
• Phase: ABC
• Continuous Current Rating: 80%
• Application: Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901507314
• GTIN : 00785901507314
• Country of Origin : Mexico

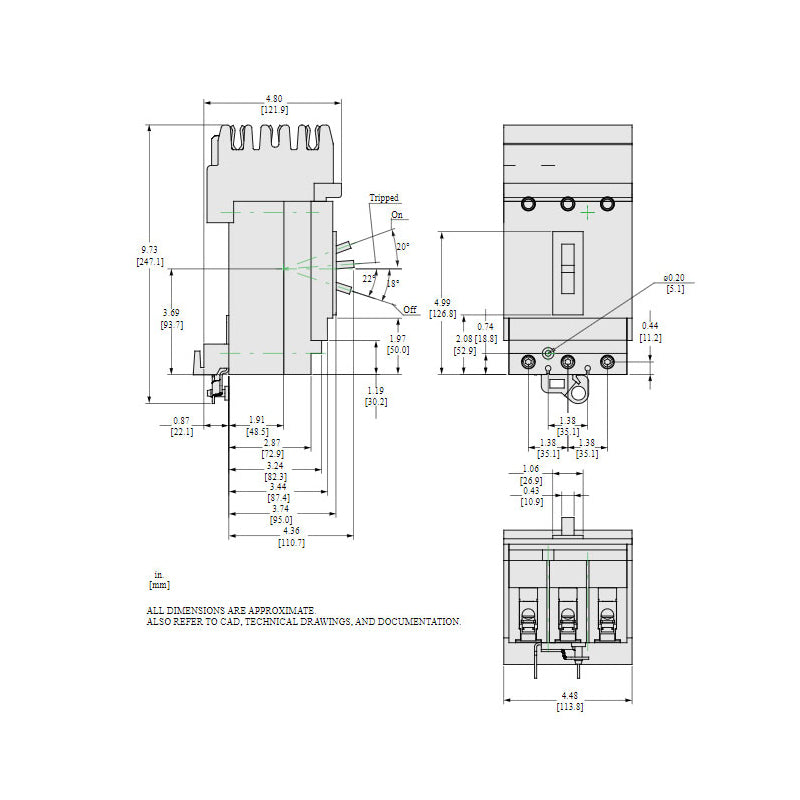

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.829 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
