HGA36045 - Square D 3 Pole 45A 600VAC 500VDC I-Line Molded Case Circuit Breaker

Save $2,586.70
SKU: HGA36045-New
Condition: New
Price:
$1,049.30 $3,636.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

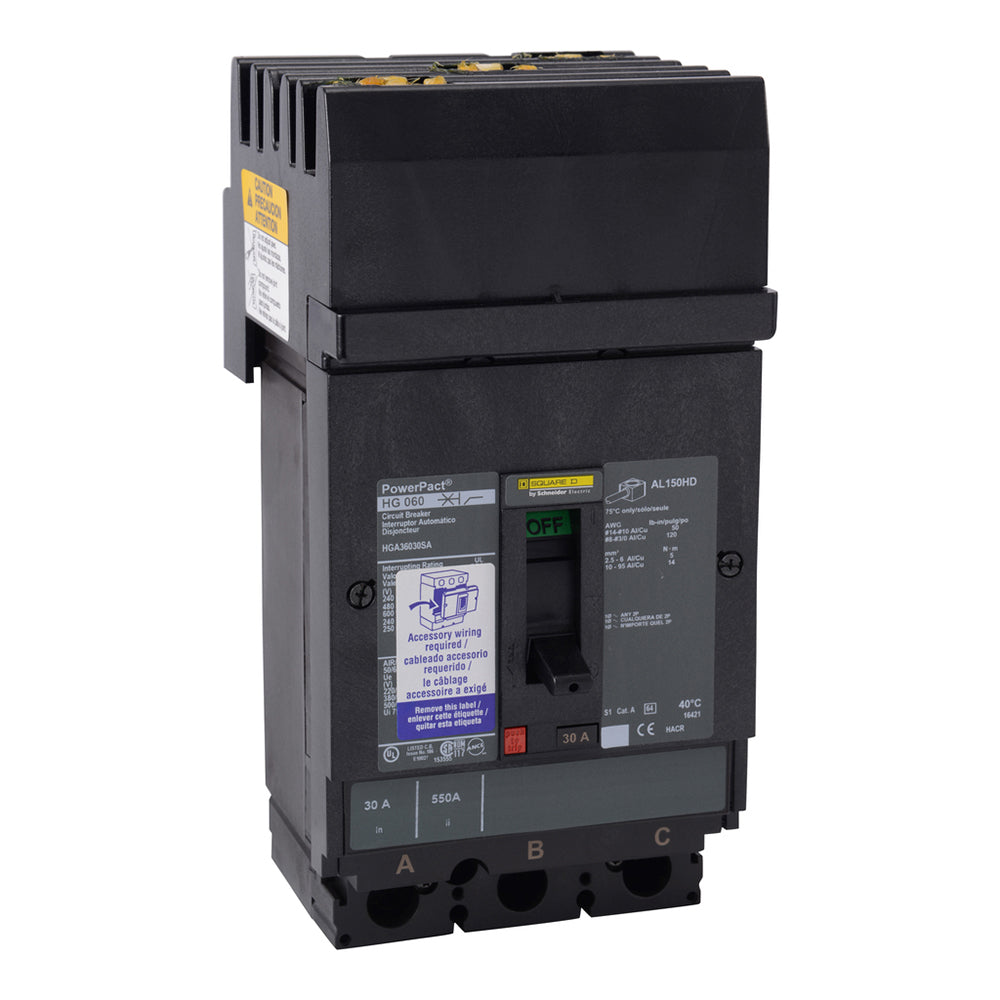

HGA36045 - Square D I-Line Style Plug-In 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply

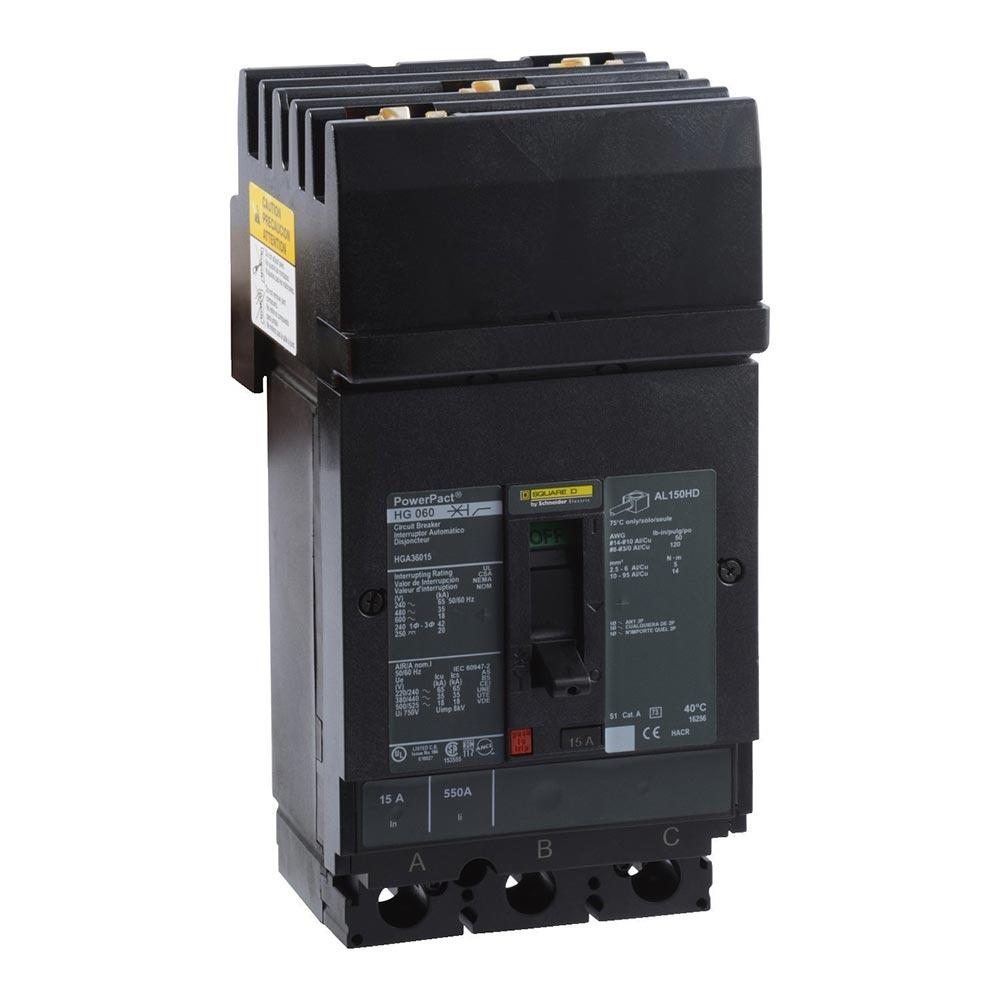

HGA36045 - Square D Plug In Panelboard 600V 45A 3 pole circuit breaker 35kA@480V - Essential Electric Supply

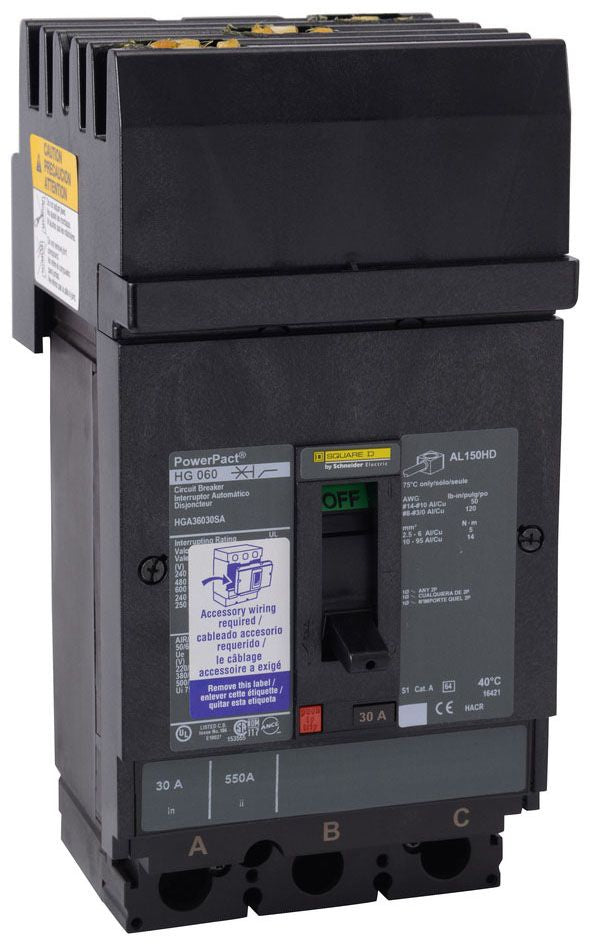

HGA36045 - Square D 3 Pole 45A 600VAC 500VDC I-Line Molded Case Circuit Breaker - Essential Electric Supply
HGA36045 - Square D 3 Pole 45A 600VAC 500VDC I-Line Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA36045 - Square D I-Line Style Plug-In 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HGA36045 - Square D Plug In Panelboard 600V 45A 3 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA36045 - Square D 3 Pole 45A 600VAC 500VDC I-Line Molded Case Circuit Breaker - Essential Electric Supply
HGA36045 - Square D 3 Pole 45A 600VAC 500VDC I-Line Molded Case Circuit Breaker - Essential Electric Supply

Description

HGA36045


HGA36045 is a 3 pole, 45A, 600VAC/500VDC molded case circuit breaker from Square D's PowerPact H-Frame series, designed for I-Line panelboards and switchboards. This thermal magnetic circuit breaker features an I-Line style plug-in connection for easy installation and removal, dual-break rotating contacts for reduced peak current during faults, and an integral push-to-trip button for manual operation. It is suitable for power distribution applications and provides reliable protection against overloads and short circuits.
  • Part Number: HGA36045
  • Manufacturer: Square D
  • Series/Frame: PowerPact H-Frame
  • Poles: 3
  • Amperage: 45A
  • Voltage: 600VAC / 500VDC
  • Mounting Type: I-Line
  • Interrupt Rating: 18kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC, 20kA @ 500VDC
  • Protection Type: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Certifications: UL, CSA, CE, IEC
  • Application: Power Distribution, I-Line Panelboards and Switchboards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA36045
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 45
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : Long Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901422310
  • GTIN : 00785901422310
  • Country of Origin : Mexico

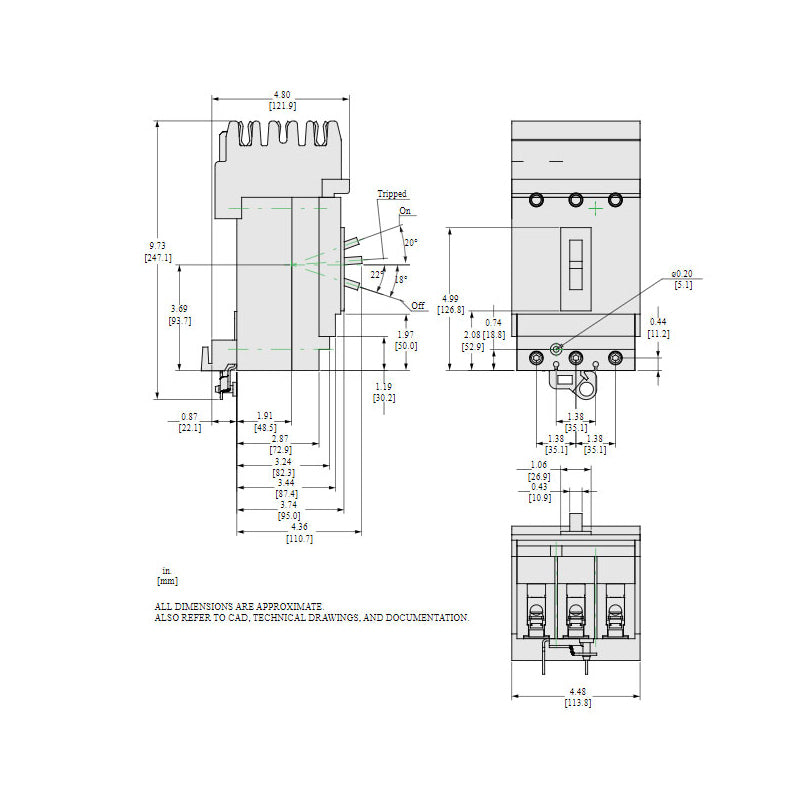

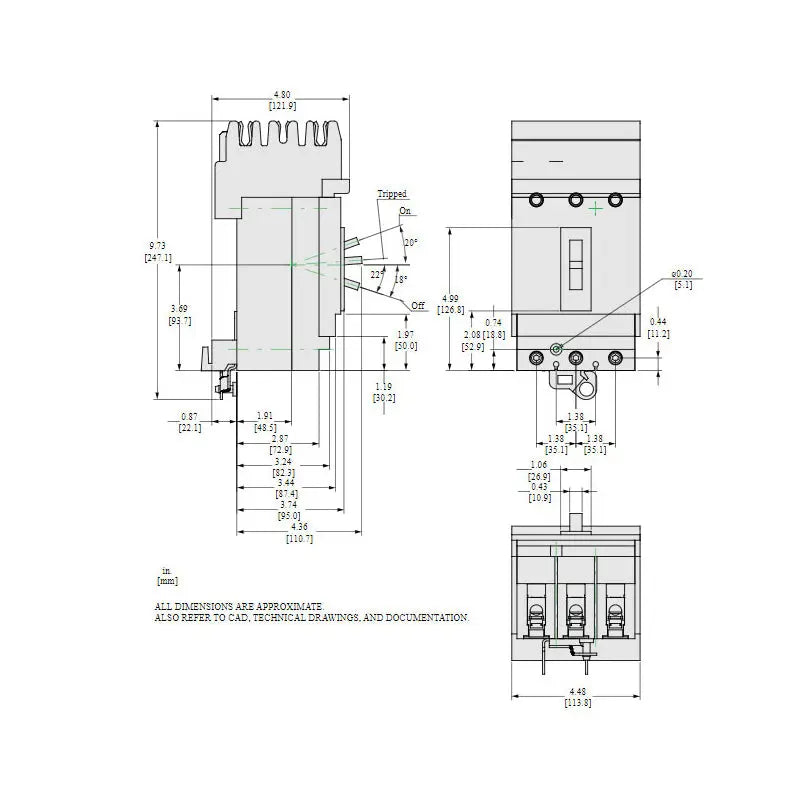

  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 5.441
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
