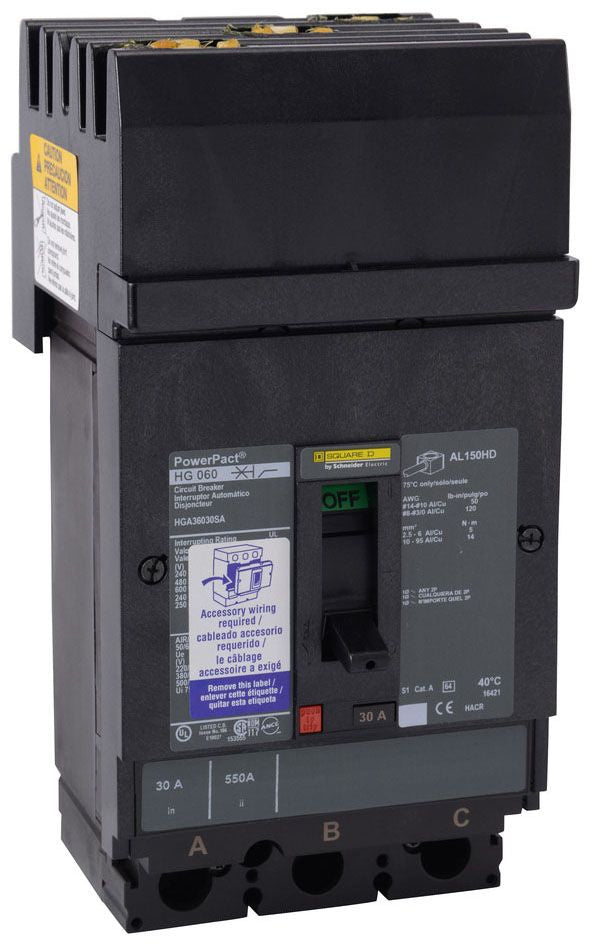

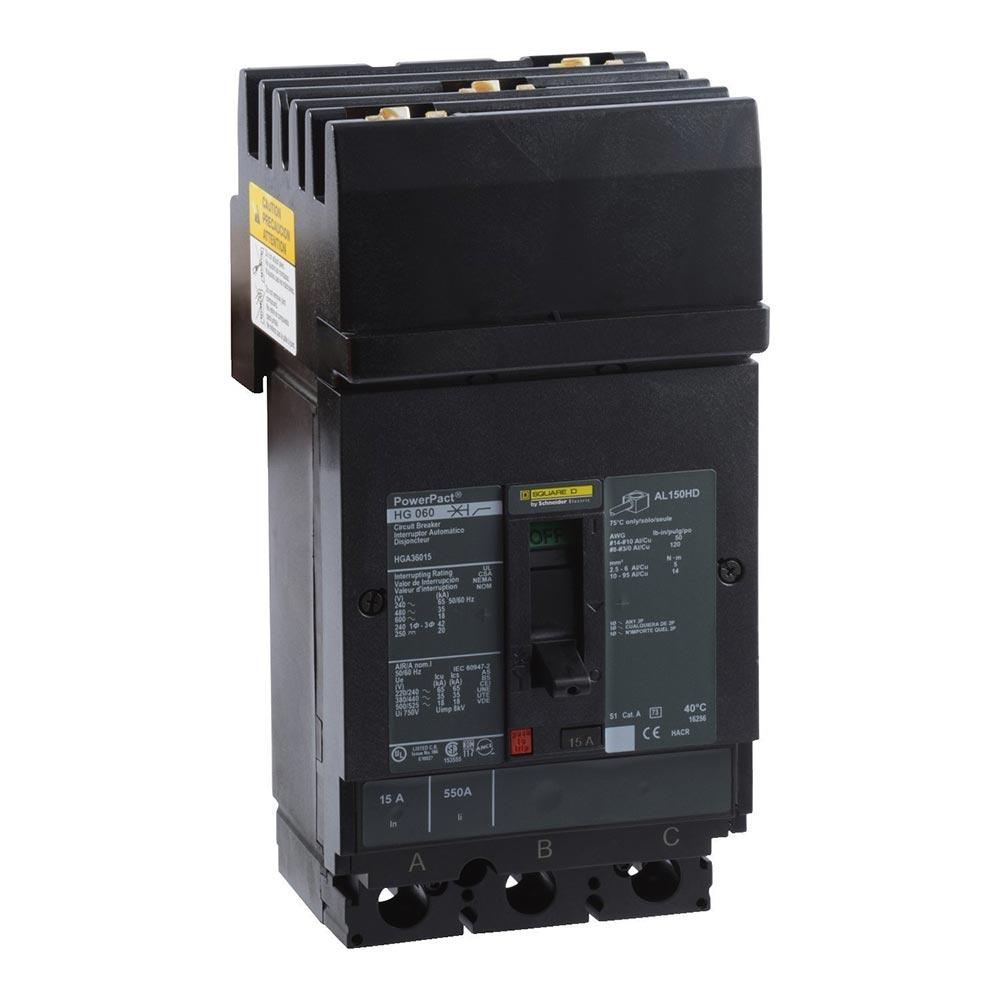

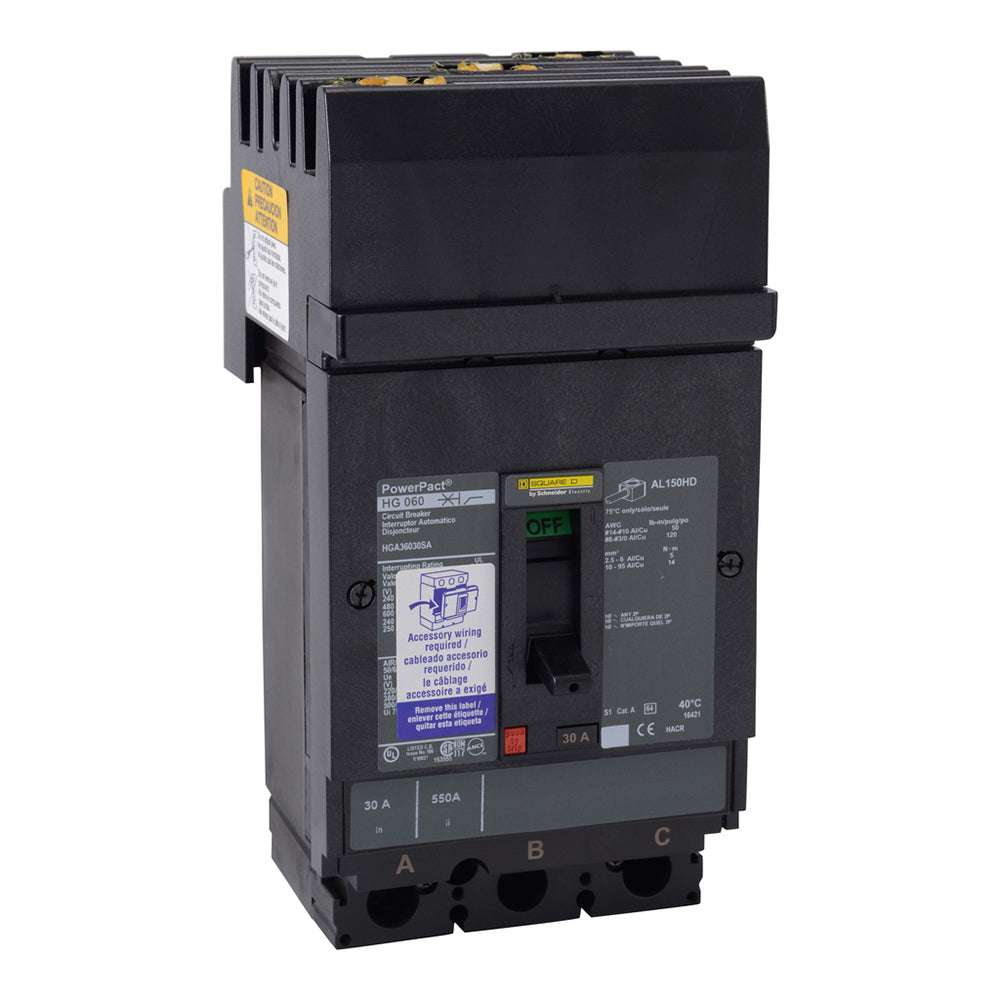

HGA36035 - Square D 35 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker I-Line H Frame

HGA36035

HGA36035 is a Square D 3 Pole 35 Amp thermal magnetic molded case circuit breaker rated for 600 Volt AC applications.This Square D HGA36035 circuit breaker features a 3 pole design with a 35 Amp current rating, 600 Volt AC voltage rating, and an 18kA interrupting capacity at 600VAC. It uses an I-Line style plug-in connection and is part of the PowerPacT H Frame series. The breaker provides thermal magnetic trip protection with long time and instantaneous functions and complies with UL, CSA, NOM, IEC standards, and is CE marked.

Key Specifications
• Manufacturer: Square D
• Part Number: HGA36035
• Amperage: 35 Amps
• Voltage Rating: 600 Volt AC, 250 Volt DC
• Poles: 3
• Interrupt Rating: 18kA at 600VAC, 20kA DC
• Frame Type: H Frame
• Mounting Type: I-Line plug-in
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Certifications: UL 489 Listed, CSA, NOM, IEC, CE Marked
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901422303
• GTIN : 00785901422303
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
