HGA36025 - Square D 25 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker HGA Frame

HGA36025

HGA36025 is a Square D 3 pole, 25 amp, 600 volt thermal magnetic molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a 35kA interrupting rating at 480V, I-Line style plug-in mounting, and magnetic trip unit. It is UL, CSA, and CE certified, suitable for three-phase ABC connection, and part of the HGA series frame. The breaker is ideal for panelboard and switchboard applications requiring high interrupting capacity and dependable performance.

• Manufacturer: Square D
• Series/Frame: HGA
• Amperage: 25 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 35kA @ 480V
• Mounting Type: I-Line plug-in
• Phase: 3 (ABC)
• Certifications: UL, CSA, CE
• Application: Panelboard and switchboard protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901700562
• GTIN : 00785901700562
• Country of Origin : Mexico

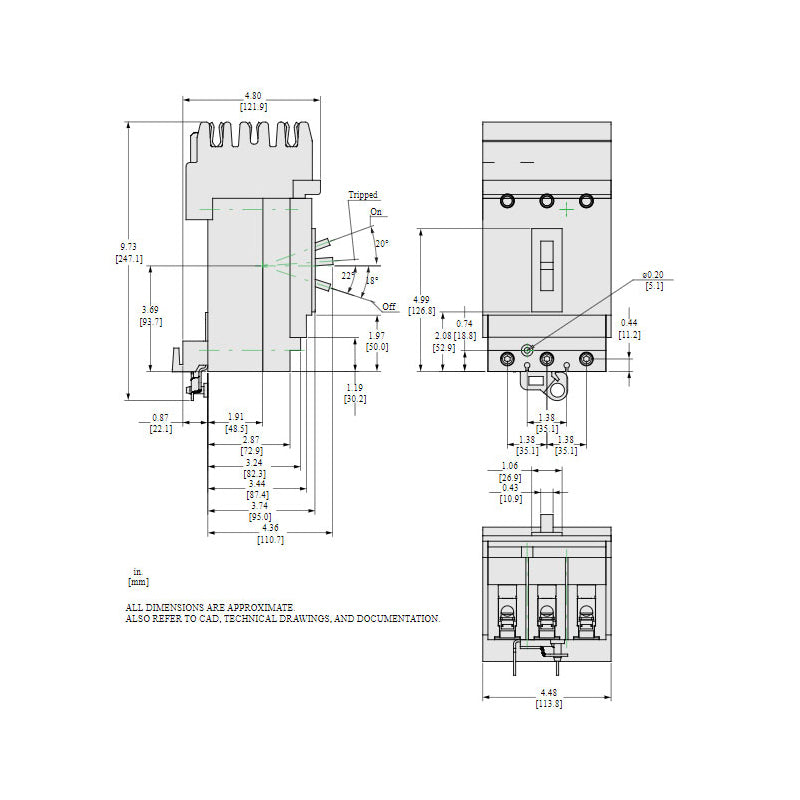

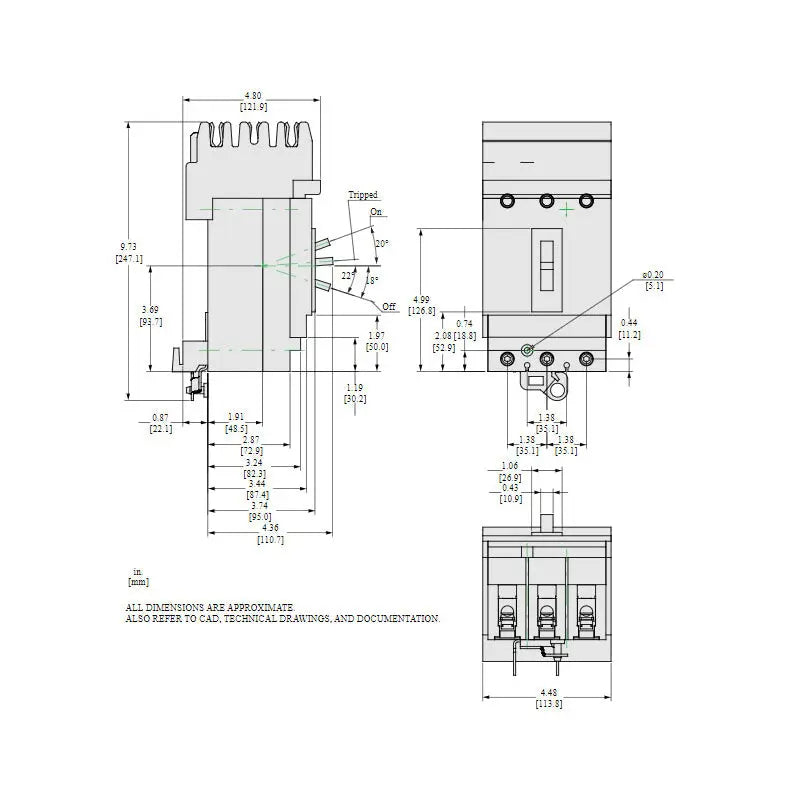

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.52
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
