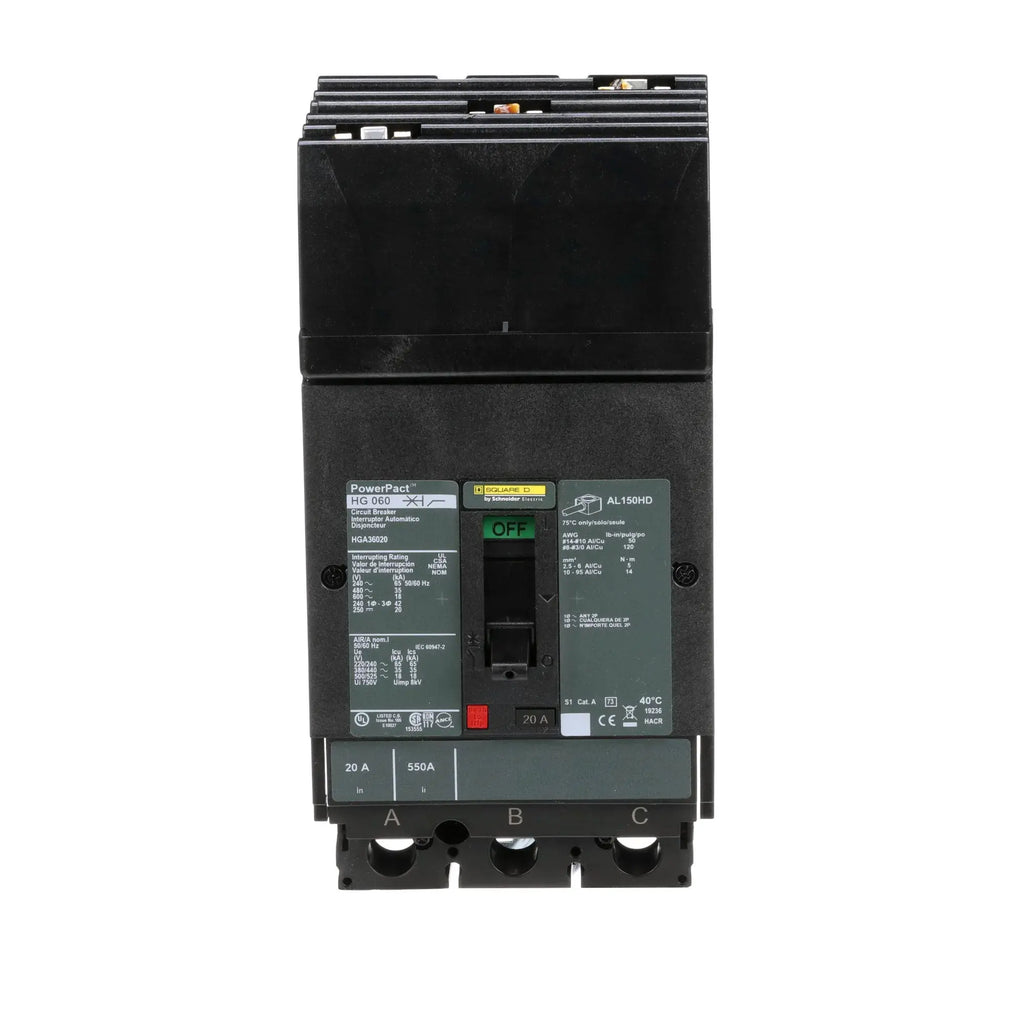

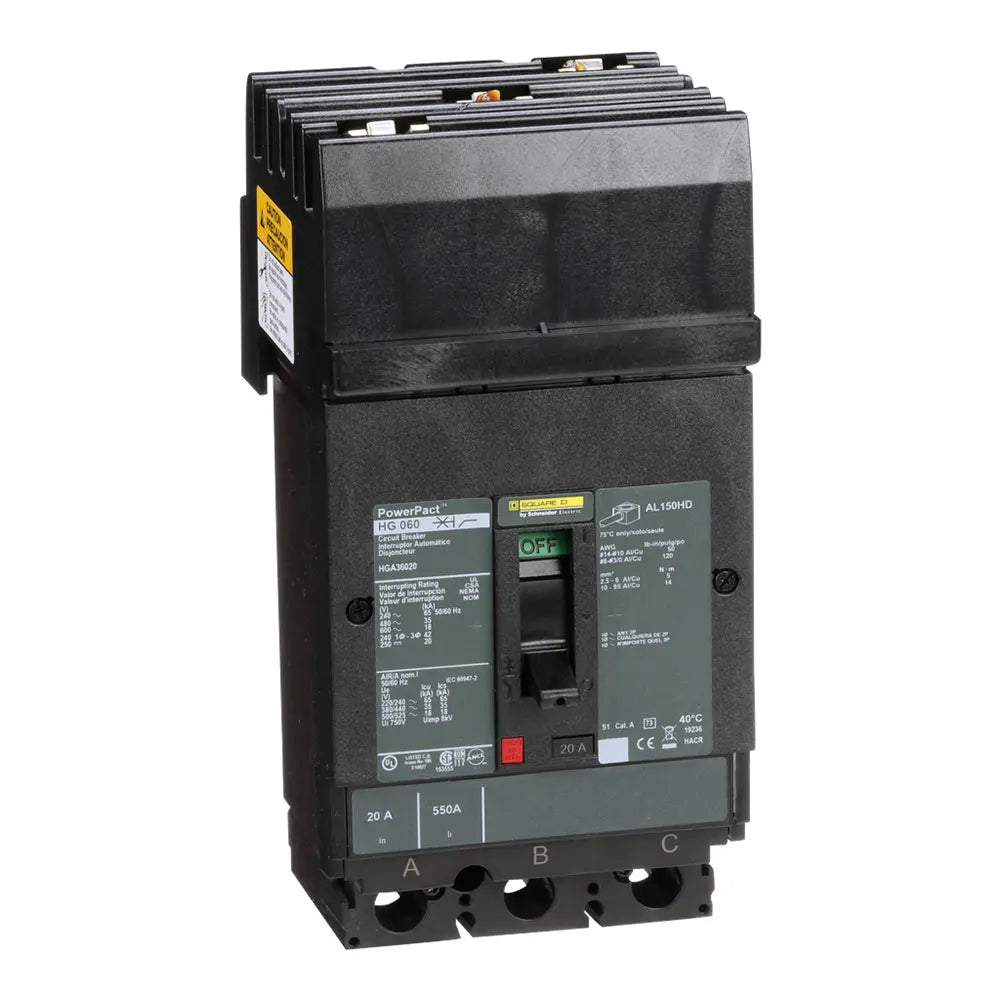

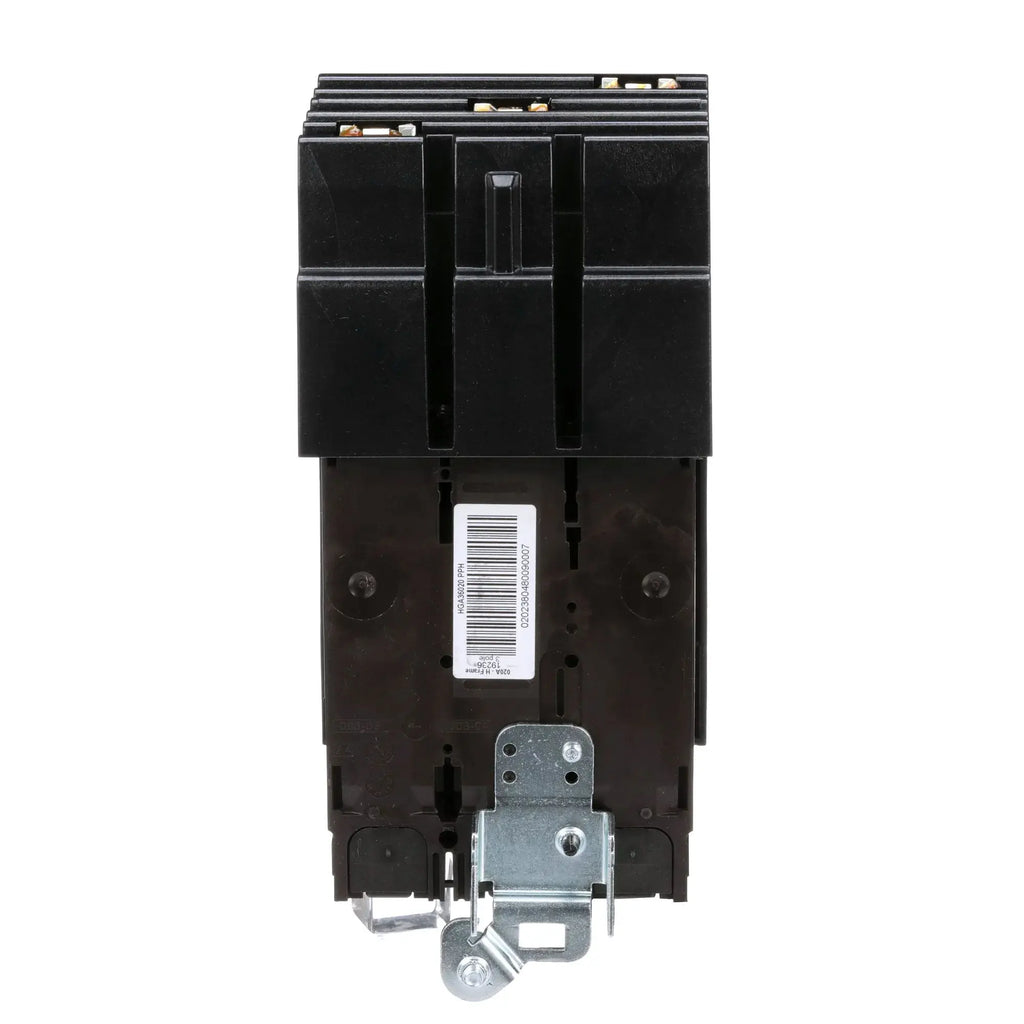

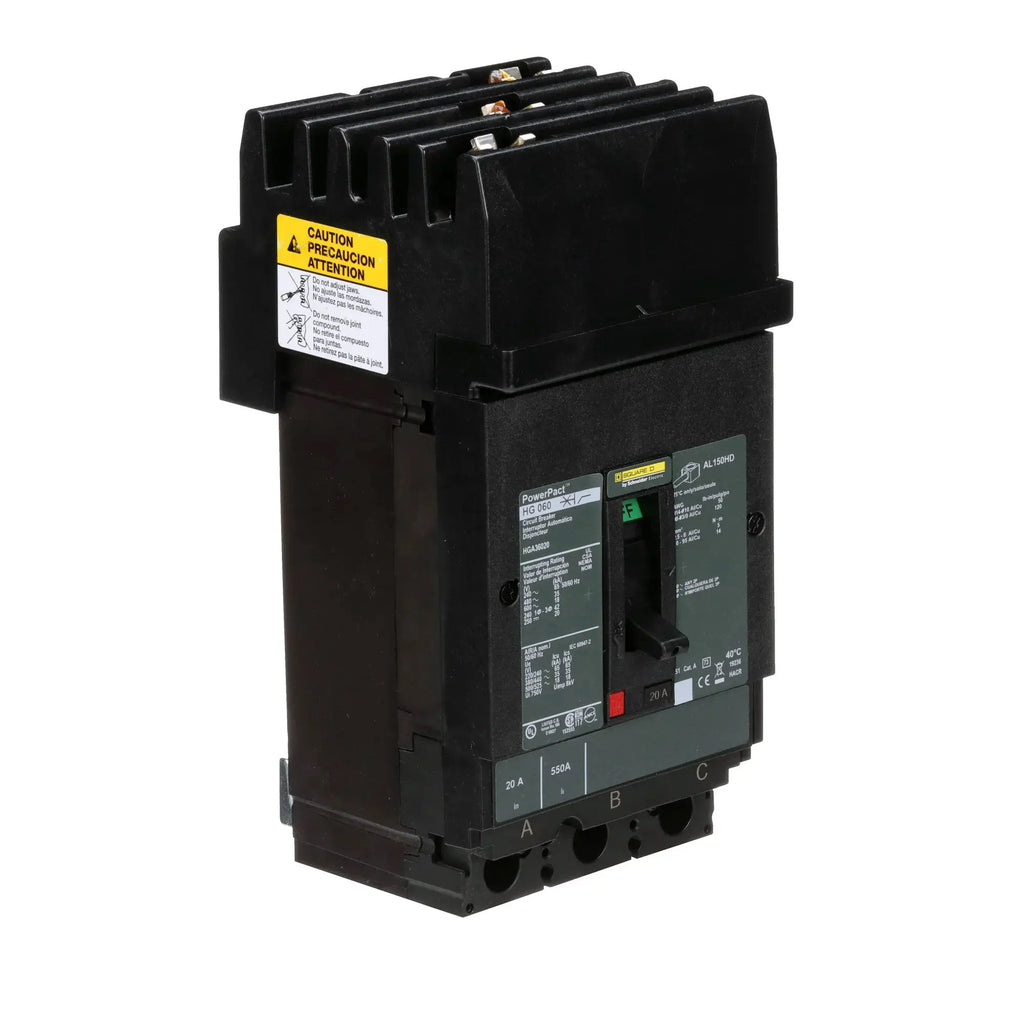

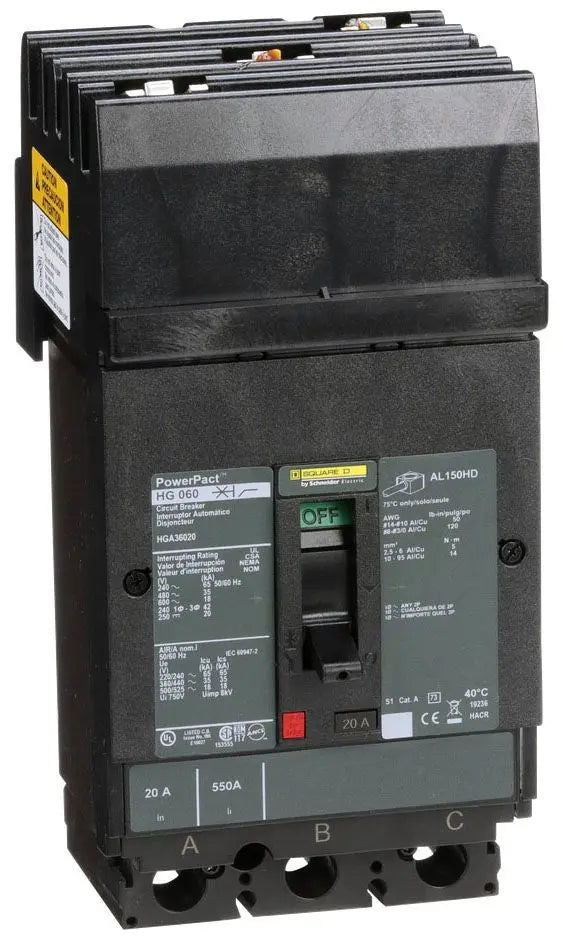

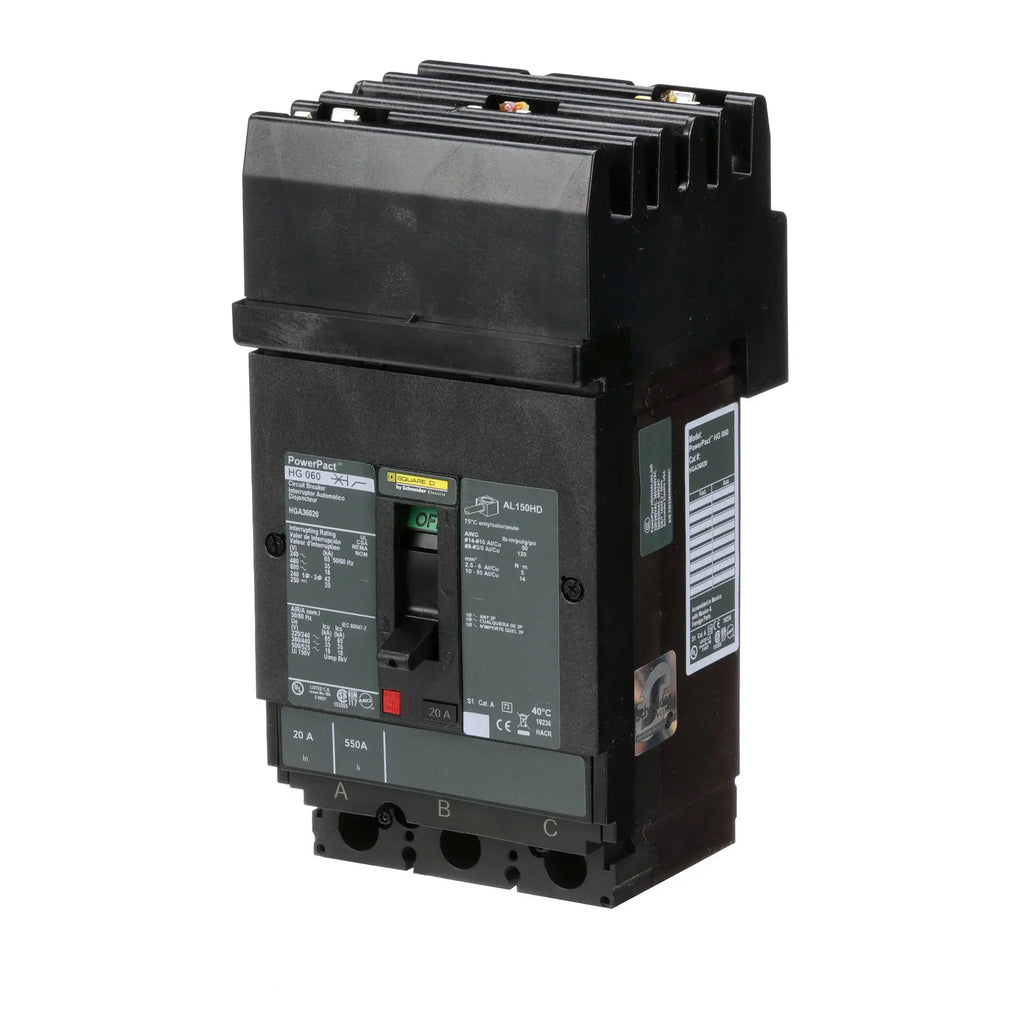

HGA36020 - Square D 20 Amp 3 Pole 600VAC Molded Case Circuit Breaker PowerPact H I-Line

HGA36020

HGA36020 is a Square D molded case circuit breaker with 20 ampere rating and 3 poles designed for power distribution applications.This circuit breaker features a 600VAC voltage rating, thermal magnetic trip unit, and an I-Line plug-in mounting style. It offers a high interrupting rating of 18kA at 600VAC and is UL listed for safety and reliability. The breaker is suitable for Class 612 I-Line panelboards and switchboards, providing dependable protection in industrial and commercial electrical systems.

• Manufacturer: Square D
• Part Number: HGA36020
• Amperage: 20A
• Voltage: 600VAC
• Poles: 3
• Frame/Series: PowerPact H / HGA
• Mounting Type: I-Line plug-in
• Trip Unit: Thermal magnetic
• Interrupt Rating: 18kA at 600VAC
• Certifications: UL Listed
• Phase: ABC
• Application: Class 612 I-Line panelboards/switchboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901601333
• GTIN : 00785901601333
• Country of Origin : Mexico

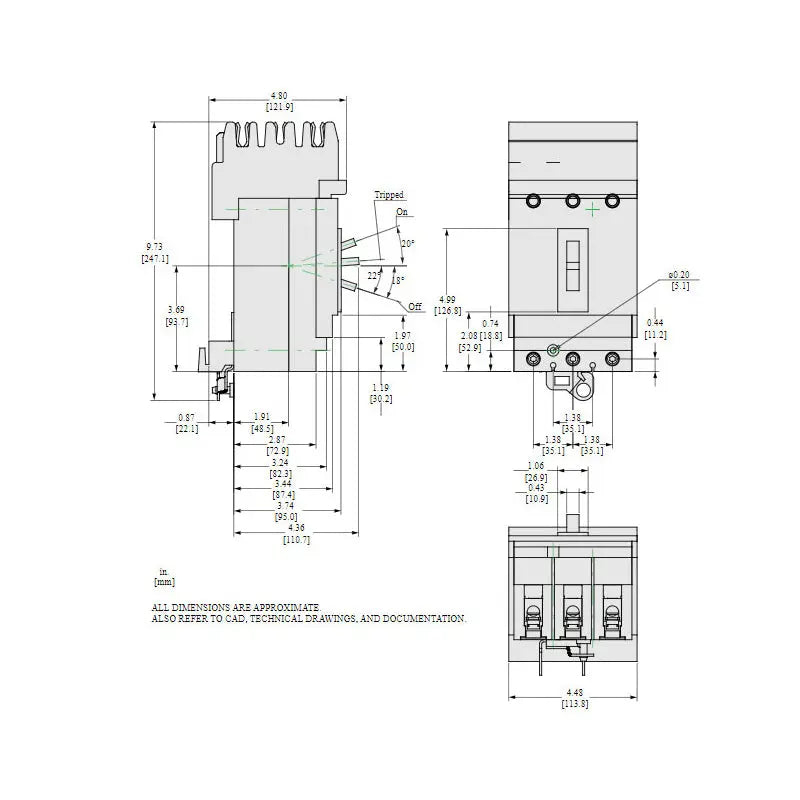

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.399 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
