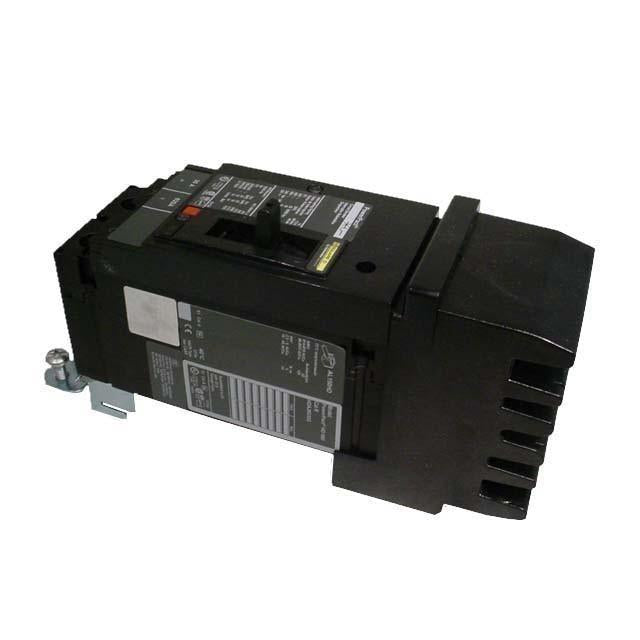

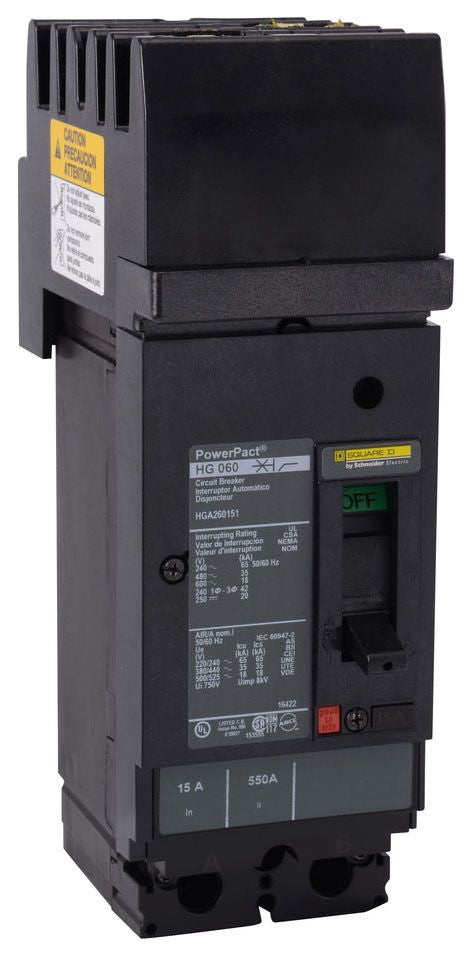

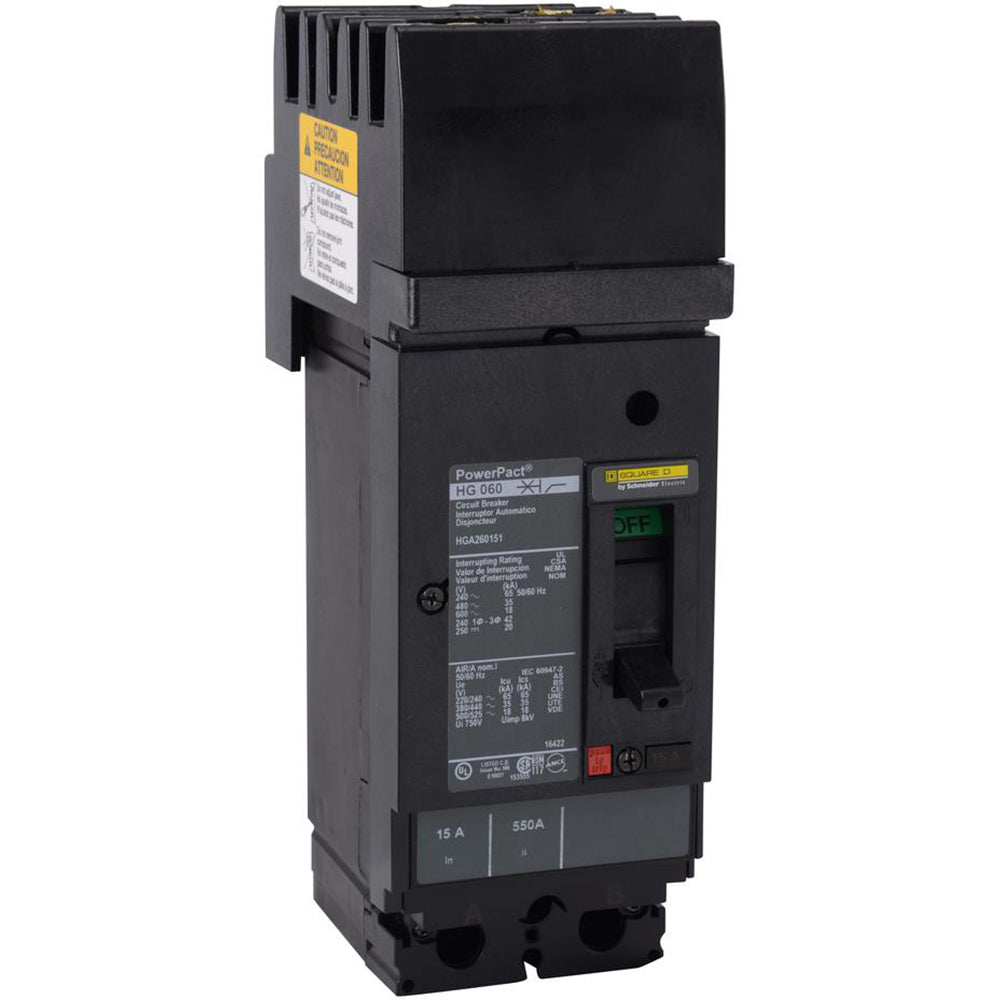

HGA260404 - Square D 40A 600V 2-Pole PowerPact H Thermal Magnetic Circuit Breaker I-Line

HGA260404

HGA260404 is a Square D PowerPact H-Frame 2-pole circuit breaker rated for 40 amps and 600 volts with thermal magnetic trip technology.This molded case circuit breaker features a thermal magnetic trip unit designed to protect electrical systems from overloads and short circuits. It is an I-Line mounting type breaker with a current limiting design, suitable for use in panelboards and switchboards. The breaker has an interrupt rating of 18,000 amps and complies with UL, CSA, and CE certifications.

Key Specifications
• Manufacturer: Square D
• Part Number: HGA260404
• Frame Type: PowerPact H
• Poles: 2
• Amperage: 40A
• Voltage Rating: 600V
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line
• Interrupt Rating: 18kA
• Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGA260404
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901539629
• GTIN : 00785901539629
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
