HGA260202 - Square D 20A 600V 2-Pole PowerPact H Thermal Magnetic Circuit Breaker I-Line Plug-In

Save $636.55
SKU: HGA260202-New
Condition: New
Price:
$701.45 $1,338.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

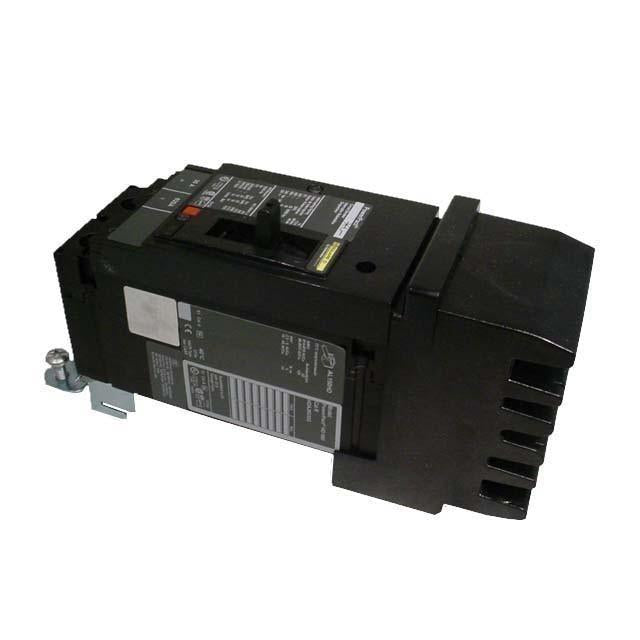

HGA260202 - Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGA260202 - Square D Plug In Panelboard 600V 20A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA260202 - Square D 20A 600V 2-Pole PowerPact H Thermal Magnetic Circuit Breaker I-Line Plug-In - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA260202 - Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGA260202 - Square D Plug In Panelboard 600V 20A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA260202 - Square D 20A 600V 2-Pole PowerPact H Thermal Magnetic Circuit Breaker I-Line Plug-In - Essential Electric Supply

Description

HGA260202


HGA260202 is a Square D PowerPact H series 2-pole circuit breaker rated for 20 amps and 600 volts with thermal magnetic trip unit.This molded case circuit breaker features a thermal magnetic trip unit providing long-time and instantaneous protection. It has an interrupt rating of 65 kA at 240 V AC, 35 kA at 480 V AC, and 18 kA at 600 V AC, suitable for demanding industrial applications. The breaker uses an I-Line style plug-in mounting and is UL, CSA, and CE certified. It is designed for 1-phase systems and offers reliable current limiting protection in a compact H-frame size.
  • Manufacturer: Square D / Schneider Electric
  • Part Number: HGA260202
  • Amperage: 20 A
  • Voltage Rating: 600 V AC
  • Poles: 2
  • Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
  • Interrupt Rating: 65 kA @ 240 V AC, 35 kA @ 480 V AC, 18 kA @ 600 V AC
  • Mounting Type: I-Line Plug-In
  • Frame Type: H (PowerPact H Series)
  • Phase: Single Phase
  • Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA260202
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : Long Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 785901912316
  • GTIN : 00785901912316
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 4.068
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
