2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63S250A

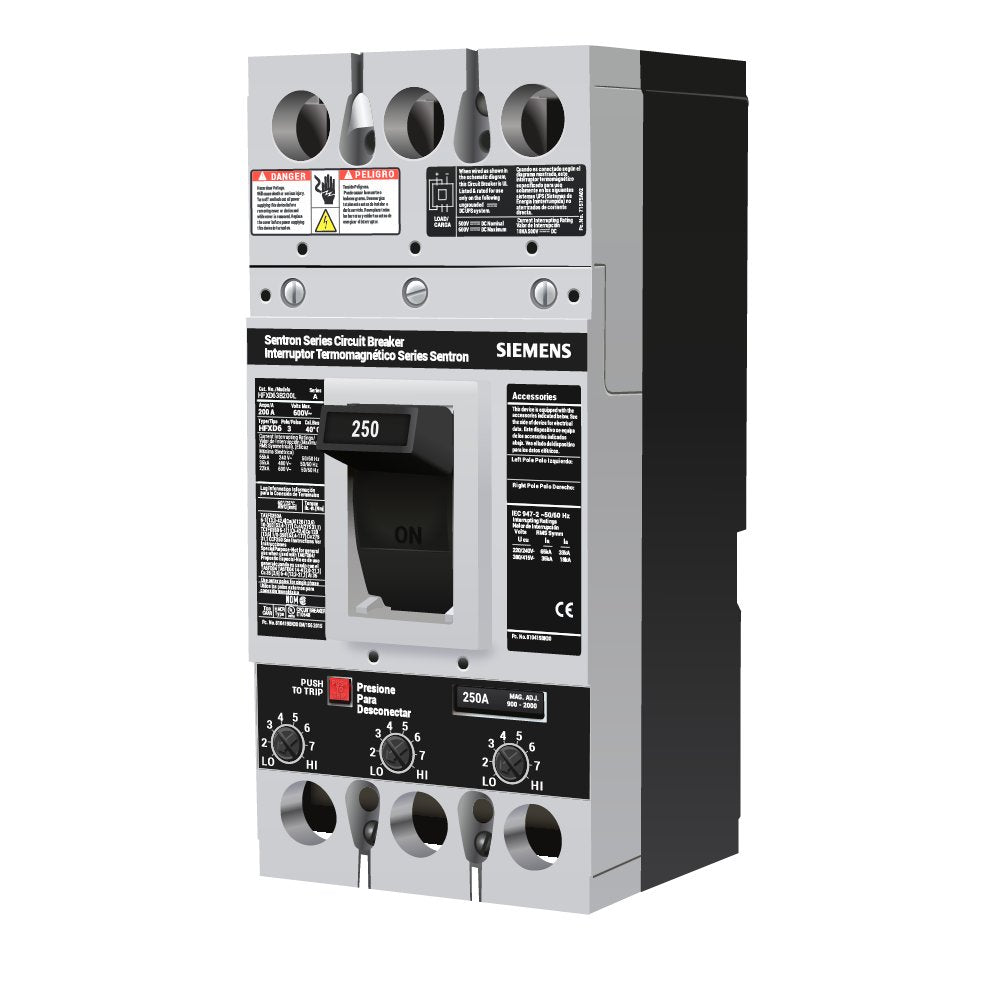

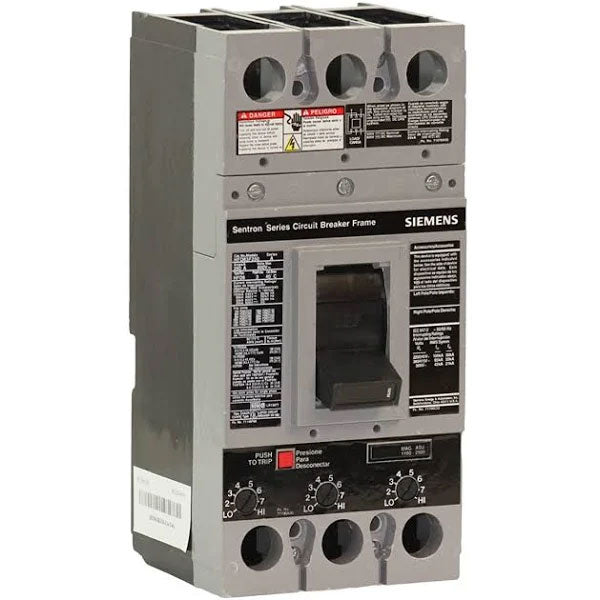

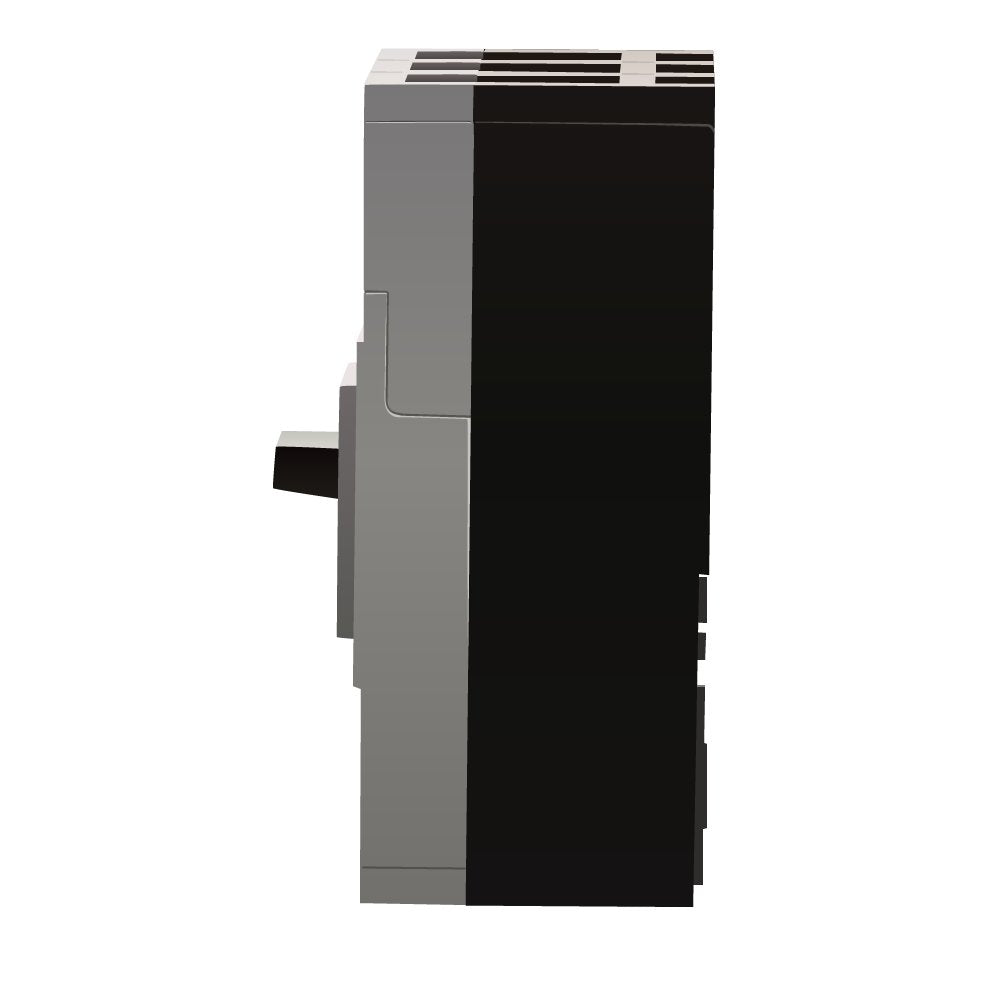

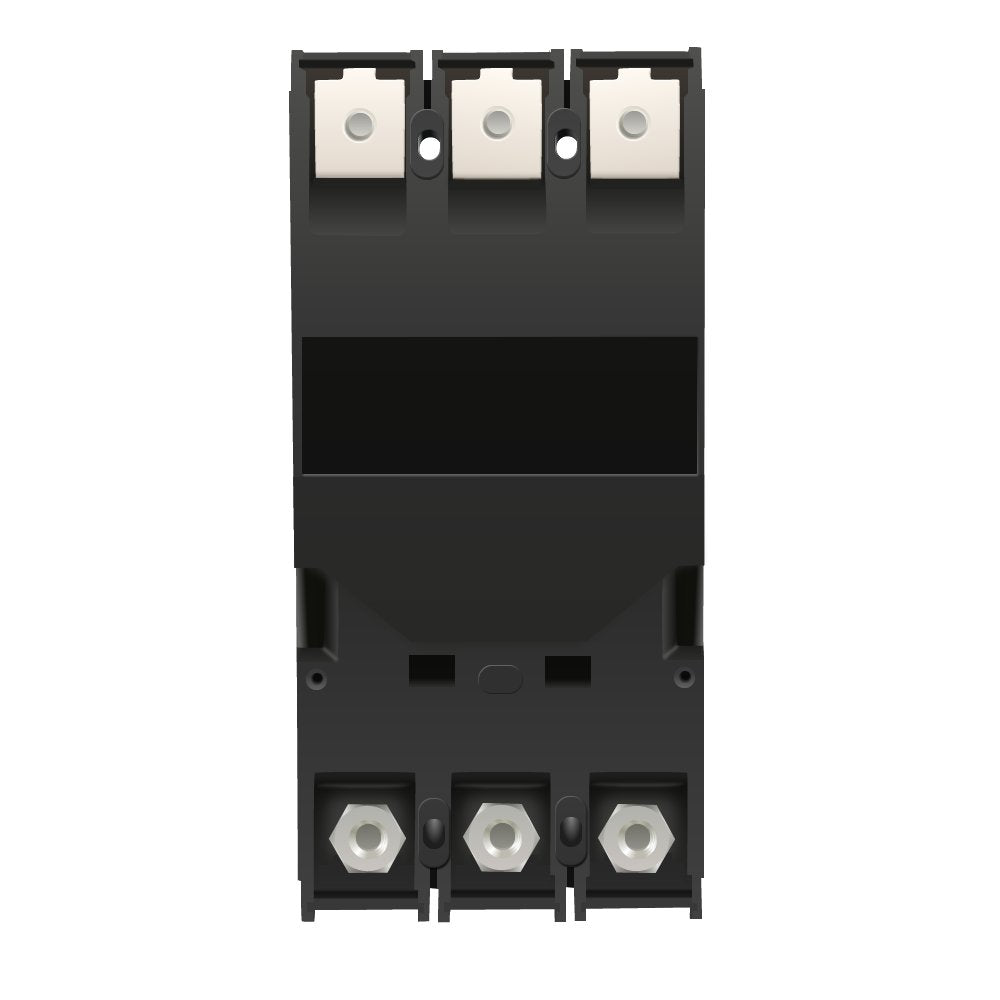

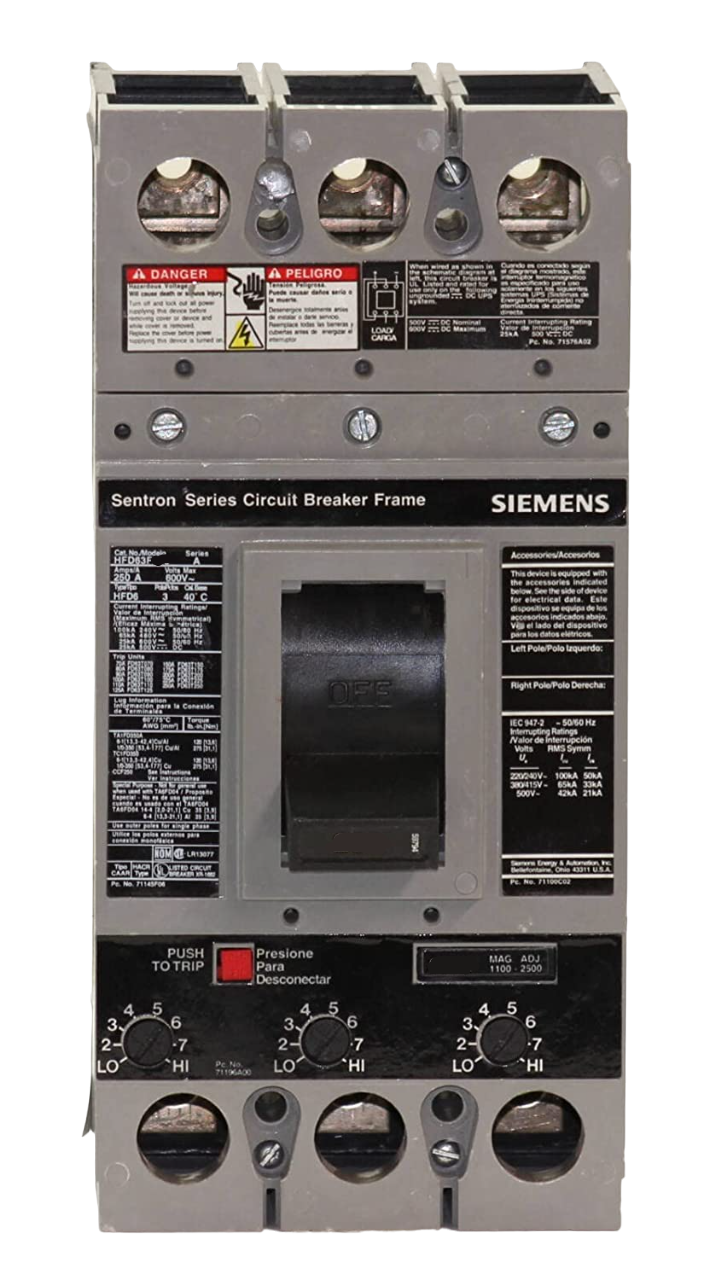

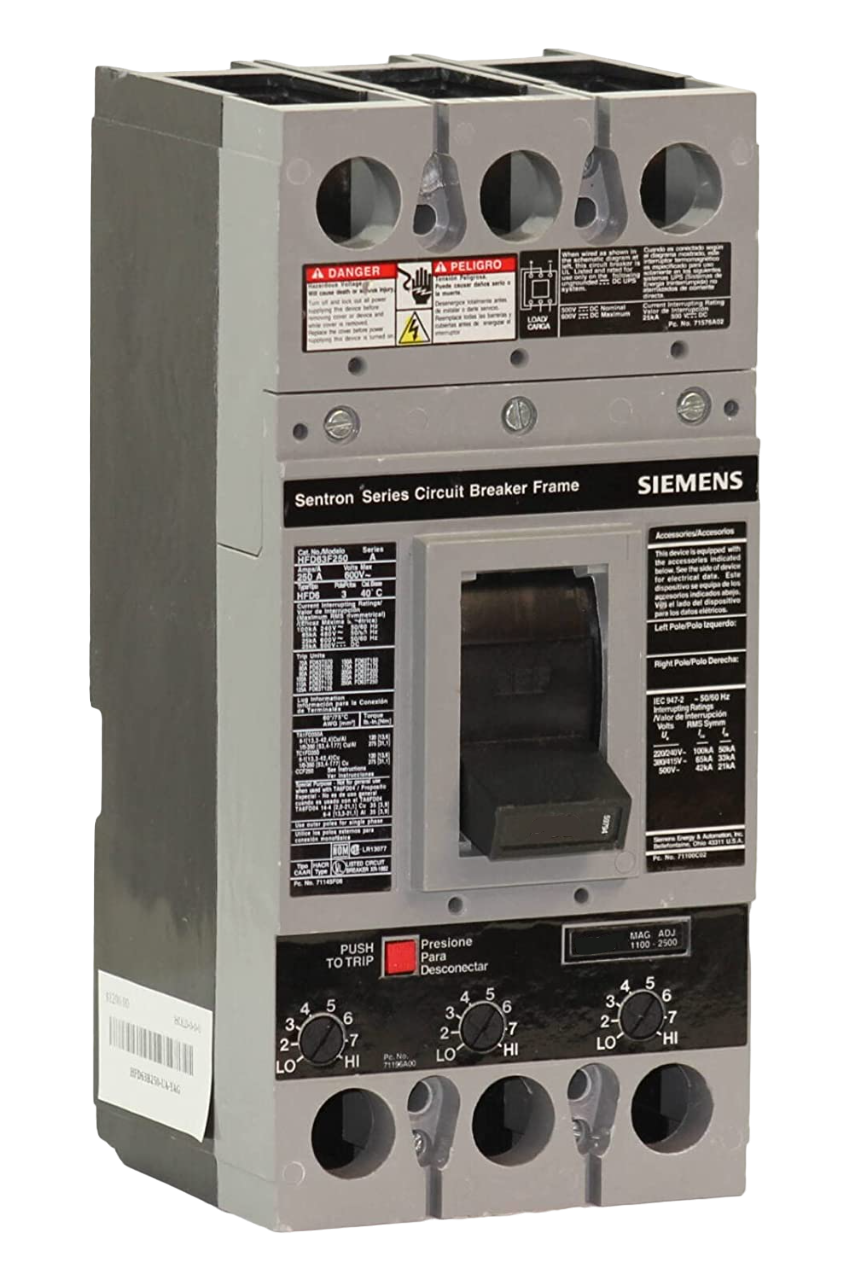

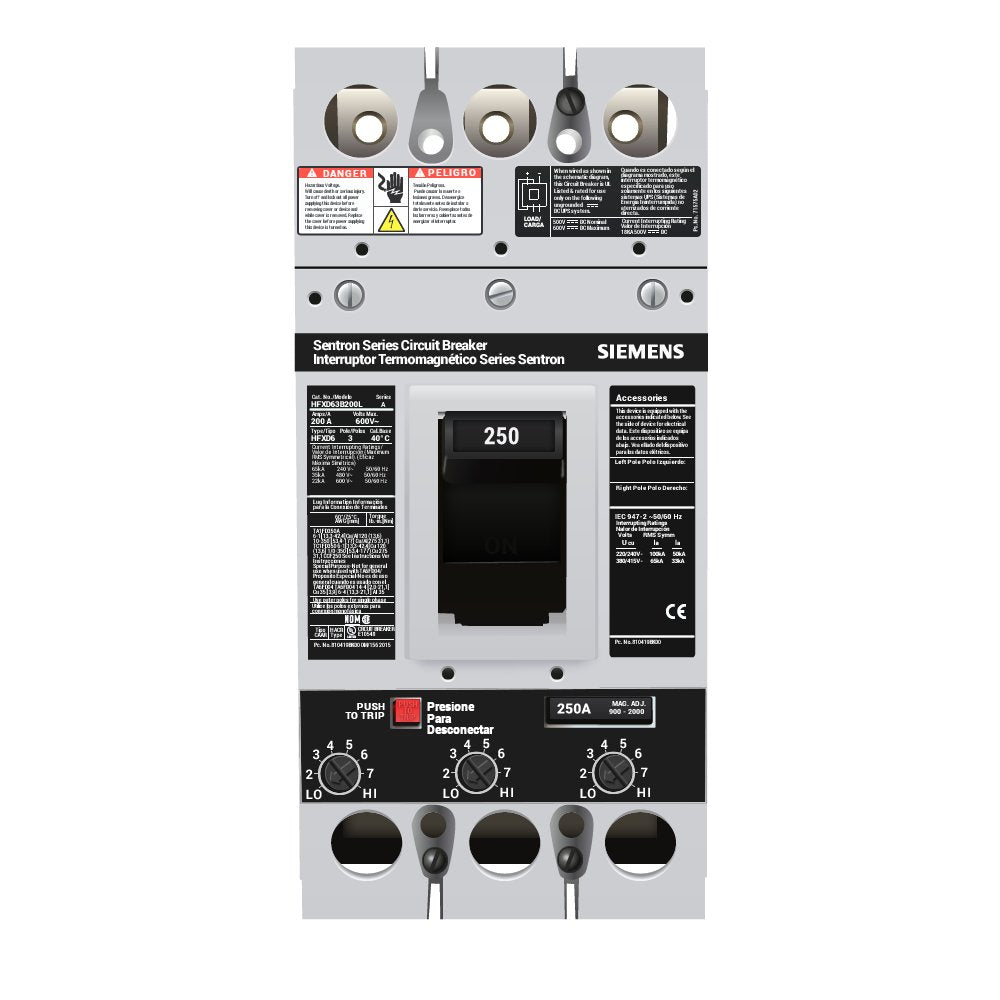

HFXD63S250A - Siemens 3-pole molded case circuit breaker rated at 250A, 600VAC, bolt-on mounting, switch only.This Siemens HFXD63S250A features a HFD frame, 3 poles, 250A amperage rating, 600VAC voltage, bolt-on connection, and 65kAIC at 480VAC interrupting capacity. Designed as a switch only for residential, commercial, and industrial applications.
- Part Number: HFXD63S250A
- Manufacturer: Siemens
- Amperage: 250A
- Voltage: 600VAC
- Poles: 3
- Frame: HFD
- Mounting Type: Bolt-On
- Interrupt Rating: 65kAIC @ 480VAC
- Type: Switch Only
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HFXD63S250A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : FD Frame
- Protection : Non-Automatic
Product Data
- UPC : 783643106086
- GTIN : 00783643106086
- Country of Origin : Mexico
- Weight : 8.521
- Certification : UL, CSA, NOM, IEC
