HFDE322536 - Eaton 225A 600V 3-Pole Molded Case Circuit Breaker, Series C, F-Frame, Electronic LSIG Trip, Panel Mount, 65kA Interrupt, UL/CSA/CE

HFDE322536

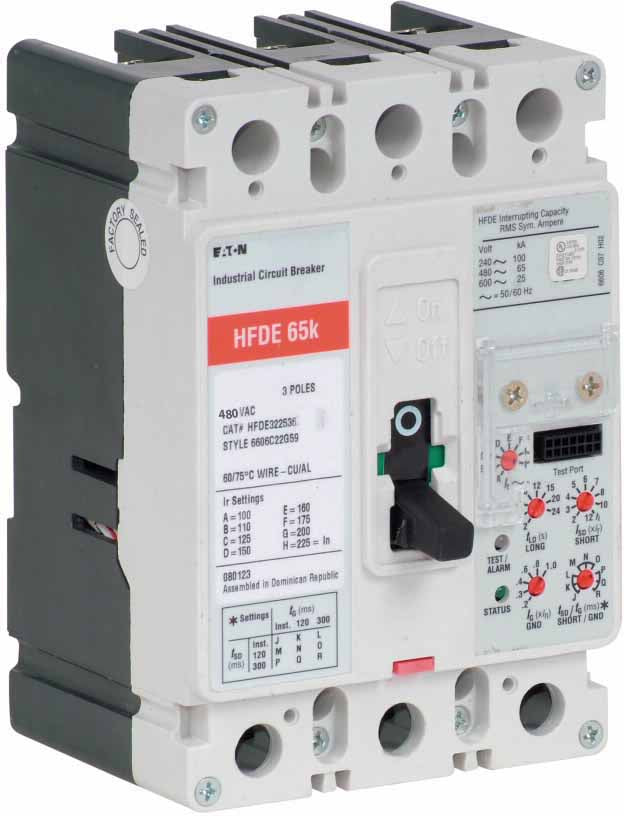

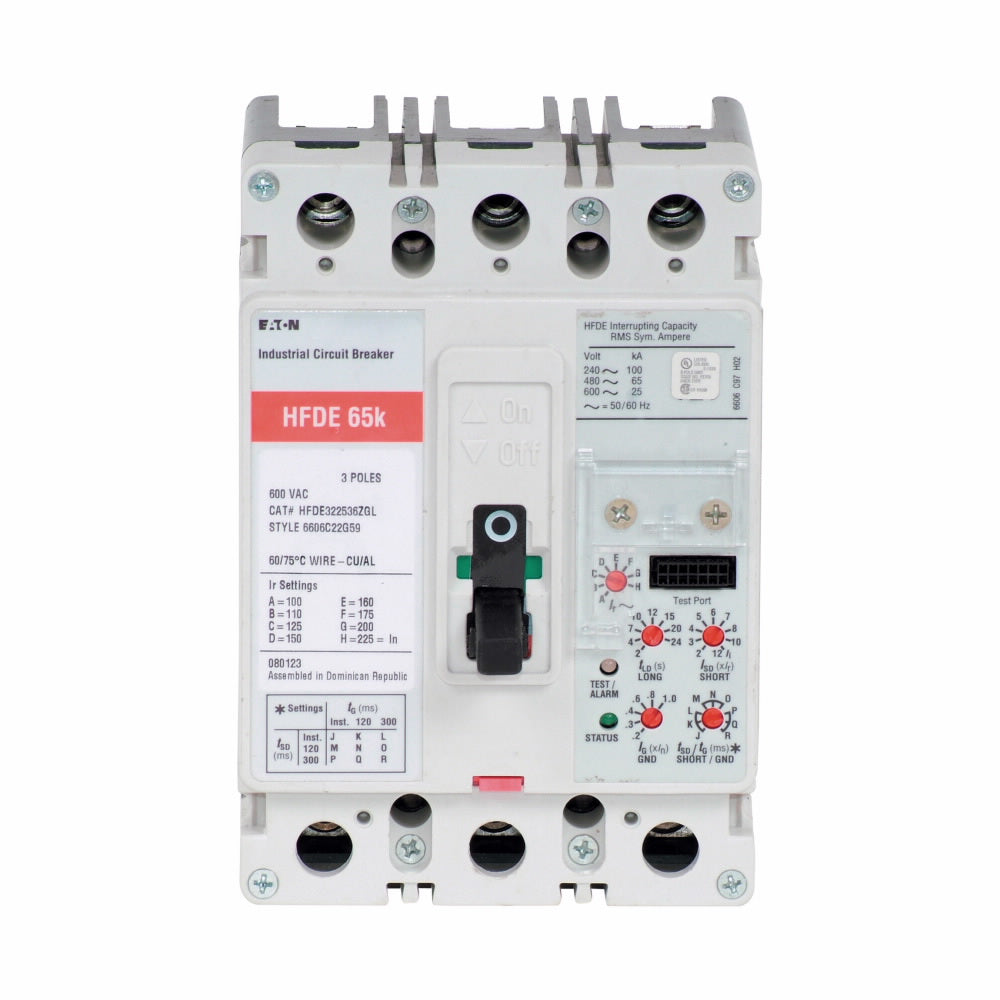

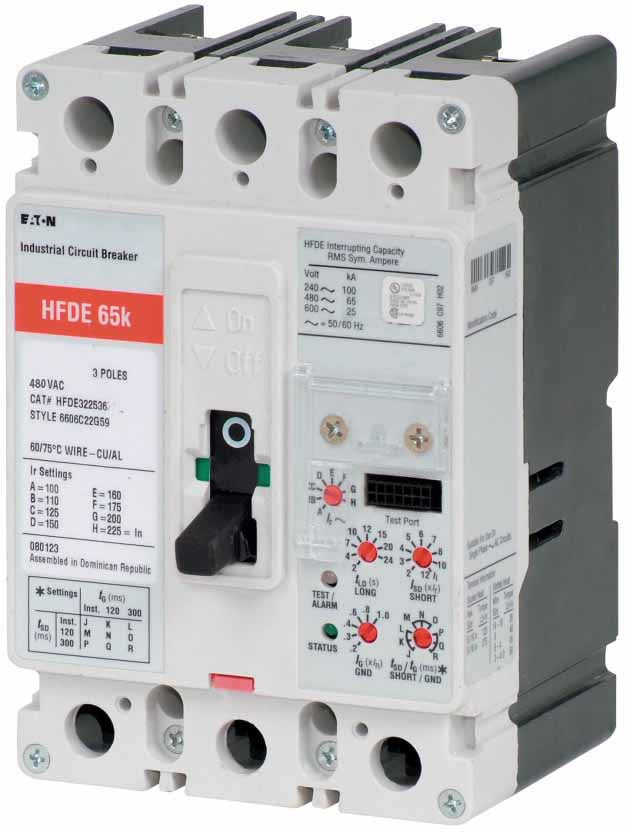

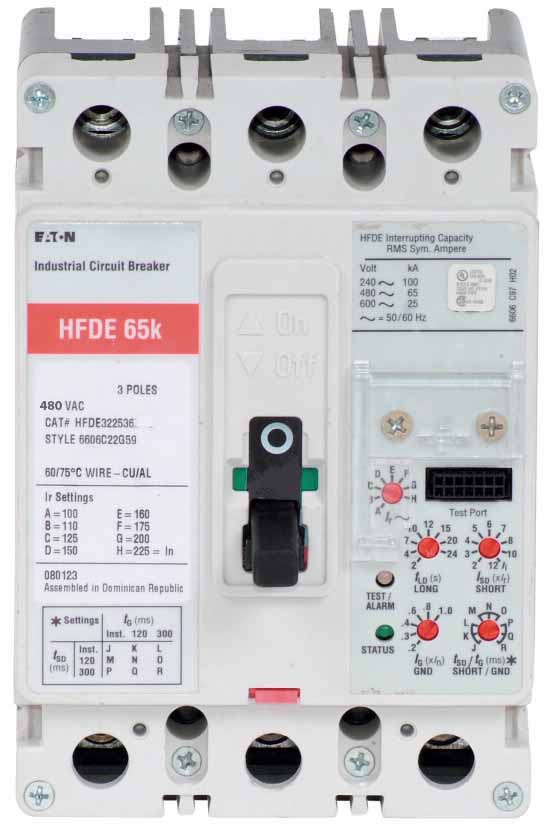

HFDE322536 is an Eaton Series C F-frame electronic molded case circuit breaker rated at 225A with three poles and LSIG trip protection.This HFDE model features Digitrip 310 RMS electronic trip unit for LSIG protection, F-frame design, panel mounting, and high interrupt ratings including 100 kAIC at 240VAC and 65 kAIC at 480VAC. It operates at 50/60 Hz on systems up to 600VAC with load side terminals.

• Part Number: HFDE322536
• Manufacturer: Eaton
• Amperage: 225A
• Poles: 3
• Frame: F-frame
• Trip Unit: Digitrip 310 RMS Electronic LSIG
• Interrupt Rating: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC
• Voltage: 600VAC
• Mounting: Panel
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDE322536
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDE
• Voltage : 480 AC
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Solid State

Product Data

• UPC : 786685112732
• GTIN : 00786685112732
• Country of Origin : Dominican Republic
• Dimensions : 7.7 in x 4.8 in x 4.9 in (Length/Depth x Height x Width)
• Weight : 4.3
• Certification : UL Listed
