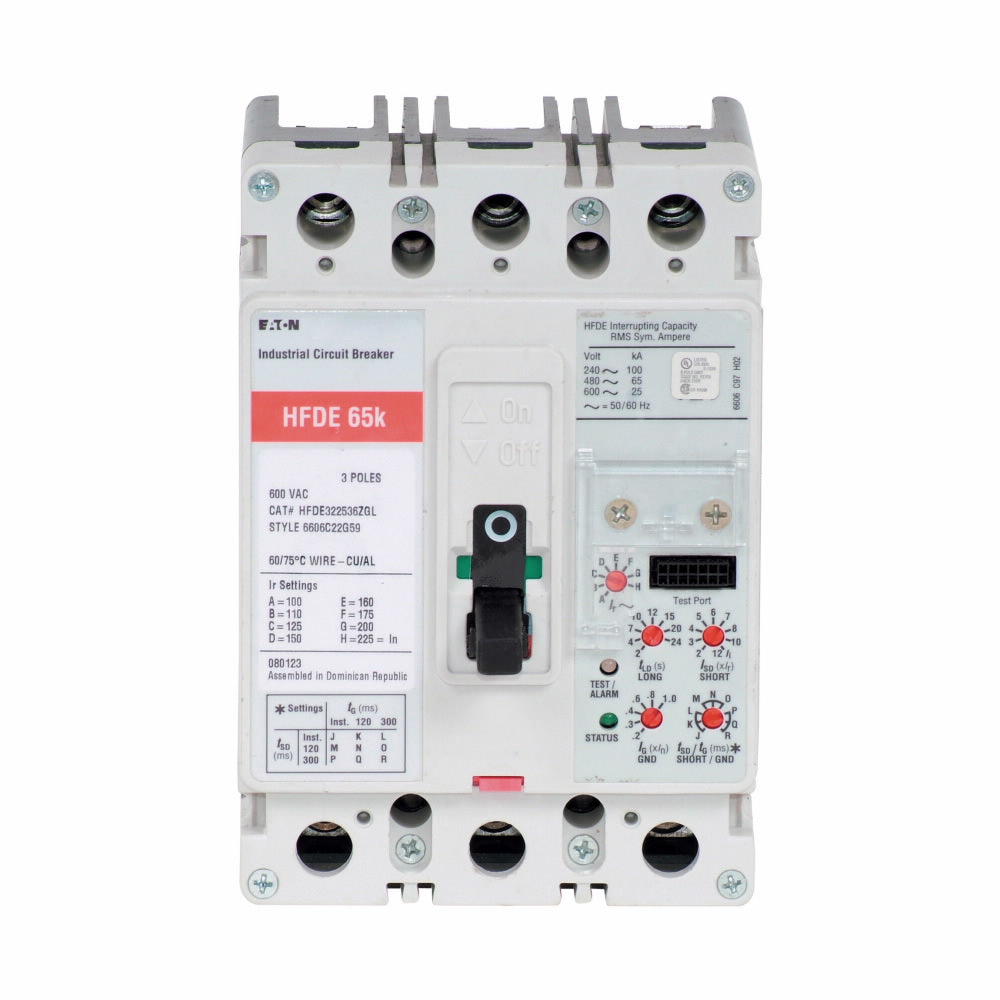

HFDE322535 - Eaton Cutler Hammer 225A 3 Pole 480V Molded Case Circuit Breaker F Frame Electronic Trip

HFDE322535

HFDE322535 is a Series C, F-frame electronic molded case circuit breaker rated for 225 amperes at 480 volts AC with three poles and bolt-on panel mount connection.

This breaker features Eaton's Digitrip 310 RMS electronic trip unit with LSG (Long-Time, Short-Time, Ground Fault) functionality, delivering superior performance through patented high-speed blow-open contact design. The unit is rated for 65 kAIC interrupt capacity at 480 VAC and 100 kAIC at 240 VAC, making it suitable for demanding industrial and commercial applications. Heavy-duty external accessories are available for harsh and hazardous environments.

• Amperage: 225A
• Voltage: 480V AC
• Poles: 3
• Frame Type: F Frame
• Series: Series C
• Trip Unit: Digitrip 310 RMS Electronic LSG
• Interrupt Rating: 65 kAIC at 480VAC, 100 kAIC at 240VAC
• Mounting: Bolt-on panel mount
• Frequency: 50/60 Hz
• Material: Glass Polyester

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDE322535
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Voltage : 480 AC
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSG - Long-Time Short-Time and Ground Fault
• Protection : Solid State

Product Data

• UPC : 786685112626
• GTIN : 00786685112626
• Country of Origin : Dominican Republic
• Dimensions : 7.7 in x 4.8 in x 4.9 in (Length/Depth x Height x Width)
• Weight : 4.3
• Certification : UL Listed
