Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFD63B175

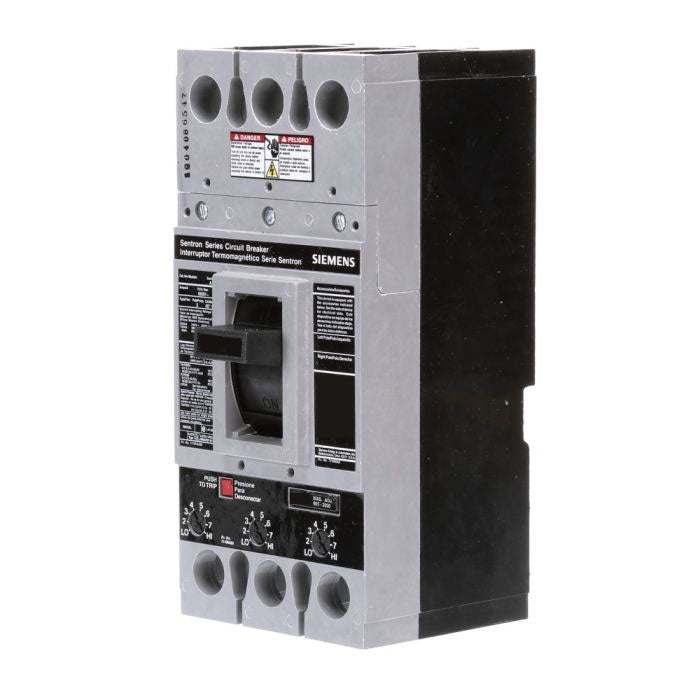

HFD63B175 is a Siemens 175 Amp, 600 Volt, 3-pole molded case circuit breaker designed for reliable power distribution protection.This breaker features a bolt-on mounting type with a thermal magnetic trip unit, part of the FD frame series. It offers a high interrupt rating of 25kA at 600V and 65kA at 480V, meeting UL 489 and IEC 60947-2 standards. The breaker is rated for standard 40 degree Celsius operation and is interchangeable within the FD frame family.
- Amperage: 175 Amp
- Voltage: 600 Volt
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 600V, 65kA at 480V
- Series/Frame: FD Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, IEC 60947-2
- Standard 40¡C Breaker
- Interchangeable Trip Unit
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFD63B175
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFD
- Voltage : 600 AC
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211834
- GTIN : 00783643211834
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.929
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
