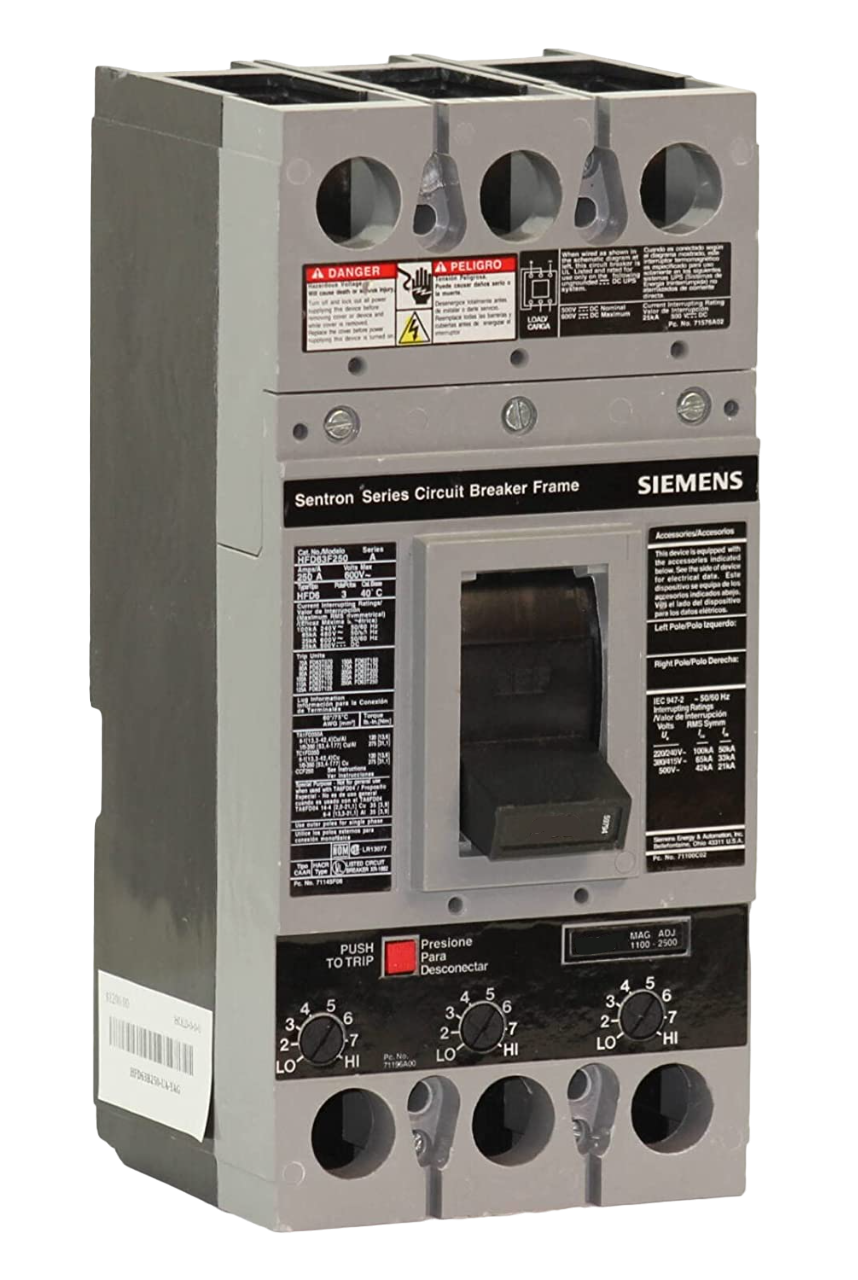

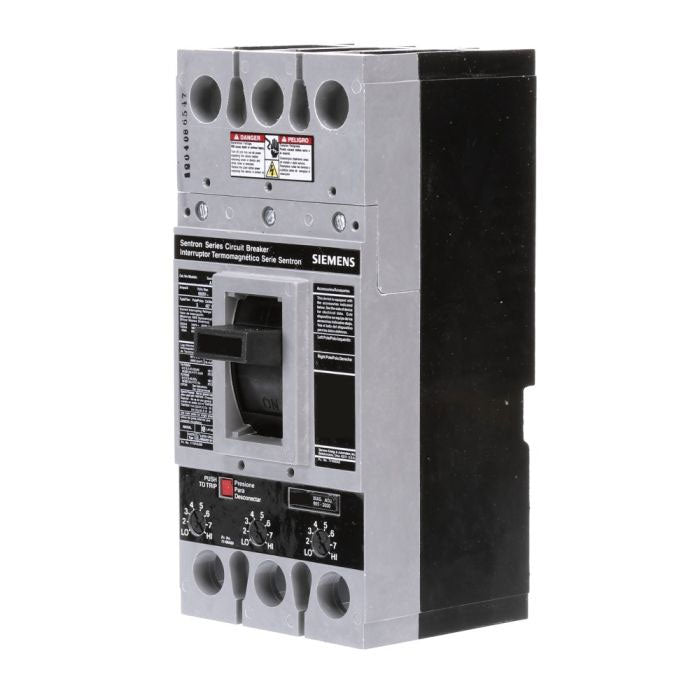

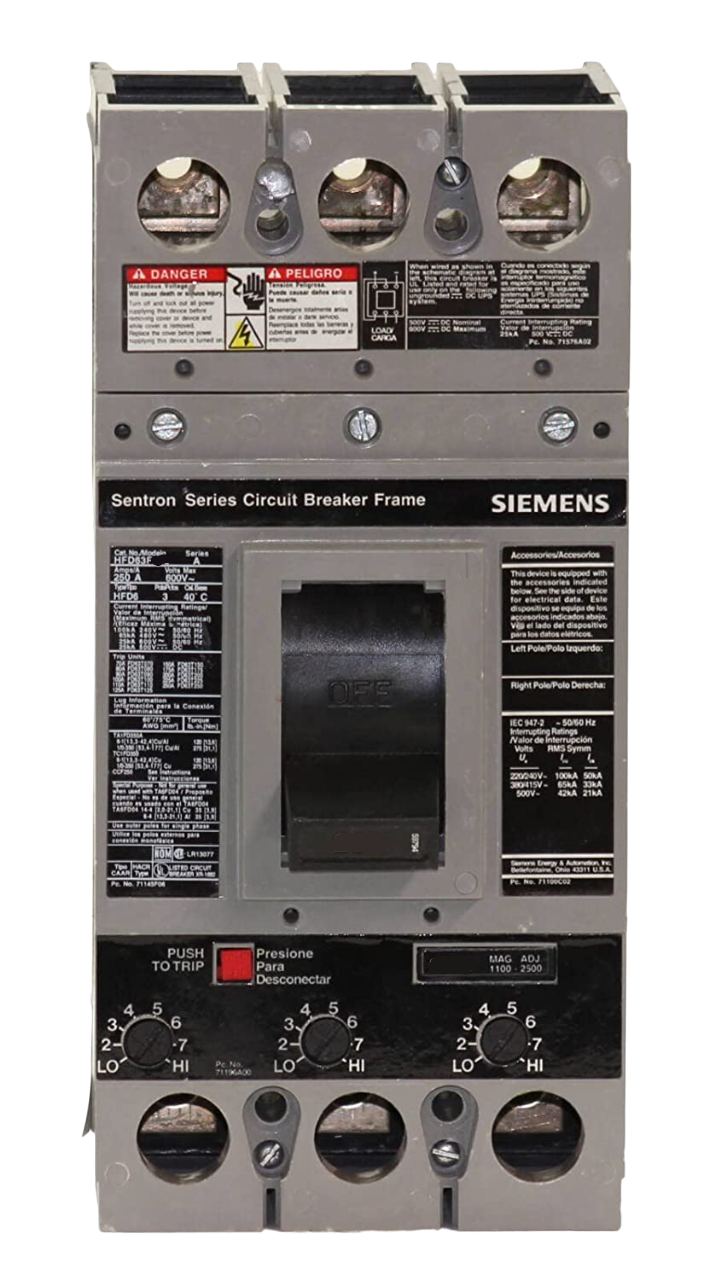

HFD63B125 - Siemens 125A 600V 3-Pole Thermal Magnetic Circuit Breaker FD Frame

HFD63B125

HFD63B125 - Siemens 3-pole molded case circuit breaker with thermal magnetic trip unit, 125A rating, and 600VAC maximum voltage.

This Sentron series HFD6 frame breaker features high interrupting capacity, interchangeable thermal magnetic trip unit, and field-installable accessories like shunt trips and auxiliary switches. It meets UL 489 and IEC 60947-2 standards, with line and load lugs for feed-thru connections.

Key Specifications

• Amperage: 125A
• Voltage: 600VAC
• Poles: 3
• Frame/Series: HFD6 / FD
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 100kA@240VAC
• Interrupt Rating: 65kA@480VAC
• Interrupt Rating: 25kA@600VAC
• Mounting: Bolt-On / Feed-Thru
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HFD63B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211810
• GTIN : 00783643211810
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.576
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
