HFD63B110 - Siemens 110 Amp 600V 3 Pole Bolt-On Thermal Magnetic Circuit Breaker

HFD63B110

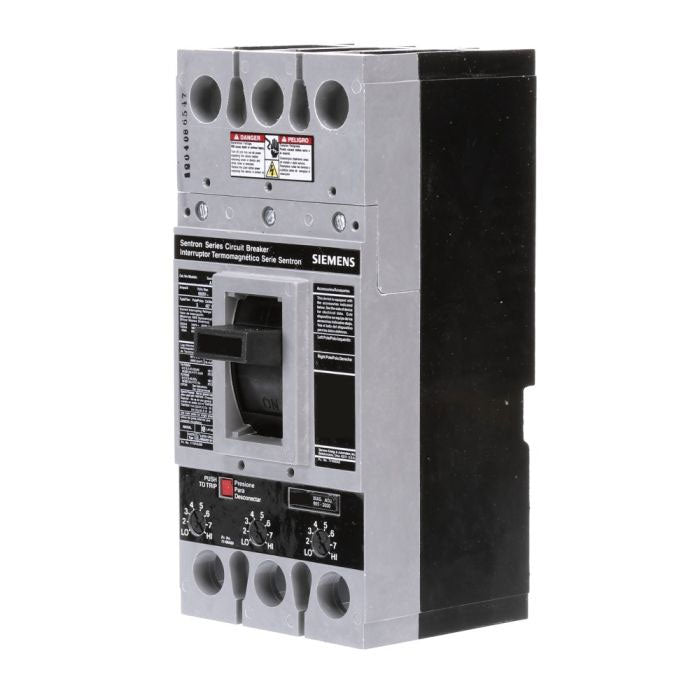

HFD63B110 is a Siemens 3 pole, 110 amp, 600 volt AC molded case circuit breaker with bolt-on mounting and thermal magnetic protection.This Siemens Sentron series breaker features long time and instantaneous trip functions, a 25kA interrupt rating at 600V, and 65kA at 480V. It supports line and load side lug connections and is UL and IEC certified for reliable industrial and commercial power distribution.

• Amperage: 110A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kAIC @ 600V, 65kAIC @ 480V
• Frame Type: HFD
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, IEC
• Wire Size Range: #6 AWG to 350 Kcmil Cu/Al
• Phase: 3
• Standards: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HFD63B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFD
• Voltage : 600 AC
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211803
• GTIN : 00783643211803
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.48
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
