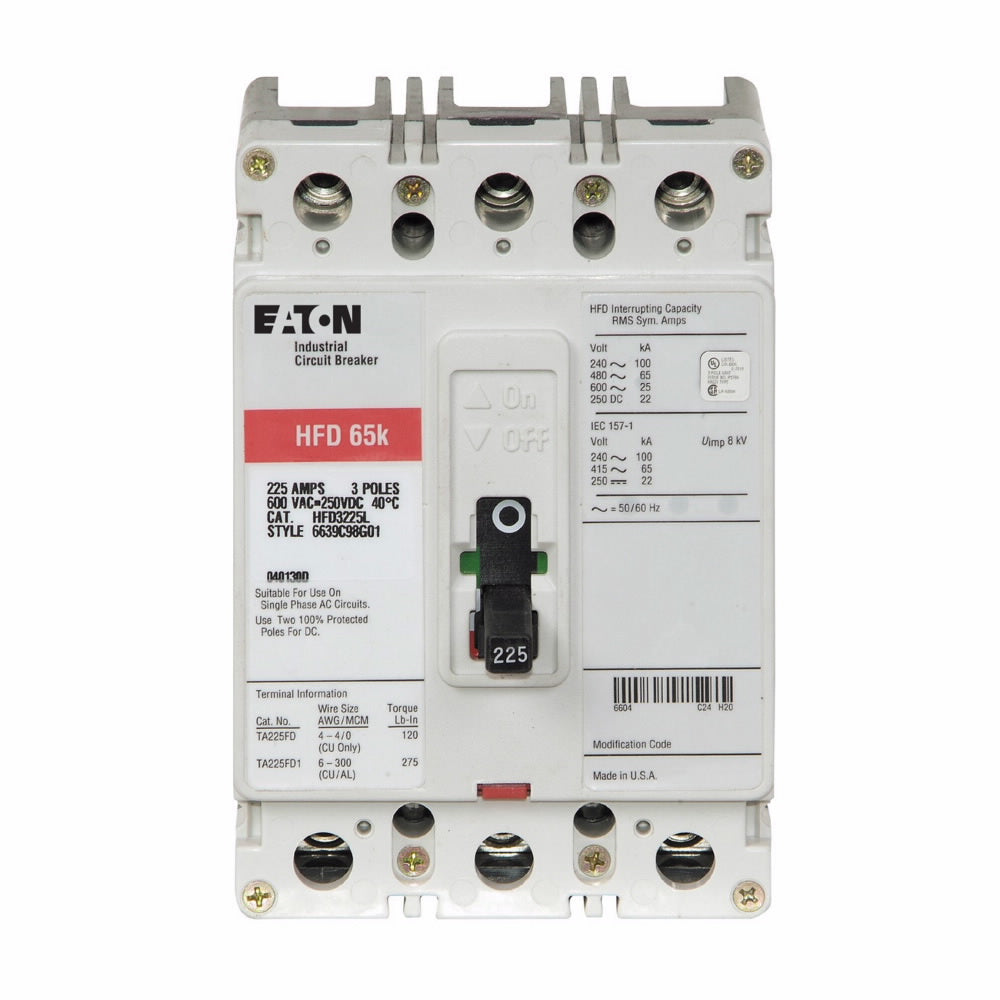

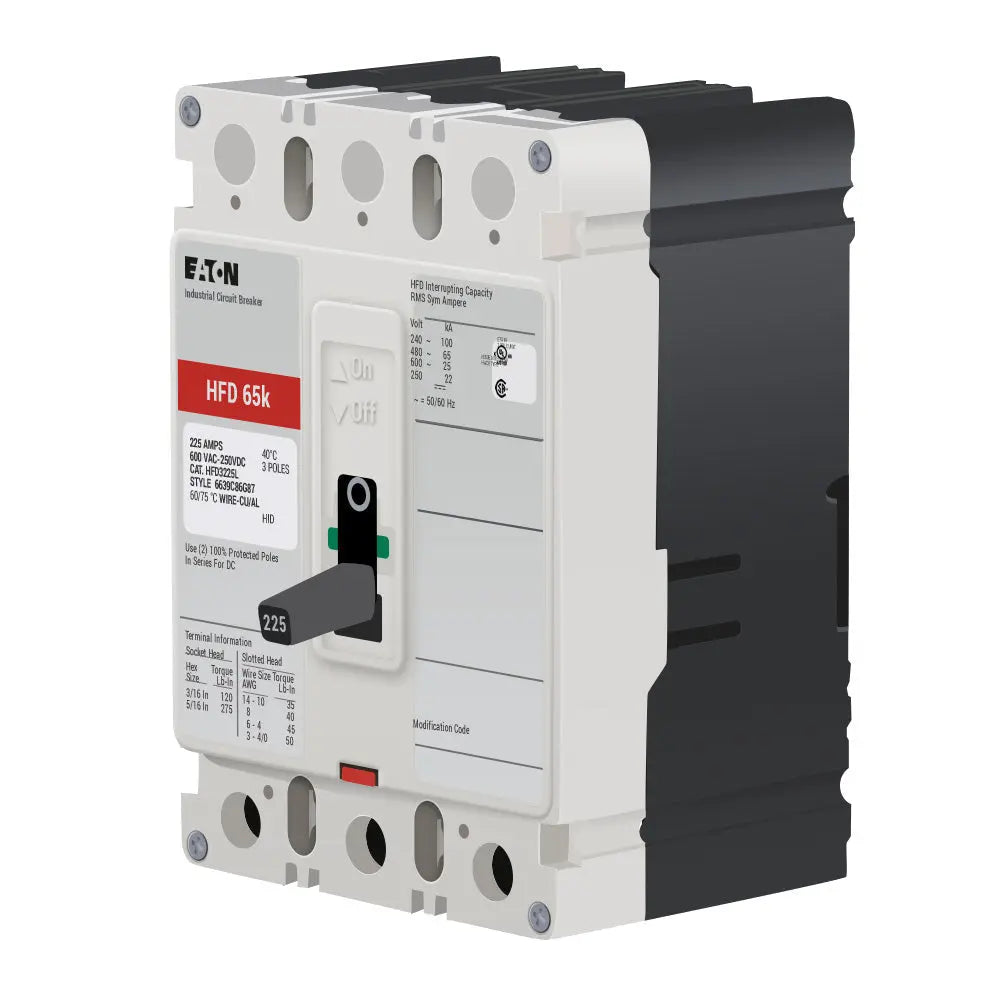

HFD3225L - Cutler Hammer 225A 600V 3 Pole Series C Molded Case Circuit Breaker

HFD3225L

HFD3225L is a Cutler Hammer Series C molded case circuit breaker rated for 225 amps and 600 volts with 3 poles.This thermal magnetic circuit breaker features a 3-pole design with a 225 ampere current rating, suitable for 600 VAC and 250 VDC applications. It belongs to the Series C F-frame family and includes a T186 trip unit. The breaker offers high interrupting capacity and is UL listed for safety and reliability.

• Amperage Rating: 225 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Series/Frame: Series C, F-frame
• Trip Unit: Thermal magnetic, T186
• Mounting Type: Line and load terminals
• Interrupt Rating: High interrupting capacity (65kA at 480V)
• Certifications: UL Listed
• Weight: Approximately 5 lb
• Dimensions: 4.13 in H x 4.13 in W x 3.38 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3225L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679015452
• GTIN : 00786679015452
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 5
• Certification : UL Listed
