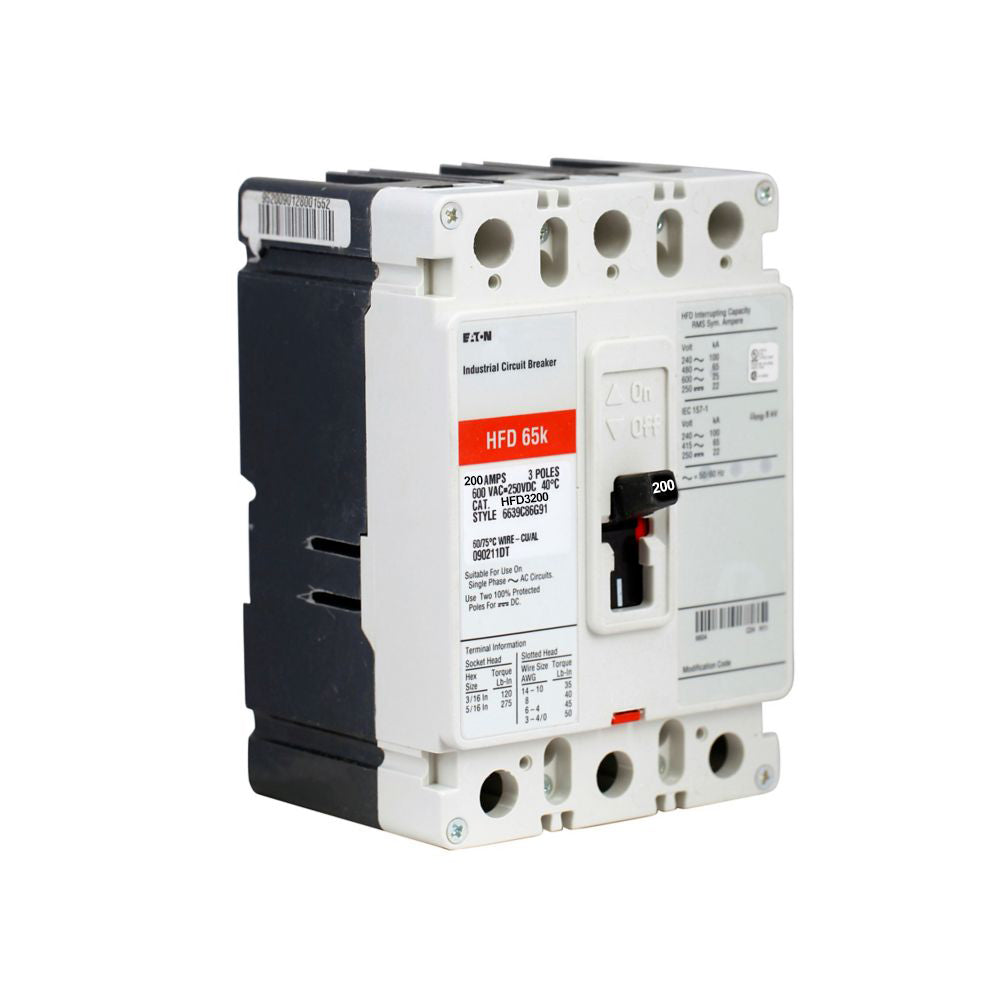

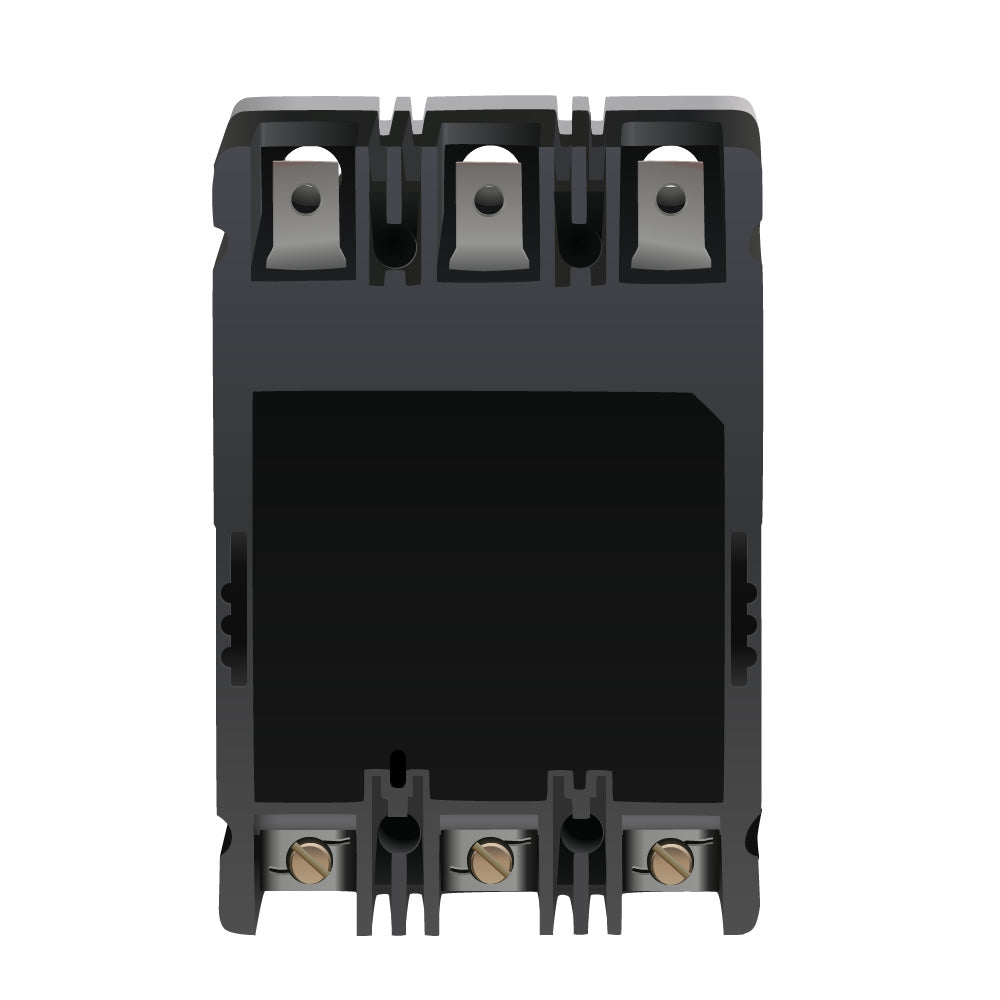

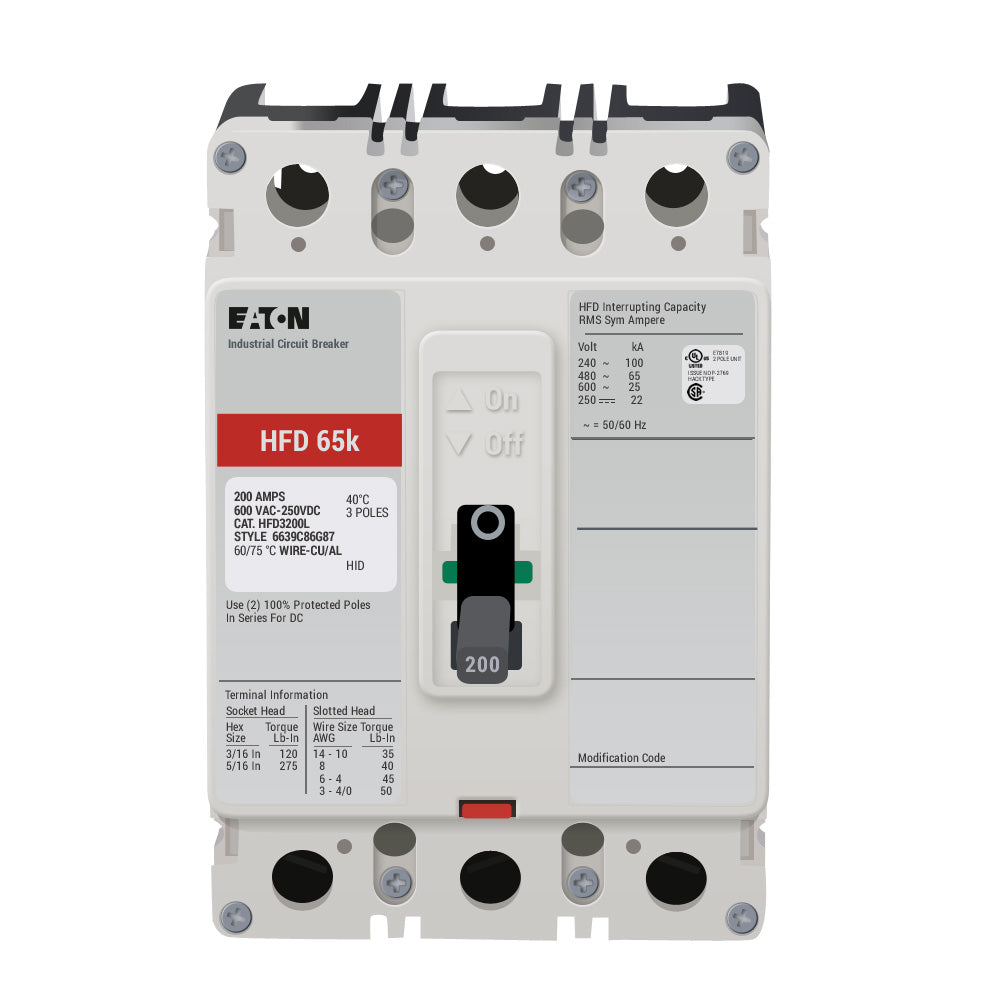

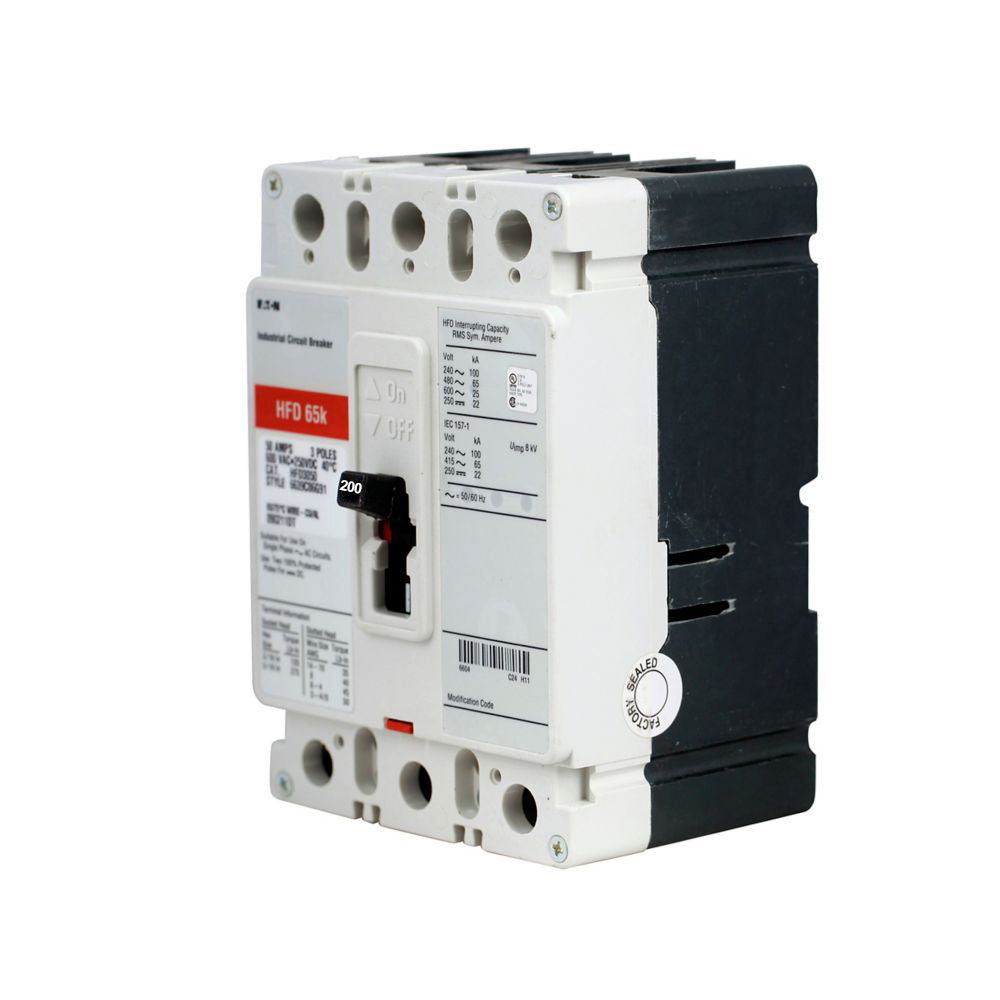

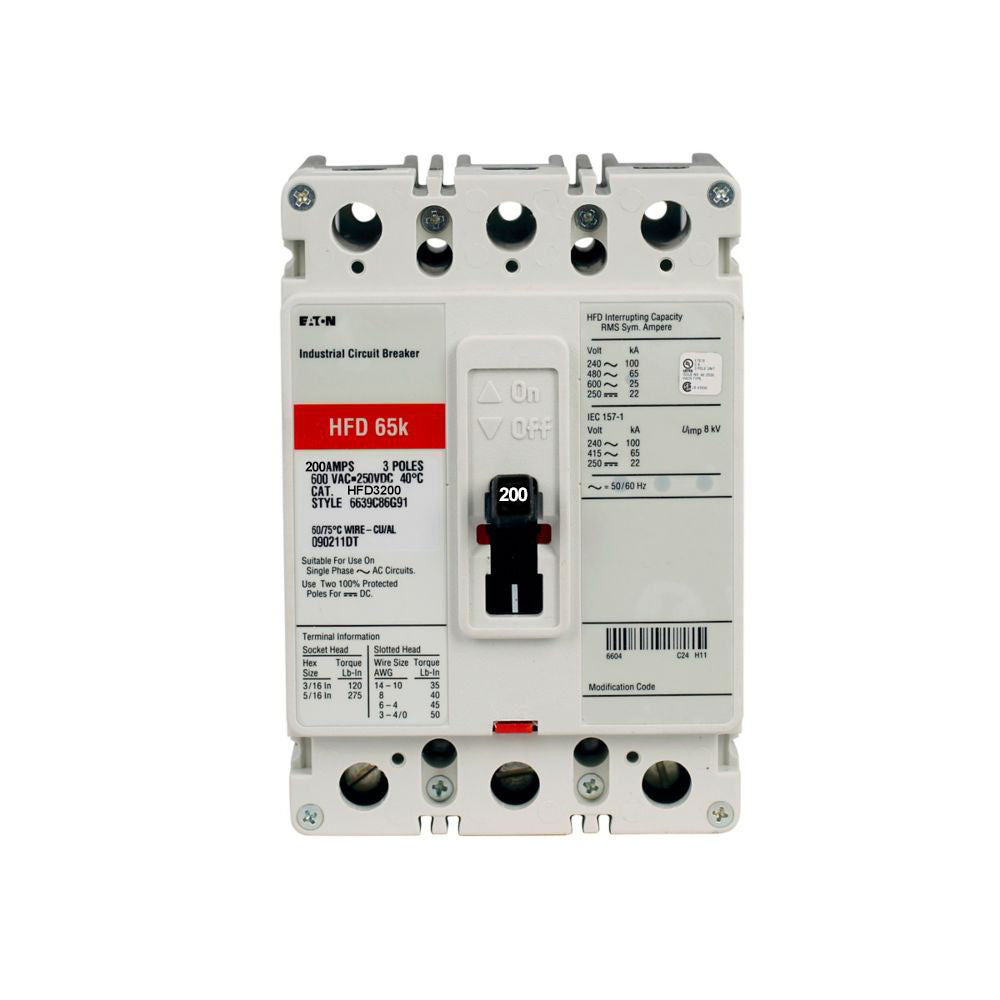

HFD3200 - Cutler Hammer 200A 600V 3-Pole Molded Case Circuit Breaker, Series C, Thermal Magnetic, Bolt-On Frame F

HFD3200

HFD3200 is a Cutler Hammer Series C molded case circuit breaker rated for 200 amps and 600 volts with 3 poles and a thermal magnetic trip unit.This HFD type breaker features a bolt-on mounting frame F design with a high interrupting capacity of 65kA at 480V. It includes long-time and instantaneous trip functions and is suitable for panelboard, switchboard, motor control center, and busway applications. The breaker is UL listed and CSA certified.

• Amperage: 200A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: F Frame, Bolt-On
• Interrupt Rating: 65kA @ 480V
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Series: Series C
• Certifications: UL Listed, CSA Certified
• Dimensions: 4.13" x 4.13" x 3.38"
• Weight: 4.4 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679015438
• GTIN : 00786679015438
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.4 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
