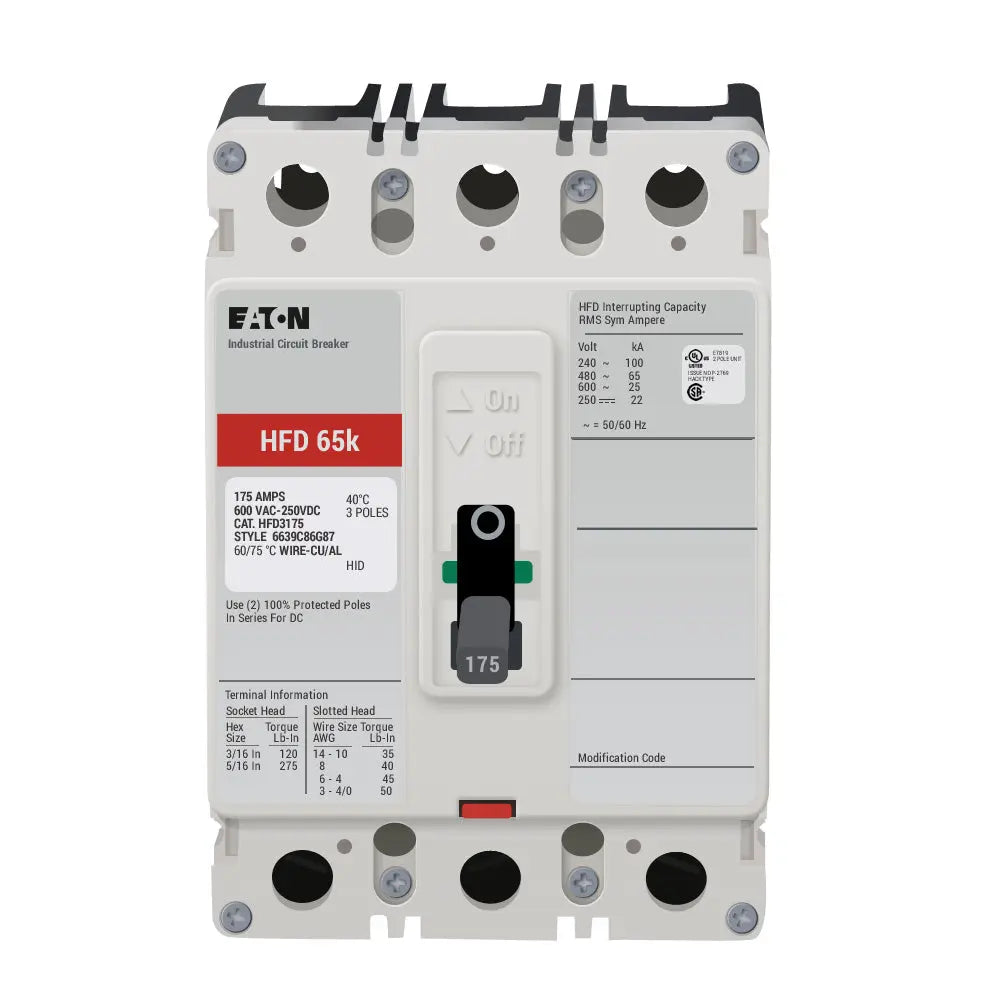

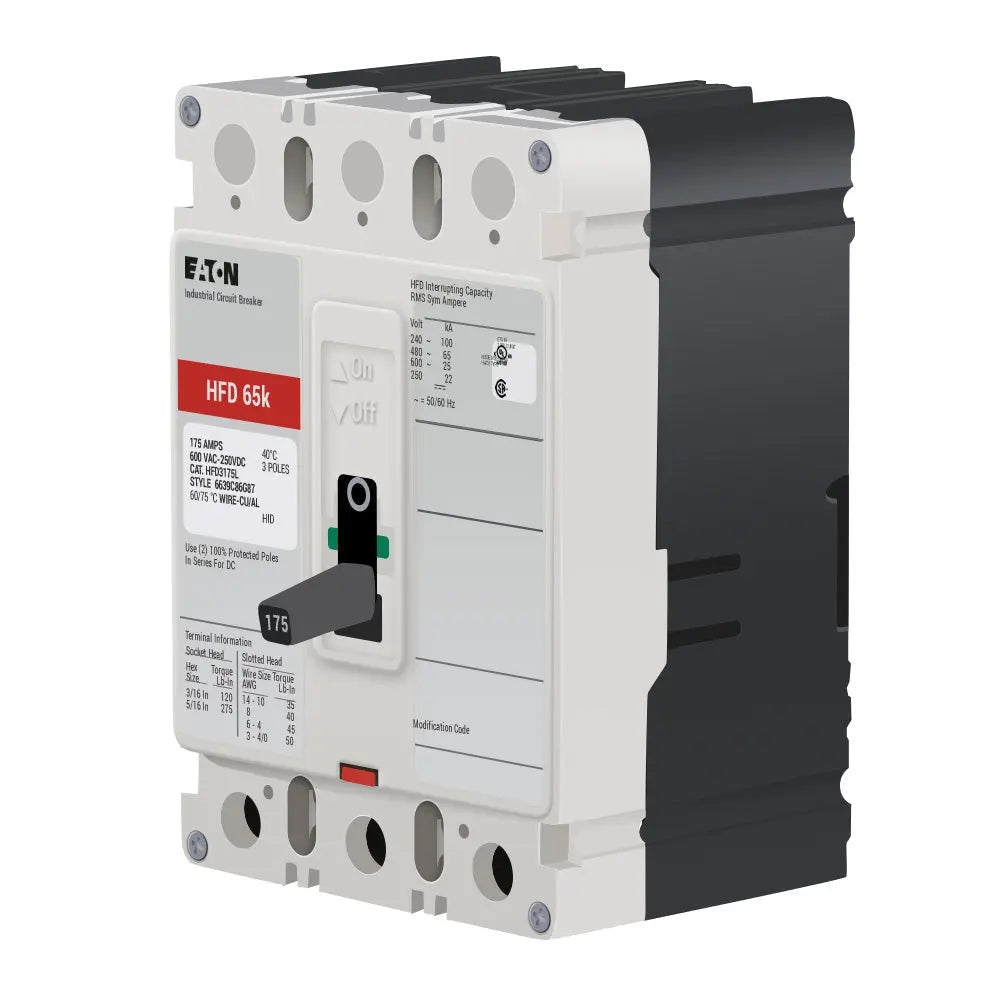

HFD3175L - Eaton Series C 175A 600VAC 3 Pole Thermal Magnetic Circuit Breaker

HFD3175L

HFD3175L is a 175 Amp, 600 VAC, 3 Pole thermal magnetic molded case circuit breaker from Eaton's Series C line designed for panel mount applications.HFD3175L features a fixed thermal magnetic trip unit with a high interrupt rating of 65kA at 480 VAC and 100kA at 240 VAC. It is UL and CSA certified, suitable for industrial use, and supports 250 VDC operation. The breaker has line and load terminals and a compact F-frame design.

• Amperage: 175 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Interrupt Rating: 65kA @ 480 VAC, 100kA @ 240 VAC
• Trip Unit: Thermal Magnetic Fixed Trip
• Mounting Type: Panel Mount
• Series/Frame: Series C, F-frame
• Certifications: UL Listed, CSA, CE
• Terminal Type: Standard pressure line and load terminals
• Dimensions: Approx. 4.125" W x 3.375" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3175L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679015476
• GTIN : 00786679015476
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 5
• Certification : UL Listed
