HFD3175 - Westinghouse 175A 600V 3 Pole Bolt-On Circuit Breaker, Thermal Magnetic, 65kA Interrupt Rating

HFD3175

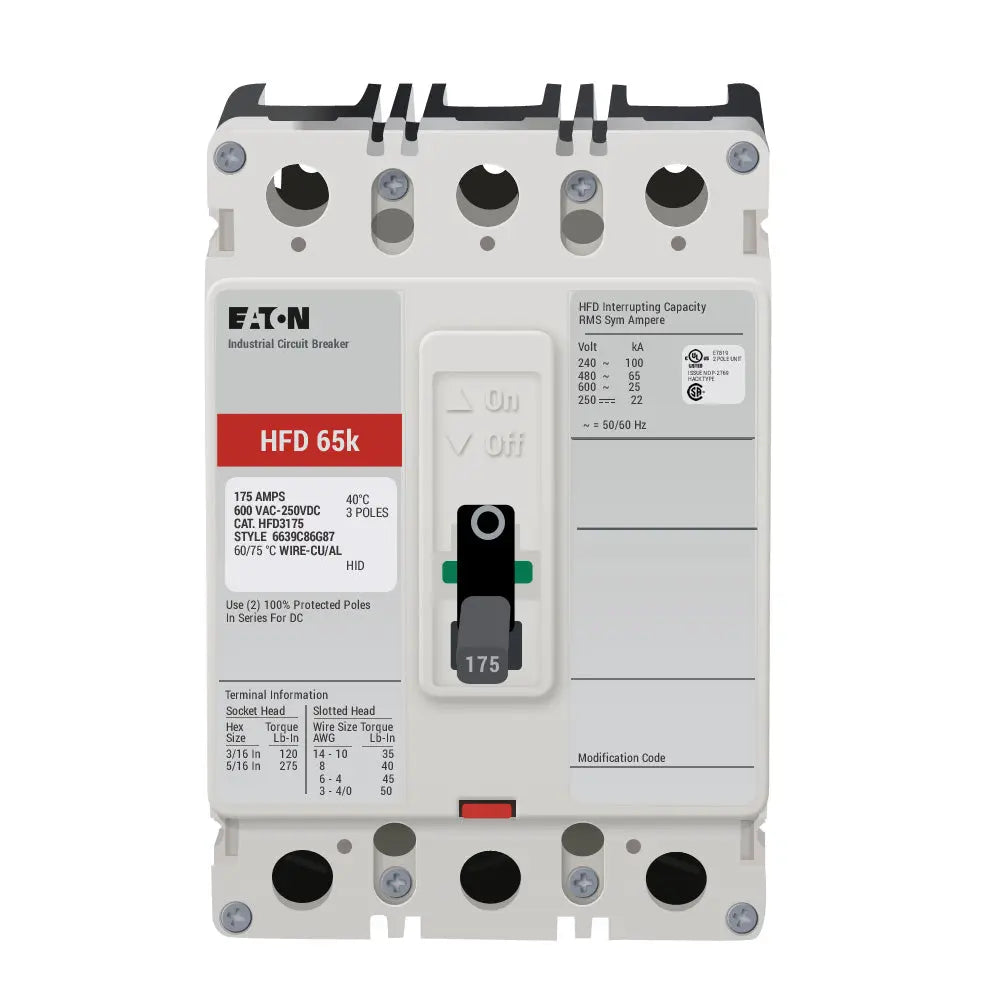

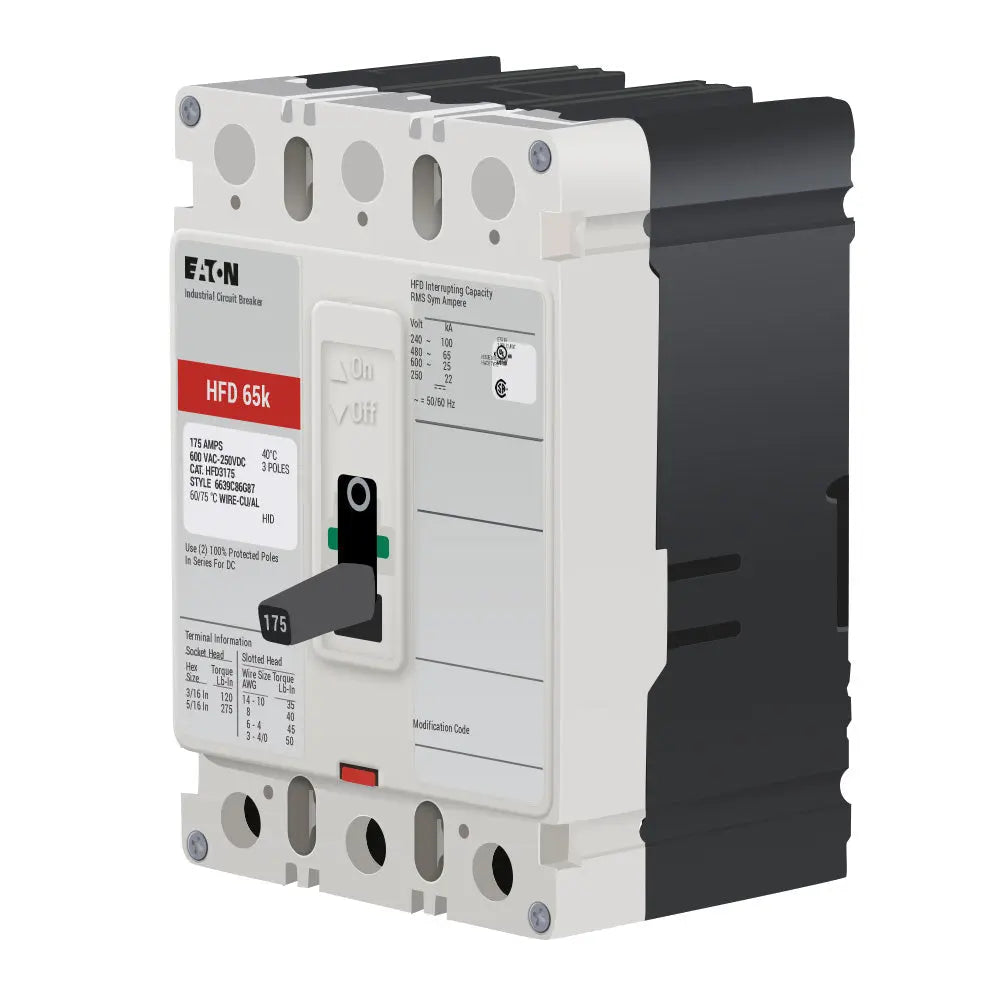

HFD3175 is a 3 pole, 175 amp, 600 volt bolt-on circuit breaker manufactured by Westinghouse, designed for reliable industrial power distribution protection.This molded case circuit breaker features a thermal magnetic trip unit with a 65kA interrupting rating at 480VAC and is rated for 600VAC operation. It has an F frame type, panel mount bolt-on design, and is UL and CSA certified. The breaker supports 3 poles and is suitable for use in industrial applications requiring high interrupt capacity and robust protection.

• Manufacturer: Westinghouse (Eaton Cutler-Hammer OEM)
• Part Number: HFD3175
• Amperage: 175A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480VAC
• Trip Unit: Thermal Magnetic
• Frame Type: F Frame (HFD Series)
• Certifications: UL, CSA
• Application: Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3175
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679015445
• GTIN : 00786679015445
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.4
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
