Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFD3150L

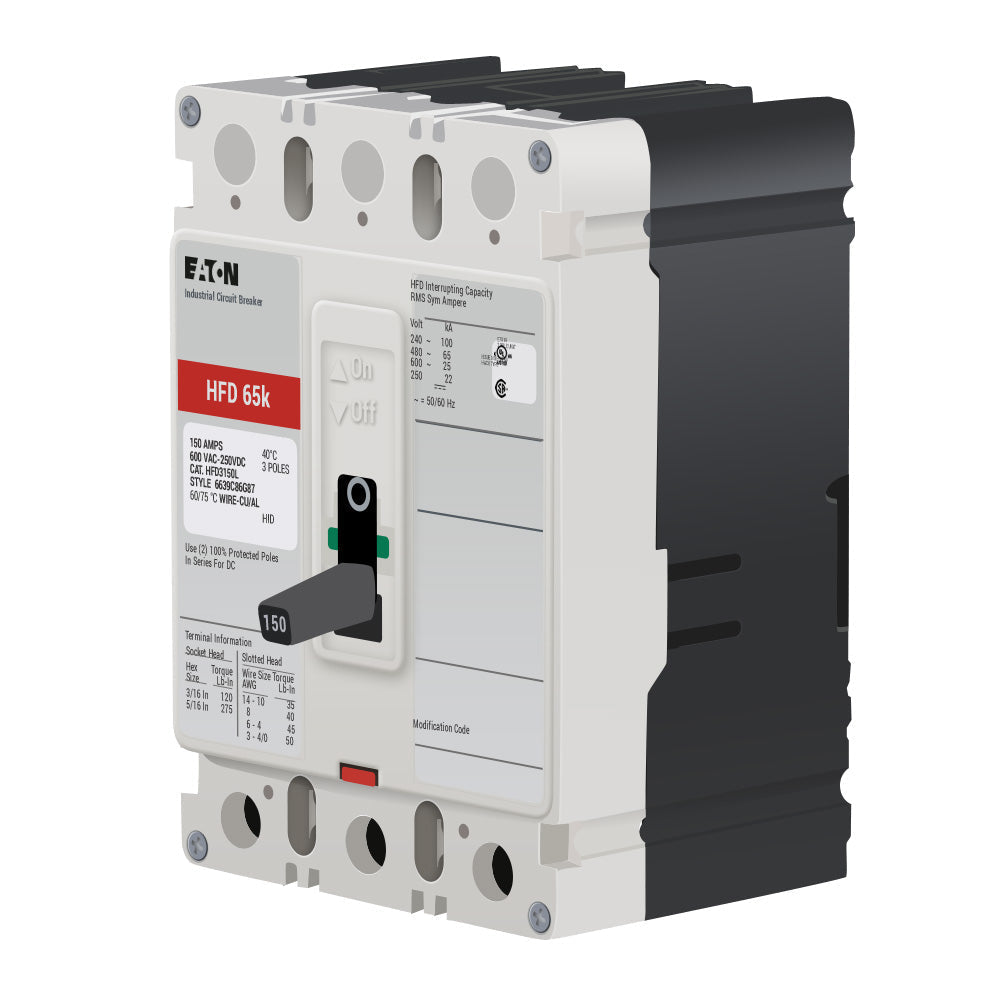

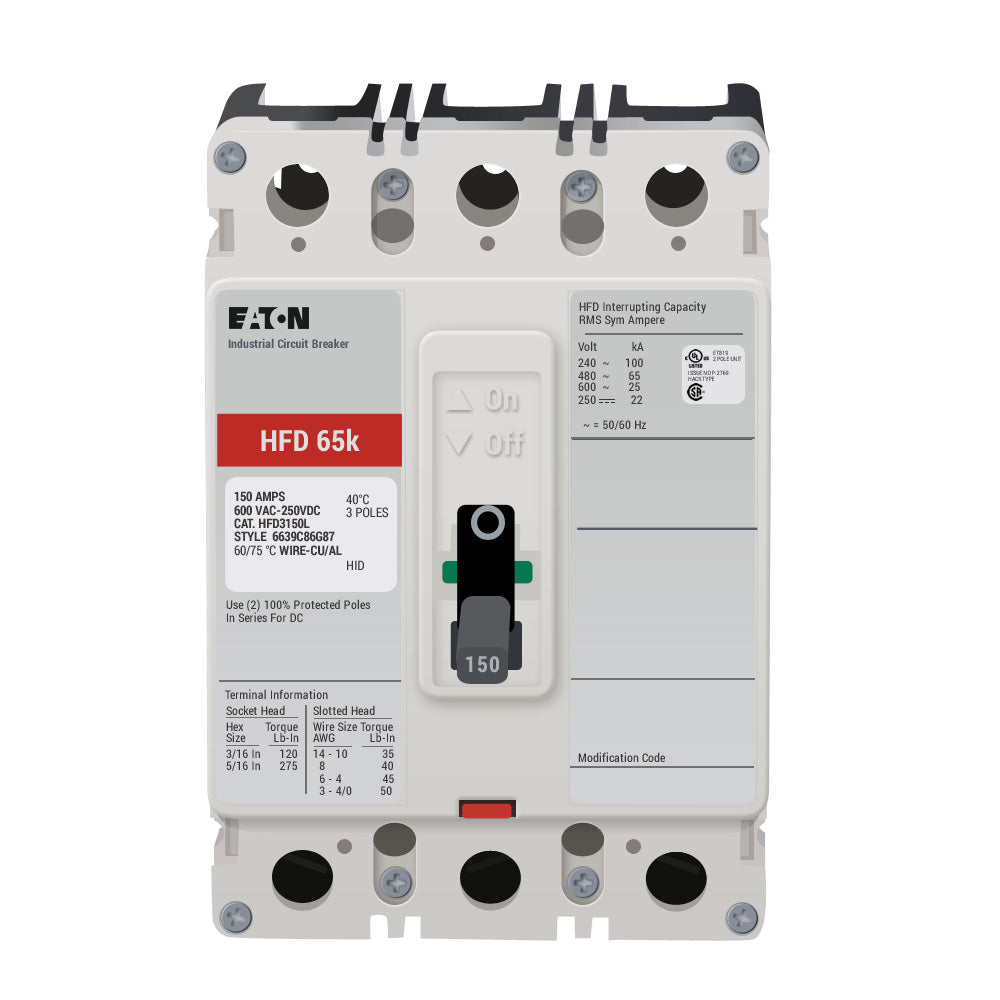

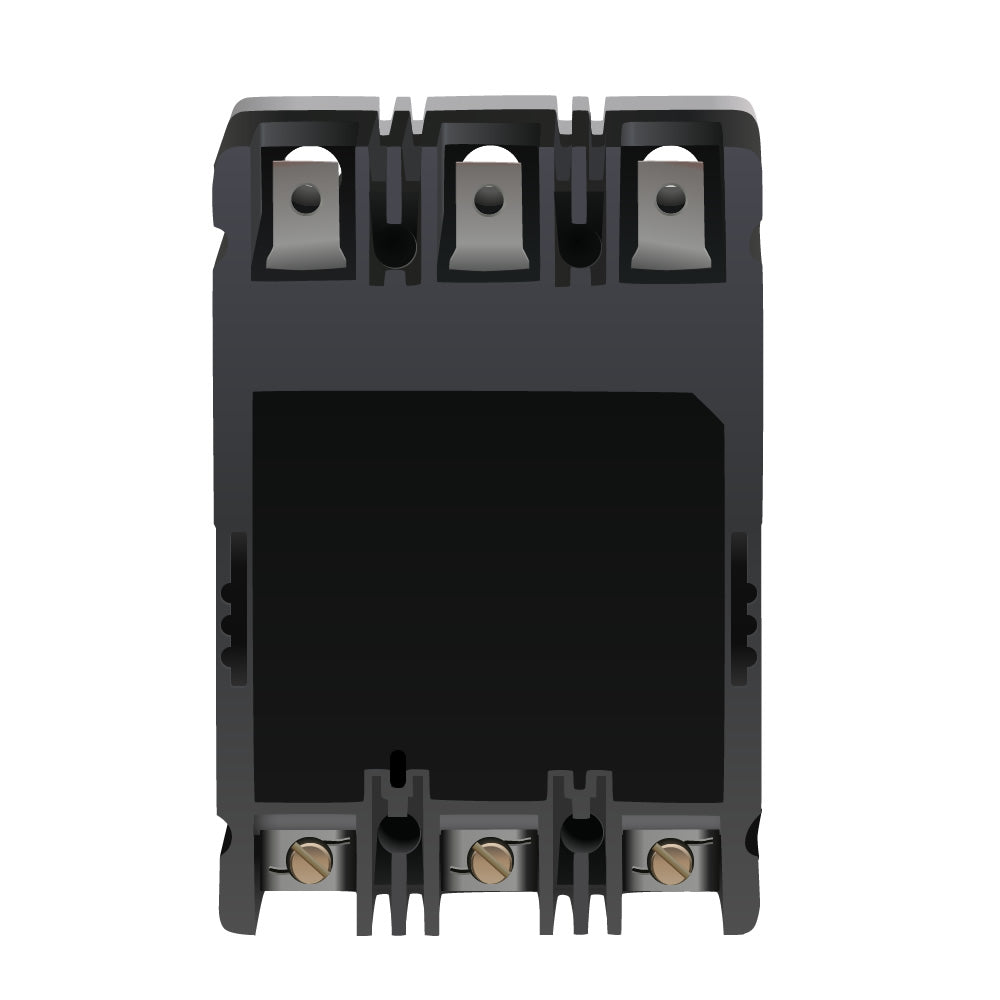

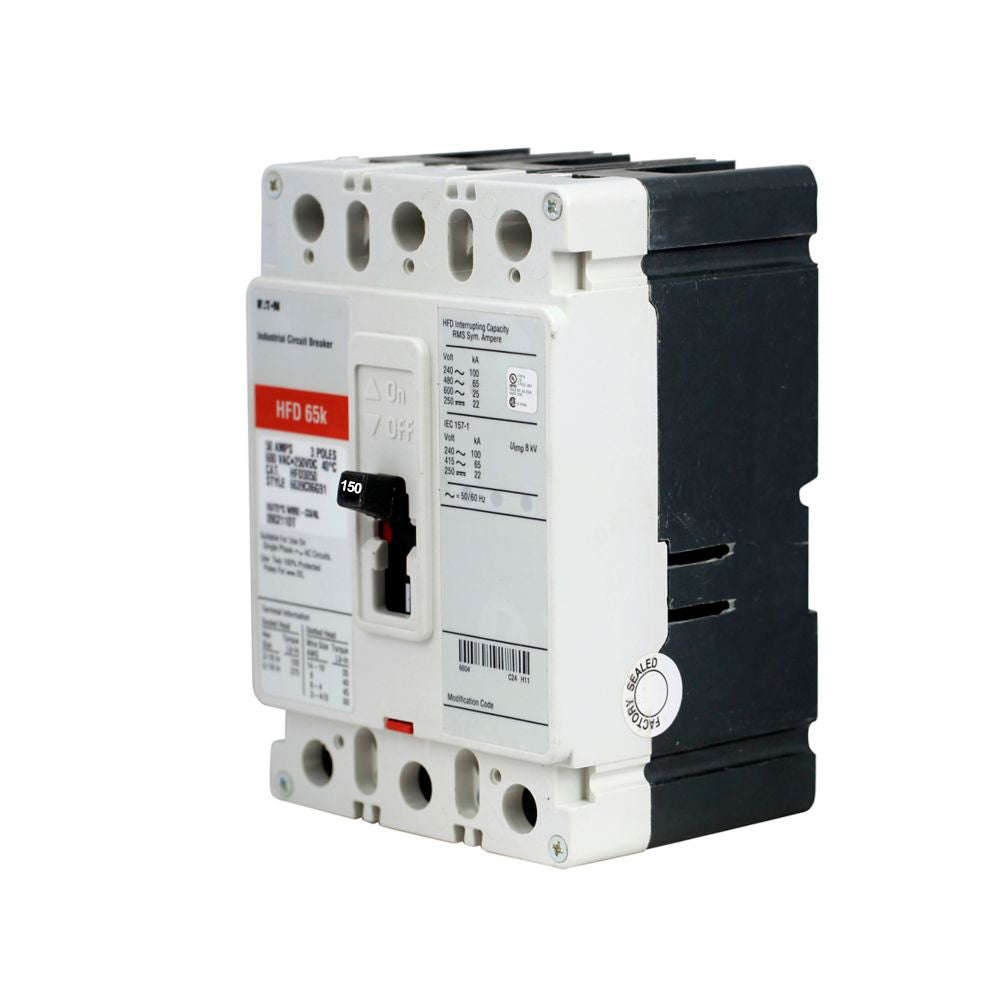

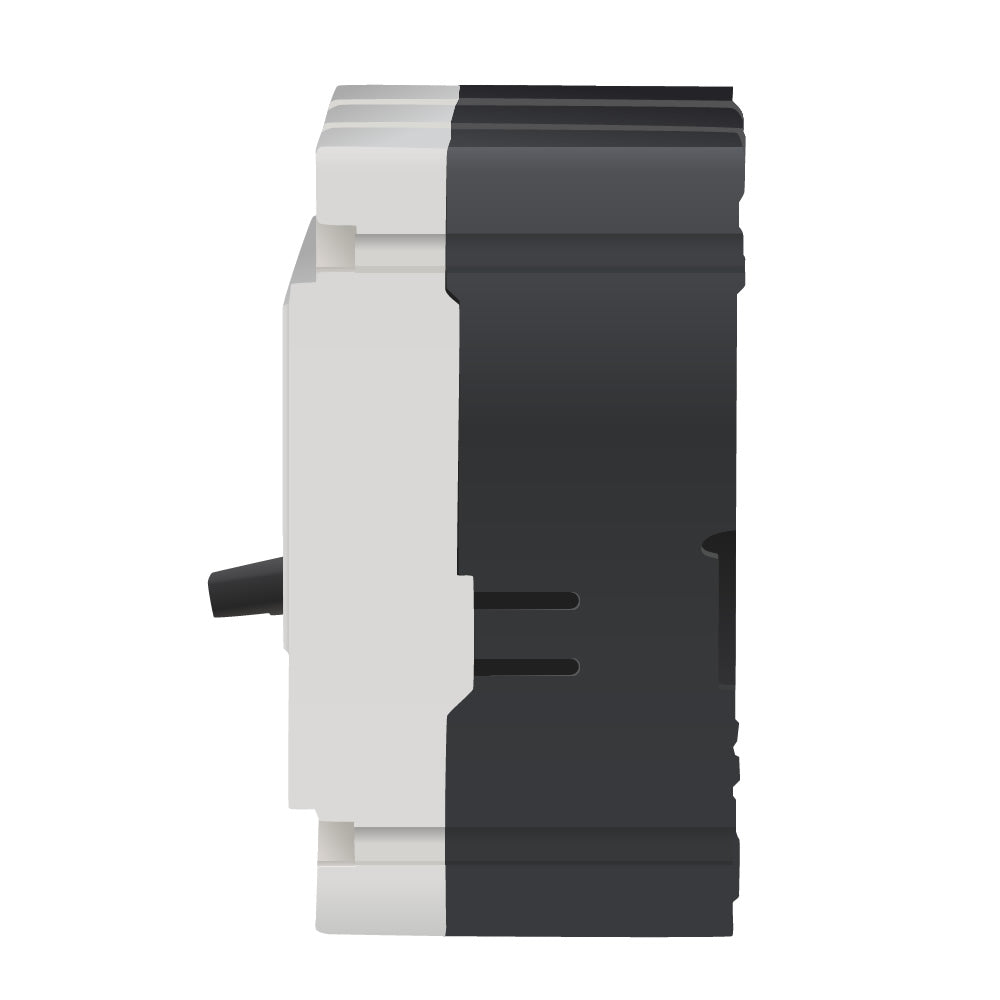

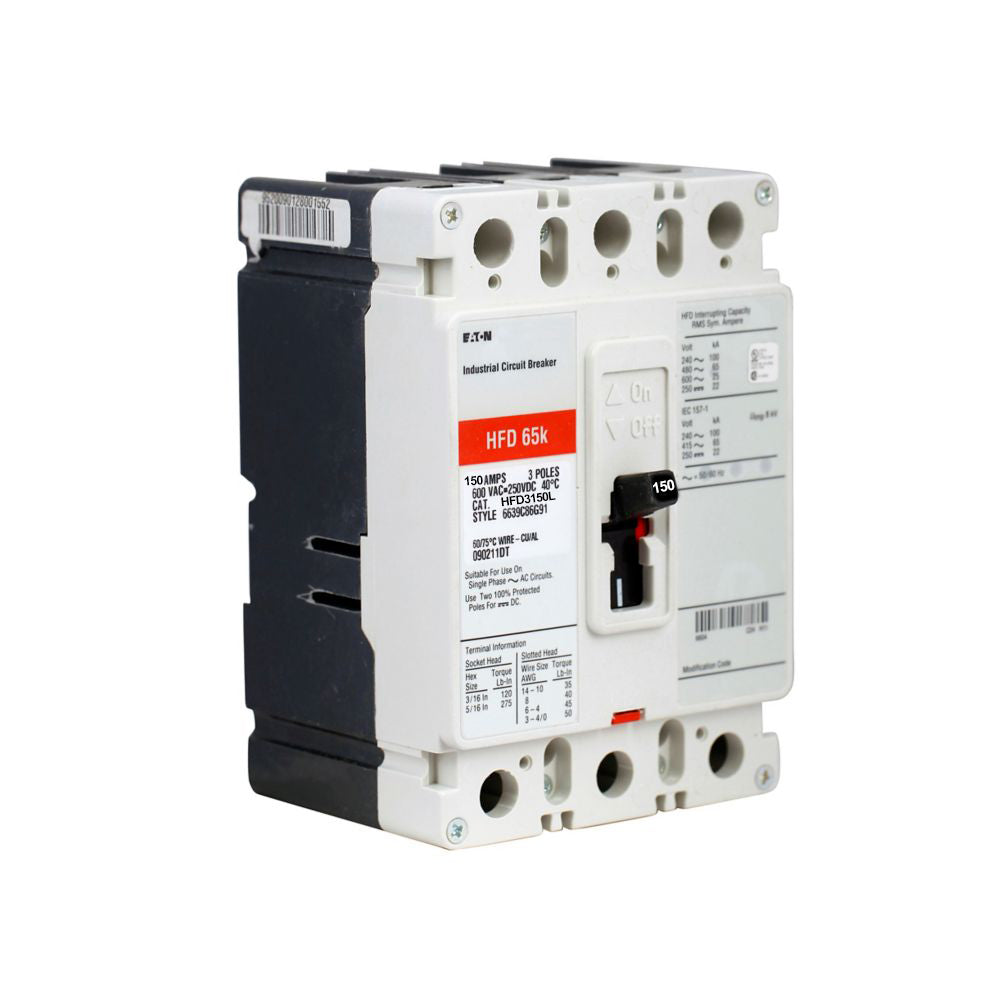

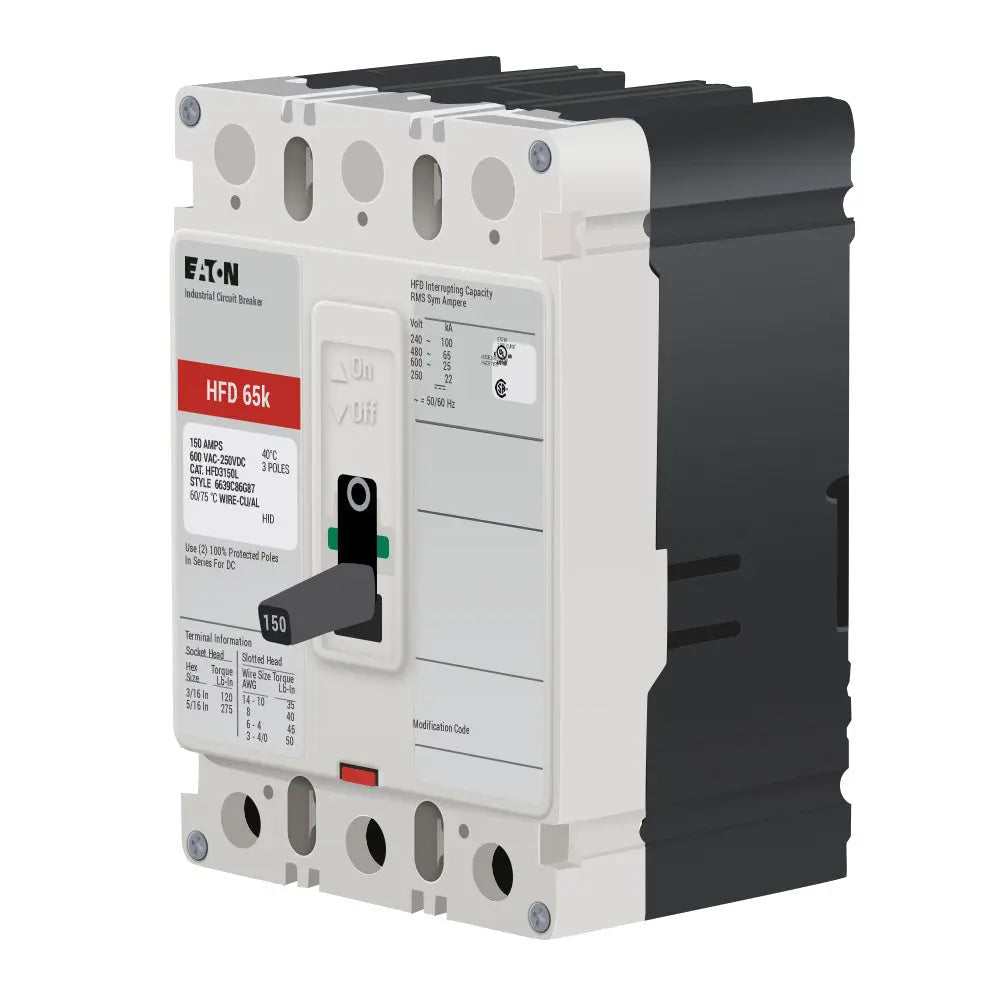

HFD3150L is a Series C molded case circuit breaker from Cutler Hammer (Eaton) featuring thermal magnetic protection.This 3-pole HFD frame breaker provides long-time and instantaneous trip functions with high interrupting capacity, line and load side terminals, rated for 150A at 40C and 600VAC/250VDC.
- Poles: 3
- Amperage: 150A
- Voltage: 600VAC, 250VDC
- Frame: HFD, F Frame
- Series: C
- Interrupt Rating: 65kA@480VAC
- Trip: Thermal Magnetic, LI
- Connection: Feed-Thru, Bolt-on
- Terminals: Line & Load Lugs
Specifications
- Part Number: HFD3150L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175217
- GTIN : 00786679175217
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.35
- Certification : UL Listed
