HFD3150 - Cutler Hammer 150A 600V 3-Pole F-Frame Molded Case Circuit Breaker, Series C, Thermal Magnetic Trip, 65kAIC @ 480V, Panel Mount, UL/CSA/CE

HFD3150

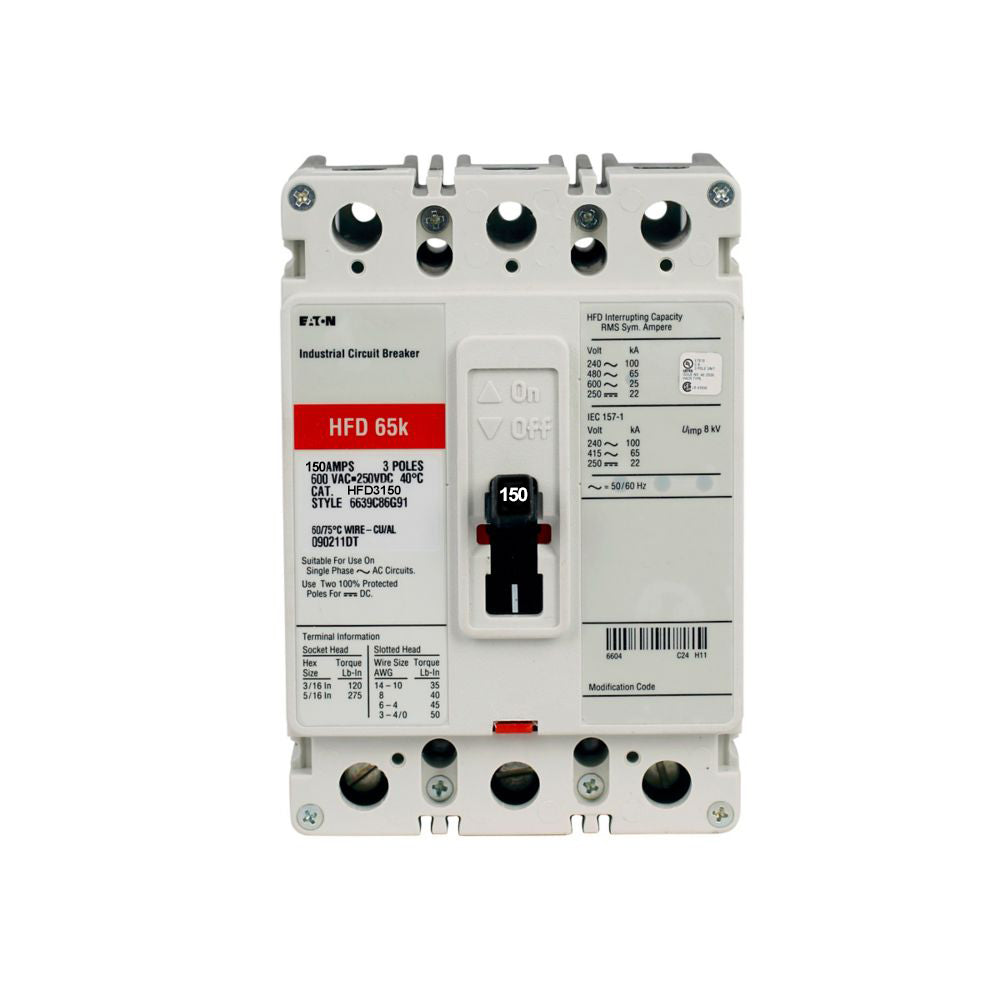

HFD3150 - Eaton Series C molded case circuit breaker, type HFD, 3-pole, 150A, 600VAC, bolt-on mounting with thermal-magnetic trip.

Eaton HFD3150 is an F-frame, Series C molded case circuit breaker featuring 3 poles, 150A rating, 600VAC/250VDC voltage, fixed thermal/fixed magnetic trip (LI - long-time and instantaneous), bolt-on connection, load side terminals, and high interrupting capacity including 65kA at 480VAC.

Key Specifications

• Part Number: HFD3150
• Manufacturer: Eaton
• Series/Frame: Series C, F-frame
• Poles: 3
• Amperage: 150A
• Voltage: 600VAC, 250VDC
• Mounting Type: Bolt-on
• Trip Unit: Thermal-magnetic, fixed thermal/fixed magnetic (LI)
• Interrupt Rating: 65kA at 480VAC
• Terminals: Load side lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3150
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679175910
• GTIN : 00786679175910
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.25
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
