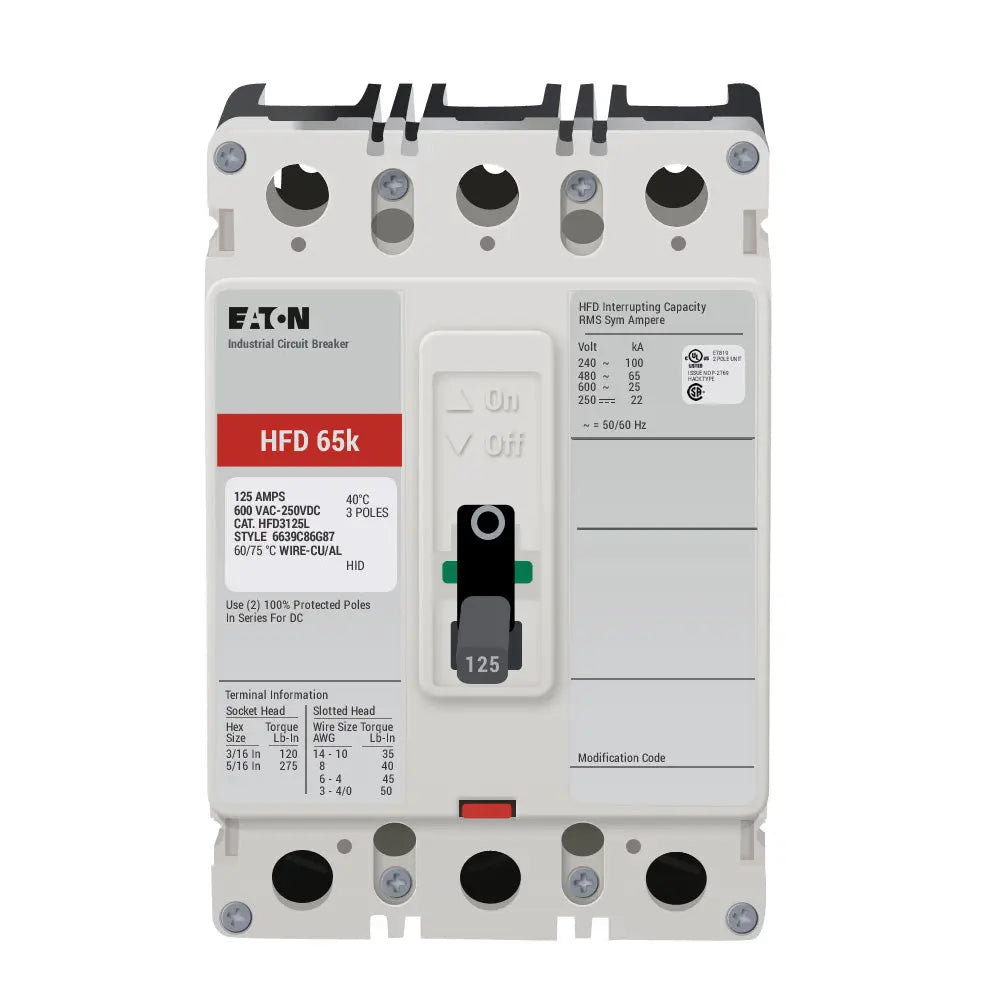

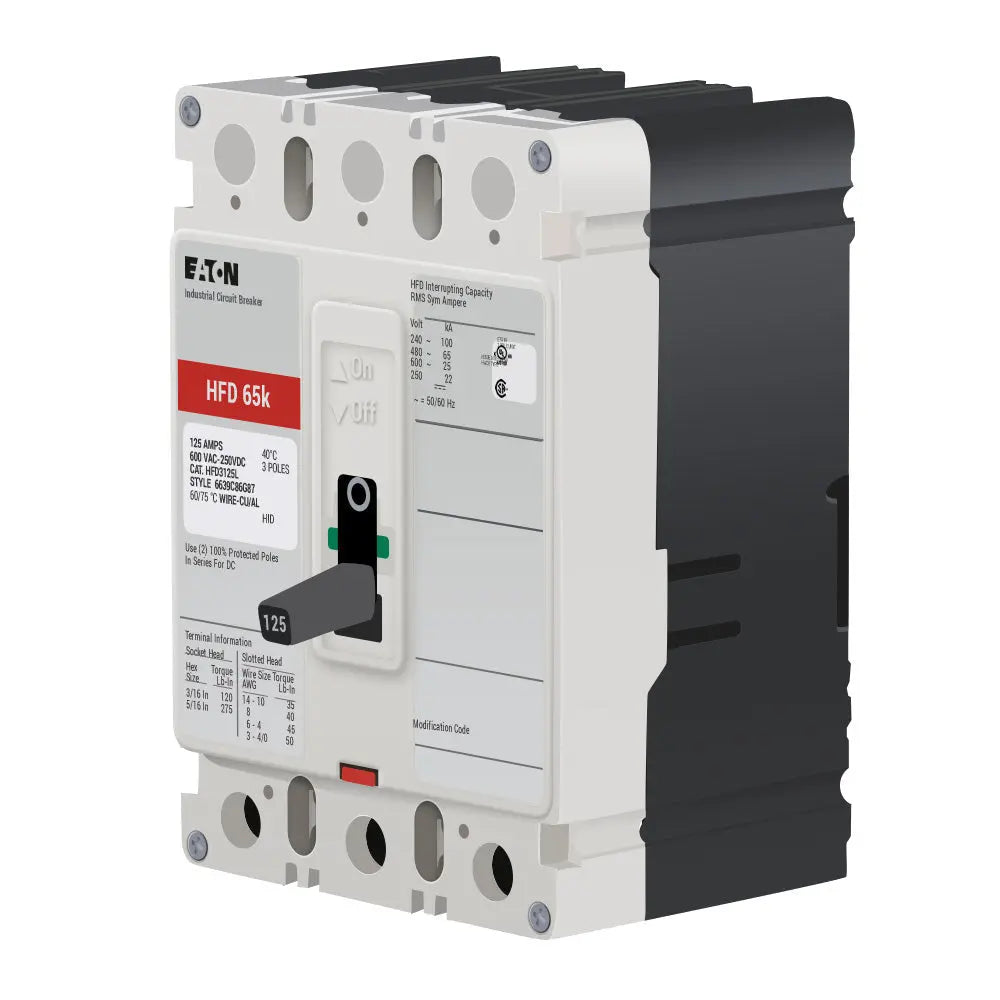

HFD3125L - Cutler Hammer 125A 600VAC 3-Pole Molded Case Circuit Breaker F-Frame Series C

HFD3125L

HFD3125L is a 125 Amp, 3-pole molded case circuit breaker from Cutler Hammer designed for reliable industrial and commercial power protection.This Cutler Hammer HFD3125L circuit breaker features a 600 VAC and 250 VDC voltage rating, fixed thermal and magnetic trip unit, and a high interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC. It is a Series C, F-frame breaker with panel mount bolt-on connection, UL and CSA certified for safety and compliance.

• Amperage: 125 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Interrupt Rating: 100 kAIC @ 240 VAC, 65 kAIC @ 480 VAC
• Frame Type: F-Frame
• Series: C Series
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Mounting Type: Panel Mount Bolt-On
• Frequency: 50/60 Hz
• Certifications: UL Listed, CSA
• Dimensions: 4.13" W x 6.0" H x 3.38" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3125L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175200
• GTIN : 00786679175200
• Country of Origin : Dominican Republic
• Dimensions : 7.4 in x 4.9 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.3
• Certification : UL Listed
