Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFD3110L

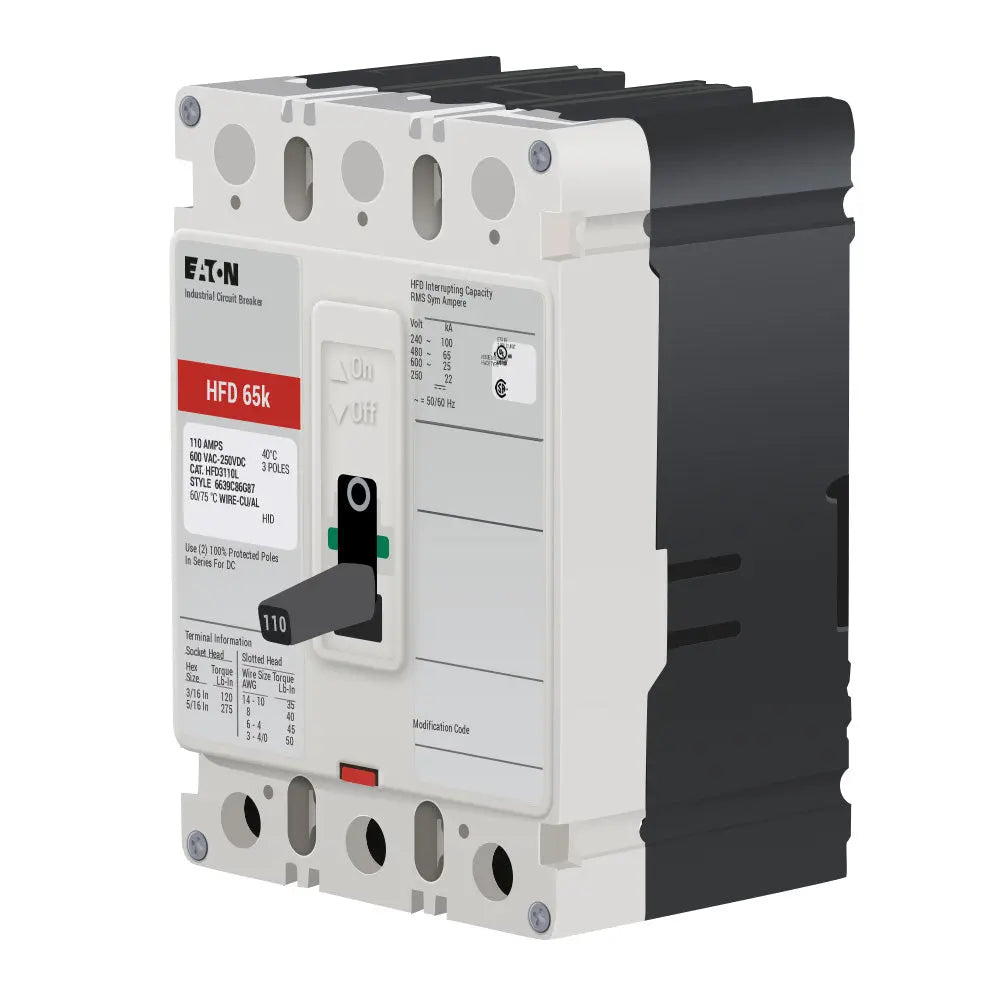

HFD3110L is a 3-pole molded case circuit breaker from Cutler Hammer (Eaton) designed for industrial power distribution applications requiring reliable thermal magnetic protection.
This Series C, F-frame breaker delivers high interrupting capacity with a current rating of 110 amperes at 600 VAC. The thermal magnetic trip unit provides dependable overcurrent and short-circuit protection. The breaker is panel-mounted and suitable for both AC and DC systems, with approvals from Underwriters Laboratories (UL) and CSA.
- Amperage: 110 A
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Series: C (F-frame)
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 100 kAIC @ 240 VAC, 65 kAIC @ 480 VAC, 25 kAIC @ 600 VAC
- Mounting: Panel mount, rear chassis
- Certifications: UL, CSA, CE
- Frequency: 50/60 Hz
- Weight: 4.3 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HFD3110L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175194
- GTIN : 00786679175194
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.3
- Certification : UL Listed
