HFD3090 - Cutler Hammer 90A 600V 3P Molded Case Circuit Breaker, Series C F-Frame, Thermal Magnetic Trip, 65kA Interrupt, Bolt-On Mounting, UL/CSA/CE

HFD3090

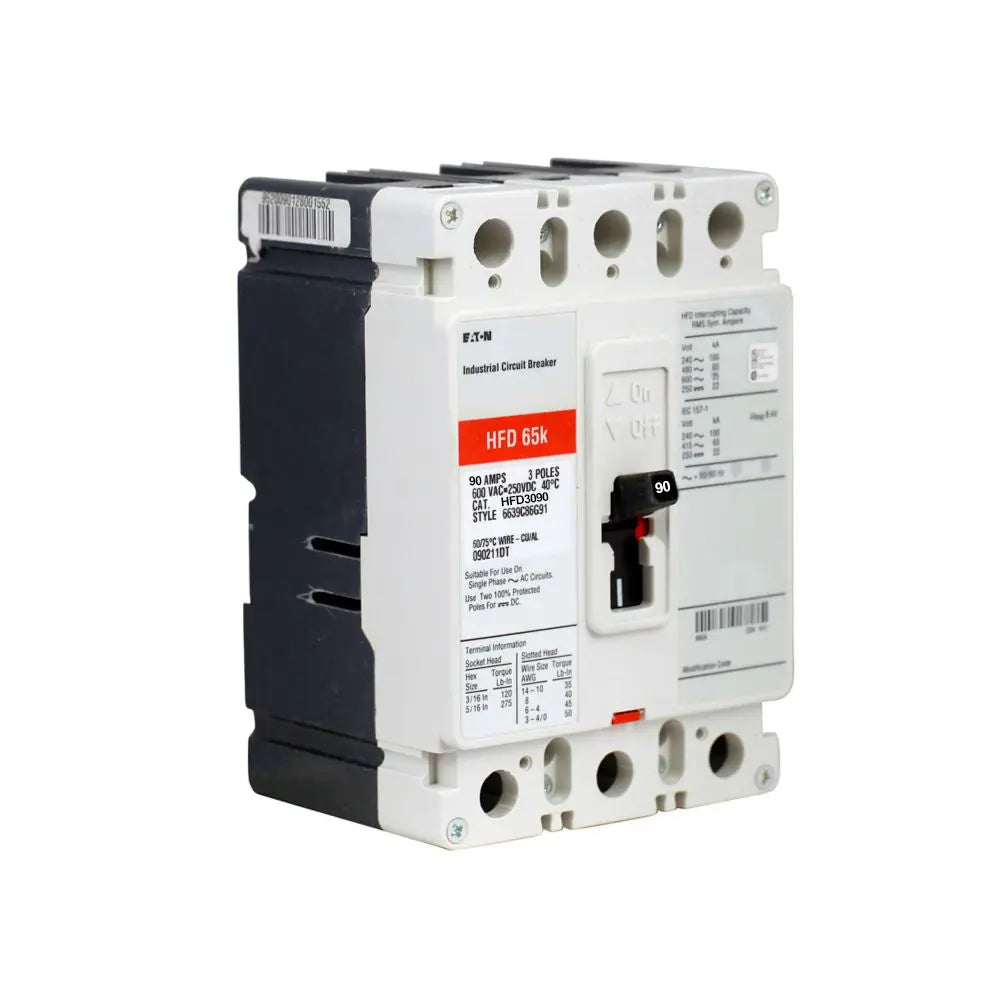

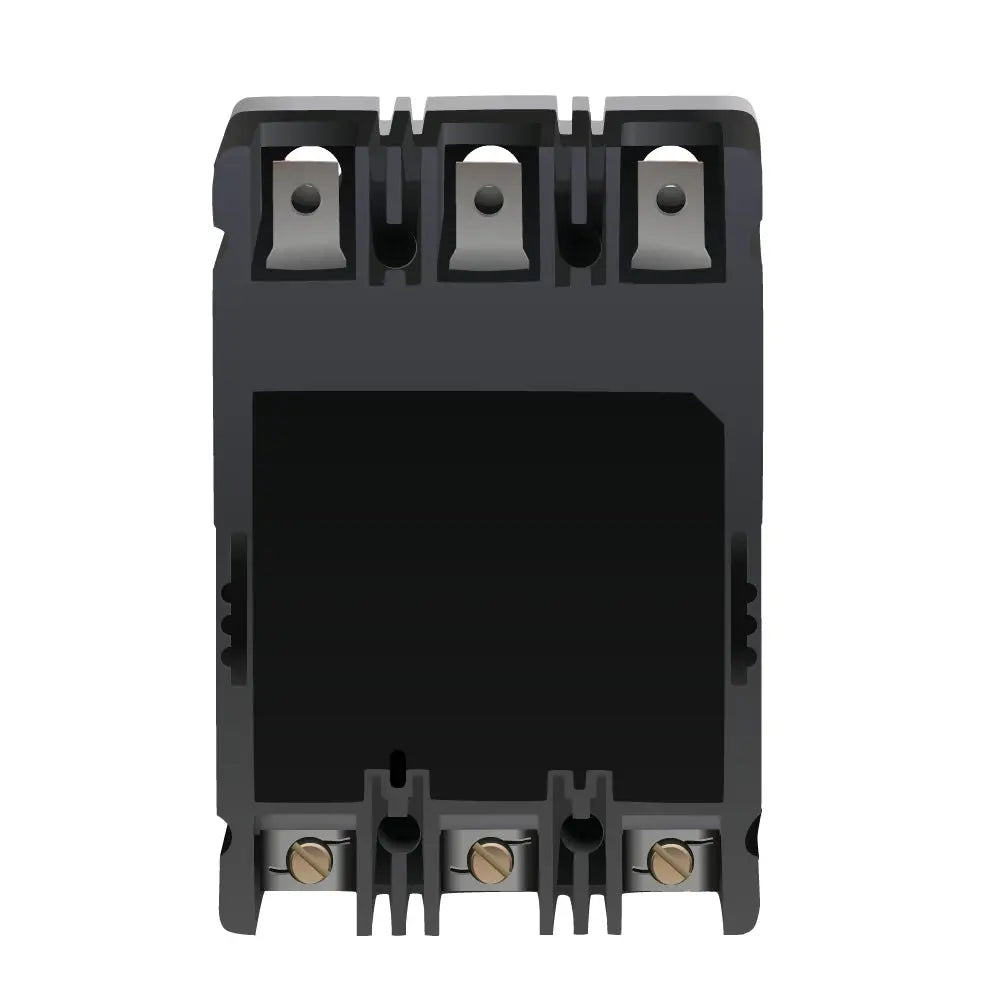

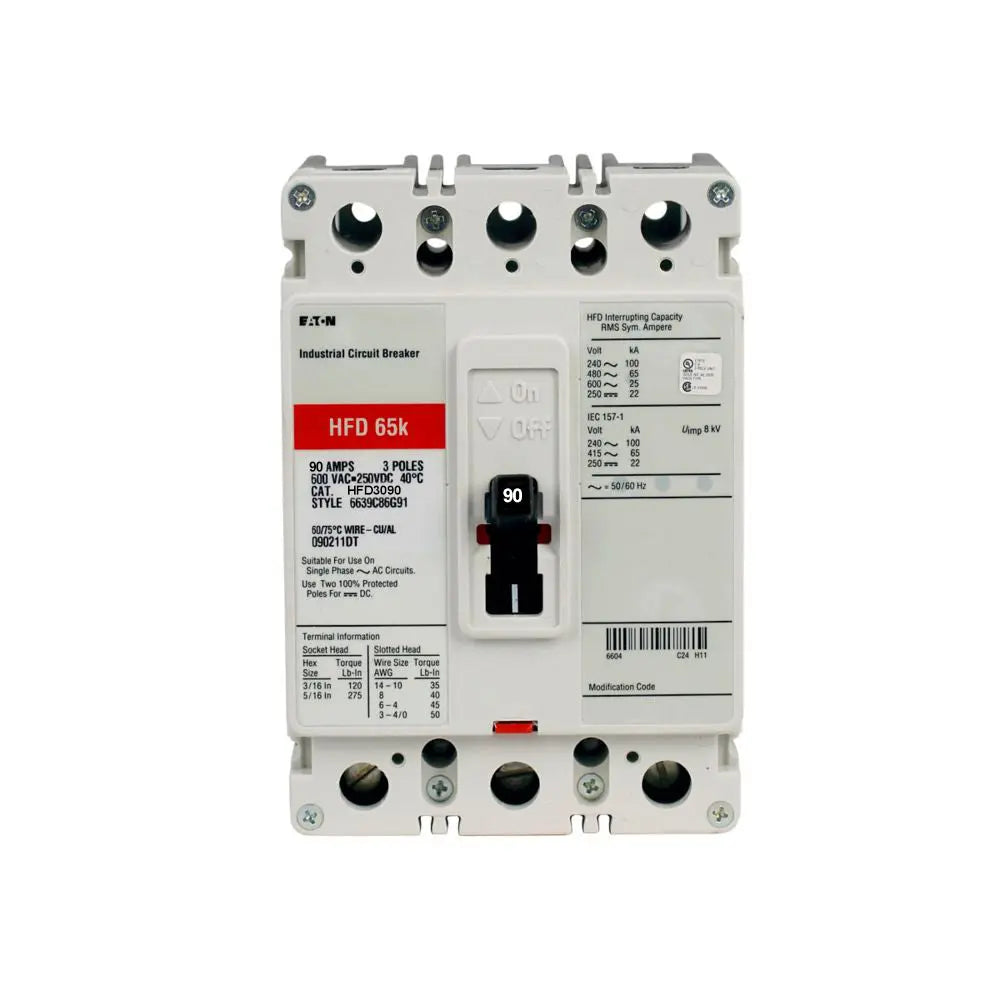

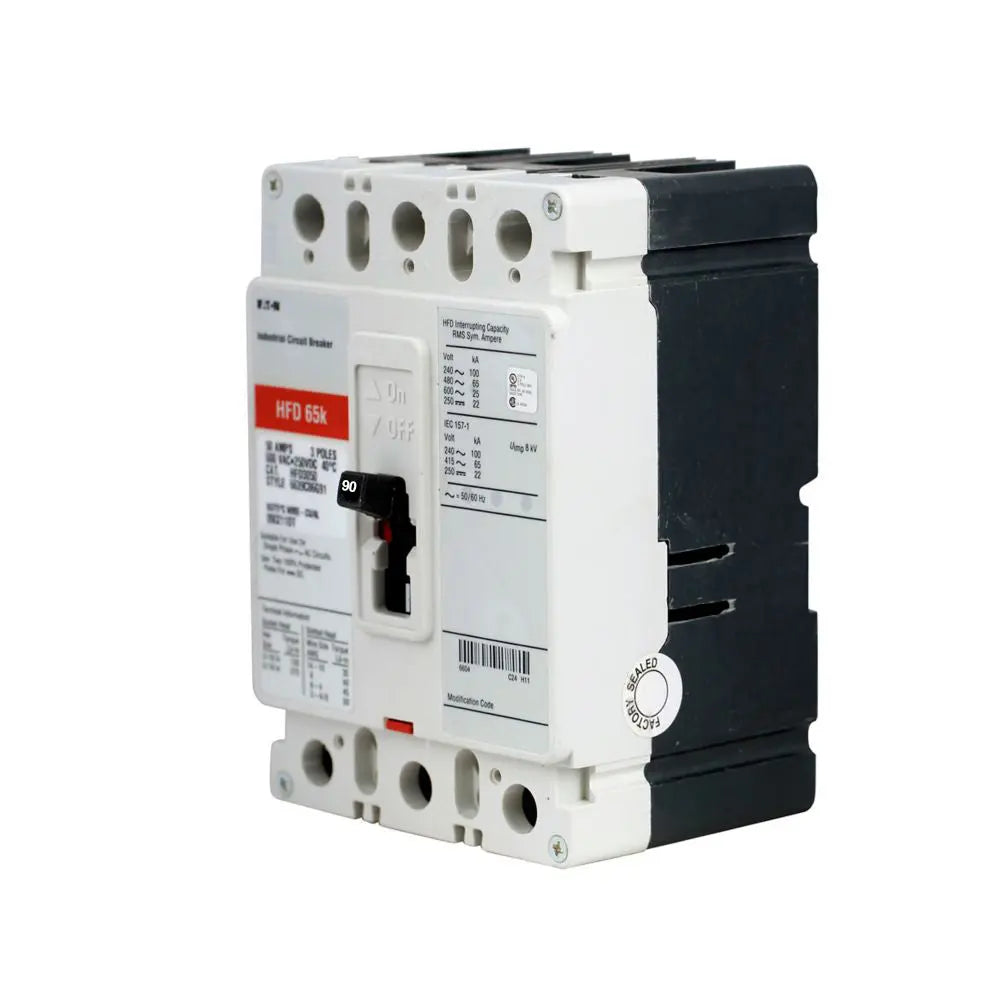

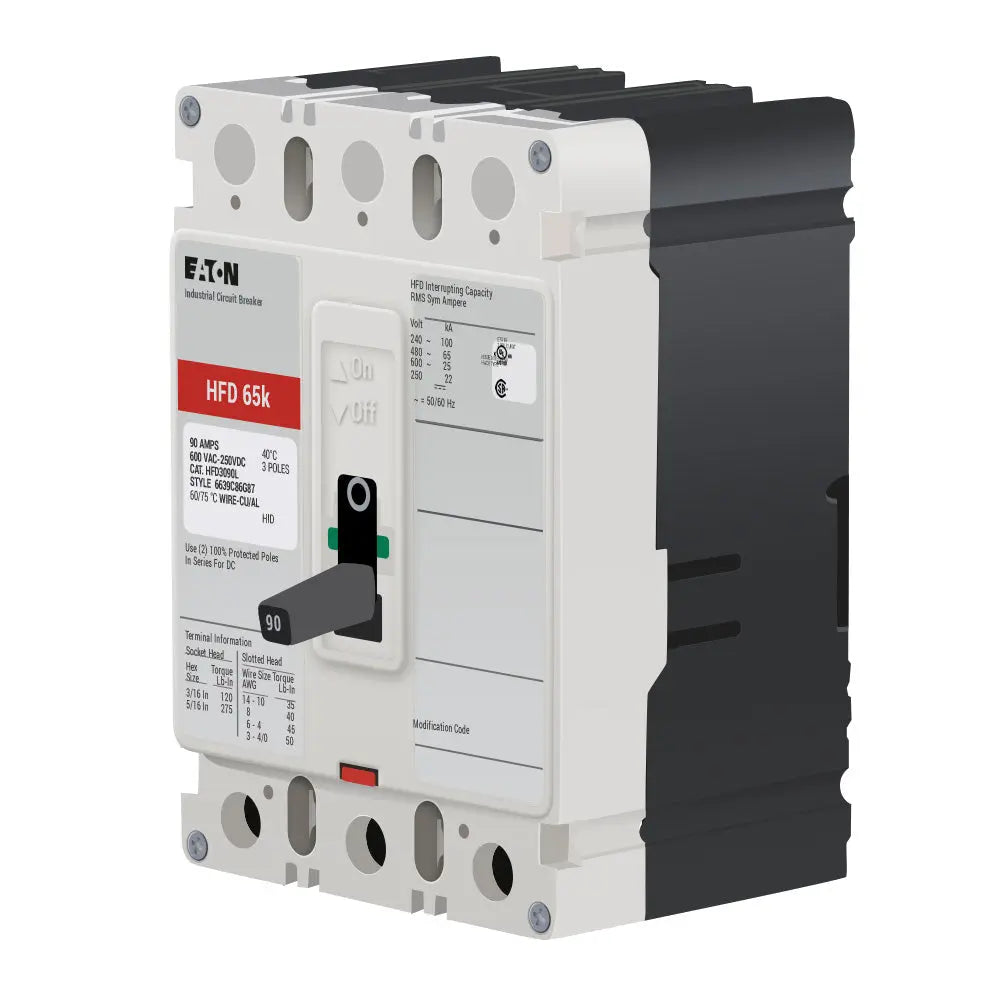

HFD3090 - Eaton Series C F-frame molded case circuit breaker with thermal-magnetic trip, rated 90A, 3-pole, 600VAC/250VDC.This Eaton HFD3090 is a type HFD, F-frame molded case circuit breaker featuring fixed thermal-magnetic trip (long-time and instantaneous), panel or bolt-on mount, and feed-through connection. It supports 50/60 Hz operation with interrupting ratings up to 100kA at 240VAC and 65kA at 480VAC.

• Part Number: HFD3090
• Manufacturer: Eaton
• Amperage: 90A
• Poles: 3
• Voltage: 600VAC, 250VDC
• Frame: F-frame
• Series: Series C
• Type: HFD
• Trip: Thermal-Magnetic, Fixed
• Mounting: Panel Mount
• Interrupting Rating: 100kA@240VAC, 65kA@480VAC, 25kA@600VAC
• Frequency: 50/60 Hz
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3090
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679175880
• GTIN : 00786679175880
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
