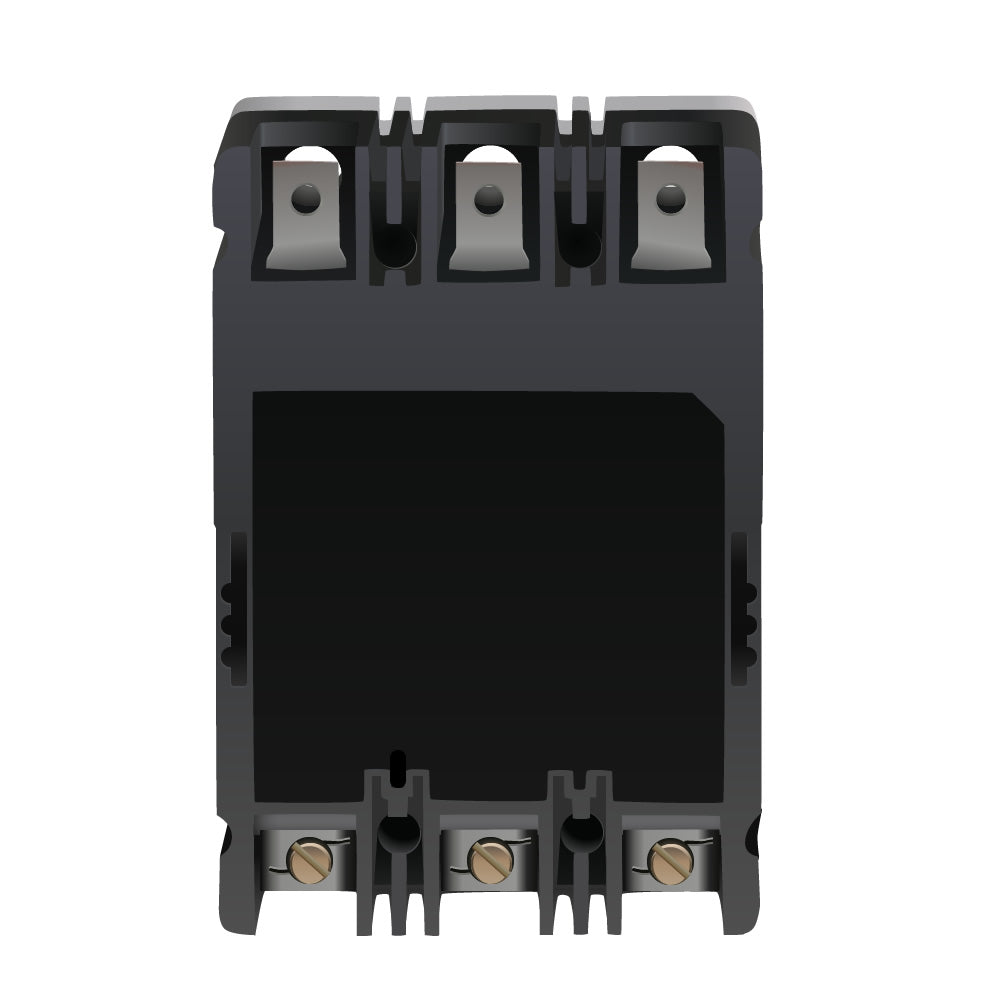

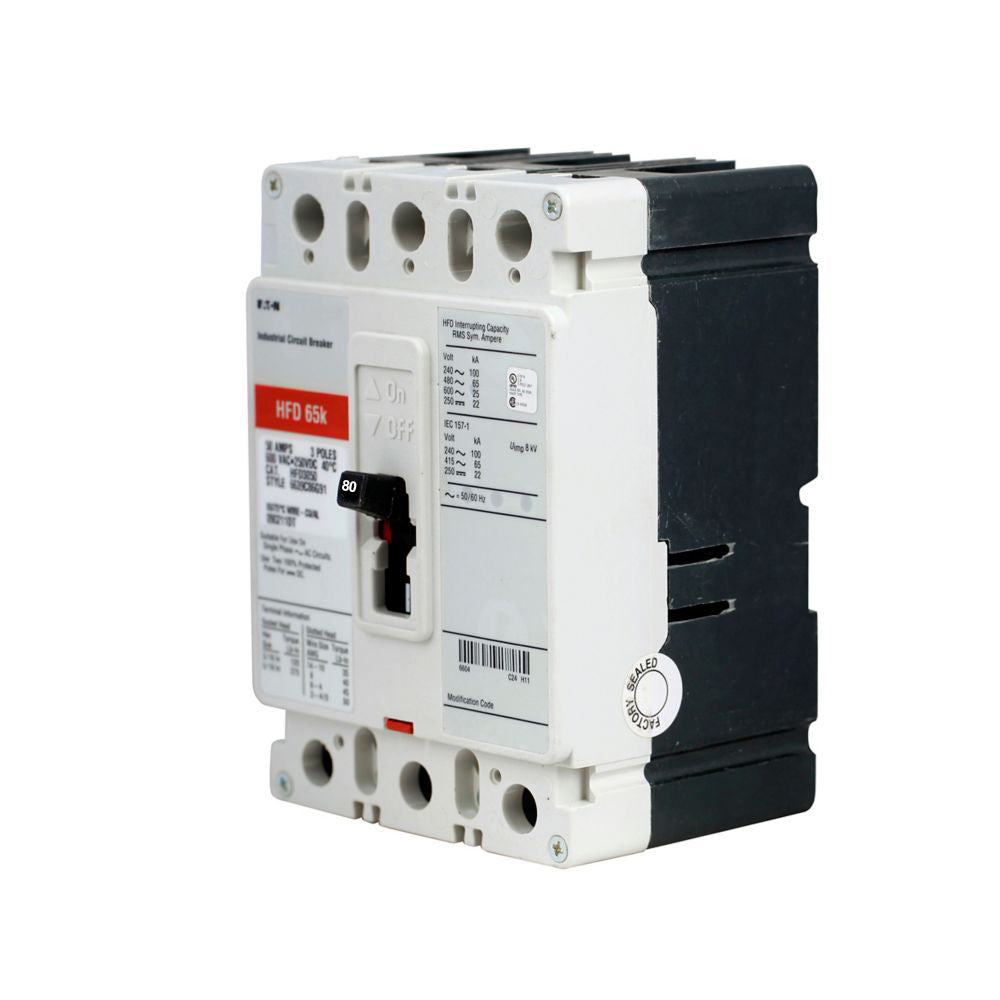

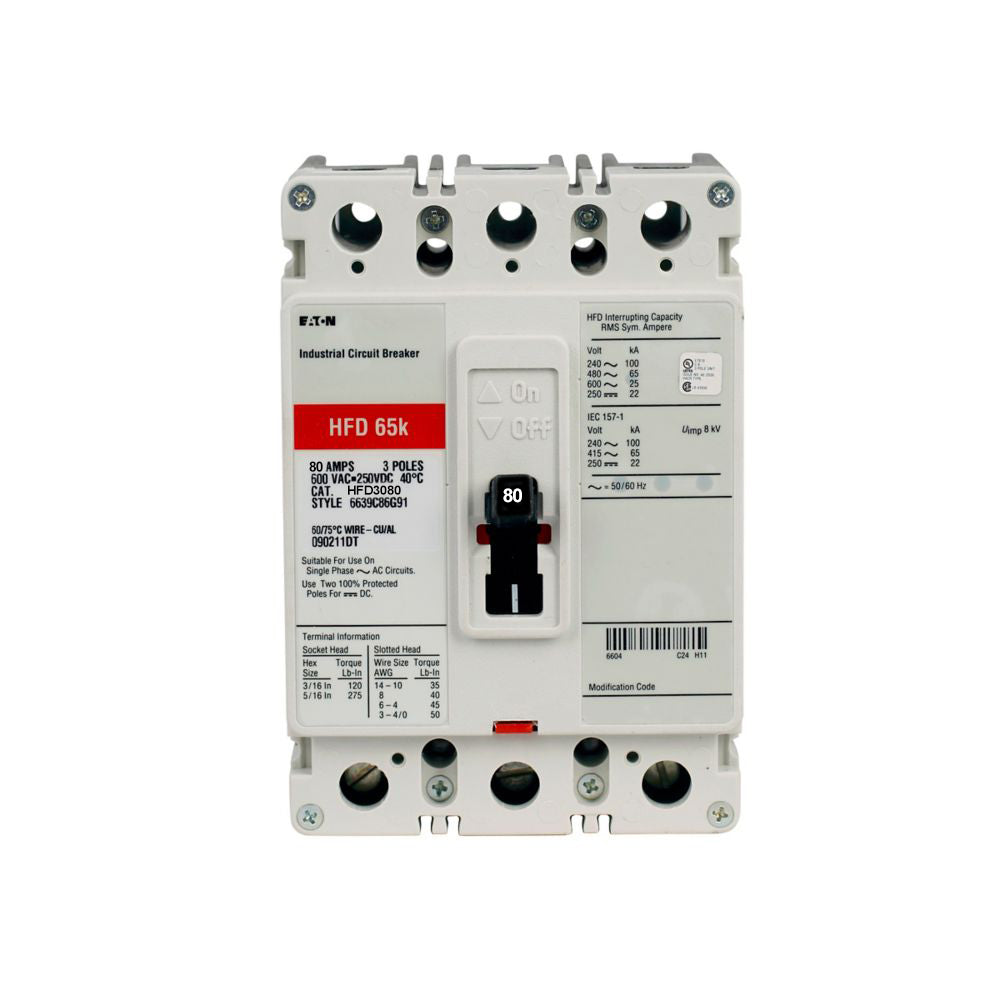

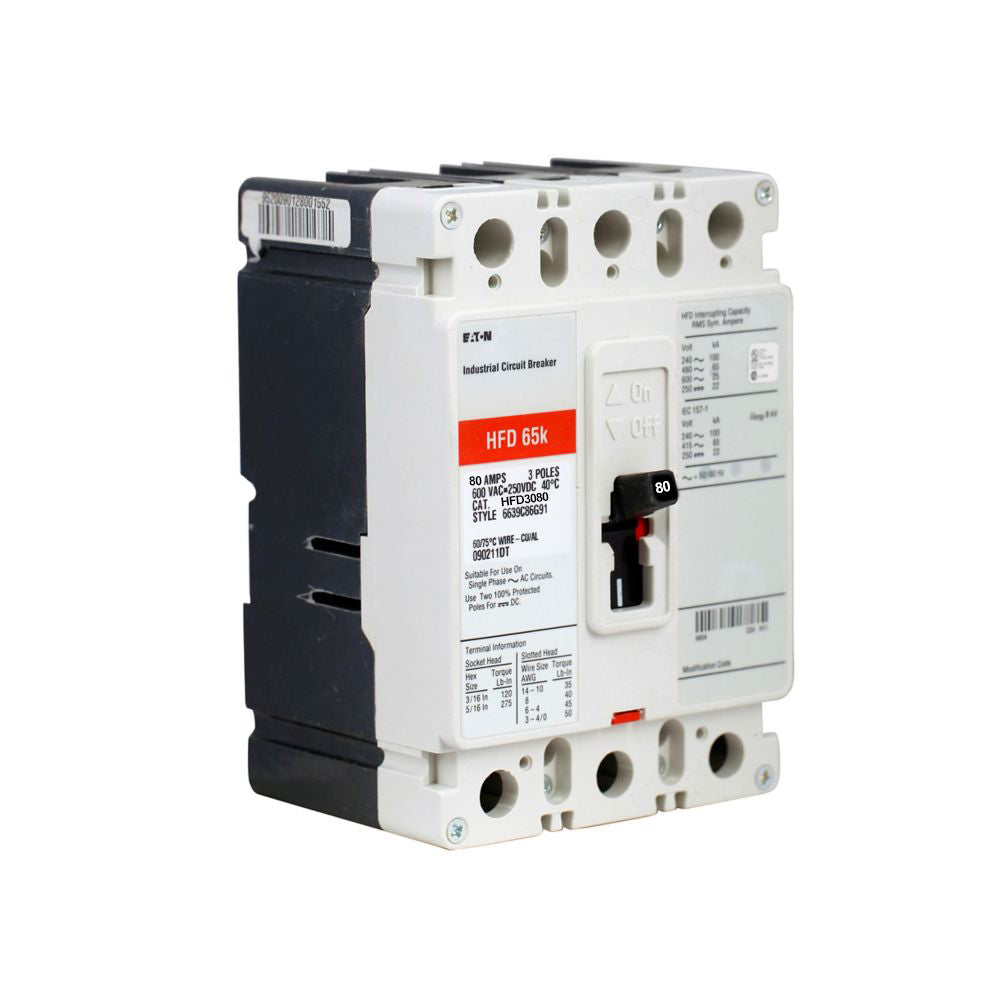

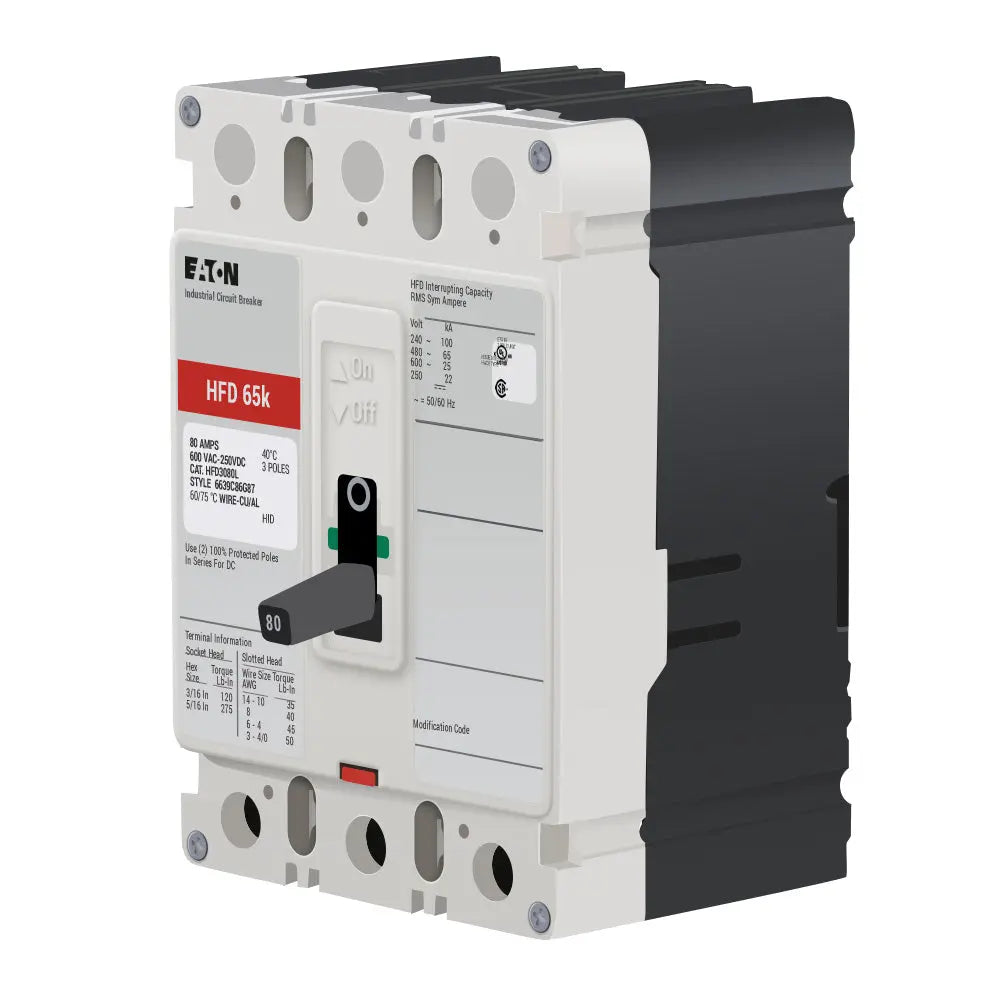

HFD3080 - Cutler Hammer 80 Amp 3 Pole 600V Molded Case Circuit Breaker, HFD Frame, 65kAIC @ 480V, Bolt-On Mounting, Series C

HFD3080

HFD3080 - Eaton Series C F-Frame molded case circuit breaker with fixed thermal-magnetic trip, rated at 80A, 3-pole, 600VAC/250VDC.Eaton HFD3080 is a type HFD complete molded case circuit breaker featuring F-frame design, panel mounting, cable in/cable out configuration, and 65kAIC interrupt rating at 600VAC. It operates at 50/60 Hz with fixed thermal-magnetic trip for reliable overcurrent protection in panelboards, switchboards, and motor control centers.

• Part Number: HFD3080
• Manufacturer: Eaton
• Amperage Rating: 80A
• Poles: 3
• Voltage Rating: 600VAC, 250VDC
• Frame: F-Frame
• Series: Series C
• Type: HFD
• Trip Unit: Fixed Thermal-Magnetic
• Interrupt Rating: 65kAIC @ 600VAC
• Mounting: Panel Mount
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3080
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679173282
• GTIN : 00786679173282
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
