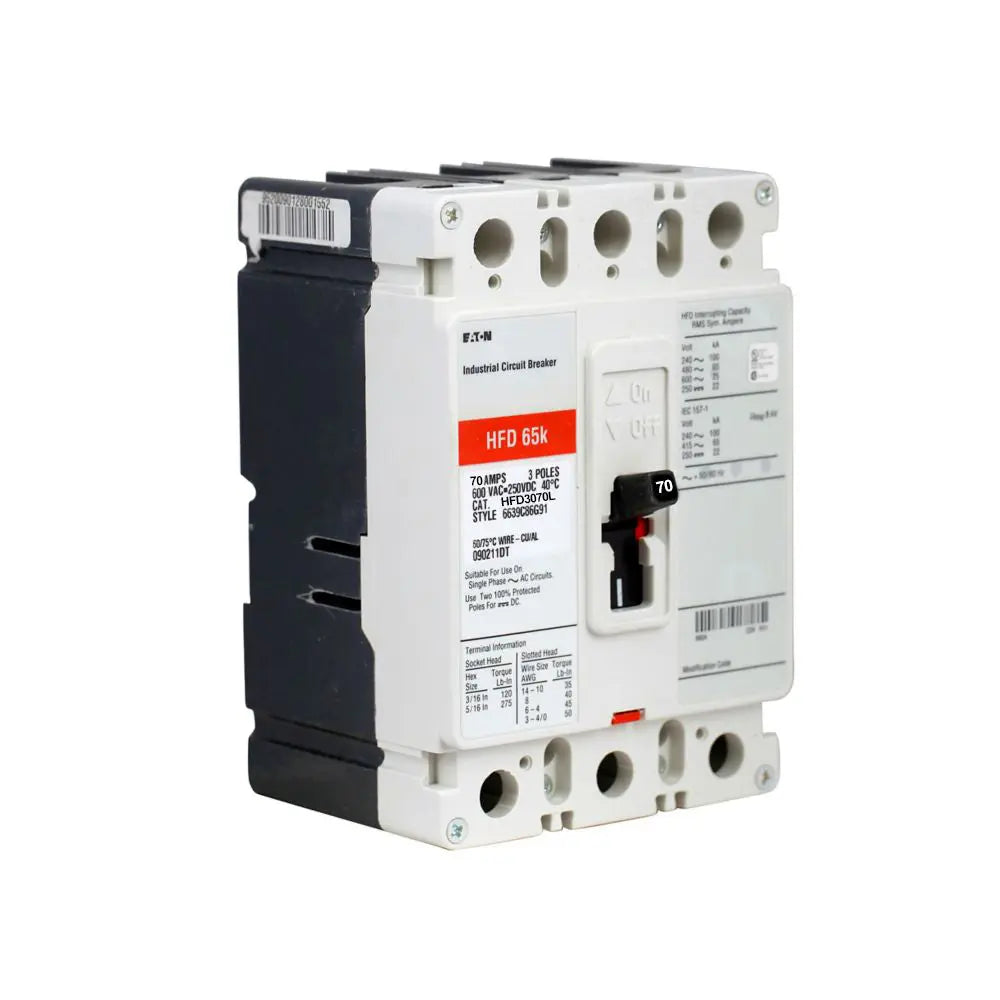

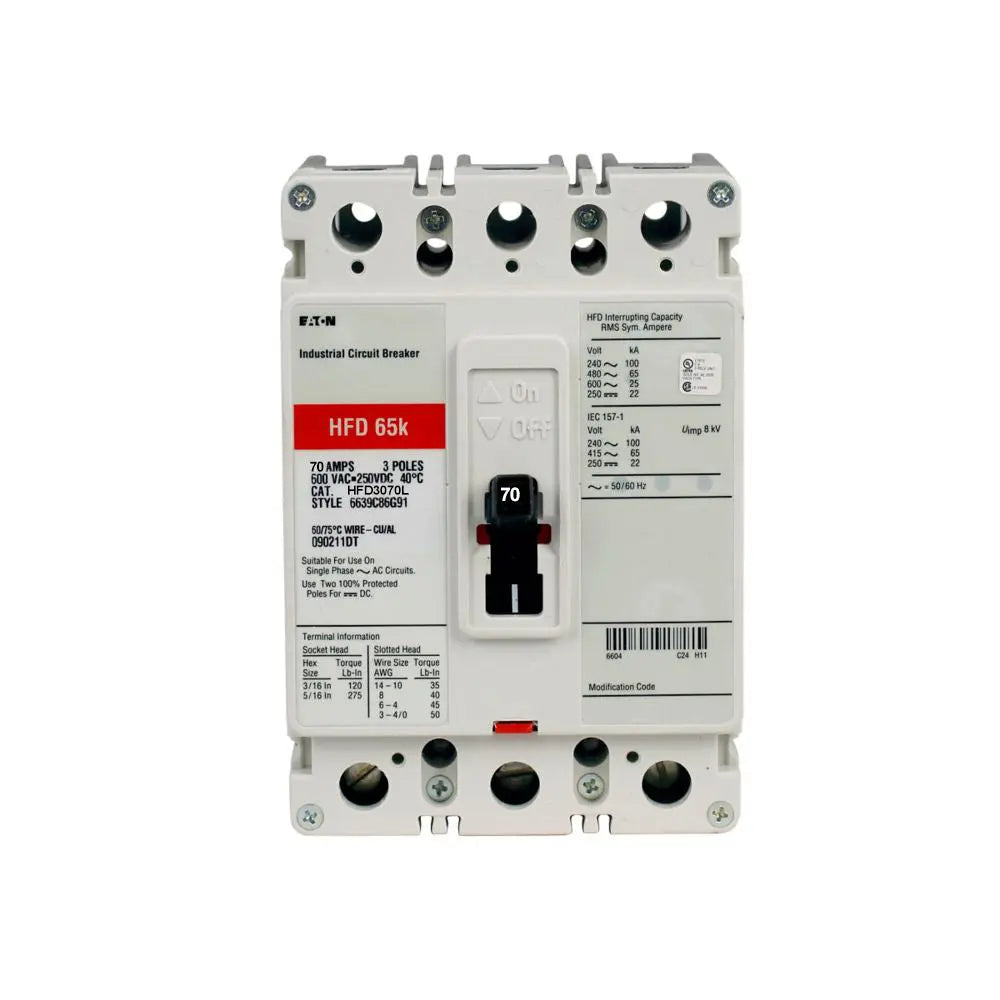

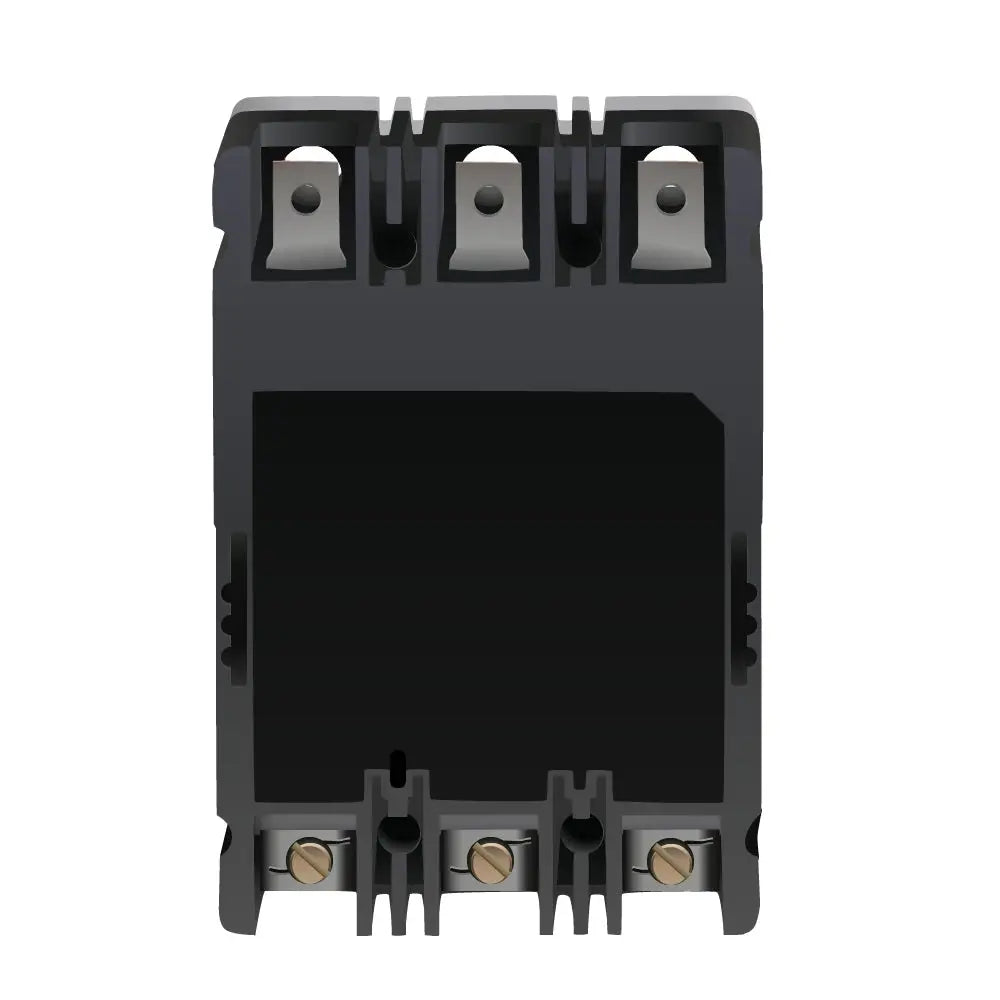

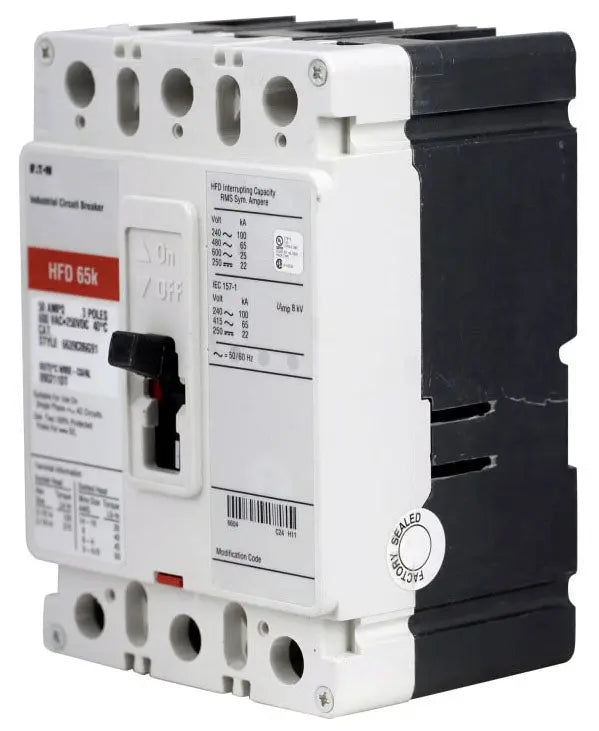

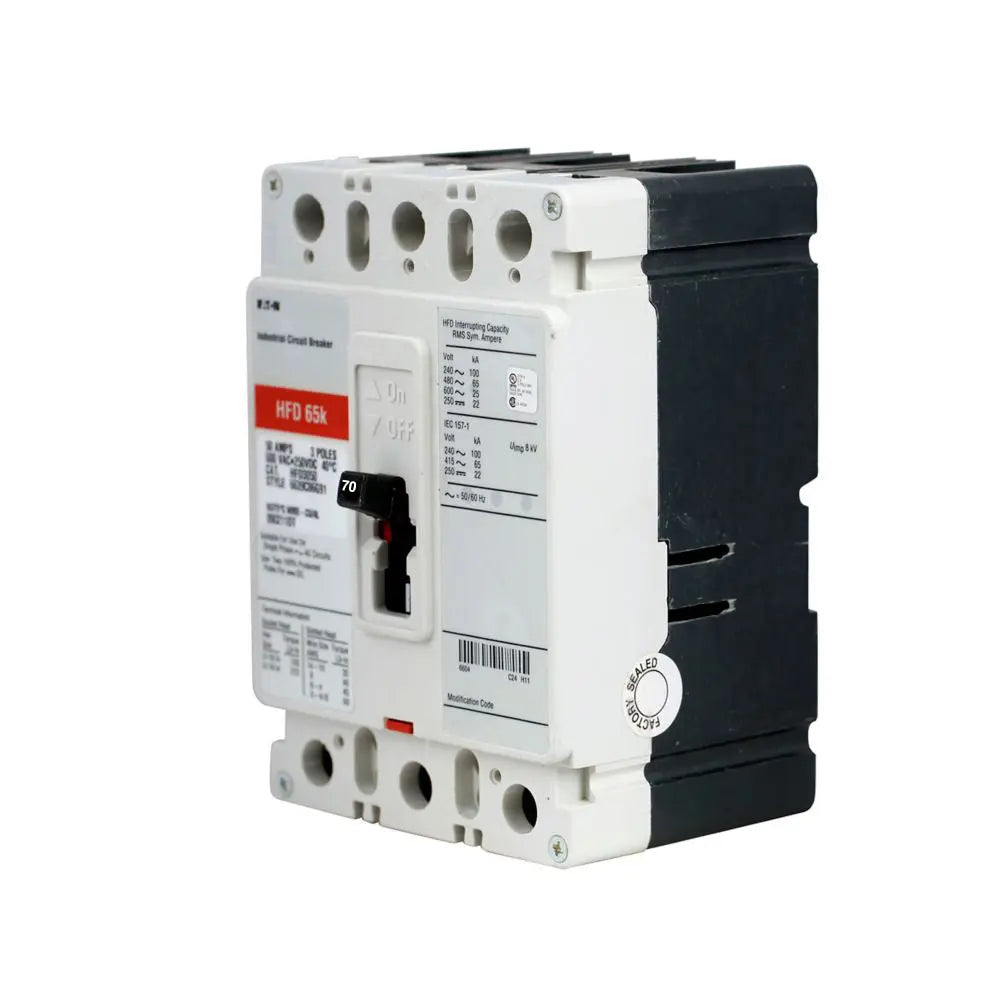

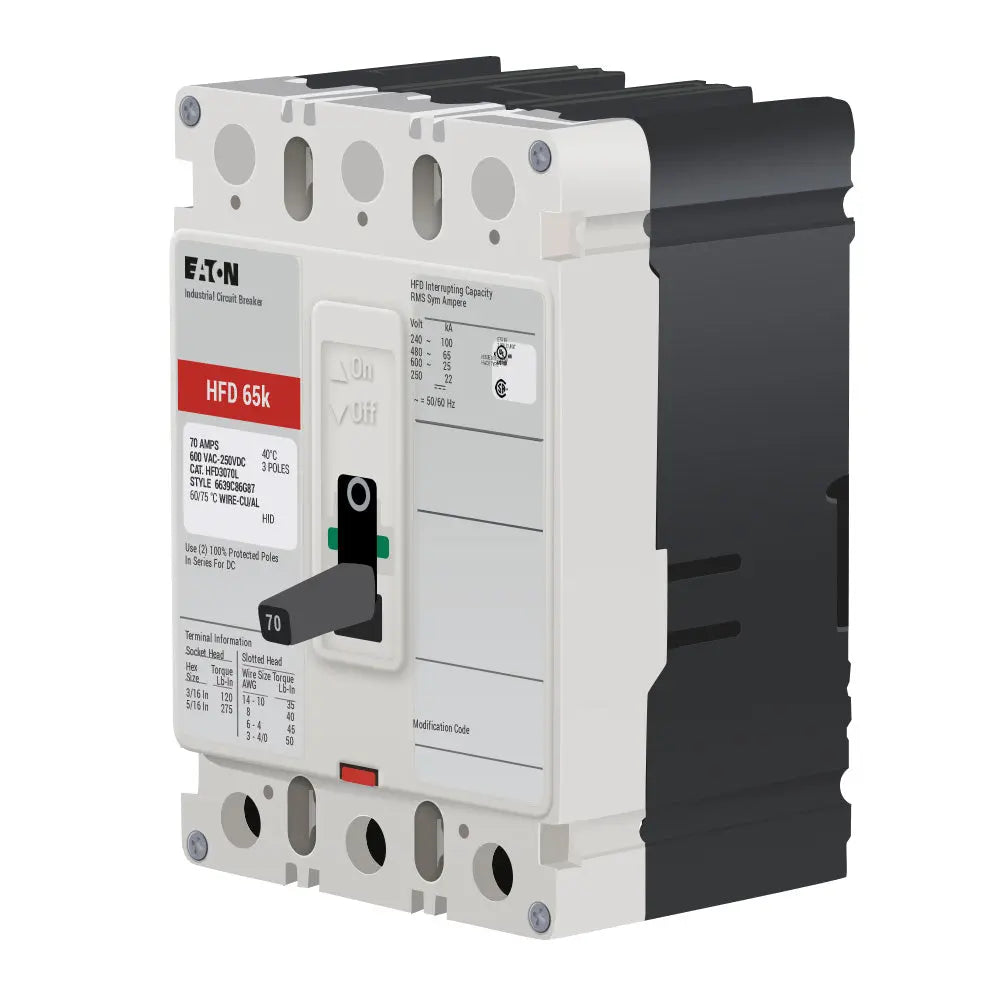

HFD3070L - Cutler Hammer 70 Amp 600 VAC 3 Pole Molded Case Circuit Breaker F Frame Thermal Magnetic Trip

HFD3070L

HFD3070L is a Cutler Hammer 3 pole molded case circuit breaker rated for 70 amperes and 600 VAC operation.

This Series C, F-frame breaker features a fixed thermal and fixed magnetic trip unit designed for reliable protection in industrial applications. It supports voltages up to 600 VAC and 250 VDC with interrupt ratings of 100 kA at 240 VAC and 65 kA at 480 VAC. The breaker is panel mountable with bolt-on mounting and carries UL and CSA certifications.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Interrupt Rating: 100 kA @ 240 VAC, 65 kA @ 480 VAC
• Frame: F Frame, Series C
• Trip Unit: Fixed Thermal Magnetic
• Mounting Type: Bolt-On Panel Mount
• Certifications: UL Listed, CSA
• Industrial Grade
• Dimensions: Approx. 4.125" W x 3.375" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3070L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175156
• GTIN : 00786679175156
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.62
• Certification : UL Listed
