Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFD3060L

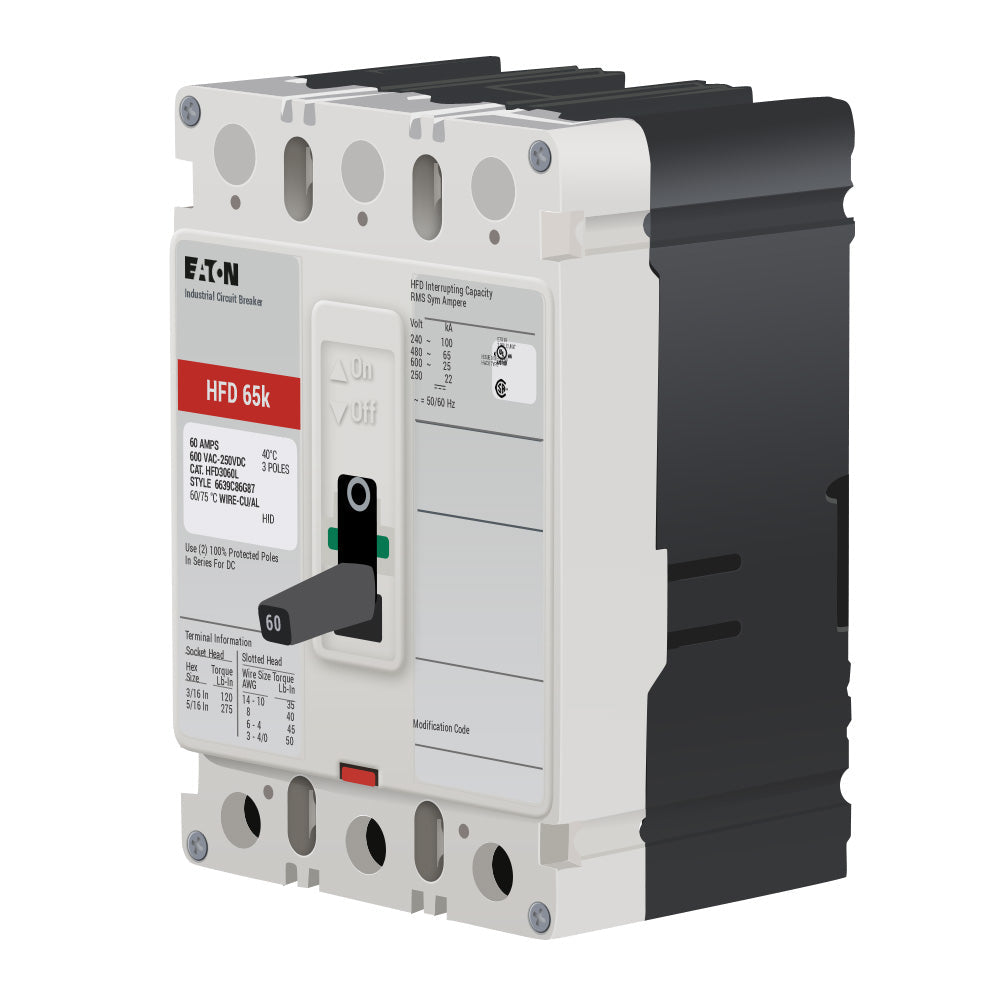

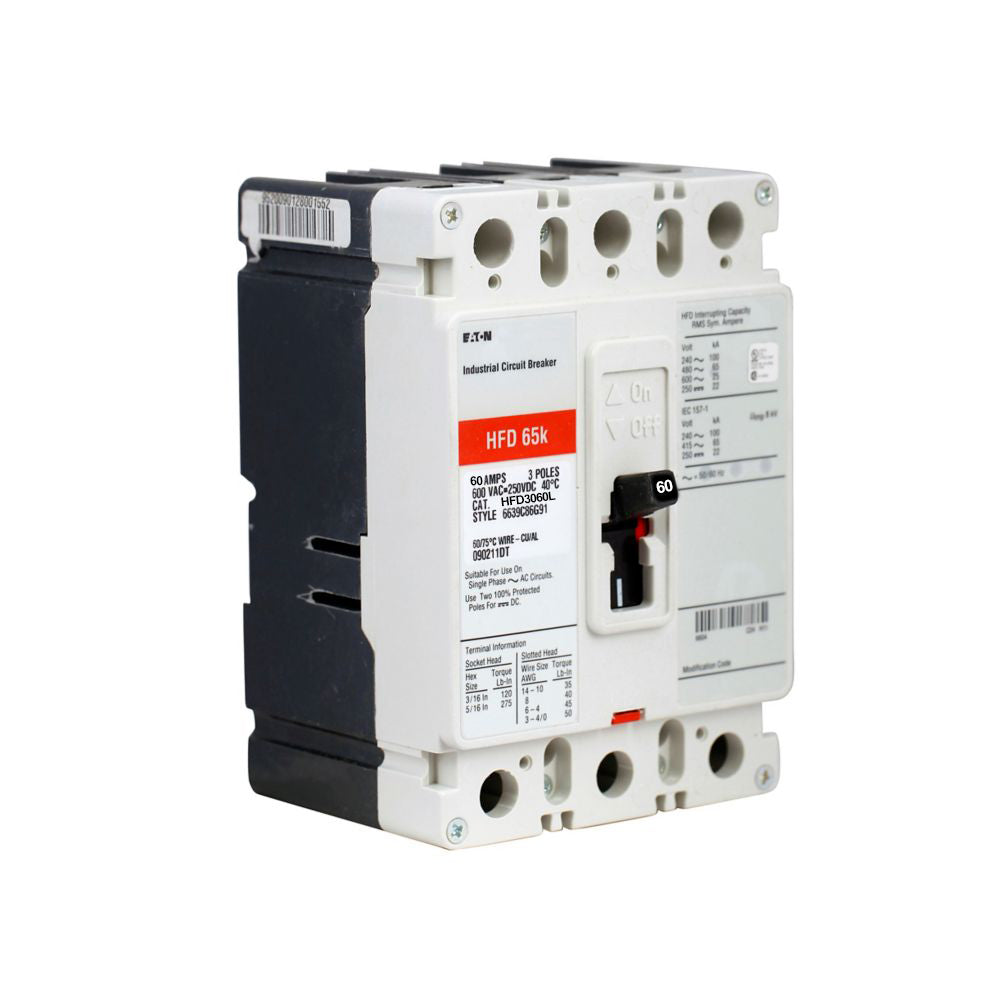

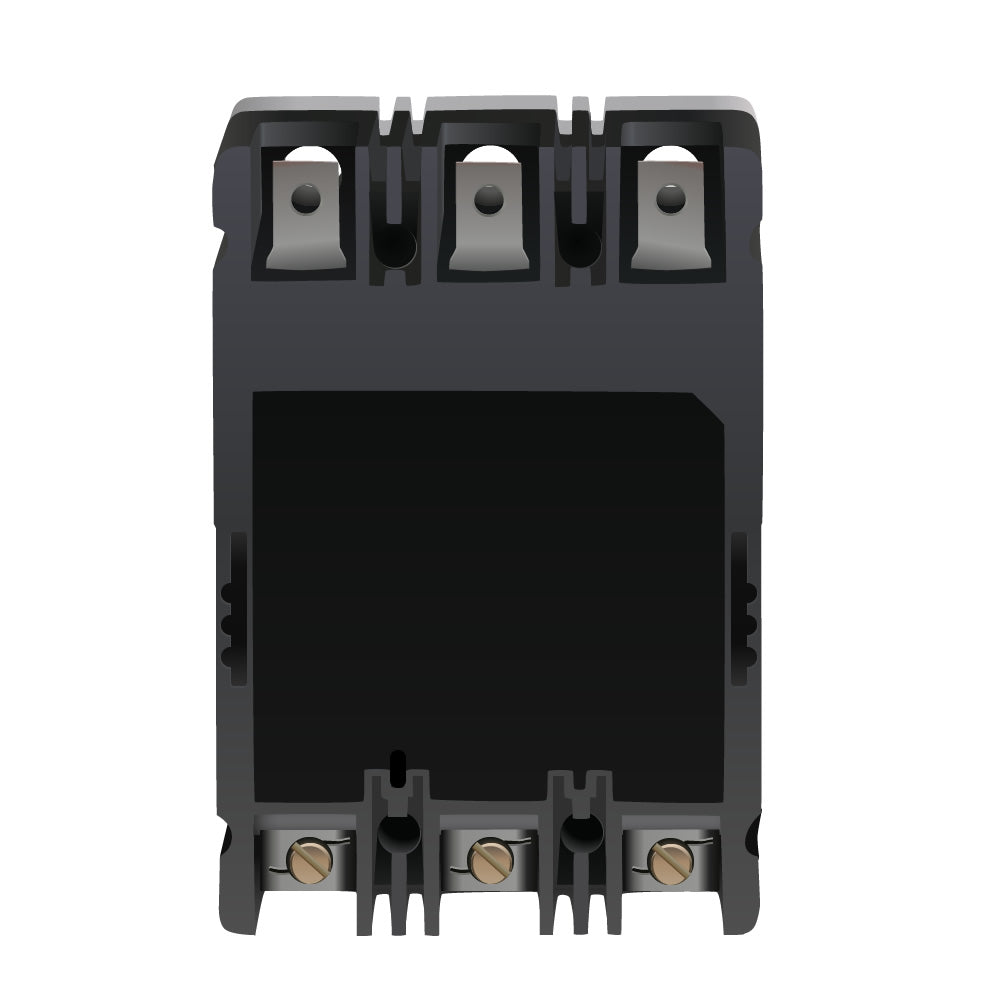

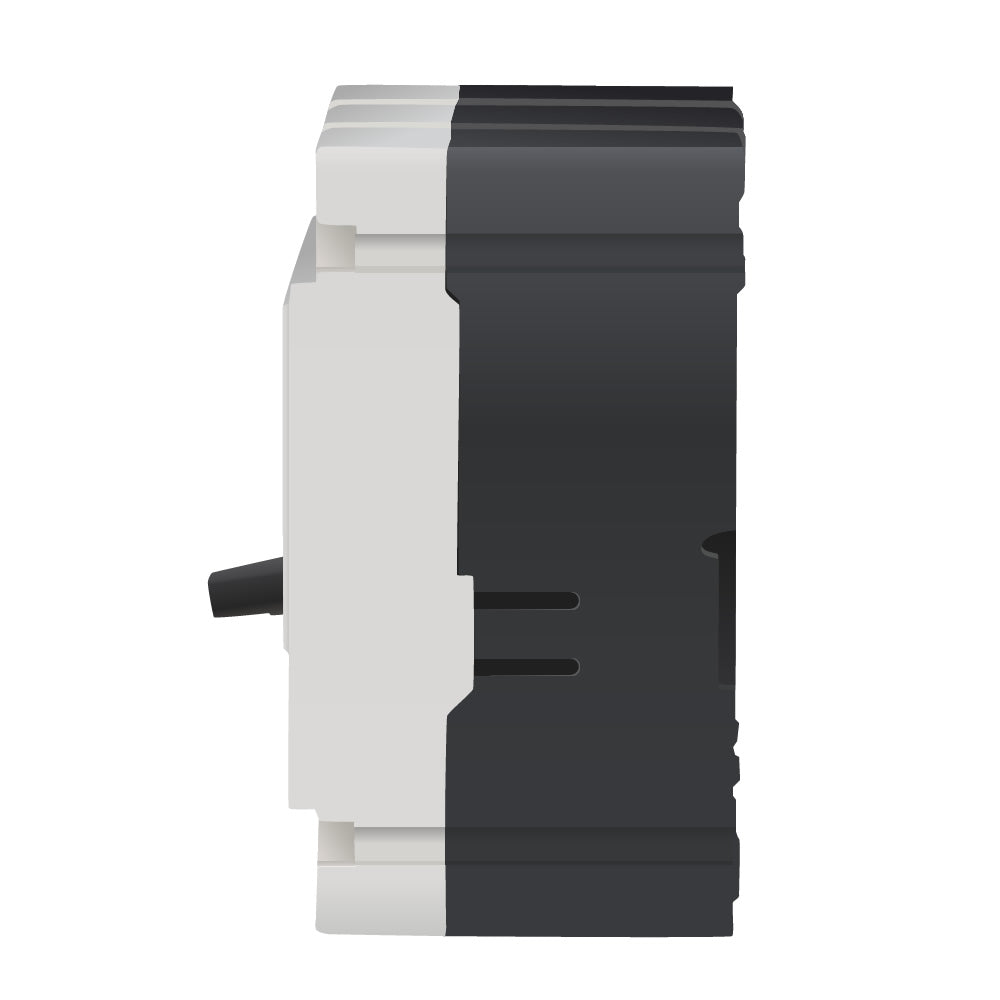

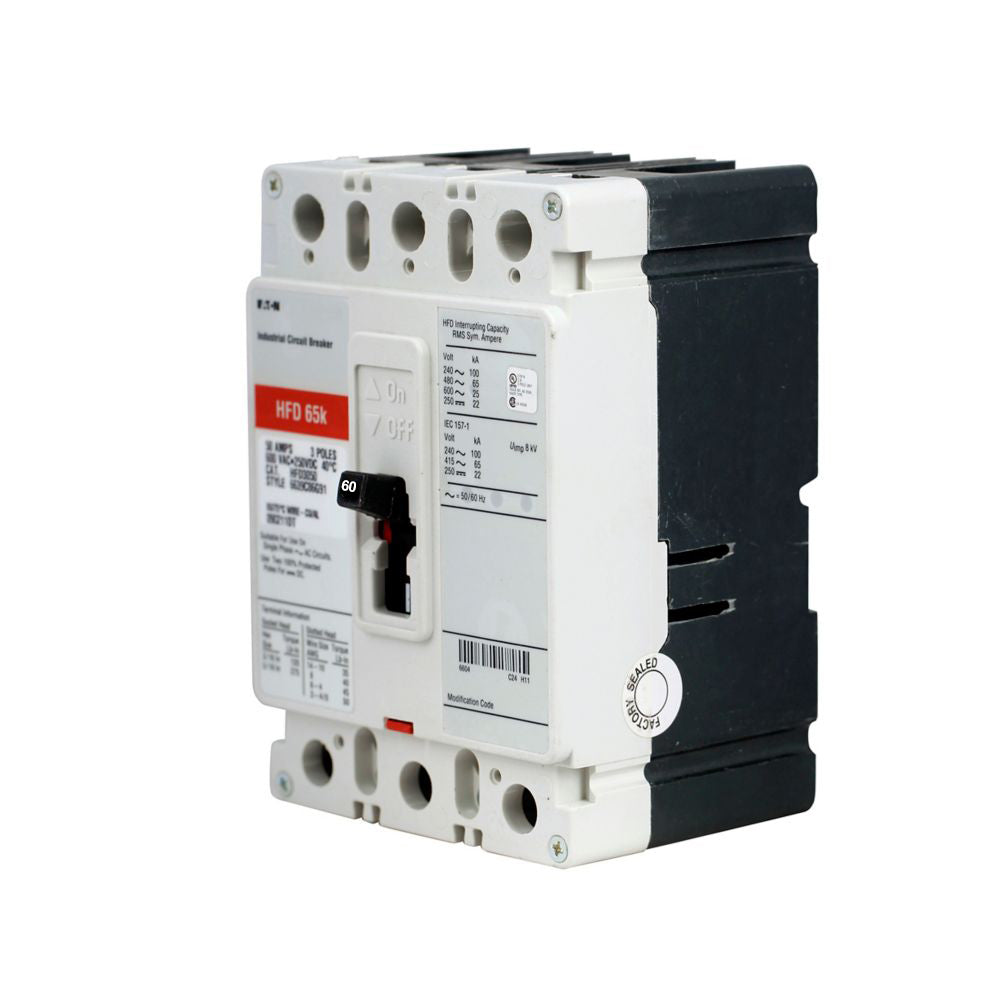

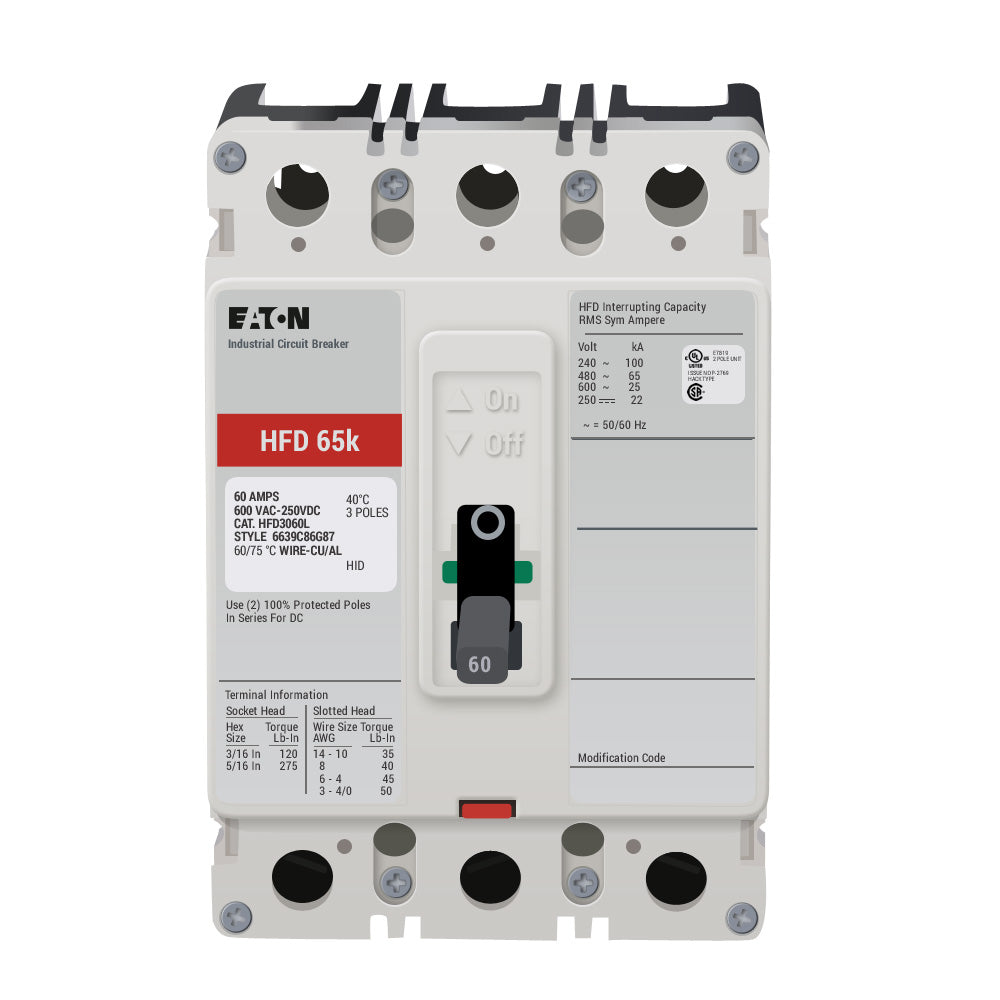

HFD3060L - Cutler Hammer 3-pole molded case circuit breaker rated at 60A and 600VAC/250VDC.
This Series C F-frame thermal-magnetic circuit breaker features fixed thermal and fixed magnetic trip, line and load terminals, and high interrupting capacity for reliable overcurrent protection in industrial applications.
Key Specifications
- Amperage Rating: 60A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Frame Type: HFD (F-frame)
- Trip Type: Thermal-magnetic, fixed thermal fixed magnetic
- Product Series: C
- Frequency: 50/60 Hz
- Wire Range: 14 to 1/0 AWG
- Mounting: Line and load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HFD3060L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175149
- GTIN : 00786679175149
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
