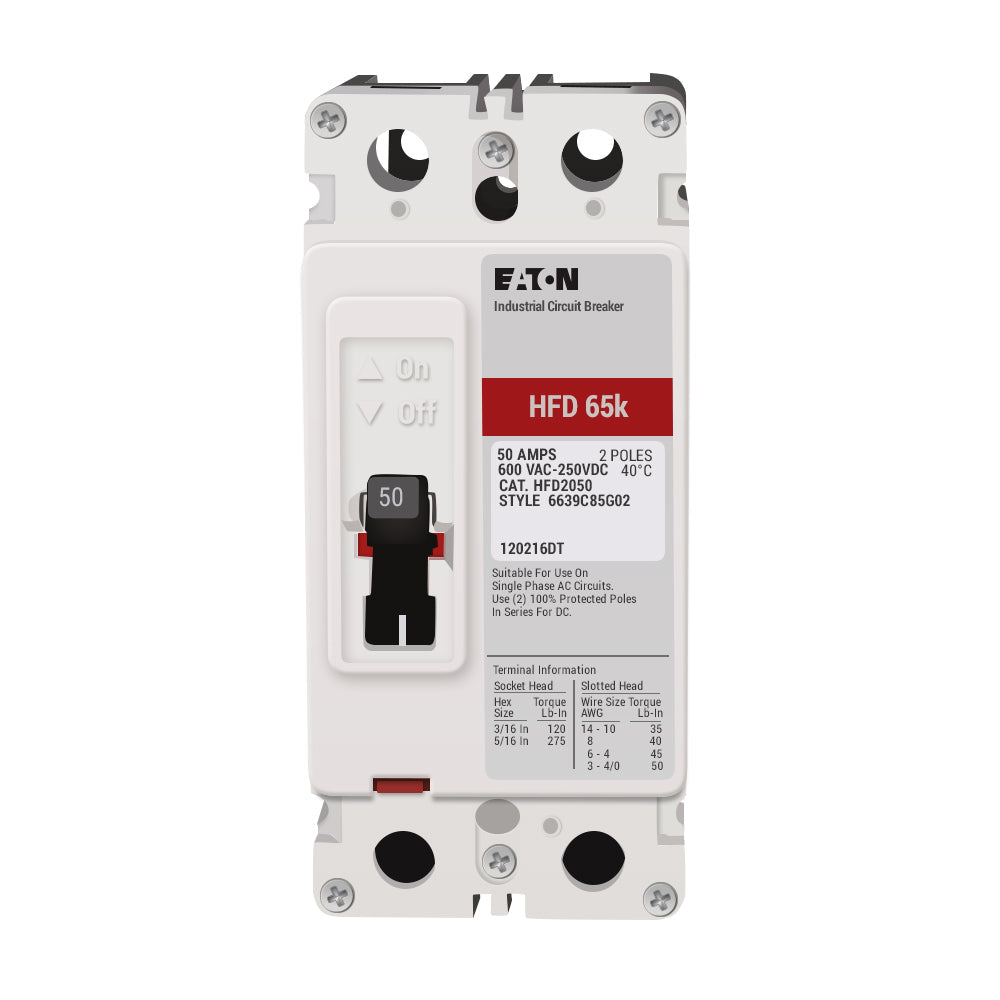

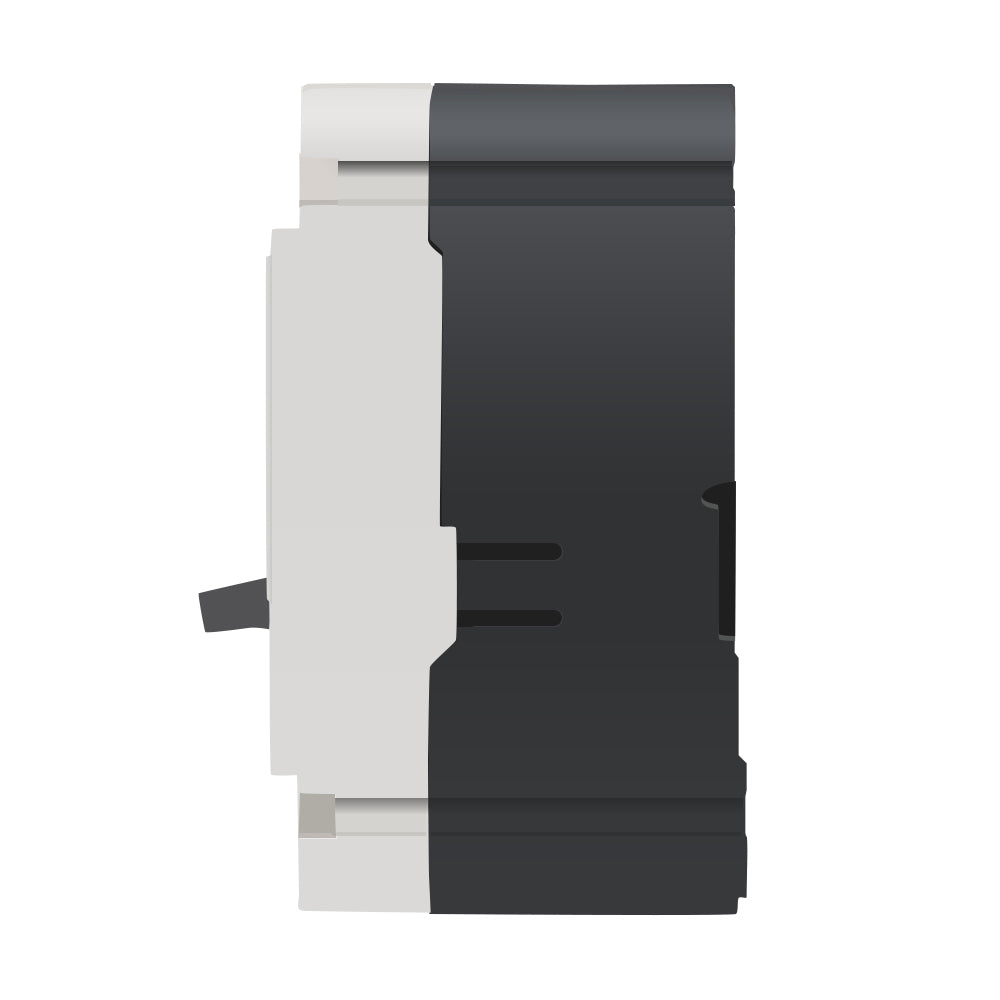

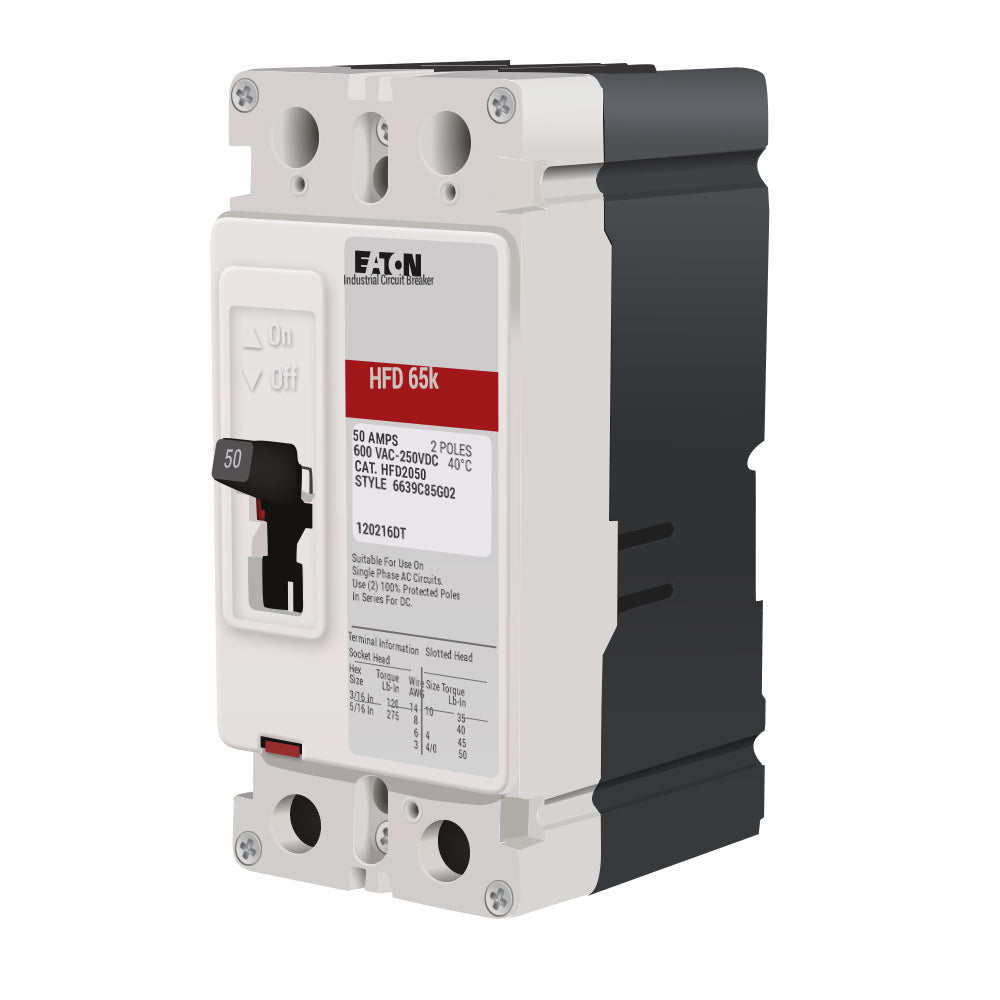

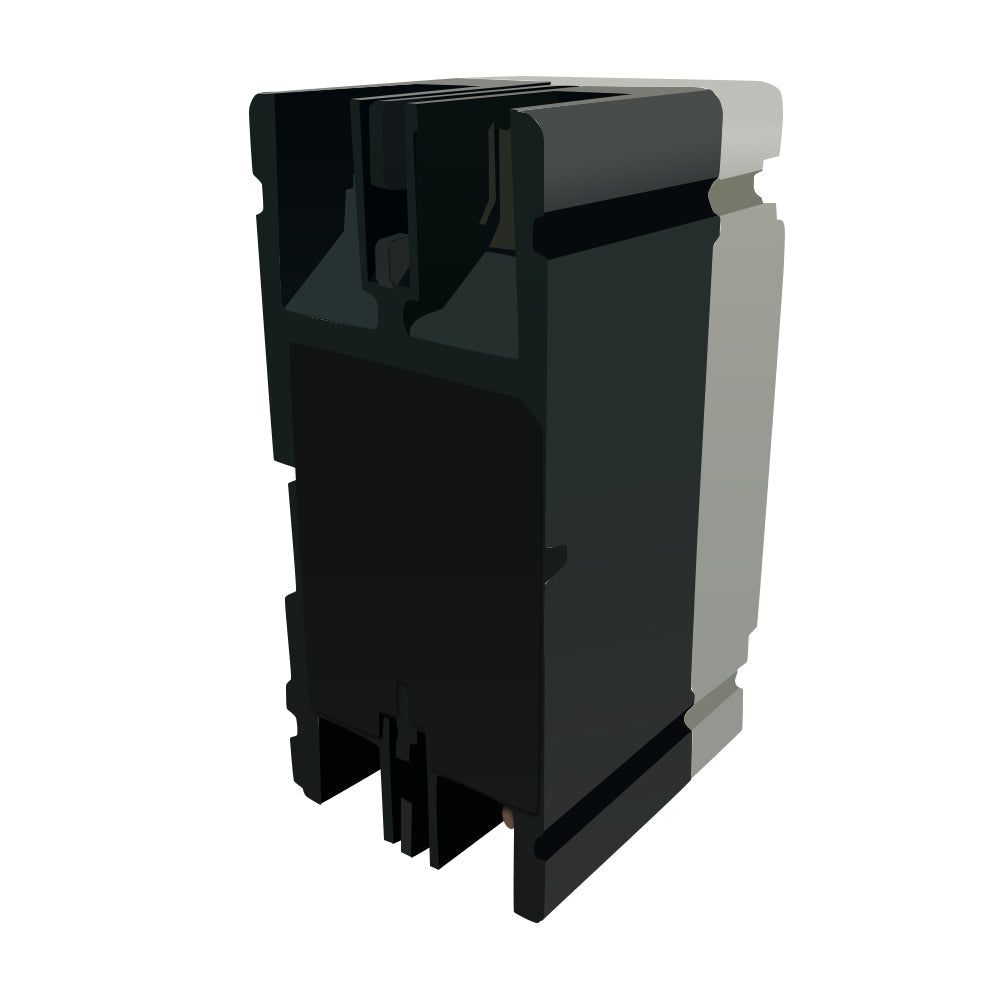

HFD2050 - Cutler Hammer 50 Amp 600V 2 Pole Molded Case Circuit Breaker Series C F-Frame

HFD2050

HFD2050 is an Eaton Series C molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. This two-pole breaker delivers high interrupting capacity with fixed thermal and fixed magnetic trip protection, suitable for both AC (50/60 Hz) and DC operations up to 250 Vdc. Key Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 Vac, 250 Vdc
• Poles: 2
• Frame Type: F-frame
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Series: C
• Frequency: 50/60 Hz
• Mounting: Panel
• Certifications: UL Listed
• Dimensions: 6.0 in H x 2.75 in W x 3.38 in D
• Weight: 3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD2050
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175422
• GTIN : 00786679175422
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
