Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD2045

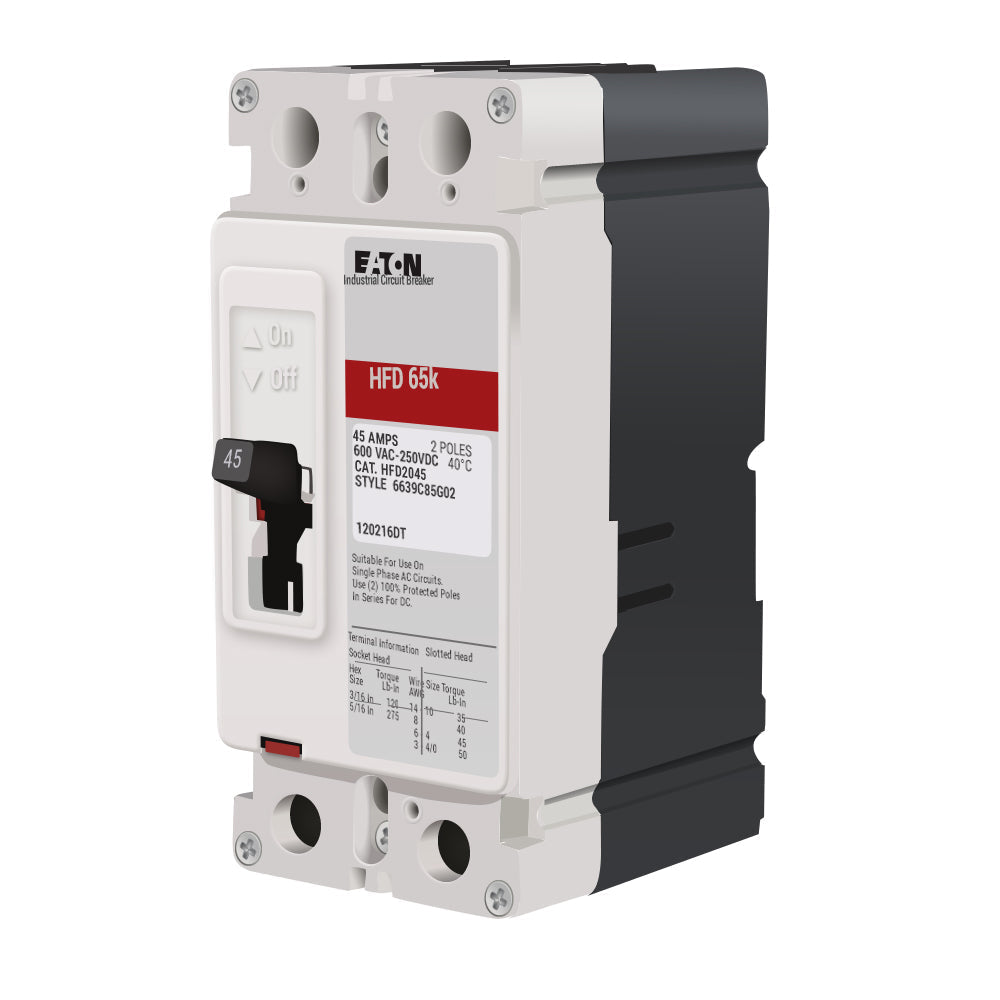

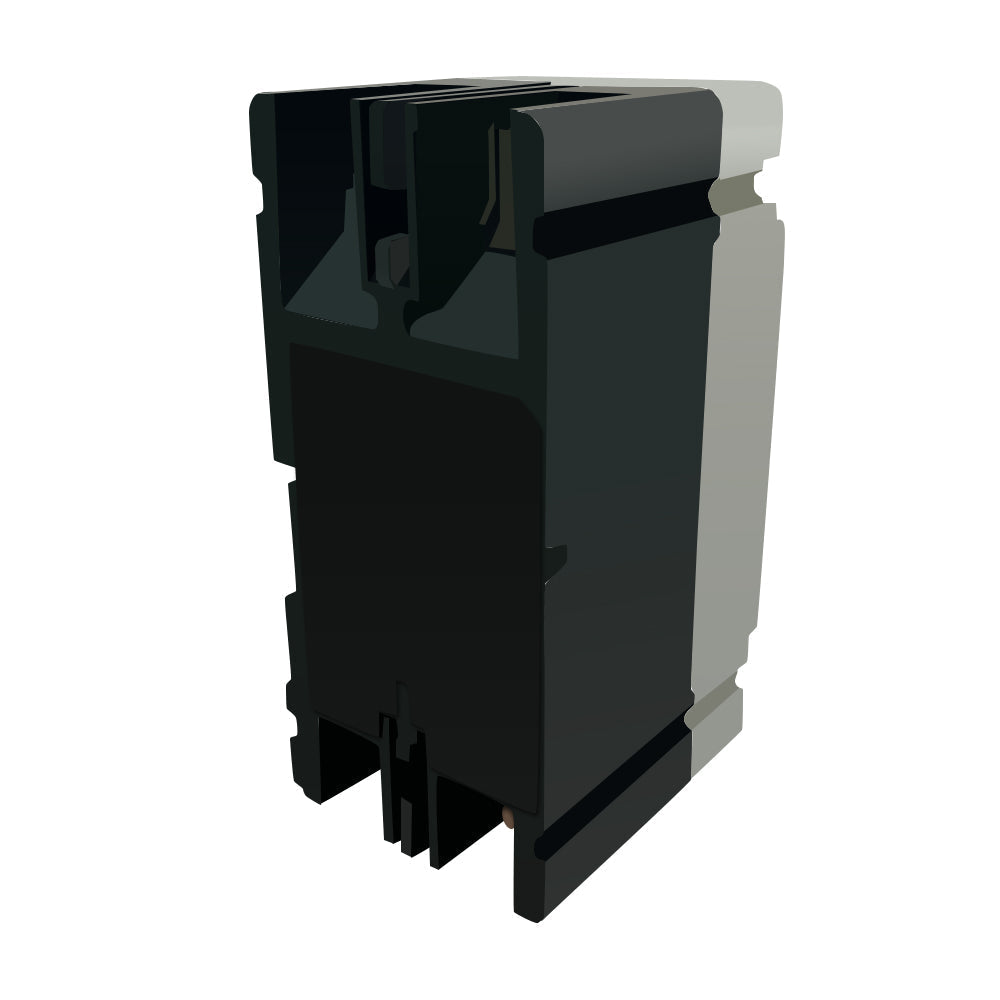

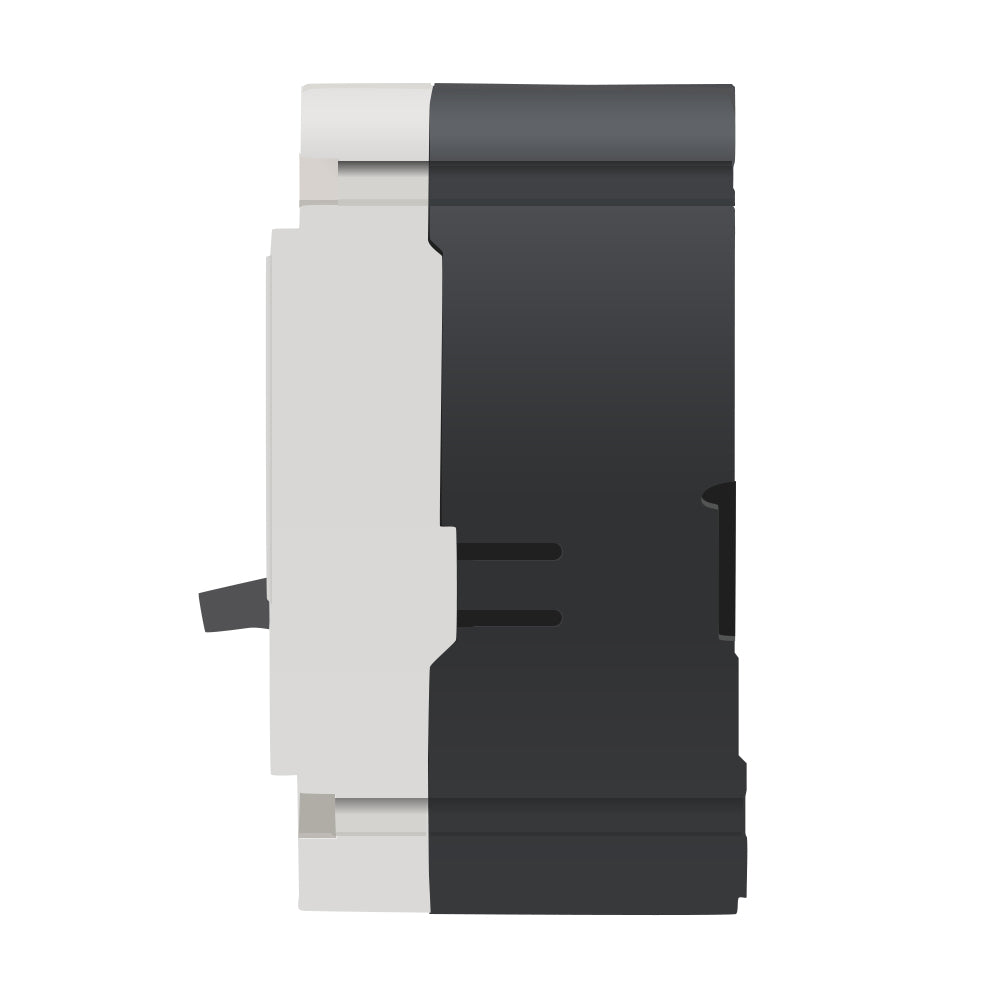

HFD2045 - Eaton Series C F-frame molded case circuit breaker with 45A rating, 2 poles, and 600V AC. This bolt-on thermal-magnetic circuit breaker features fixed instantaneous trip functions, high interrupting capacity, non-interchangeable trip, and load side lug terminals for reliable overcurrent protection in 1-phase applications.
- Manufacturer: Eaton
- Part Number: HFD2045
- Amperage: 45A
- Voltage: 600VAC
- Poles: 2
- Frame Type: FD / F-Frame
- Series: C
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 65kA@480VAC
- Phase: 1
- UPC: 786679831960
Specifications
- Part Number: HFD2045
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679325452
- GTIN : 00786679325452
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
