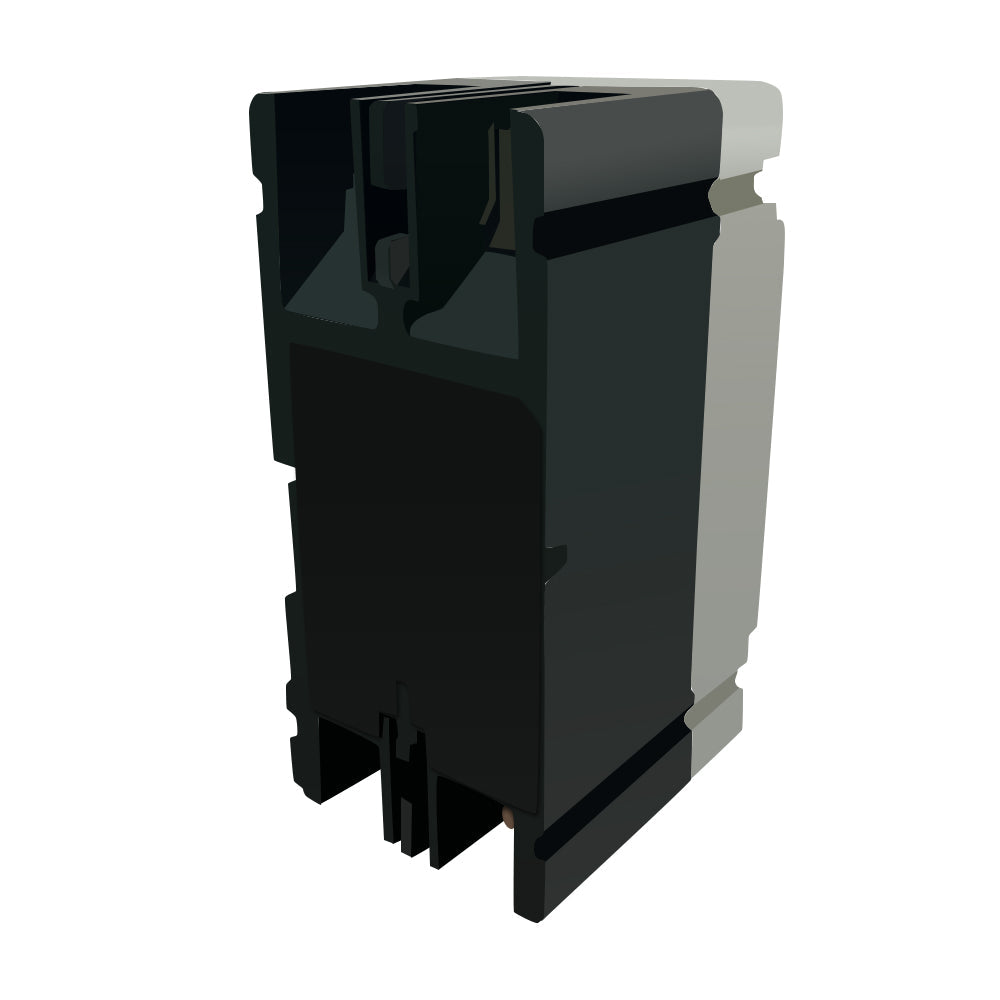

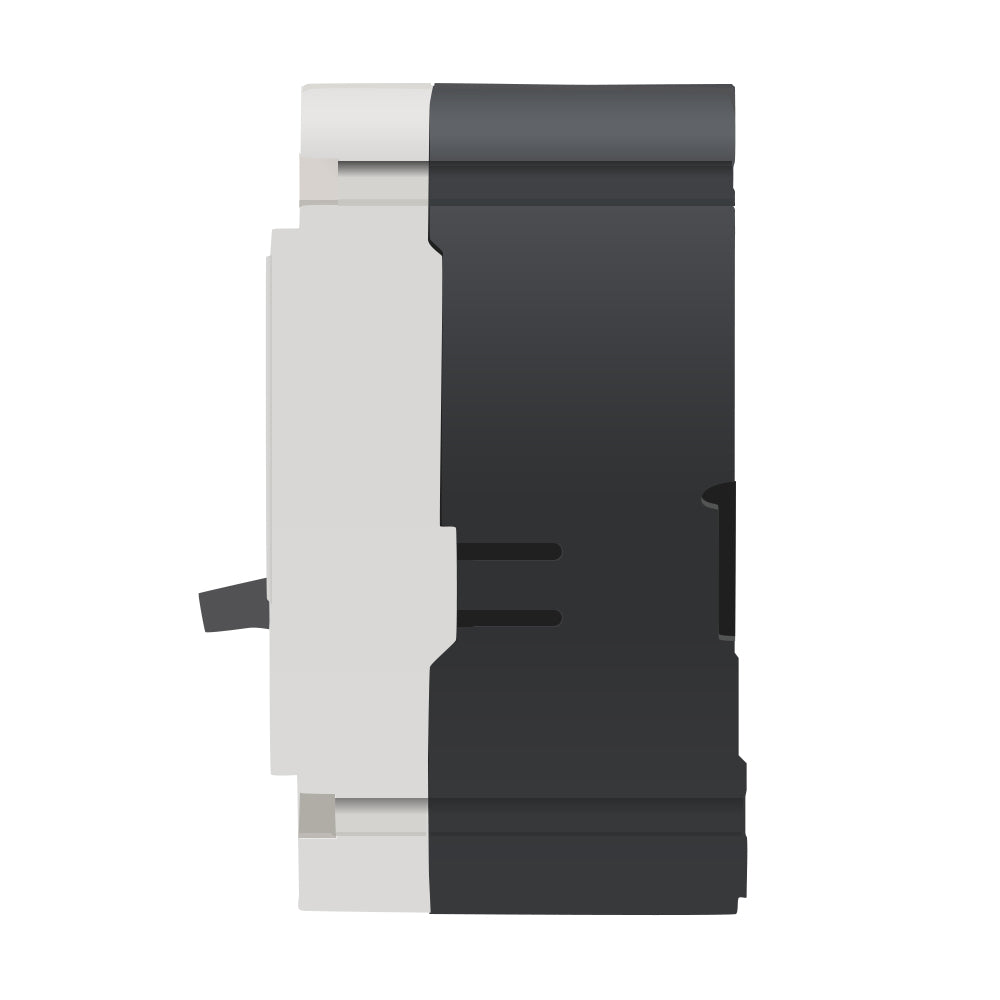

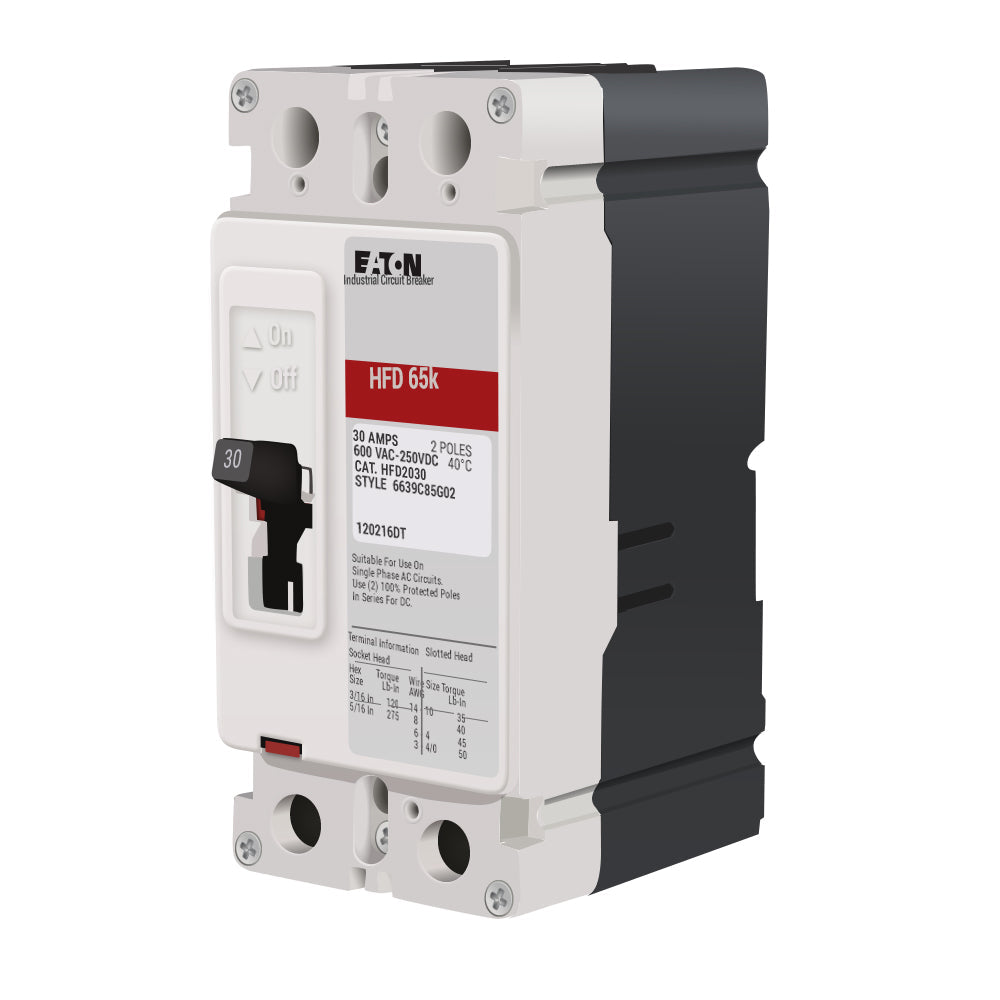

HFD2030 - Cutler Hammer Series C 2-Pole 30A 600V Molded Case Circuit Breaker, 65kA Interrupt, F-Frame, Thermal Magnetic Trip, Panel Mount, UL/CSA/CE

HFD2030

HFD2030 is an Eaton Series C molded case circuit breaker designed for panel mounting in industrial and commercial applications. This 2-pole, 30-ampere breaker provides fixed thermal-magnetic trip protection at 600 volts AC and 250 volts DC, with an F-frame configuration suitable for single-phase applications.Key Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 2
• Series: Series C
• Frame Type: F-Frame
• Trip Type: Fixed Thermal-Magnetic (T186)
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 25 kAIC at 600 Vac
• Frequency Rating: 50/60 Hz
• Mounting: Panel Mount
• Terminals: Load Side
• Dimensions: 6 in H x 2.75 in W x 3.38 in D
• Weight: 3 lb
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD2030
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 786679175392
• GTIN : 00786679175392
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
