Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF366NRA

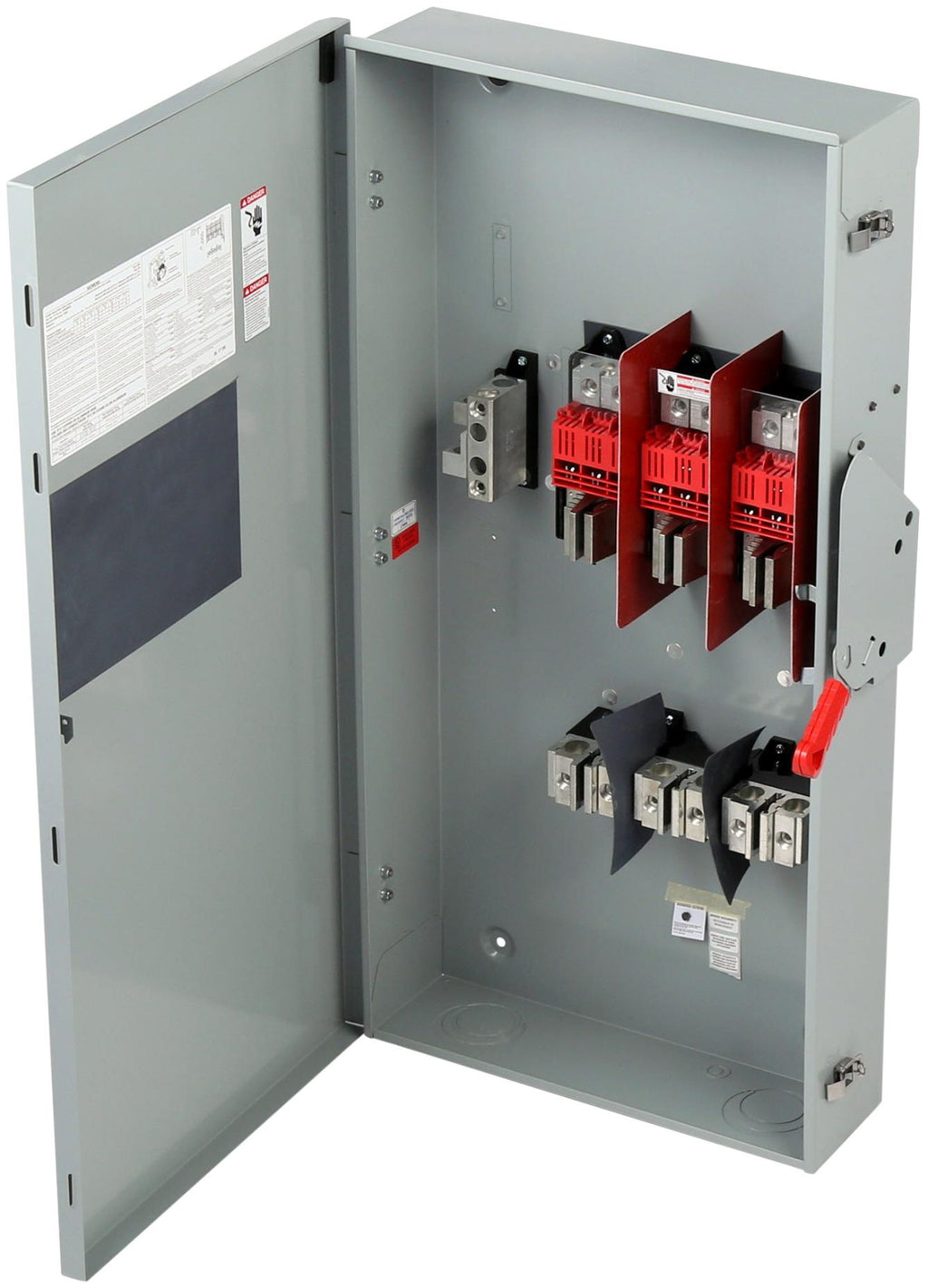

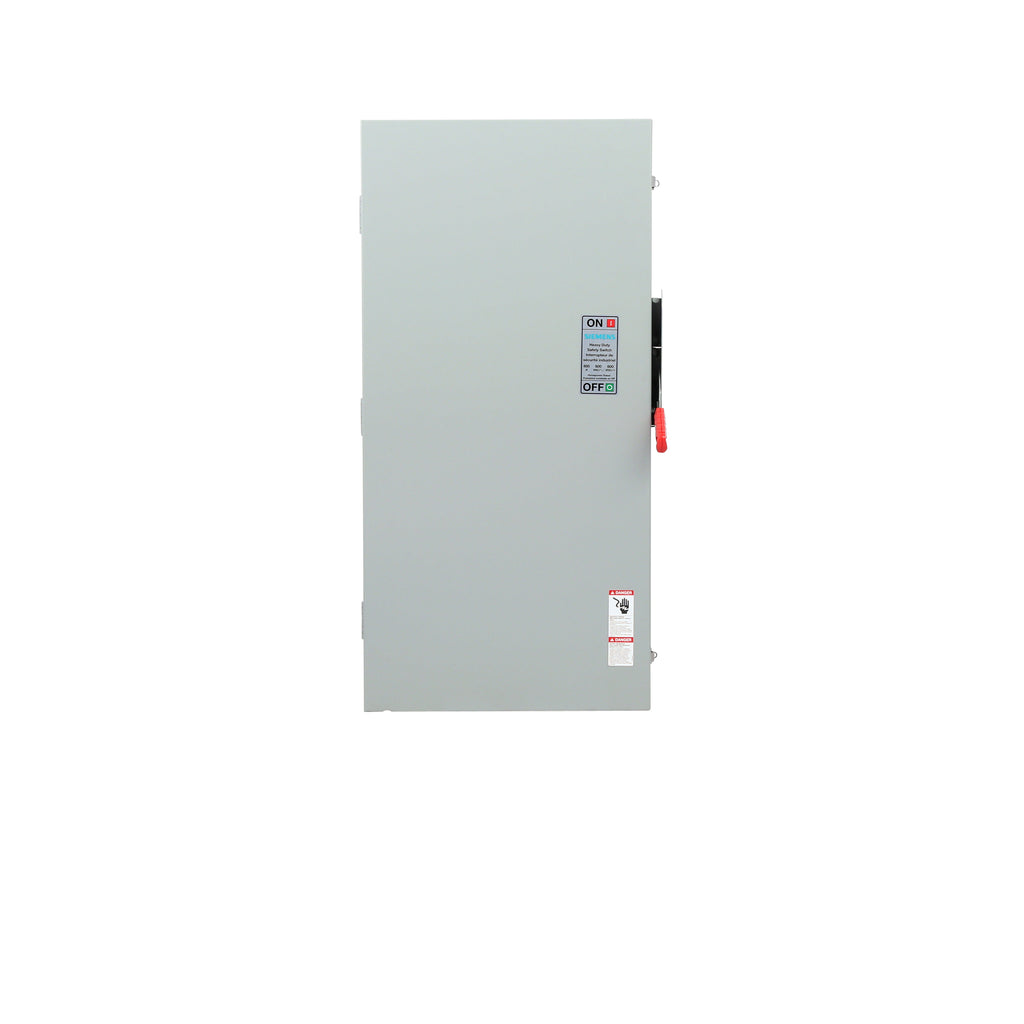

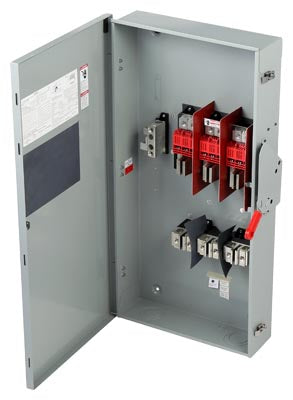

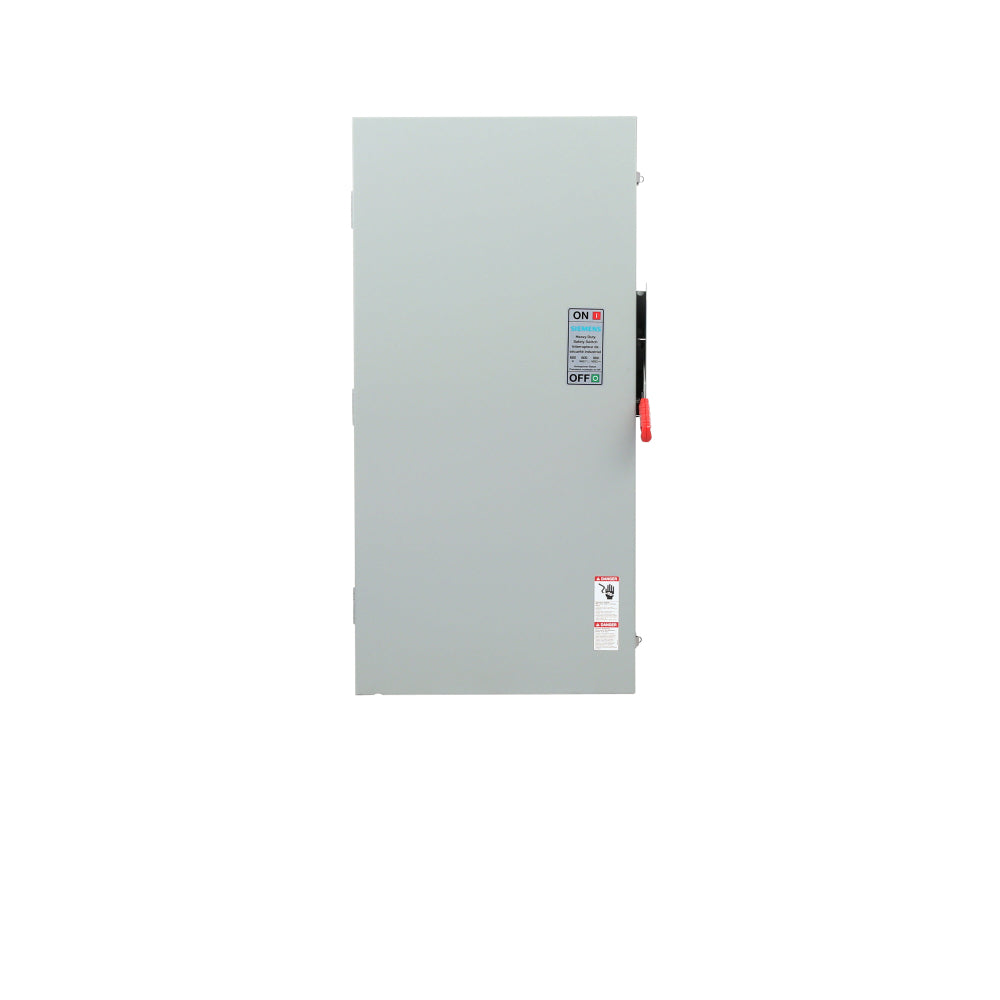

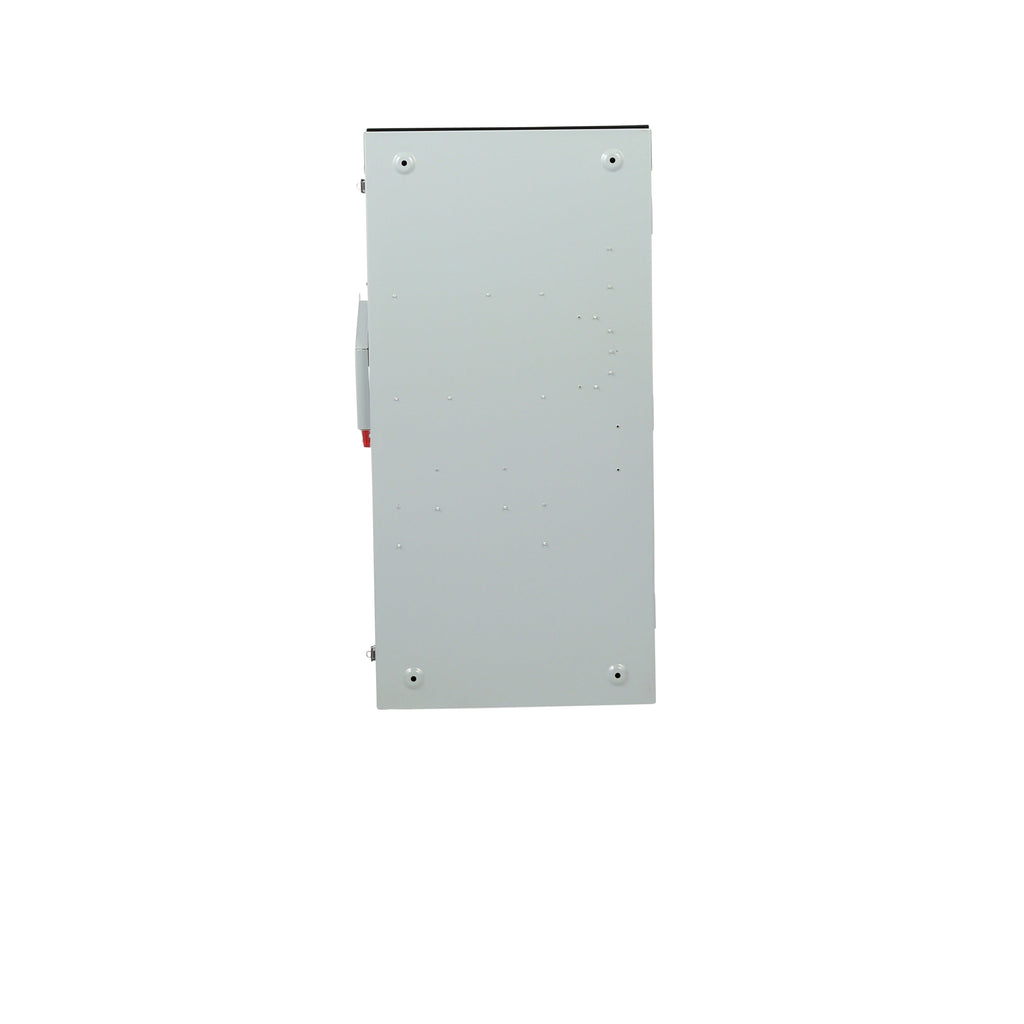

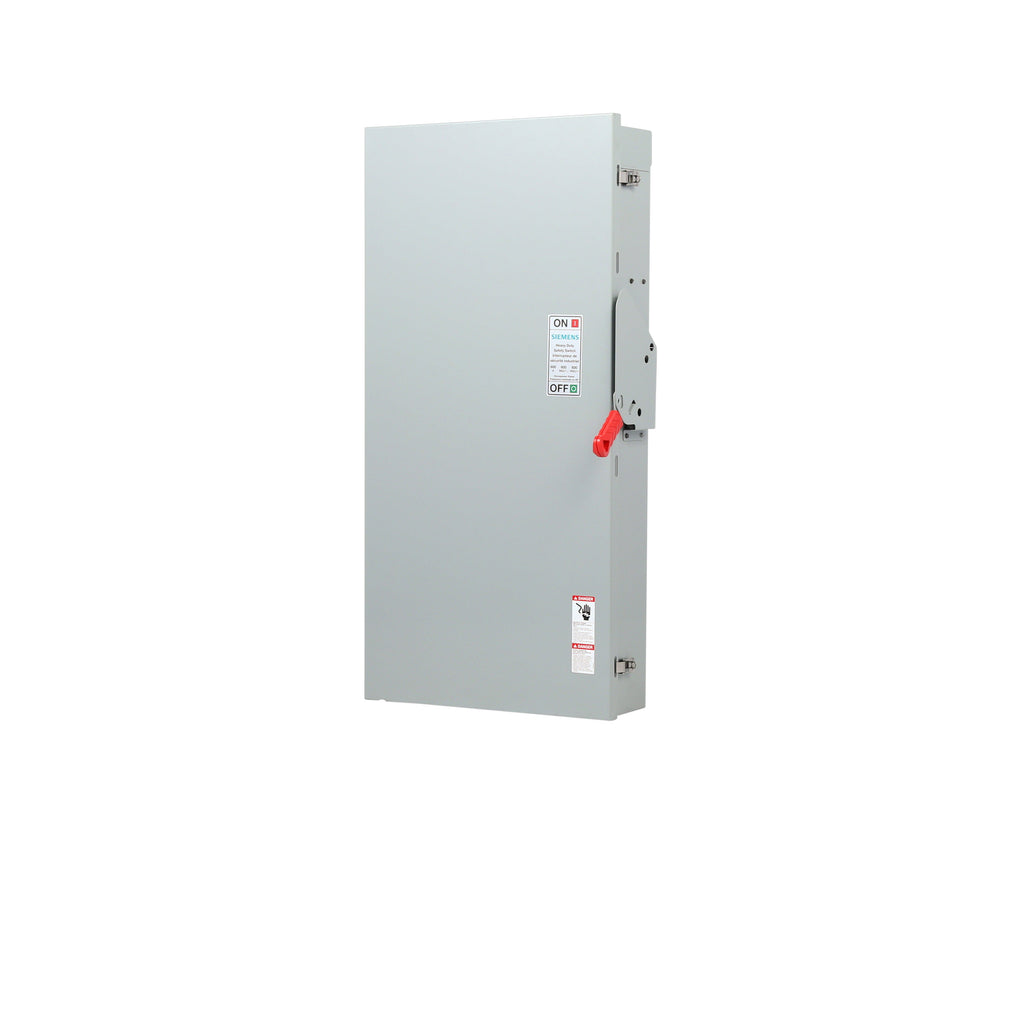

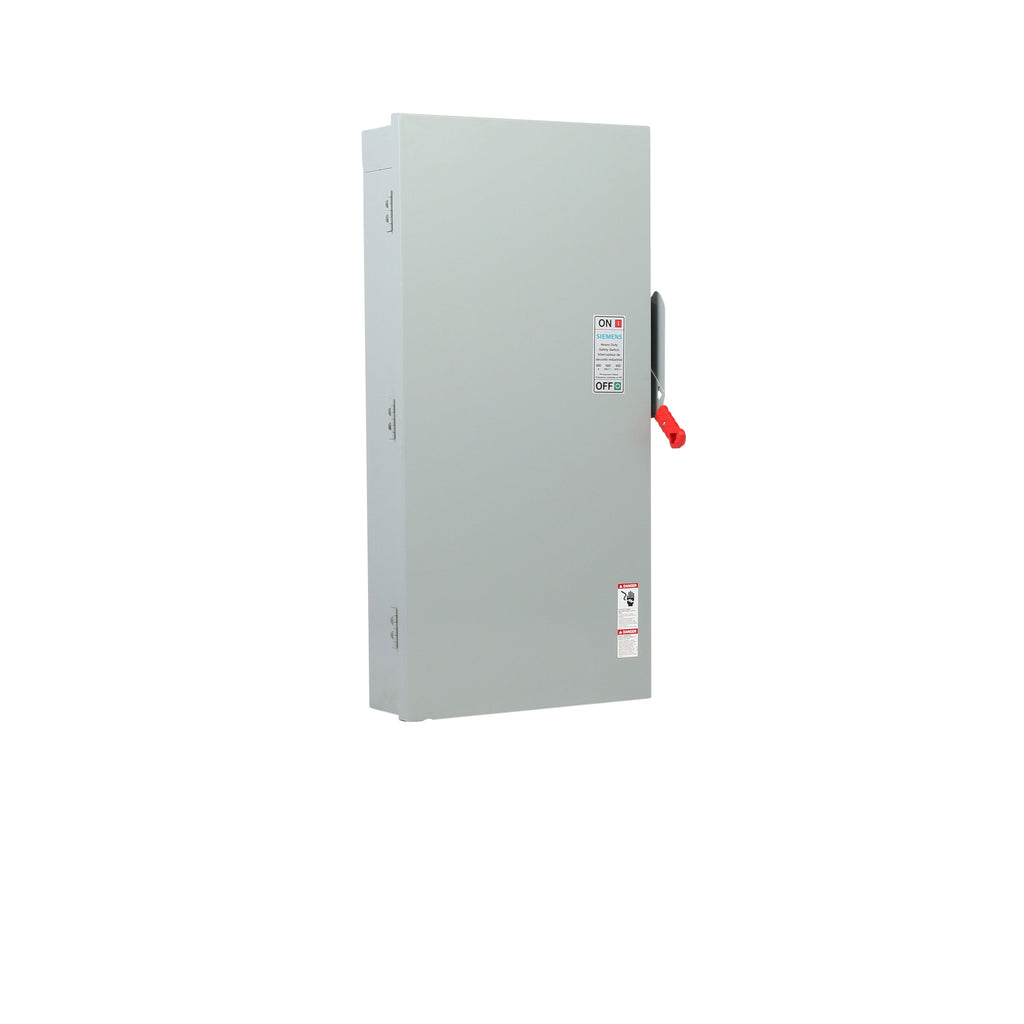

HF366NRA - Siemens Heavy Duty Fusible Safety Switch, 600A rated for 3-pole, 600VAC operation in NEMA 3R outdoor enclosure. This Siemens HF366NRA is a Type VBII heavy duty single throw fusible safety switch designed for circuit protection. It features quick-make quick-break mechanism, visible blade double break switching, arc chutes for heat dissipation, and defeatable dual cover interlock. Suitable for surface mounting with 4 wires, 3-phase, and Class R fuses.
- Part Number: HF366NRA
- Manufacturer: Siemens
- Amperage Rating: 600A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Number of Wires: 4
- Phase: 3
- Mounting Type: Surface
- Enclosure Type: NEMA 3R
- Fusibility: Fusible (Class R Fuse)
- Duty Rating: Heavy Duty
- Series: HF
Specifications
- Part Number: HF366NRA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Amperage Maximum : 600
- Amperage Minimum : 400
- Switch Type : Fusible
Product Data
- UPC : 887621872465
- GTIN : 00887621872465
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 99.803 lb
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
