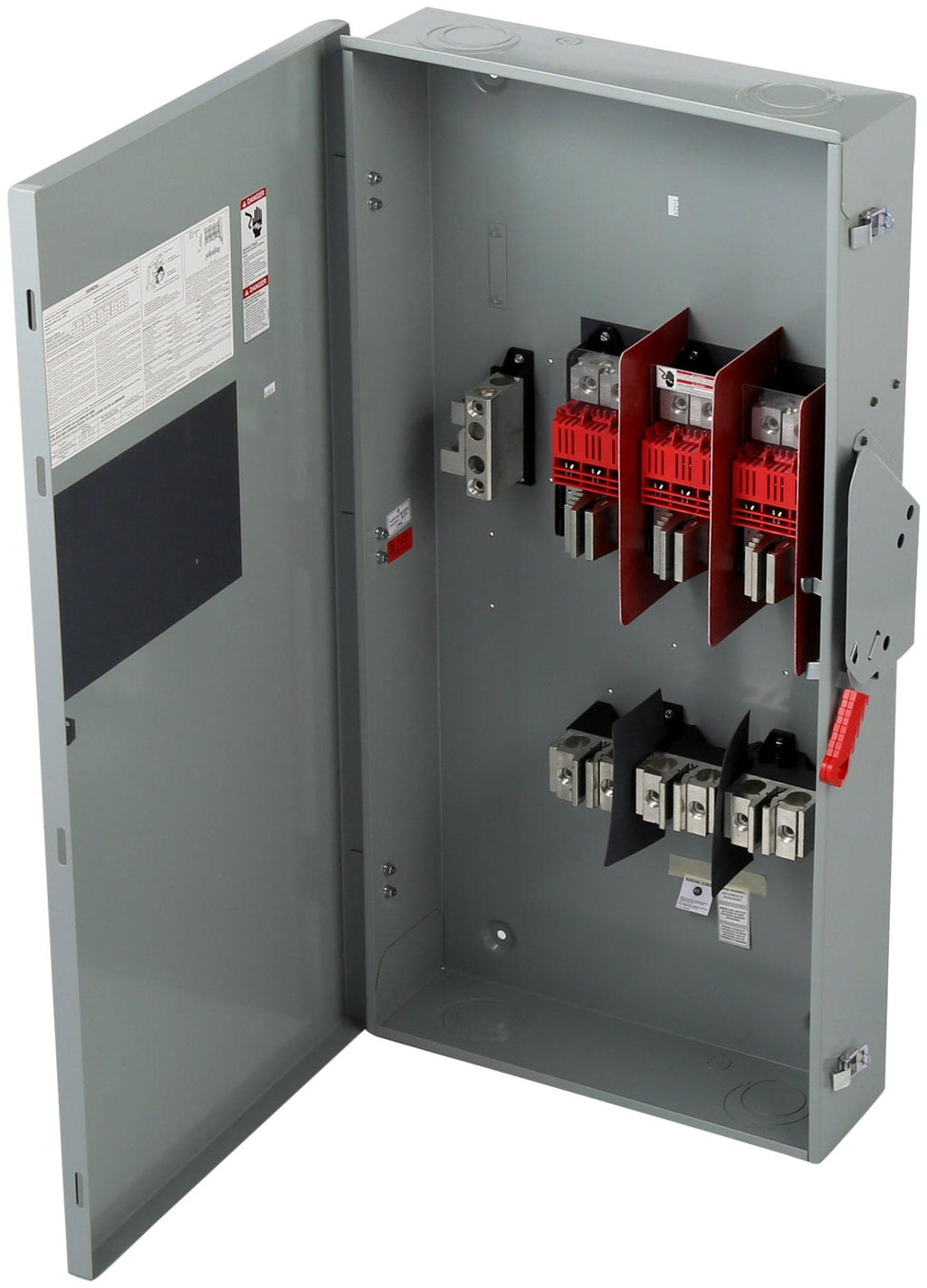

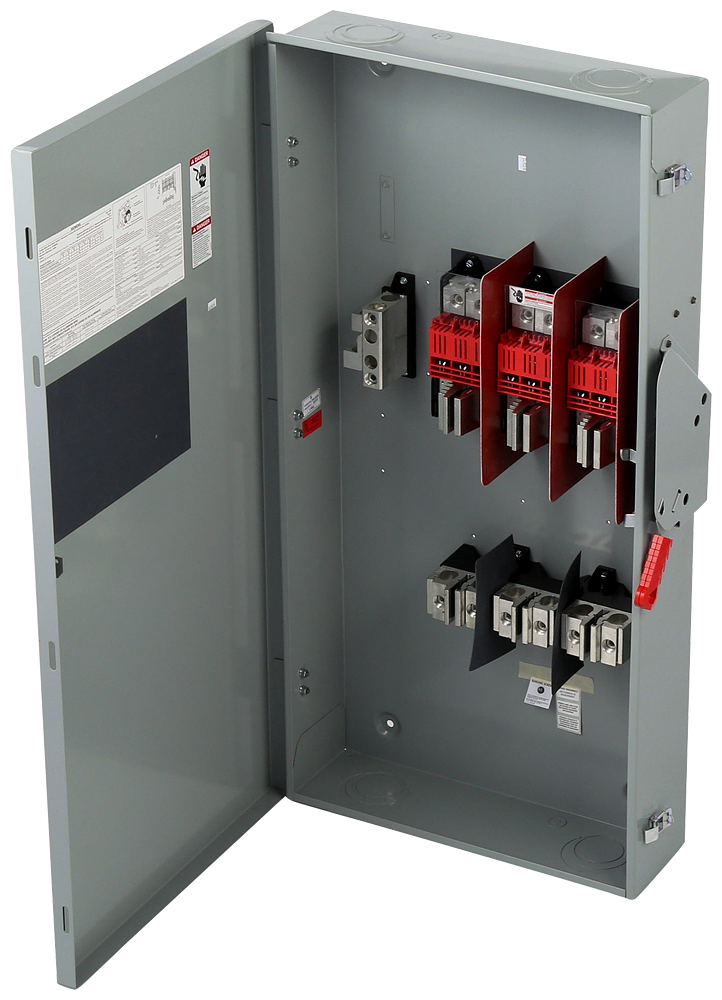

HF366NA - Siemens 600A 600V 3-Pole Fused Heavy Duty Safety Switch Indoor Type 1

HF366NA

HF366NA is a Siemens 600A 600V 3-pole fused heavy duty safety switch designed for indoor use in a Type 1 enclosure.

This safety switch features a 3-pole, 4-wire configuration with a solid neutral and is rated for 600VAC and 600 amps. It includes a visible blade design with quick-make and break switching action, modular construction for easy part replacement, and a defeatable dual cover interlock. The switch meets UL and CSA certifications and complies with NEMA KS-1 standards. It supports Class H, R, T, or J fuses with interrupt ratings up to 200,000 AIC, suitable for service entrance equipment.

Key Specifications
• Amperage: 600 Amps
• Voltage: 600 VAC
• Poles: 3 Pole, 4 Wire
• Mounting Type: Surface Mount
• Interrupt Rating: Up to 200,000 AIC with Class R, T, or J fuses
• Enclosure Type: Indoor Type 1
• Fuse Type: Fused with Class H, R, T, or J fuses
• Certifications: UL Listed, CSA Listed
• Standards: NEMA KS-1, NEC compliant
• Features: Visible blade, quick-make/break, modular design, defeatable dual cover interlock

Specifications

• Part Number: HF366NA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 887621872632
• GTIN : 00887621872632
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 45.276 inch
• Weight : 99.803 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
