Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF365SA

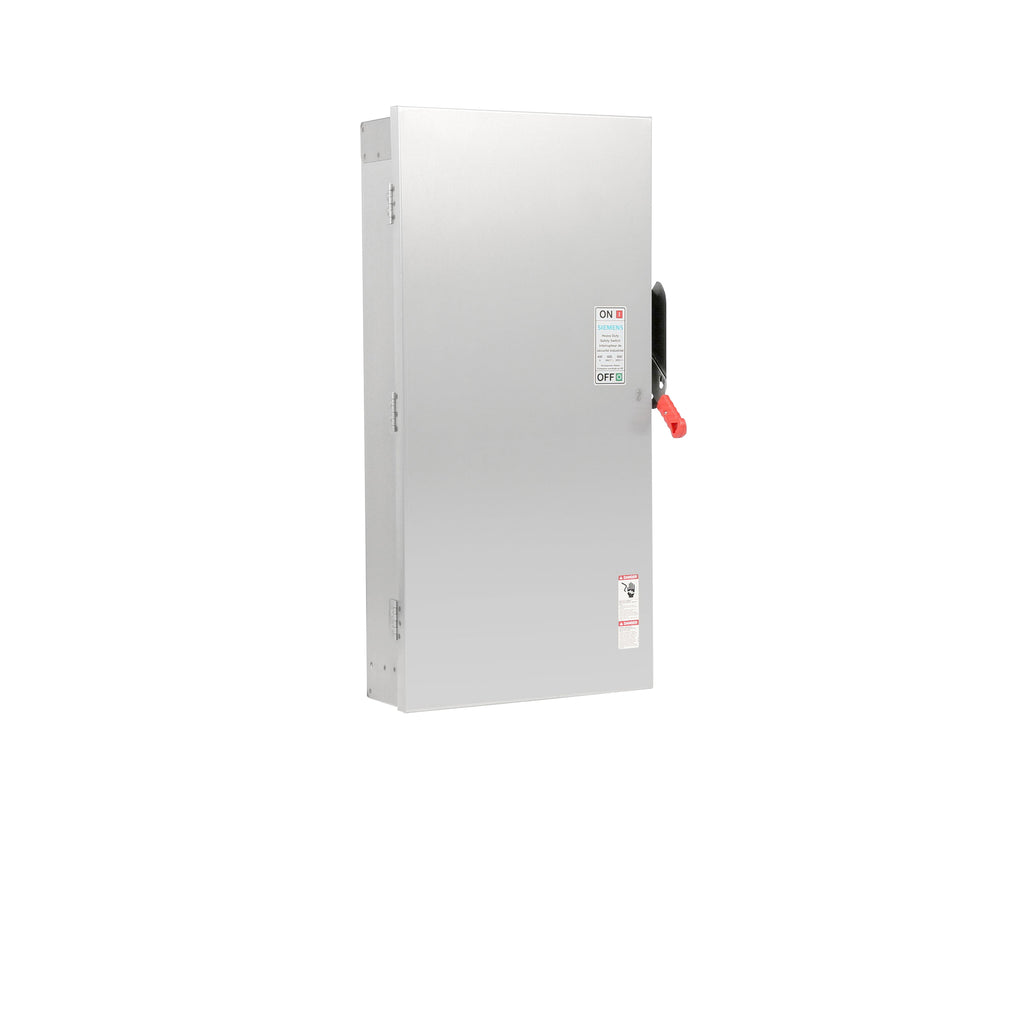

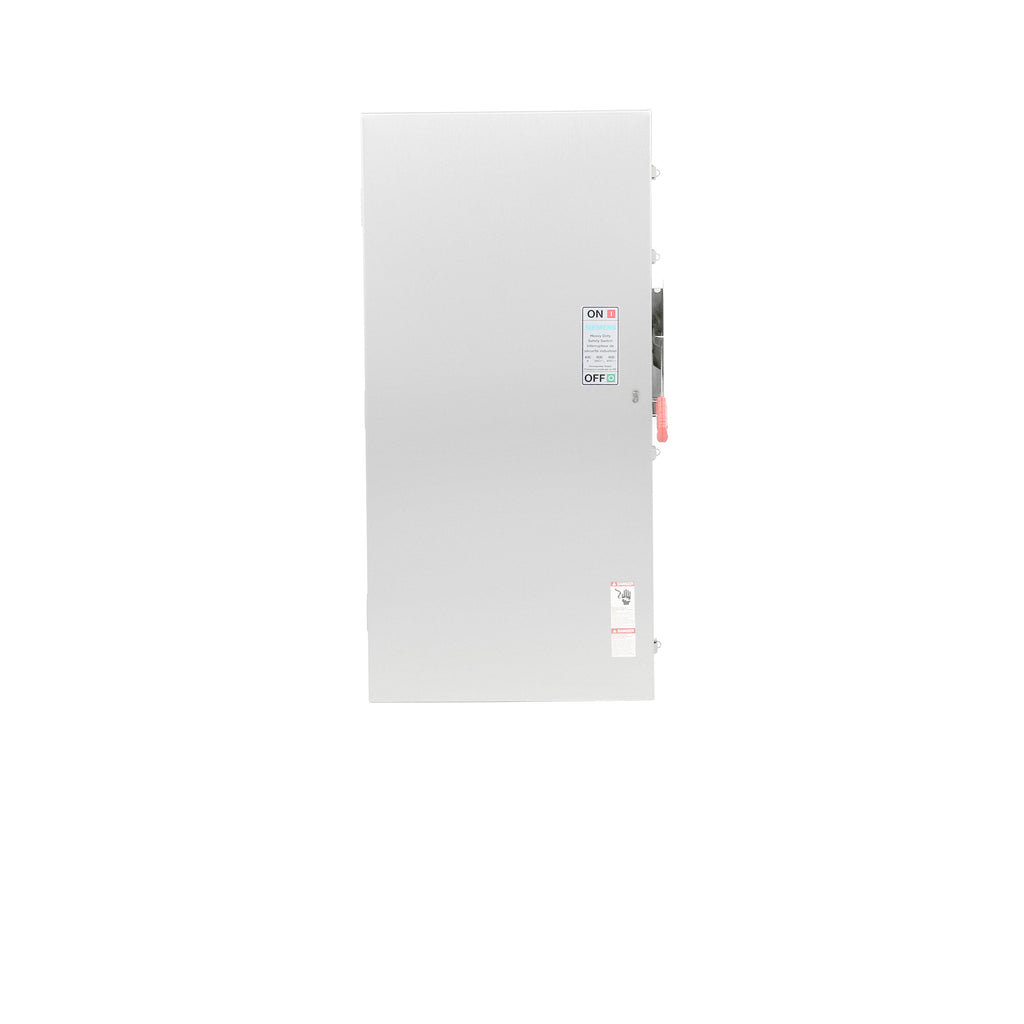

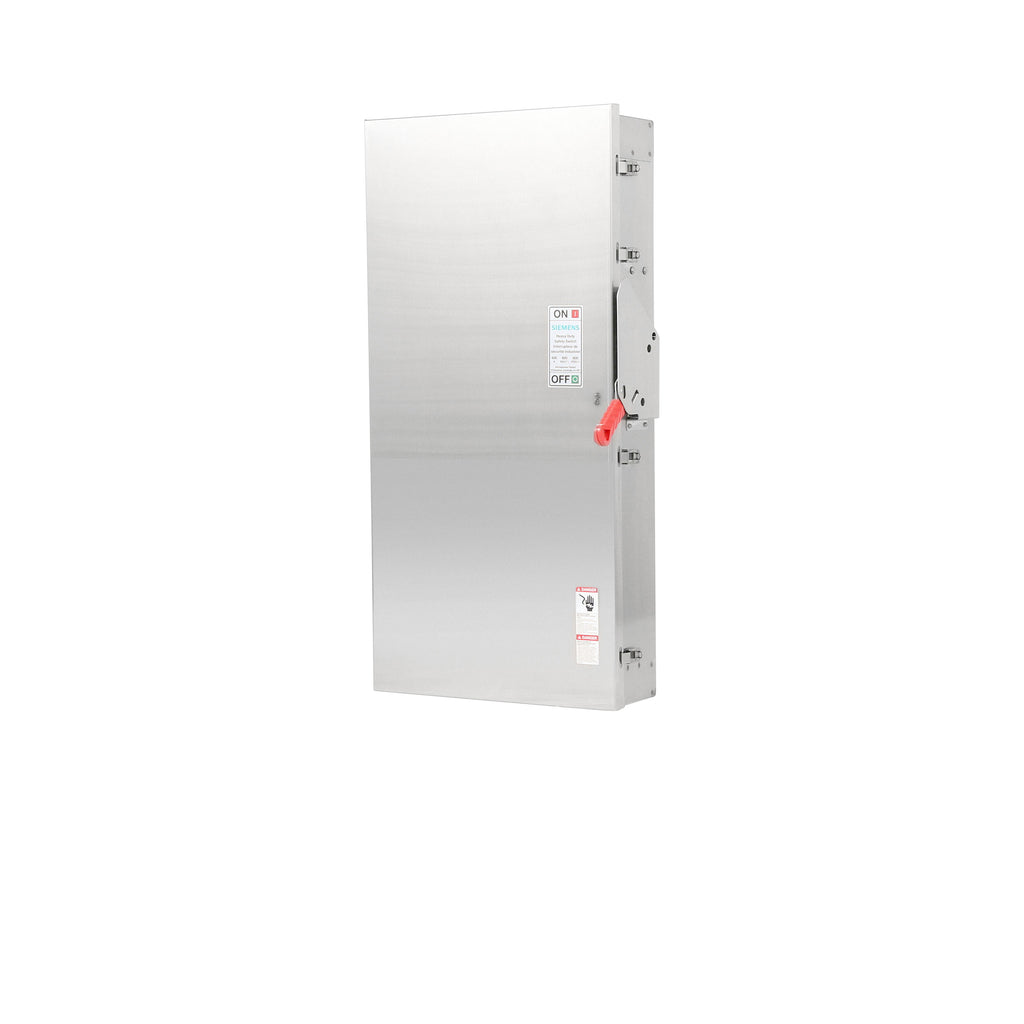

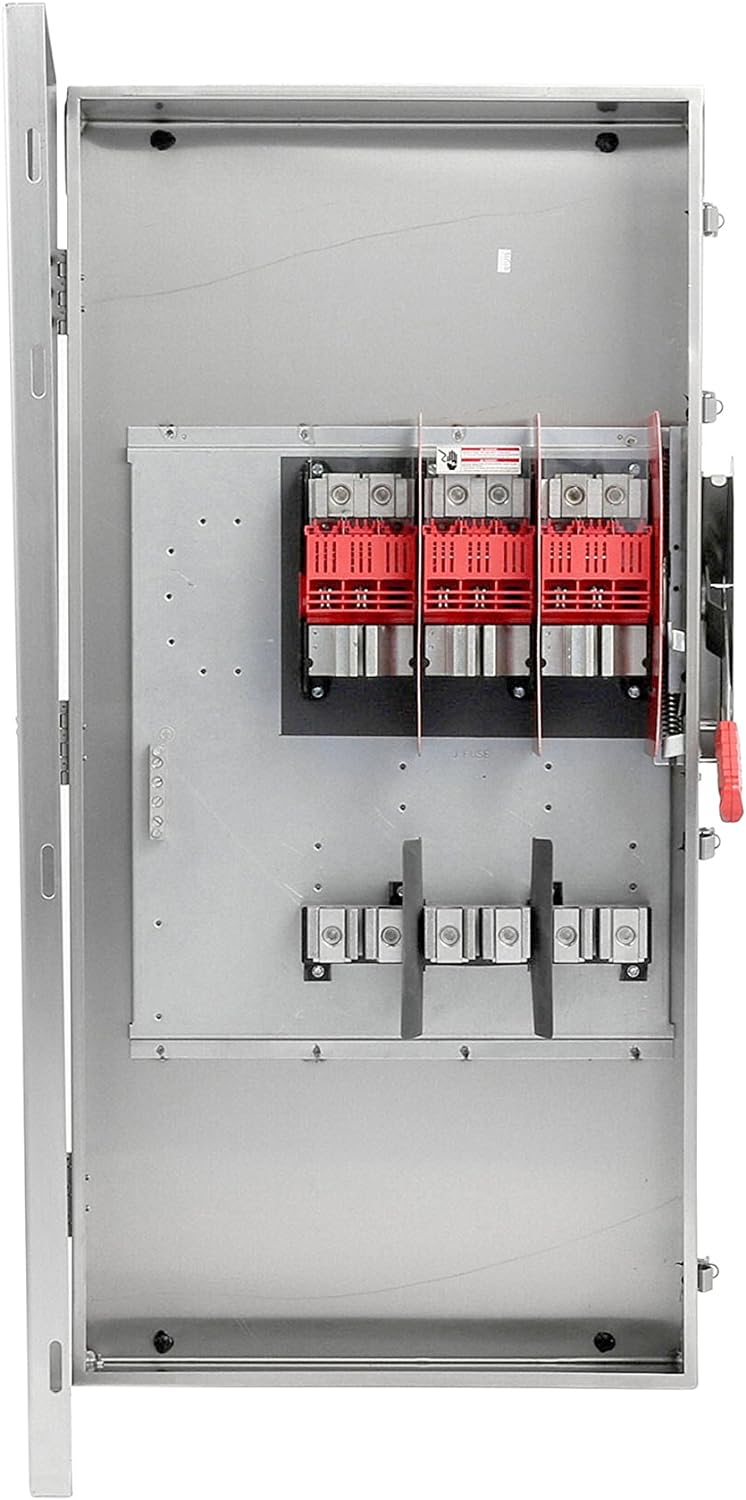

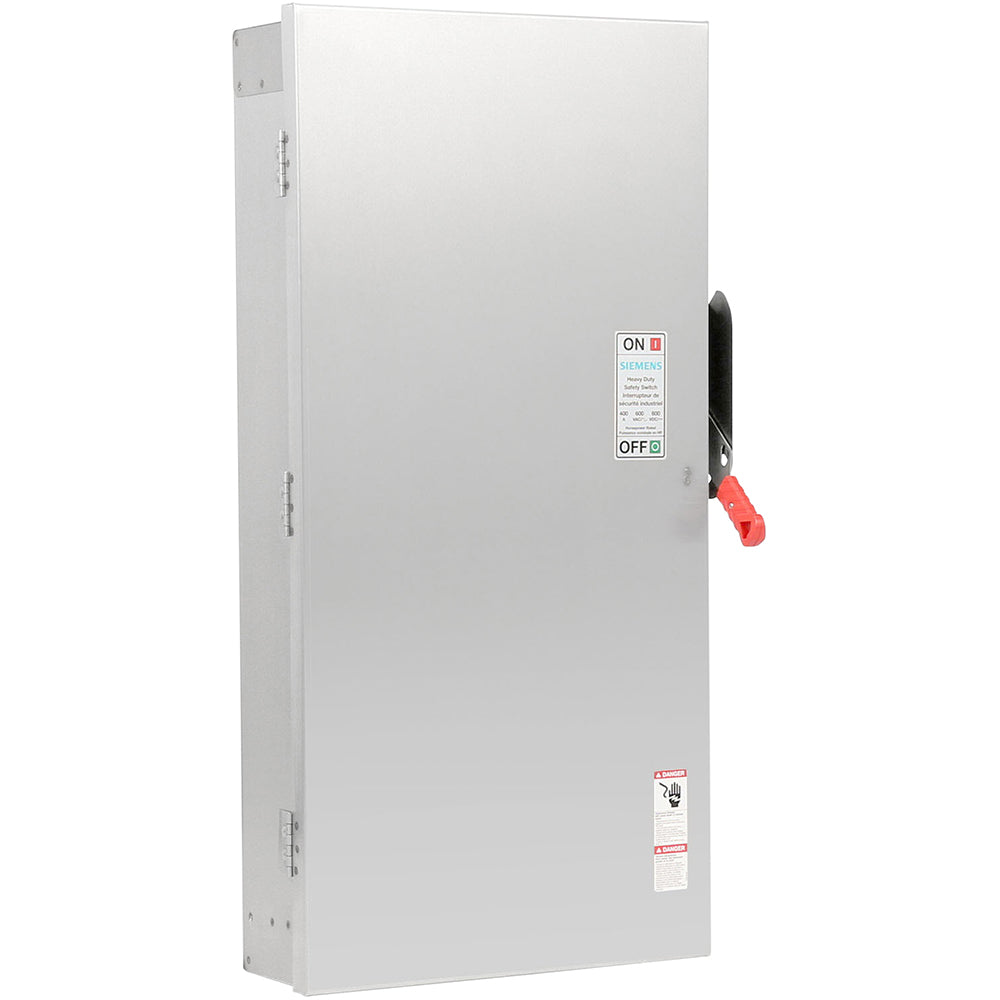

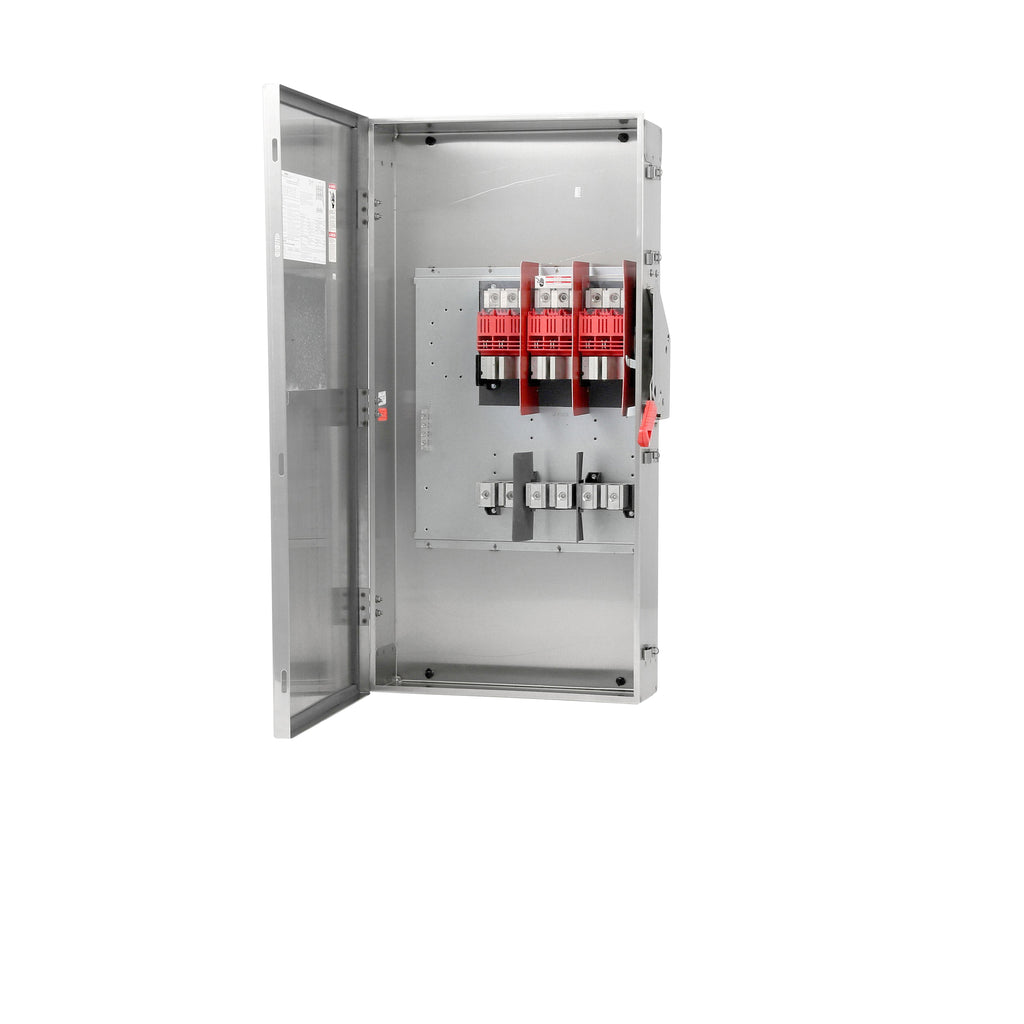

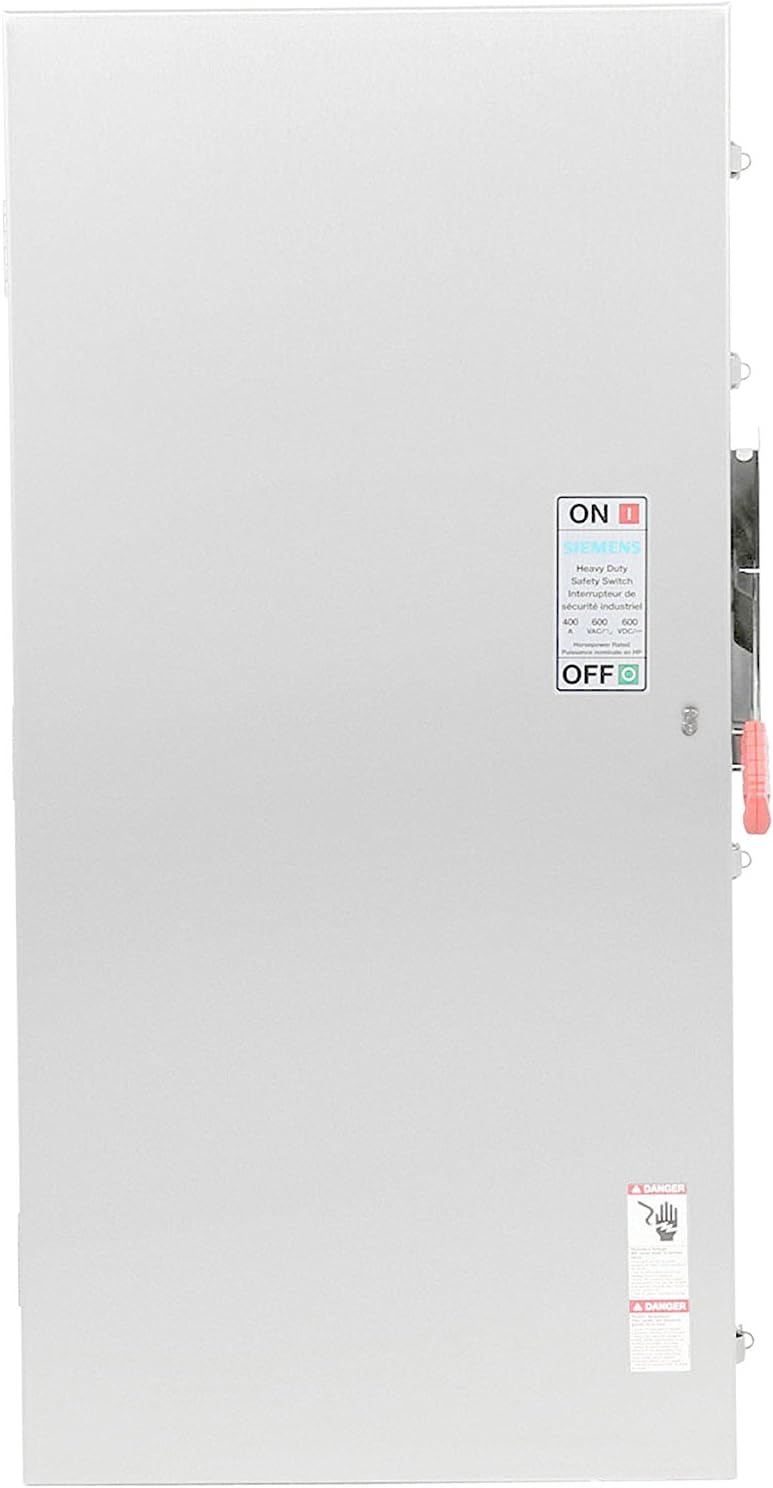

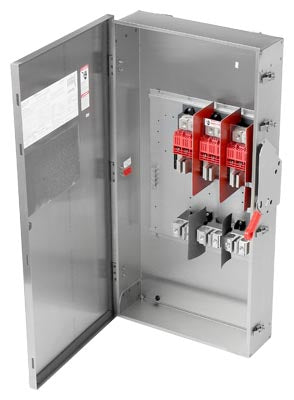

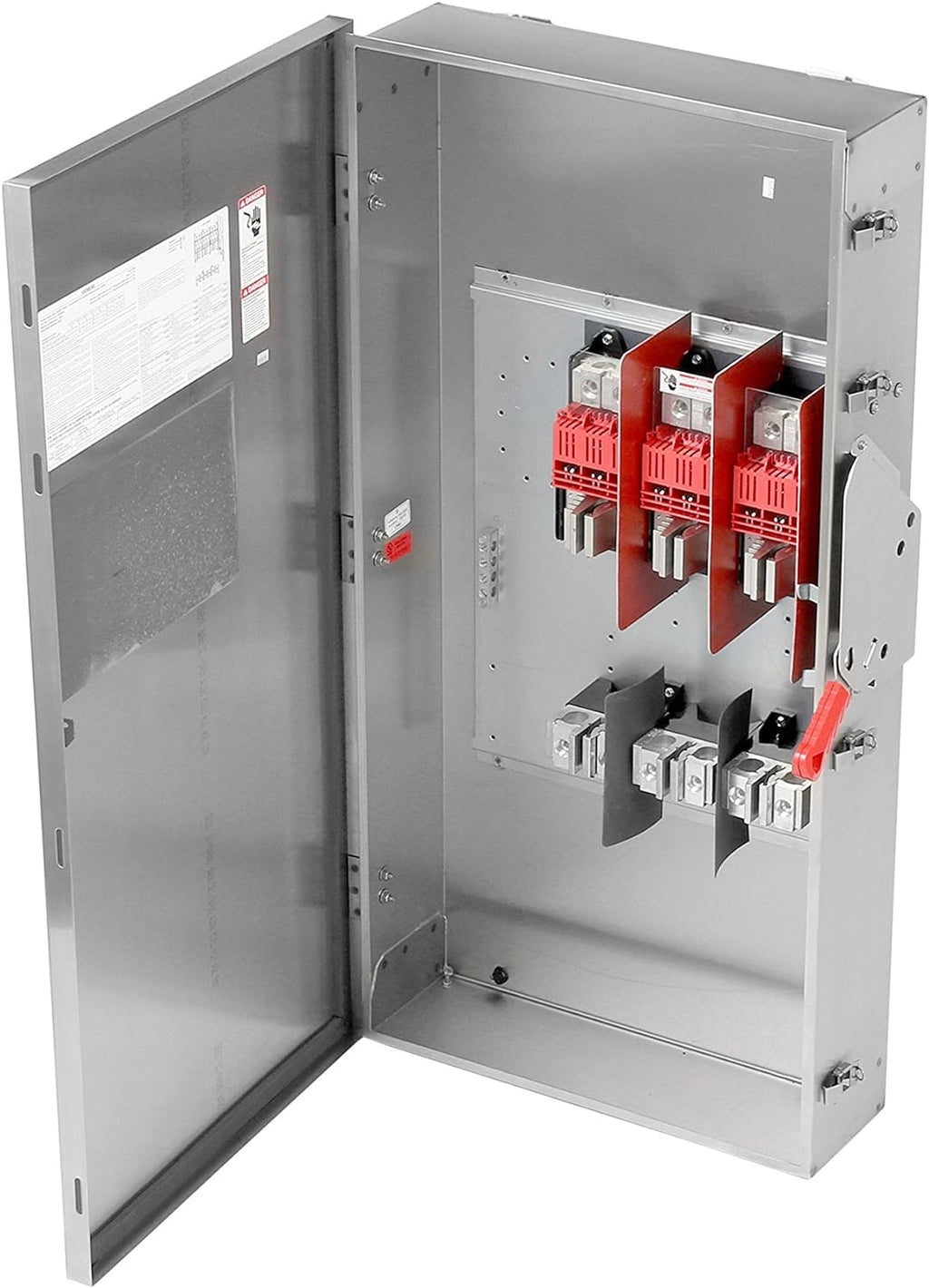

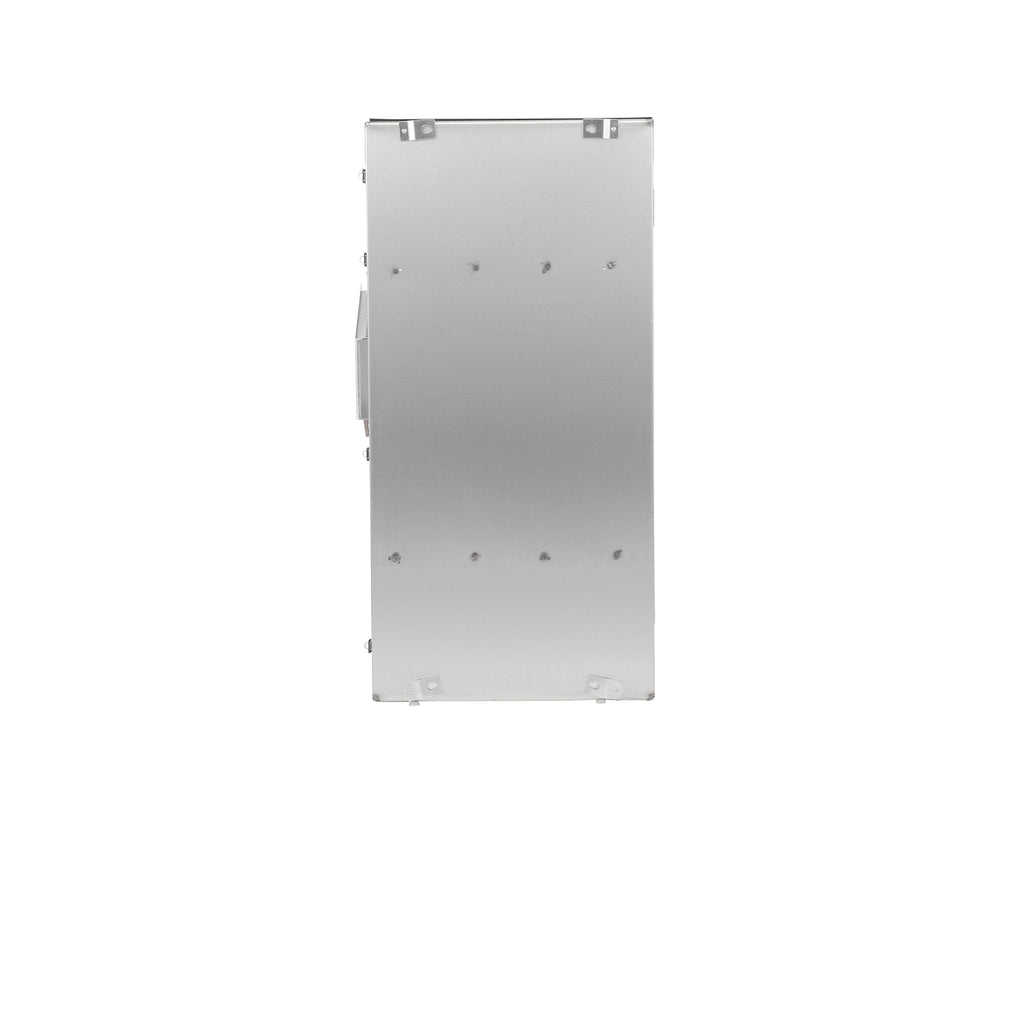

HF365SA is a Siemens 400 Amp, 600 VAC, 3-pole fusible heavy duty safety switch with NEMA 4X enclosure and surface mounting.This Siemens HF365SA switch features a Type VBII fusible design, 3-pole configuration, 200 kA interrupt rating, and is constructed with 304 stainless steel for durability. It supports 125 hp motor rating at 60 Hz frequency, includes lug-type terminals, and operates reliably in temperatures from -29 to 85 degrees Celsius.
- Key Specifications
- Amperage: 400 A
- Voltage: 600 VAC
- Poles: 3
- Interrupt Rating: 200 kA
- Enclosure: NEMA 4X
- Mounting Type: Surface mount
- Material: 304 Stainless Steel
- Contact Form: 3PST (3-pole single throw)
- Horsepower Rating: 125 hp
- Frequency: 60 Hz
- Terminal Type: Lug
- Operating Temperature: -29 to 85 ÁC
Specifications
- Part Number: HF365SA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
- Switch Type : Fusible
Product Data
- UPC : 887621872731
- GTIN : 00887621872731
- Country of Origin : Mexico
- Dimensions : 7.087 x 22.047 x 45.276 inch
- Weight : 99.803 lb
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
